Allen-Bradley PowerFlex drives are the most widely deployed variable frequency drives in North American manufacturing. They control motor speed in packaging lines, conveyors, pumps, fans, compressors, and machine tools across every industry. When one fails, production stops. New drive prices range from $400 to $15,000+ depending on model and power rating — so repair is almost always the smarter call.

At Flexa Systems, we repair Allen-Bradley PowerFlex variable frequency drives VFD at component level across the full product range — PowerFlex 4, 40, 400, 520, 525, 70, 753, and 755. We identify the actual failed component, replace it with a high quality industrial-grade equivalent, test the drive under full load, and return it with a 2-year warranty. No guesswork. No unnecessary replacements.

Looking for the service itself? See our PowerFlex repair service — free diagnostic, 2-year warranty.

PowerFlex Series Covered

Allen-Bradley has produced several generations of PowerFlex drives, each built for different applications and power ranges. Here is a quick overview of the series we see most in our workshop:

PowerFlex 4 / 40 — Entry-Level AC Drives

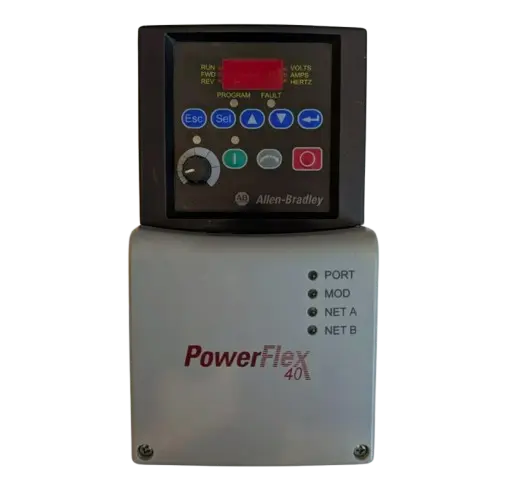

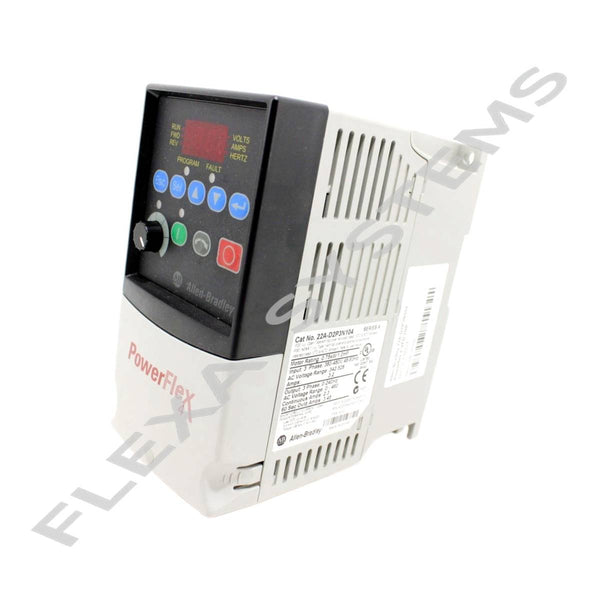

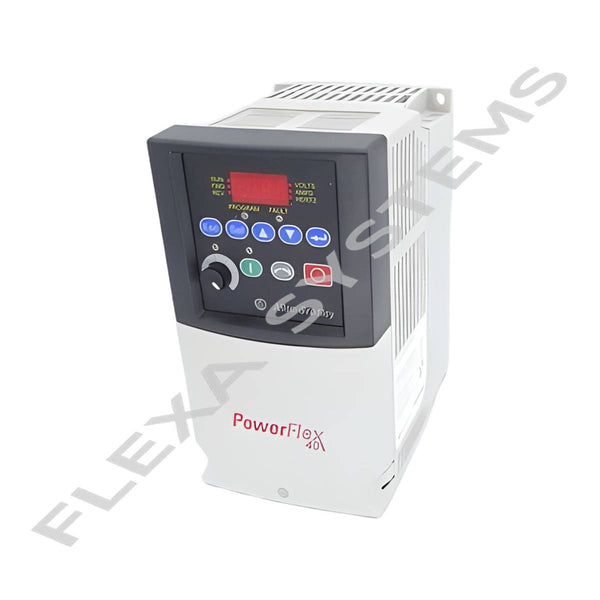

The PowerFlex 4 and 40 are compact, panel-mount drives built for simple speed controls applications — conveyors, pumps, fans, and small machinery. The PowerFlex 4 covers 0.2–11 kW (0.25–15 HP). The 40 extends to 22 kW (30 HP) with more I/O and communication options.

These are some of the most common drives we repair. Many installations are 15+ years old. Demanding duty cycles and minimal maintenance lead to frequent component failures. The good news: they are repairable, and the repair cost is well below replacement price.

PowerFlex 400 — Fan and Pump Drive

The PowerFlex 400 is purpose-built for HVAC, fan, and pump applications — featuring built-in PI control, flying start, and sleep/wake functionality. Power range: 0.75–132 kW (1–200 HP). It is common in building automation, water treatment, and industrial HVAC power systems. Many installations are now 10–15 years old and entering the failure zone for capacitors and IGBT modules.

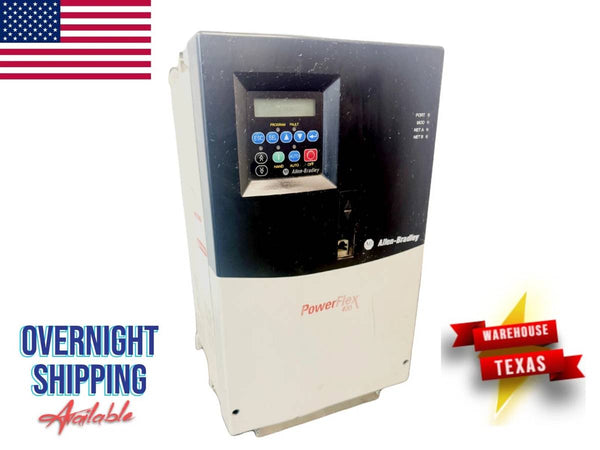

22C-D045A103 — PowerFlex 400, 480V, 22 kW / 30 HP

PowerFlex 520 / 525 — Current Generation Mid-Range

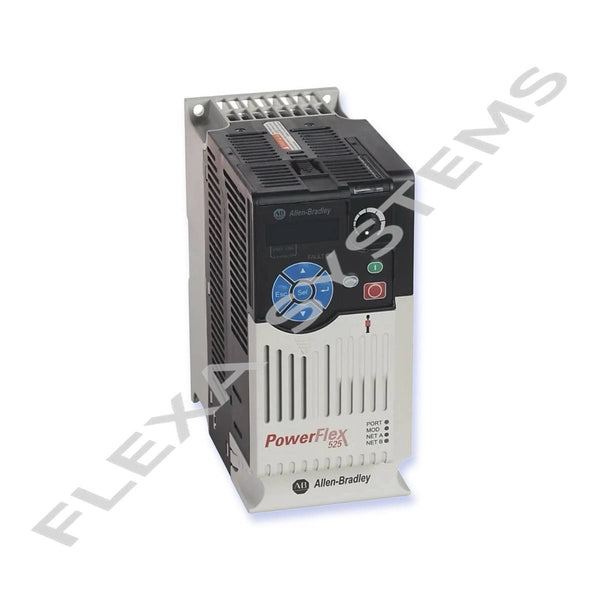

The PowerFlex 520 series (520, 523, 525, 527) is Allen-Bradley's current mid-range lineup, covering 0.4–22 kW (0.5–30 HP). The 525 is the most popular variant — featuring EtherNet/IP, safe torque-off (STO), and a removable HIM (Human Interface Module). The 527 adds full CIP Motion for coordinated motion control.

The 525 is a newer product, but we still see failures from power source issues, IGBT faults, and STO circuit problems — especially in high-cycle or harsh environments.

PowerFlex 70 — Mid-Range with Full Feedback

The PowerFlex 70 covers 0.37–90 kW (0.5–125 HP). It supports encoder feedback, dynamic braking, and a wide range of communication options. Many PowerFlex 70 units are now in their second decade of service. Component aging failures are common at this stage.

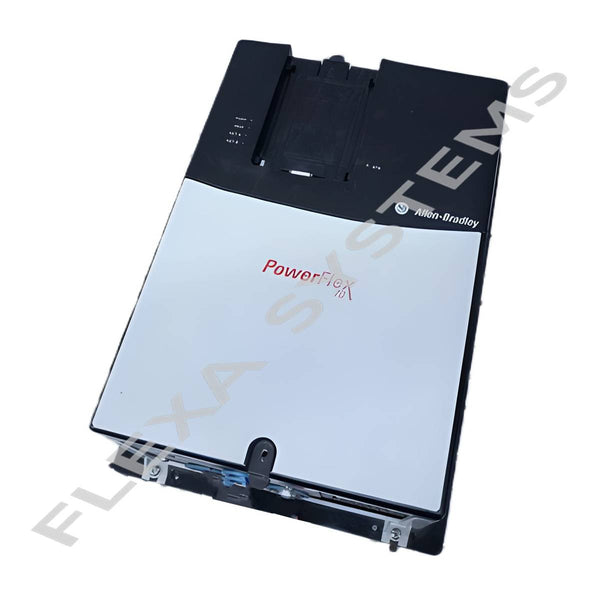

20AD022F3AYNAEC1 — PowerFlex 70, 480V, 11 kW / 15 HP

PowerFlex 753 / 755 — High-Performance Drives

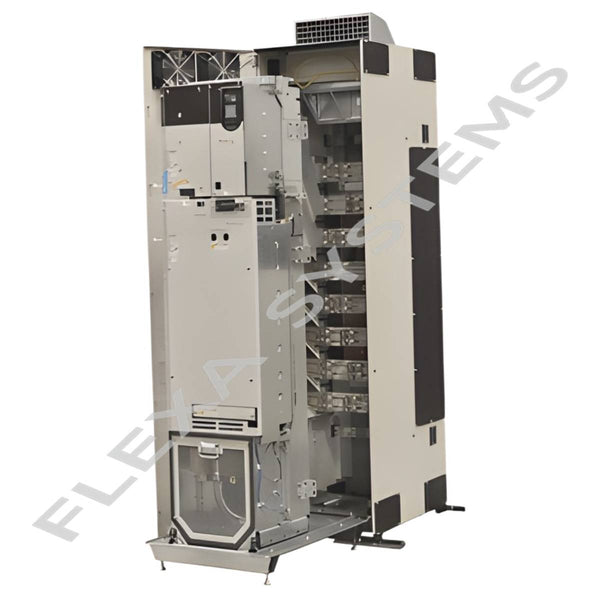

The PowerFlex 750 series is Allen-Bradley's high performance AC drive platform. The 753 handles general-purpose applications up to 1400 kW (1800 HP). The 755 adds closed-loop vector control and integrated safety for servo-quality output from an AC motor. Most customers prefer repair over replacement — these drives cost a lot new.

Why PowerFlex Drives Fail — The Most Common Faults We See

Variable frequency drives are complex solid state power conversion devices working in demanding environments. Heat, vibration, electric power quality, and duty cycle all take their toll. Here is what we diagnose most often across the PowerFlex range:

1. Capacitor Aging (All Series)

This is the most common cause of PowerFlex failures — and the most preventable. The DC bus capacitors in a VFD have a finite lifespan, typically 7–12 years depending on temperature and load. As they age, capacitance drops and equivalent series resistance (ESR) rises. The drive then shows symptoms: longer charge times, DC bus faults, random shutdowns under load, or faults immediately after a speed increase.

Drives that sit idle for a long time (seasonal equipment, backup drives) can have capacitors that degrade further. On first power-up, the drive may appear completely dead.

What we do: ESR and capacitance measurement of every capacitor on the board. All out-of-spec capacitors are replaced with 105°C-rated industrial equivalents. We reform idle drives slowly on a variable voltage controller before applying full power.

2. IGBT / Power Module Failure

The IGBT modules are the core of the drive's power conversion — they switch hundreds of volts at high frequency to synthesize the AC output. IGBT failure is often obvious: blown fuses, a burnt smell, sometimes visible damage. Causes include:

Motor cable faults: Output short circuit and ground faults create sudden overcurrent that destroys IGBTs immediately
DC bus high voltage: Return energy during fast speed reduction without braking resistors pushes bus voltage into the IGBT breakdown range
Thermal stress: Clogged heat sinks, failed cooling fans, or drives running too hot degrade IGBTs over time
Voltage spikes: Electricity system disturbances — lightning, capacitor bank switching, large motor starts nearby — create transient high voltages

What we do: Full power stage teardown. We replace IGBT modules with matched industrial-grade parts. We verify the gate driver circuit and check all circuit breaker and fuse protection upstream. Root cause documented in the repair report.

3. Gate Driver / Control Board Faults

The gate driver board connects the control electronics to the IGBT modules. It converts low-voltage signals into the high-voltage gate pulses that switch the solid state IGBTs. A failed gate driver can cause the drive to produce uneven output (leading to motor vibration and overheating), trip on overcurrent faults for no clear reason, or stop running entirely.

Gate driver failures often follow an IGBT failure or result from power system noise in the control circuit. Diagnosing gate driver faults requires oscilloscope verification of all six gate drive waveforms. You need proper bench equipment for this.

4. Internal Power Supply Failure

Every PowerFlex drive has an internal switched-mode power supply (SMPS). It provides electric power to the control board, gate drivers, cooling fan, and HIM display. When this fails, the drive goes completely dead — no display, no fan, no response. Technicians often misdiagnose this as a main board failure.

The PowerFlex 40 and 400 series are especially prone to SMPS failures in high-temperature installations. The failure is almost always a failed primary-side MOSFET or a blown startup resistor.

What we do: We isolate and repair the SMPS at component level. In most cases the main control board is fine and does not need replacement.

5. Communication Adapter Faults (PowerFlex 750 Series)

The PowerFlex 753 and 755 use plug-in communication adapters (20-COMM-E for EtherNet/IP, 20-COMM-D for DeviceNet, etc.). These adapters can fail on their own. When one fails, the drive drops off the network. This triggers communication loss faults in the PLC and stops the machine.

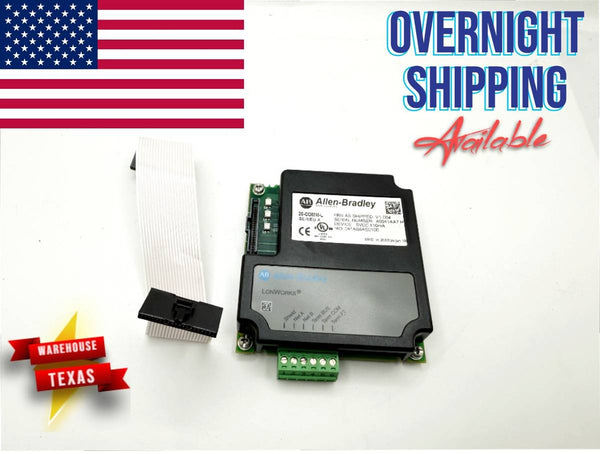

We repair and test communication adapters as standalone units. A failed 20-COMM-L adapter is far cheaper to repair than replacing the entire drive because of a network fault.

6. Cooling Fan Failure

PowerFlex drives above approximately 2.2 kW use internal cooling fans. When the fan bearing fails, airflow drops. The drive then reduces output current (thermal limiting) and eventually shuts down from overheating. The drive often runs at reduced capacity for weeks before fully failing. This creates intermittent performance issues that are hard to trace in the field — especially with motors operating under variable loads.

Symptom: Drive runs fine at startup but slows down or faults after 30–60 minutes under load. Heat sink temperature rises faster than normal. Audible change in fan noise (rattling, squealing).

PowerFlex Fault Code Quick Reference

Fault Code	Name	Most Likely Cause
F2	Auxiliary Input	External device triggered on digital input — check safety circuits and interlocks
F4	Low Voltage	DC bus below minimum — check incoming power source, fuses, and circuit breaker
F5	High Voltage	DC bus too high during speed reduction — increase ramp time or add braking resistor
F7	Motor Overload	Motor nameplate data incorrect in drive, motor bound mechanically, or failing bearings
F12	HW Overcurrent	Hardware-level overcurrent — output short circuit, ground fault, or failed IGBT. Do not reset repeatedly.
F13	Ground Fault	Leakage current to ground — check motor cable insulation and motor windings
F25	Power Loss	Incoming power interrupted during operation — check supply voltage and contactors
F29	Analog Loss	4–20 mA signal lost — check signal wiring and source device
F33	Auto Restart	Drive attempted maximum auto-restarts without success — address underlying fault first
F38	Phase U to Ground	Ground fault on output phase U — isolate motor and cable
F63	SW Overcurrent	Software-level overcurrent — verify motor parameters and load conditions
F70	Power Unit	Internal power module fault — gate driver or IGBT failure requiring bench repair
F81	Comm Loss	Network communication timeout — check adapter, cable, and PLC connection settings

When to Reset — and When to Send It for Repair

Not every fault requires professional repair. Here is how to decide:

Safe to reset and investigate yourself: F2 (auxiliary input), F4 (low voltage), F5 (high voltage on speed reduction), F7 (motor overload with incorrect parameters), F25 (momentary power loss), F29 (analog signal loss), F81 (comm loss). These are almost always external wiring or configuration issues.

Send it for repair: F12 (hardware overcurrent), F13 (ground fault that returns after cable check), F70 (power unit fault). Also send it if any fault immediately returns after reset, if the drive is completely dead (no display, no fan), or if any fault comes with a burning smell, visible damage, or blown fuses. Repeatedly resetting F12 without diagnosis is the fastest way to turn a repairable drive into scrap.

Repair vs. Replace: The Numbers

A new Allen-Bradley PowerFlex drive costs anywhere from $400 (PowerFlex 4, small HP) to $15,000+ (PowerFlex 755, high HP). Add distributor lead time — typically 2–8 weeks for standard stock, longer for large frames or custom configurations.

Component-level repair at Flexa Systems typically runs 20–35% of the new drive price, with a 5–10 business day turnaround. For urgent situations, our rush service delivers 48–72 hour turnaround. We return your drive with a 2-year warranty — and since it is the same unit, all parameter settings stay intact. No setup. No reprogramming.

How a PowerFlex Drive Is Diagnosed

Every PowerFlex drive we receive goes through the same systematic process — the same one we apply to every VFD, servo drive, PLC, HMI, and industrial circuit board in our workshop:

Incoming inspection: Visual check for burn marks, corrosion, swollen capacitors, and mechanical damage. We photograph the unit and record all customer-reported faults.
Controlled power-up: Current-limited bench power supply. We measure all internal voltage rails before applying full power — preventing secondary damage to partially-failed units.
Component-level diagnostics: ESR and capacitance on all capacitors, thermal imaging of the power stage, oscilloscope analysis of gate drive waveforms, IGBT in-circuit testing.
Root cause identification: We find not just what failed, but why — undersized braking resistor, poor motor cable shielding, incorrect speed reduction ramp, debris buildup — and we document it so the failure does not repeat.
Component replacement: High quality industrial-grade parts only. 105°C-rated capacitors, matched IGBT modules, OEM-equivalent gate drivers — sourced from franchised distributors.
Full load testing: Repaired drive tested under motor load on our test bench. We verify real time that all fault codes are clear, output waveforms are symmetric, and thermal performance is correct.
24-hour burn-in: Drive runs non-stop in our test environment before shipping back. We monitor all key parameters throughout.
2-year warranty: Same fault returning within 24 months? We fix it at no charge.

What Else Fails Alongside the Drive

A failed VFD rarely tells the whole story. Sometimes the drive failed due to a problem upstream (poor electric power quality, failed line reactor) or downstream (motor insulation breakdown, mechanical fault in the load). We repair the full automation chain:

PLC repair: ControlLogix 1756-L72, 1756-L81E, CompactLogix, MicroLogix — board-level repair across all Allen-Bradley controllers
Servo drive repair: Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 5700
HMI repair: PanelView, PanelView Plus — touchscreen, backlight, and board repair
Industrial circuit board repair: Control boards, driver boards, power boards — component level, all manufacturers

Parts and Compatible Units in Stock

If you need a spare unit while yours is being repaired — or if repair is not possible — we keep tested Allen-Bradley VFD stock ready to ship:

Frequently Asked Questions

My PowerFlex 525 shows F12 Hardware Overcurrent immediately on startup — is it repairable?

In most cases, yes. F12 on startup usually points to a failed IGBT module or gate driver. If the drive was not exposed to prolonged short circuit current (i.e., no repeated resets), damage stays in the power stage and the control board remains intact. We see this specific scenario regularly and successfully repair the majority of them.

My PowerFlex 40 is completely dead — no display, no response at all. Is it worth sending in?

Yes. A completely dead PowerFlex 40 is most often an internal power supply failure, not a dead main board. This is a component-level fix — typically one of the least expensive repairs we do. Do not scrap a drive just because it has no display.

Can you repair large-frame PowerFlex 755 drives?

Yes. We repair PowerFlex 755 drives across all frame sizes, including high-horsepower units. Large-frame drives are our most cost-effective repairs — a 200–400 HP unit that would cost $10,000–$15,000+ to replace can often be repaired for a fraction of that. Send us the catalog number and fault description for a quote.

Will my parameters be preserved after repair?

Yes. We only do a factory reset if the fault requires it (e.g., corrupted parameter memory). Your drive returns with its parameters intact. If a reset is needed, we notify you in advance so you can prepare a backup.

How long does a PowerFlex repair take?

Standard turnaround is 5–30 business days from receipt. For urgent production situations, our rush service provides 48–72 hour turnaround. We send a diagnostic confirmation and firm timeline within 24 hours of receiving the unit.

Next Step: Get the Drive Evaluated

Whether it is a small PowerFlex 4 on a conveyor or a large-frame PowerFlex 755 on a critical line, we repair it at component level with a warranty and a fast turnaround.

Request a repair quote — give us the catalog number, the fault code, and your urgency. We respond within 4 business hours.

You can also browse our full repair services or contact us directly to speak with a repair engineer before sending anything.
