Allen-Bradley 22B-V5P0N104

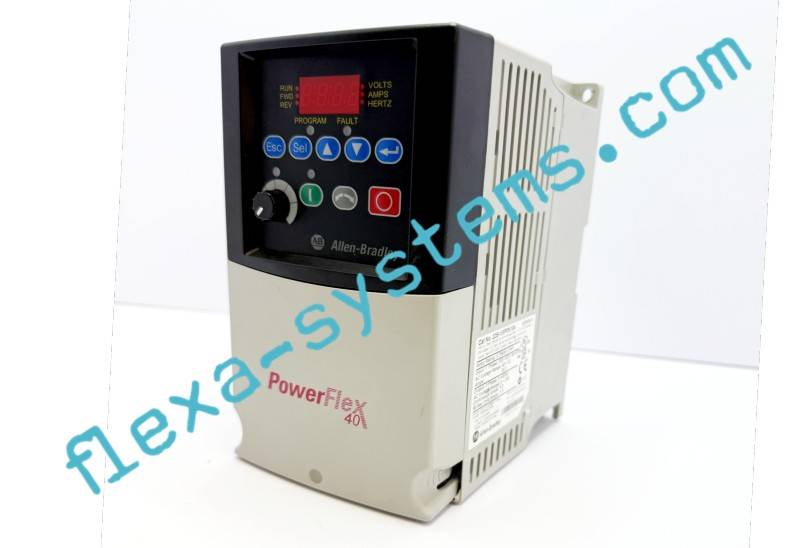

ALLEN BRADLEY engineered the 22B-V5P0N104 as a compact, single-phase input variable frequency drive within the PowerFlex 40 series, purpose-built for controlling three-phase AC induction motors at a rated output of 0.75 kW (1 HP). The PowerFlex 40 line occupies a well-defined position in Allen-Bradley's drive portfolio — sitting above the entry-level PowerFlex 4 and below the more feature-dense PowerFlex 400 — targeting applications where cost efficiency and space economy matter without sacrificing programmability. The ALLEN BRADLEY 22B-V5P0N104 accepts 120–240V single-phase input and delivers a three-phase output, a configuration especially practical in facilities where three-phase service is unavailable at the point of installation. Output current is rated at 5.0 amps, accommodating the torque and speed demands of small conveyor systems, pumps, fans, and similar motor-driven loads. Onboard, the drive includes an integral keypad for parameter entry, digital and analog I/O, and a built-in EMC filter suited to typical plant environments. Frame size A keeps the unit's footprint minimal, making panel integration straightforward even in crowded enclosures.

ALLEN BRADLEY's engineering decisions on the 22B-V5P0N104 reflect deliberate tradeoffs that distinguish it from adjacent catalog entries in the PowerFlex 40 family. Unlike the 22B-D1P4N104, which is configured for 480V three-phase input, the 22B-V5P0N104's single-phase 120–240V input topology broadens its installation scope to light industrial and commercial buildings without dedicated three-phase utility feeds. The drive ships with embedded PID functionality, permitting closed-loop process control without an external controller for simpler applications. When tighter automation integration is required, the 22B-V5P0N104 accepts optional communications modules — including DSI-to-EtherNet/IP and DeviceNet adapters — enabling coordination with Allen-Bradley PLCs such as the MicroLogix 1100 and CompactLogix L-series. Parameter management is handled natively through Allen-Bradley's Connected Components Workbench software, while drives configured with the 22-HIM-C2S remote HIM can be tuned without opening the enclosure door. Industries that commonly deploy this particular drive configuration include food and beverage packaging lines, HVAC fan control in commercial buildings, small-scale textile machinery, and pharmaceutical conveyor indexing — wherever fractional-to-1-HP motor control is needed without full DIN-rail PLC infrastructure. Facilities managers sourcing replacement drives can cross-reference the all VFD units we repair catalog to confirm compatible PowerFlex 40 alternatives.

In typical industrial environments, the 22B-V5P0N104 performs reliably across years of continuous cycling, though specific failure modes emerge with predictable frequency in this drive class. Electrolytic DC bus capacitors are the most statistically common wear item — their capacitance degrades gradually under thermal cycling, eventually producing DC bus undervoltage faults or erratic output voltage. The onboard IGBT power module is vulnerable in installations with high ambient temperatures or inadequate enclosure ventilation, manifesting as overcurrent (F002) or heatsink overtemperature (F011) fault codes. Fan-cooled variants in dusty environments — such as grain handling or woodworking facilities — experience accelerated heatsink fouling that accelerates thermal faults. Control board corrosion is observed in coastal or chemical-processing installations where humidity or airborne contaminants infiltrate the enclosure. Facilities sourcing a 22B-V5P0N104 replacement after drive failure should verify that the substitute carries the same catalog suffix to ensure identical I/O count and input voltage configuration. Buyers looking for a 22B-V5P0N104 for sale with verified specifications can review available stock alongside VFD repair services and ALLEN BRADLEY VFD repair options for cost-effective alternatives to new-unit purchase, including 22B-V5P0N104 refurbished stock. 22B-V5P0N104 repair, refurbished exchange, and new-unit sourcing are available through Flexa Systems (Lewisville, TX) with a 2-year warranty on all repaired units.
