Allen-Bradley 1756-L72

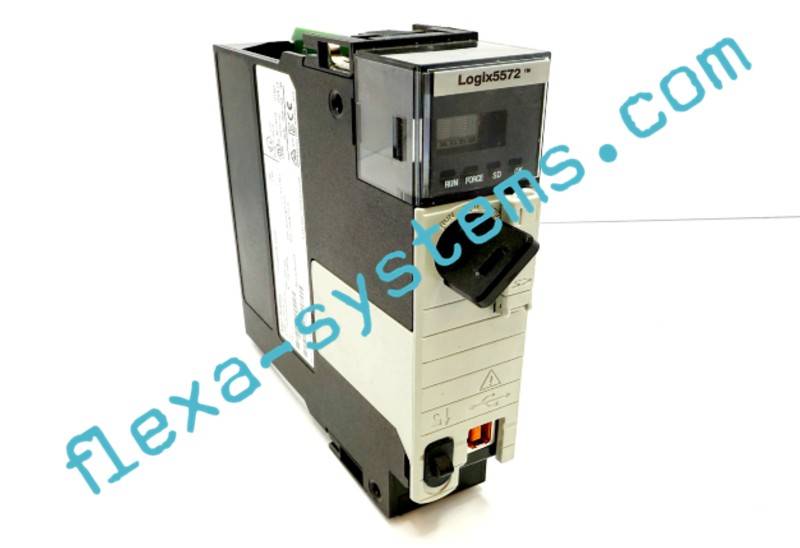

1756-L72 units are deployed across industrial automation as a high-capacity programmable logic controller within Allen Bradley's ControlLogix 5570 series, representing one of the more memory-dense configurations in the platform. The ALLEN BRADLEY 1756-L72 carries 4 MB of user memory, positioning it above mid-range siblings like the 1756-L71 while sitting below the 1756-L73 in the ControlLogix hierarchy. As a ControlLogix processor, this unit manages complex multidisciplinary control tasks — discrete, motion, process, and safety — within a single chassis-based architecture. The processor executes ladder logic, function block, structured text, and sequential function chart programs under IEC 61131-3 standards. Its onboard memory capacity makes it well-suited for applications requiring extensive tag databases, large motion axis counts, or deeply nested program routines. The 1756-L72 communicates over the backplane with I/O modules, communication bridges, and motion modules housed in the same 1756 chassis, forming a tightly coordinated control node.

Operating specifications place the 1756-L72 at a 4 MB user memory ceiling with support for up to 250 Logix tasks, 1000 programs per task, and 32 MB of I/O data. The unit runs at a 1.83 ns instruction execution rate, which allows dense logic to execute within sub-millisecond scan times when programs are structured efficiently. Unlike the lower-memory 1756-L71, the ALLEN BRADLEY 1756-L72 accommodates larger motion control configurations — commonly used when coordinating 10 or more servo axes simultaneously — without the overhead constraints that compress available memory on smaller processors. The controller integrates natively with EtherNet/IP, ControlNet, and DeviceNet communication modules seated in the same 1756 chassis, and is programmed through Allen-Bradley's Studio 5000 Logix Designer environment. These characteristics make it a common choice across automotive body welding lines, oil and gas compressor control panels, pharmaceutical batch processing skids, and semiconductor wafer handling equipment. Facilities managing multiple 1756-L72 units alongside other PLC units in our catalog often standardize on this memory tier to maintain program portability across similar platforms. ALLEN BRADLEY PLC repair history on this model reflects consistent field use in high-cycle-count environments.

Long-term deployment of the 1756-L72 typically spans 10 to 15 years in production environments, though battery-backed memory retention and capacitor degradation on the logic board are the most common age-related failure points on this processor family. The onboard lithium battery maintains program memory during power loss; a failed or missing battery results in complete program loss on power cycle, which is among the most operationally disruptive failure modes for this unit. Firmware corruption and backplane communication faults are also documented failure patterns, particularly in high-vibration or thermally variable enclosures. Facilities sourcing a 1756-L72 replacement should verify firmware revision compatibility with existing Studio 5000 project files, as major revision mismatches require project migration before commissioning. Buyers evaluating a 1756-L72 for sale through surplus channels should confirm the battery date code, inspect the capacitor array, and validate the unit against a known-good chassis before installation. Our industrial PLC repair services cover diagnostics and component-level restoration for this processor, and 1756-L72 repair is supported with full bench testing against Allen-Bradley specifications. Stocking a 1756-L72 refurbished unit as a spare is a common practice in facilities where this processor controls critical or single-point-of-failure processes.
