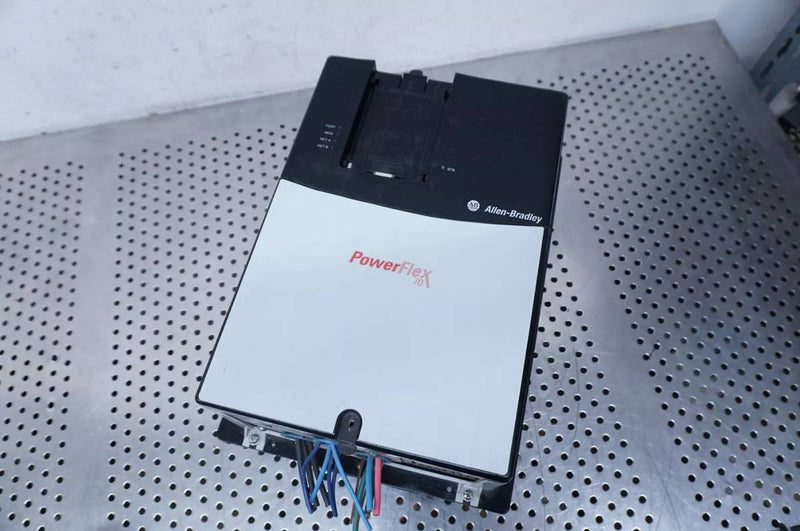

Allen-Bradley 20AD022F3AYNAEC1

The 20AD022F3AYNAEC1 is a 22-amp, 480V AC, three-phase variable frequency drive belonging to Allen-Bradley's PowerFlex 70 series — a mid-range VFD platform engineered for general-purpose motor speed and torque control across industrial machinery. Rated at approximately 15 horsepower at 480V, this particular variant ships with the Enhanced Control board, denoted by the 'EC1' suffix, which expands its onboard I/O capacity and enables more sophisticated closed-loop feedback configurations compared to standard-control counterparts. The ALLEN BRADLEY 20AD022F3AYNAEC1 operates in a chassis-mount (open-type) enclosure, making it suitable for integration into existing control cabinets where the installer supplies external environmental protection. Its core function is adjustable-frequency AC motor control — modulating output voltage and frequency to regulate motor speed, reduce mechanical stress during starting, and improve overall energy efficiency in motor-driven systems. The drive accepts 20–27.2A input current and delivers 22A continuous output, with a built-in brake transistor circuit that accommodates dynamic braking resistor connections for applications requiring controlled deceleration.

Distinguishing the 20AD022F3AYNAEC1 from sibling models within the PowerFlex 70 lineup, the Enhanced Control variant provides four additional analog I/O points and expanded PLC-style logic blocks not present on the standard-control (AYN) builds at this amperage rating. This makes the drive well-suited to applications where the host controller offloads minor sequencing tasks to the drive itself, reducing scan-time demands on the upstream PLC. The ALLEN BRADLEY 20AD022F3AYNAEC1 integrates natively with Allen-Bradley's ControlLogix, CompactLogix, and MicroLogix processor families via the DriveLogix option or through communication adapter cards supporting DeviceNet, EtherNet/IP, and ControlNet — giving systems integrators flexibility in network topology without requiring a separate gateway device. Programming and parameter management is handled through Allen-Bradley's DriveExecutive or Connected Components Workbench software, both of which allow drive-to-drive parameter cloning, a practical advantage when replacing units in multi-drive installations. Typical deployment environments include municipal water and wastewater pumping stations, HVAC air-handling units in commercial construction, textile winding machinery, and conveyor indexing systems in food and beverage packaging lines. Facilities standardizing on Allen-Bradley architecture frequently specify this unit when sourcing from our VFD repair catalog, particularly where the Enhanced Control feature set justifies the specification over the base model. ALLEN BRADLEY VFD repair history across the PowerFlex 70 series confirms this variant's prevalence in medium-duty continuous-duty applications.

Field service experience with the 20AD022F3AYNAEC1 shows that the most common failure modes center on the input rectifier bridge and DC bus capacitor bank, both of which degrade predictably in environments with high ambient temperature cycling or poorly filtered input power. Gate driver board failures also appear with some regularity, typically traced to sustained overcurrent faults that were not addressed promptly — a condition that accelerates thermal stress on the IGBT firing circuits. Facilities evaluating a 20AD022F3AYNAEC1 replacement should verify whether the root cause was an upstream power quality issue before reinstalling a like-for-like unit, as repetitive failures in the same position often indicate line-side disturbances rather than a drive defect. Those sourcing a 20AD022F3AYNAEC1 for sale should confirm the Enhanced Control suffix matches their existing parameter set, since swapping in a standard-control variant requires I/O rewiring and parameter rebuild. A 20AD022F3AYNAEC1 refurbished unit that has been properly recapped and load-tested can be a cost-effective path for facilities with scheduled maintenance windows, provided the refurbisher documents the work performed. Our industrial VFD repair services page outlines the testing protocol applied to drives of this class before return to service. Flexa Systems offers 20AD022F3AYNAEC1 repair, refurbished 20AD022F3AYNAEC1 units, or new 20AD022F3AYNAEC1 from Lewisville TX — repairs include a 2-year warranty.
