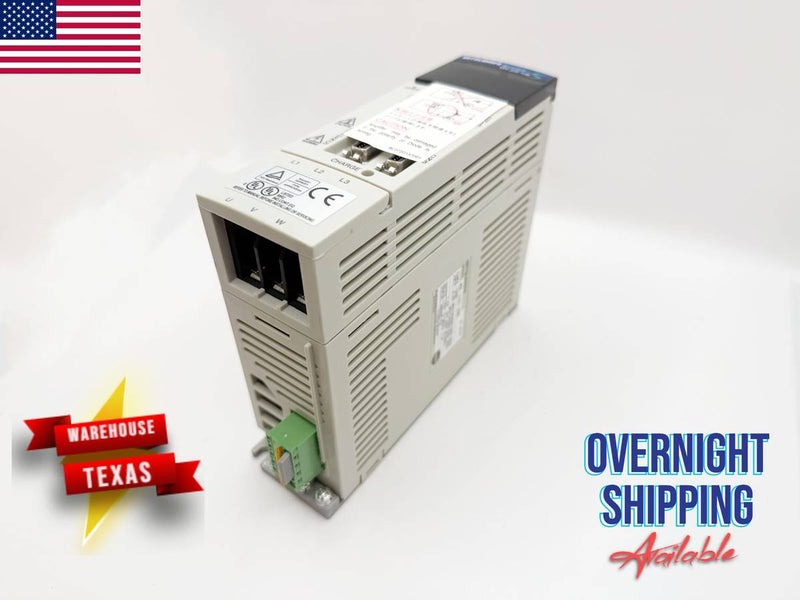

Mitsubishi MR-J2S-10B

MR-J2S-10B units are deployed across industrial automation as a compact, high-performance AC servo amplifier within Mitsubishi's MELSERVO-J2-Super series — a product line engineered for precision motion control in demanding manufacturing environments. The Mitsubishi MR-J2S-10B is rated at 100W output capacity, positioning it at the entry-level power tier of the J2S family while retaining the full feature set carried across the series. It accepts a three-phase or single-phase 200–230V AC input and delivers closed-loop servo control through an incremental encoder interface, allowing tight positional accuracy in continuous-duty cycles. The amplifier is designed to drive compatible Mitsubishi HC and HA series servo motors, coordinating torque, speed, and position through an integrated control architecture. Within the J2S lineup, the MR-J2S-10B serves applications where compact footprint and low inertia response matter more than raw power, making it a common selection for light-load axes on multi-axis machines.

Operating specifications place the MR-J2S-10B at a maximum output current sufficient to drive 100W-class servo motors with encoder feedback resolutions up to 131,072 pulses per revolution, supporting fine interpolation in coordinated motion systems. Unlike higher-wattage siblings in the J2S series, the 10B variant's smaller heat sink profile allows dense panel mounting without forced-air cooling under standard load cycles. The amplifier interfaces natively with Mitsubishi MELSEC Q-series and A-series PLCs via pulse train or analog command inputs, and it is configurable through MR Configurator software for parameter tuning, auto-tuning routines, and fault diagnostics. Communication with host controllers can be established through RS-232C serial connections for setup and monitoring tasks. Common deployment environments for the Mitsubishi MR-J2S-10B include electronic assembly lines, label-printing machinery, pharmaceutical capsule-filling equipment, and semiconductor wafer-handling gantries — all contexts requiring repeatable sub-millimeter positioning with low-mass loads. Engineers specifying motion axes for these applications will find the MR-J2S-10B represented within our all Servo units we repair catalog alongside compatible family members.

Long-term deployment of the MR-J2S-10B in continuous-production environments introduces wear patterns characteristic of compact servo amplifiers in this power class, including electrolytic capacitor degradation on the DC bus, IGBT thermal cycling fatigue, and encoder interface circuit erosion from signal-line noise over extended cable runs. Facilities sourcing an MR-J2S-10B replacement after a failure event frequently encounter lead-time constraints on new units, since the J2S series has transitioned to legacy status as Mitsubishi's J4 and J5 series have entered volume production. Buyers searching for an MR-J2S-10B for sale through distribution channels may find new stock limited, making refurbished and repaired units a practical procurement path. An MR-J2S-10B refurbished unit that has been component-level inspected and load-tested can restore axis performance without the configuration overhead of migrating to a newer drive generation. For facilities managing Mitsubishi motion systems at scale, our Mitsubishi repair program covers the J2S series alongside current-generation amplifiers. Detailed scope and turnaround information is available through our industrial Servo repair services page for teams evaluating MR-J2S-10B repair against outright replacement. Flexa Systems supports the MR-J2S-10B with three options — full repair (2-year warranty), in-stock refurbished, or new replacement — shipped from Lewisville, TX.
