Mitsubishi MR-J2S-10B1-PF090T016

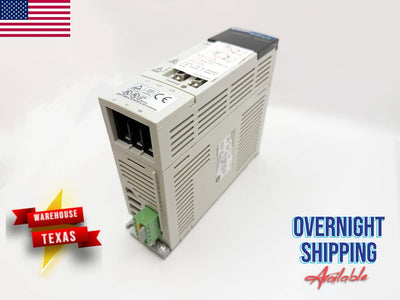

Within Mitsubishi's Servo lineup, the MR-J2S-10B1-PF090T016 functions as a compact, high-performance AC servo amplifier belonging to the MR-J2S series — a generation of drives engineered for precision motion control in demanding industrial environments. The Mitsubishi MR-J2S-10B1-PF090T016 is specifically configured as a SSCNET II bus-compatible amplifier, designed to operate within Mitsubishi's high-speed synchronous serial network architecture. Its rated output capacity falls in the sub-kilowatt range, making it well-suited for applications requiring fine positional accuracy rather than high-torque bulk actuation. The unit manages encoder feedback, current control, and velocity regulation internally, reducing the computational burden on upstream controllers. As part of the MR-J2S family, this amplifier supports absolute position detection, enabling machines to resume operation after a power cycle without requiring a full home-return sequence. The MR-J2S-10B1-PF090T016 serves as the drive-side component in a closed-loop servo system, pairing with compatible Mitsubishi servo motors to deliver precise torque and speed response across a defined operating envelope.

Integration-wise, the MR-J2S-10B1-PF090T016 communicates via the SSCNET II optical bus, which distinguishes it from analog-input siblings within the MR-J2S family that accept ±10V command signals directly. This bus-based architecture means the amplifier is not a standalone drive — it requires a compatible Mitsubishi motion controller such as the Q172D or Q173D series to issue position and velocity commands over the fiber-optic network. The SSCNET II protocol delivers synchronization across multiple axes with sub-millisecond cycle times, a characteristic that sets this variant apart from pulse-train or analog counterparts in the same product family. This makes the Mitsubishi MR-J2S-10B1-PF090T016 a natural fit for multi-axis coordinated motion platforms, including automated assembly lines in automotive body shops, pick-and-place systems in electronics SMT facilities, and precision dispensing equipment in medical device manufacturing. Configuration and tuning are handled through Mitsubishi's MR Configurator software, which provides gain adjustment, auto-tuning routines, and real-time oscilloscope functionality. Facilities managing a fleet of these amplifiers can reference our Servo repair catalog for compatible units and service options across the MR-J2S family. Mitsubishi Servo repair support extends across this series for facilities maintaining legacy SSCNET II motion systems.

Like other Servo units in heavy industrial duty, the MR-J2S-10B1-PF090T016 operates in environments that gradually stress its internal components — particularly the DC bus capacitors, gate driver circuits, and the encoder interface board. Electrolytic capacitor degradation is among the most frequently observed failure modes in this amplifier class, often manifesting as erratic velocity response or overcurrent faults before complete failure occurs. Thermal cycling in confined control cabinets accelerates solder joint fatigue on surface-mount components, and the SSCNET II optical transceiver is susceptible to contamination-related signal degradation in dusty or high-humidity installations such as food processing lines or foundry environments. Facilities sourcing a MR-J2S-10B1-PF090T016 replacement after an unexpected failure, or those looking to buy MR-J2S-10B1-PF090T016 units as on-shelf spares, should verify the hardware revision and encoder battery specification to ensure compatibility with the existing motor and controller pairing. A MR-J2S-10B1-PF090T016 refurbished exchange unit can reduce machine downtime compared to waiting on new stock lead times. Our industrial Servo repair services cover board-level diagnostics and component replacement specific to the MR-J2S amplifier series. Facilities can ship the MR-J2S-10B1-PF090T016 to Flexa Systems for board-level repair, exchange for a refurbished unit, or order new stock — repairs are backed by a 2-year warranty from our Lewisville, TX shop.
