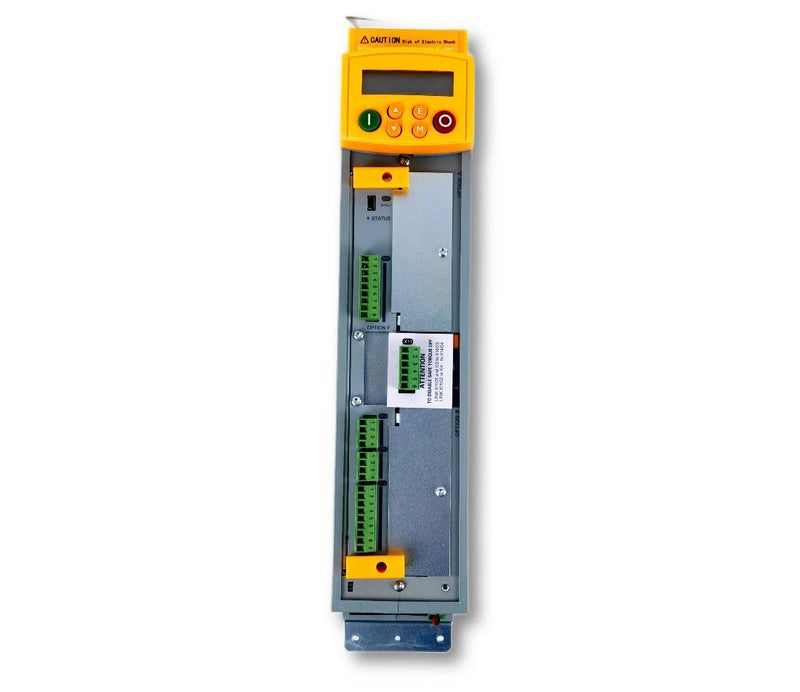

Parker
890CD/5/0016B/N/00/A/US
No reviews
SKU: 2100000023943
$3,875.00
Contact us for pricing
2-Year Warranty
Free Diagnostics
Ships in 1–2 Business Days
Nationwide Service
890CD/5/0016B/N/00/A/US repair service is available at Flexa Systems for facilities that depend on Parker's 890CD series AC drive to keep critical production equipment running. Whether you need Parker 890CD/5/0016B/N/00/A/US repair after an unexpected fault shutdown or are sourcing an 890CD/5/0016B/N/00/A/US refurbished unit to reduce downtime costs, this drive is a precision 7.5 kW (10 HP) variable frequency drive operating on a 680VDC bus with a 16-amp continuous output rating. Facilities searching for 890CD/5/0016B/N/00/A/US repair near me will find that Flexa Systems serves customers not only locally in Texas and Lewisville TX but also offers nationwide depot repair with fast turnaround. The 890CD series is engineered around a sophisticated DSP control architecture that supports high-performance closed-loop vector control, making it common in tension control, winding, extruder, and pump applications where precise speed regulation is non-negotiable. Industrial VFD repair on this model requires familiarity with Parker's proprietary DSE software toolset and the drive's integrated STO (Safe Torque Off) safety circuit, which can be a frequent diagnostic checkpoint. Technicians performing 890CD/5/0016B/N/00/A/US troubleshooting should pay close attention to the drive's pre-charge relay, gate driver board, and DC bus capacitor bank, as these components are the most common failure points in this power class. Flexa Systems provides free diagnostics on every unit received, so you know the exact scope of repair before any work is authorized. All repaired units are load-tested under real motor conditions before shipment, backed by a 2-year warranty for complete confidence in the repair.
Technical Specifications
Part Number
890CD/5/0016B/N/00/A/US
Manufacturer
Parker
Voltage
680VDC
Current Rating
16 Amps
Power Rating
7.5 KW 10HP
Package / Type
AC890 (890CD Common DC Bus Inverter/Drive)
Compatibility
The 890CD/5/0016B/N/00/A/US compatible with Parker's broader 890 series communication architecture supports optional fieldbus modules including Profibus-DP, DeviceNet, EtherNet/IP, and CANopen via the drive's P3 expansion slot, allowing Parker 890CD/5/0016B/N/00/A/US integration into both legacy and modern PLC environments such as Allen-Bradley ControlLogix, CompactLogix, and Siemens S7-300/S7-400 systems running TIA Portal. The drive accepts incremental encoder feedback via its onboard 15-pin D-sub interface, compatible with 5V and 12V TTL encoders commonly found on NEMA 56C through 286T frame motors, and can also operate open-loop with sensorless vector control for less demanding loads. The 890CD/5/0016B/N/00/A/US replacement for earlier Parker SSD 690+ series drives and the 590+ DC drive platform is well-documented in Parker's migration guides, making retrofits straightforward when paired with models such as the 890CD/5/0012B, 890CD/5/0025B, and the 891 series bookcase drive family. Input line reactors from Parker's 890LXXX series and compatible EMC filters rated for 480VAC three-phase input are recommended accessories for this drive class to meet CE and UL emission standards in sensitive plant environments.
Service Options
Repair Service
Ship your faulty 890CD/5/0016B/N/00/A/US to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.
Refurbished
In-stock Parker 890CD/5/0016B/N/00/A/US variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.
Brand New
New 890CD/5/0016B/N/00/A/US in original Parker packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.
Common Failure Modes
DC bus overvoltage trip (Fault 7) on deceleration in 890CD/5/0016B/N/00/A/US units where the optional braking chopper resistor has gone open-circuit, causing the 680VDC bus to exceed its overvoltage threshold before the drive can dissipate regenerative energy.
Gate driver board failure resulting in a persistent Phase Loss or Output Short fault (Fault 21) — a known failure mode in this 890CD/5/0016B/N/00/A/US troubleshooting scenario where thermal cycling cracks solder joints on the IGBT gate resistor network, causing one or more output phases to drop intermittently under load.
Pre-charge relay contact welding leading to immediate overcurrent fault (Fault 4) at power-up, where the inrush limiting resistor is bypassed too early during DC bus charging — identified during 890CD/5/0016B/N/00/A/US fault diagnostics by measuring bus voltage rise time against the drive's charge curve specification.
Electrolytic DC bus capacitor degradation causing low capacitance readings below 80% of rated value, resulting in unstable bus voltage ripple, nuisance undervoltage faults (Fault 6) at full load, and audible 120 Hz hum from the power stack — common in units with more than seven years of service in high-ambient-temperature enclosures.
Frequently Asked Questions
Is the 890CD/5/0016B/N/00/A/US compatible with or interchangeable with other Parker or third-party VFD models?
The 890CD/5/0016B/N/00/A/US replacement for the Parker SSD 690+ series (specifically the 690PB/0016/400/0010/UK and equivalent 7.5 kW variants) is a documented migration path supported by Parker's own application notes, with parameter mapping tools available in the DSE software. Mechanically, the 890CD bookcase form factor does not directly swap with DIN-rail mounted drives, but electrically it can replace third-party units such as the ABB ACS550-01-017A-4 or Yaskawa A1000 CIMR-AU4A0011 at the same power rating with appropriate control wiring remapping. Engineers should verify that the replacement drive's STO wiring and enable logic match the existing safety relay circuit before commissioning, as the 890CD uses a dual-channel STO input that differs from single-channel implementations on older competitors. Parker 890CD/5/0016B/N/00/A/US integration into an existing 890 multi-drive line shaft system is fully supported, allowing the new unit to synchronize with other 890CD drives over a fiber-optic or hardwired speed reference bus.
How do I know whether my 890CD/5/0016B/N/00/A/US is worth repairing or should be replaced outright?
In most cases, 890CD/5/0016B/N/00/A/US repair is the more cost-effective path when the damage is limited to discrete component failures such as blown IGBTs, failed gate drivers, degraded bus capacitors, or a faulty pre-charge relay — all of which are serviceable at the board level. Parker 890CD/5/0016B/N/00/A/US units that have suffered catastrophic events like a sustained output short circuit, physical impact damage to the DSP control board, or corrosion penetration into the IGBT module mounting surface may present repair costs that approach or exceed the cost of a refurbished unit. A reliable indicator that repair is viable is when the drive's control power supply still energizes and the keypad or DSE software can communicate with the processor, even if power faults are present. Units showing burned or delaminated PCB substrate around the power supply section or visibly cracked IGBT modules are candidates for component-level evaluation before a repair-vs-replace decision is made.
Where can I get 890CD/5/0016B/N/00/A/US repair service with a warranty?
Flexa Systems, based in Lewisville TX, specializes in Parker VFD repair including the full 890CD series, and offers 890CD/5/0016B/N/00/A/US repair service with a 2-year warranty on all parts and labor — one of the strongest warranty terms in the industrial drive repair market. Every unit received undergoes free diagnostics with a written fault report issued before any repair is approved, giving maintenance teams full visibility into what failed and why. Standard repair turnaround runs 5 to 7 business days from receipt, with expedited options available for critical production lines, and nationwide shipping means facilities across the US can access the same depot repair quality regardless of location. If your unit is beyond economic repair, Flexa Systems also carries 890CD/5/0016B/N/00/A/US for sale as tested refurbished stock, so you can buy 890CD/5/0016B/N/00/A/US USA with the same 2-year warranty and confidence as a repaired unit.
Where can I get 890CD/5/0016B/N/00/A/US repair service with a warranty?
Flexa Systems provides professional 890CD/5/0016B/N/00/A/US repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.
Flexa Systems specializes in Parker 890CD/5/0016B/N/00/A/US variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.
Repair option: component-level repair is available for this model — free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Request a repair quote. Learn more about our VFD repair service.
Technical Specifications
Part Number:
890CD/5/0016B/N/00/A/US
Manufacturer:
Parker
Voltage:
680VDC
Current:
16 Amps
Power:
7.5 KW 10HP
Type:
AC890 (890CD Common DC Bus Inverter/Drive)
Ask for Price
