Parker AC drives—formerly manufactured under the SSD Drives brand before acquisition by Parker Hannifin—power critical industrial processes in metals processing, paper mills, plastics extrusion, and material handling systems worldwide. When these drives fault, production stops and costs mount rapidly. Understanding fault codes is essential for maintenance teams managing AC690+, AC890, and AC10 series drives. This comprehensive guide decodes the most common trip codes, explains root causes, and outlines when component-level repair makes more sense than costly replacement.
How Parker Drive Fault Codes Work
Parker AC drives display fault codes through the front-panel keypad or DSE lite interface, depending on the model and configuration. When a protective trip occurs, the drive immediately shuts down motor operation and displays a numbered trip code (AC690+), alphanumeric fault code (AC890), or error code (AC10). The drive maintains a trip log accessible through parameter menus, storing the last several faults with timestamps—invaluable for troubleshooting intermittent issues. Parker drives distinguish between alarms and trips: alarms warn of developing problems without stopping the drive, while trips represent conditions serious enough to require immediate shutdown for equipment protection. The trip history can reveal patterns such as nuisance tripping during specific operating conditions or progressive component degradation.
AC690+ / 690P Fault Codes
Trip 2 — Overcurrent
Trip 2 indicates the drive detected current exceeding safe limits in the output stage. This protection responds within microseconds to prevent IGBT module destruction. Common causes include excessive load acceleration rates, mechanical binding or seizure in the driven equipment, incorrect motor parameters (particularly motor rated current), or degraded power components in the drive itself. On the AC690+, check parameter P103 (acceleration time) and ensure it matches application inertia requirements. Verify the motor nameplate current matches P107 (motor rated current). Inspect the motor and driven load for mechanical problems—a jammed conveyor or seized pump will draw enormous current. If parameters and mechanics check out, the fault often points to failing IGBTs, gate driver boards, or current sensors within the drive requiring component-level repair.
Trip 3 — Overvoltage
Trip 3 occurs when DC bus voltage exceeds safe limits, typically during regenerative conditions when the motor acts as a generator and pumps energy back into the drive. High-inertia loads decelerating too quickly are the primary cause. The AC690+ includes dynamic braking capability, but if the braking resistor is undersized, disconnected, or failed, the drive cannot dissipate regenerative energy and bus voltage climbs. Check parameter P104 (deceleration time) and extend it if the application allows. Verify braking resistor connections and resistance values. Incoming line voltage spikes from utility or facility power issues can also trigger Trip 3. Measure line voltage during operation to rule out supply problems before condemning drive hardware.
Trip 4 — Undervoltage
Trip 4 indicates DC bus voltage dropped below the minimum threshold required for proper operation. Momentary power interruptions, voltage sags from utility switching or heavy loads starting elsewhere in the facility, and loose input power connections commonly cause this fault. Check all three phases of incoming power for voltage balance and stability under load. Inspect input fuses, contactors, and terminal connections for high resistance. Within the drive, failing electrolytic capacitors in the DC bus gradually lose capacitance and can no longer sustain voltage during brief line disturbances. If Trip 4 occurs frequently without obvious external power issues, the main filter capacitors likely need replacement—a common repair on aging AC690+ drives.
Trip 5 — Motor Overload (I²t)
Trip 5 represents thermal overload protection based on the I²t (current-squared-time) algorithm that models motor heating. Unlike simple current limits, I²t protection integrates current over time to estimate actual motor temperature. This fault indicates the motor has been running at elevated current long enough to risk damage. Verify motor current settings in P107 match the motor nameplate exactly. Check for excessive mechanical load, worn motor bearings, or blocked cooling fans reducing motor heat dissipation. Single-phasing on the motor output (even with all three drive output phases present) dramatically increases current in the remaining phases. If motor and load are appropriate for the application, Trip 5 may indicate current sensing circuits in the drive have drifted out of calibration.
Trip 7 — Drive Overtemperature
Trip 7 protects the drive from thermal damage when heatsink temperature exceeds safe limits. The AC690+ monitors heatsink temperature through thermistors mounted on the power module. Restricted airflow is the most common cause—check for blocked intake filters, obstructed exhaust vents, and failed cooling fans. Drives mounted in enclosed panels without adequate ventilation or operating in high ambient temperatures will trip on overtemperature. Verify the panel ambient temperature stays within specifications (typically 40-50°C maximum). Heavy loading at low motor speeds reduces cooling airflow in fan-cooled drives. If airflow is adequate and ambient temperature acceptable, failing thermal sensors, dried thermal compound between power modules and heatsinks, or degraded power components generating excessive heat point to internal drive problems.
Trip 8 — Output Phase Loss
Trip 8 indicates the drive detected loss of one output phase to the motor. Check motor cable connections at both the drive output terminals and motor terminal box. Look for broken conductors, loose terminals, or damaged motor cables. Output contactors or isolation switches with failed contacts can create single-phasing conditions. Within the drive, a failed IGBT in one output phase will trigger Trip 8. This fault code is valuable diagnostically because it narrows hardware problems to specific output phase circuitry rather than wholesale drive failure.
Trip 10 — IGBT Fault
Trip 10 is one of the most serious fault codes, indicating the drive detected a problem in the IGBT power module or associated gate driver circuitry. The AC690+ continuously monitors IGBT collector-emitter voltage, desaturation detection circuits, and gate driver status. IGBT failures result from electrical stress (overcurrent, overvoltage, short circuits), thermal cycling fatigue, or simply accumulated operating hours on aging drives. Motor cable faults—especially insulation breakdown causing ground faults—can destroy IGBTs instantly. When Trip 10 occurs, do not repeatedly attempt to run the drive, as this may cause additional damage. Inspect motor cables thoroughly with insulation resistance testing before any repair. IGBT module replacement requires proper thermal interface materials, precise torque specifications, and gate driver circuit verification. This is component-level repair work requiring specialized knowledge—exactly what Parker drive repair specialists handle daily. Our technicians replace failed IGBTs, verify gate driver operation, and validate all protective circuits before returning the drive to service with a 2-year warranty.
Trip 20 — Comms Loss
Trip 20 indicates loss of communication on the fieldbus or serial network when the drive is configured for communications control. This fault only occurs if parameters are set to fault on communications loss (rather than coast or continue at last speed). Check network cable connections, termination resistors, and cable routing away from noise sources. Verify network addresses don't conflict with other devices. For RS-485 networks, check proper polarity and grounding. Communications board failures within the drive, though less common than wiring issues, do occur and require board-level repair or replacement. Parameter P902 typically controls communications loss response behavior.
AC890 Fault Codes
F1 — Overcurrent
The AC890's F1 fault parallels Trip 2 on the AC690+, indicating instantaneous overcurrent detection. The AC890 uses advanced vector control algorithms that are more sensitive to parameter mismatches than older scalar drives. Verify autotune has been performed correctly for the connected motor—parameter inaccuracies cause control instabilities that manifest as overcurrent faults. Check motor cable length against drive specifications; excessively long cables create reflected wave voltage peaks that can trigger false overcurrent detection. The AC890's current limit parameters (groups 5.x) should be verified against application requirements. Ground faults in motor cables appear as severe overcurrent and will trigger F1 immediately upon start attempts.
F4 — Earth Fault
F4 indicates the AC890 detected current flowing to ground rather than returning through motor neutral. This is a critical safety fault protecting against insulation failures that could energize motor frames or machine structures. Immediate action required: megohm test the motor and cable insulation to ground with drive disconnected. Values below 2 megohms indicate serious insulation degradation. Water ingress in motors, cable damage from wear or pinching, and age-related insulation breakdown all cause ground faults. Don't overlook VFD cable construction—motors driven by variable frequency drives require VFD-rated cable with low-capacitance construction. Standard motor cable on long runs can present enough capacitive leakage current to trip sensitive ground fault detection.
F8 — Drive Overtemperature
F8 on the AC890 indicates excessive heatsink temperature, similar to Trip 7 on the AC690+. The AC890 typically uses forced-air cooling with internal fans, and fan failure is a common cause. Listen for fan operation during drive power-up. Check for dust accumulation on heatsink fins—the tightly-spaced fins on modern drives clog easily in dusty environments. The AC890's compact design makes it more sensitive to ambient temperature than older models. Switching frequency settings (parameter 0.46) affect heat generation; higher switching frequencies improve motor performance but increase drive losses. On marginal cooling situations, reducing switching frequency from 8 kHz to 4 kHz can prevent nuisance thermal trips.
F12 — Power Module Fault
F12 represents a serious hardware fault in the AC890's IGBT power module or gate driver system. Like Trip 10 on the AC690+, this indicates desaturation detection, gate driver fault, or power module protection activation. The AC890 uses intelligent power modules with integrated protection, making this fault code highly reliable—it rarely false-triggers. F12 typically requires power module replacement, gate driver board repair, or both. Before condemning the drive, verify no external short circuits exist on motor cables and no ground faults are present. Component-level repair of F12 faults involves IGBT module replacement, gate driver circuit verification, DC bus capacitor testing, and comprehensive pre-ship testing under load conditions.

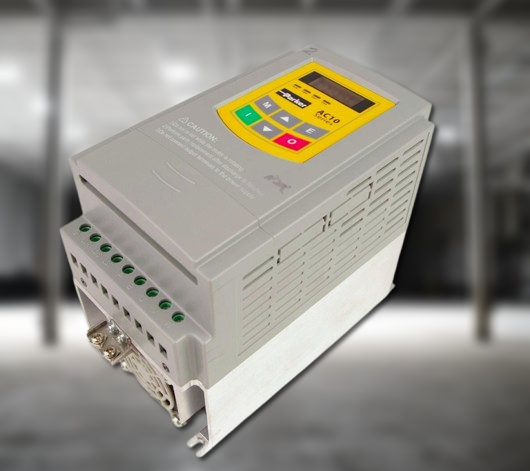

AC10 Fault Codes
Err01 — Overcurrent (Acceleration)
The AC10's Err01 indicates overcurrent specifically during acceleration, distinguishing it from steady-state overcurrent. This compact drive series is particularly sensitive to aggressive acceleration profiles on high-inertia loads. Parameter 1-02 (acceleration time) should be set conservatively—start with 10-20 seconds and reduce only if application requirements demand. The AC10's current limit function (parameter 1-14) provides additional protection but should be set at or slightly above motor rated current. Mechanical binding during startup, incorrect motor parameters, or undersized drive selection commonly cause Err01.
Err03 — Overvoltage
Err03 on the AC10 results from excessive DC bus voltage, typically from regenerative energy during deceleration. The AC10 does not include internal dynamic braking capability on all frame sizes, making external braking resistors essential for applications with significant regeneration. Verify parameter 1-03 (deceleration time) is set long enough to prevent voltage buildup. Input line overvoltage from facility power issues can also trigger Err03. These compact drives have limited bus capacitance compared to larger models, making them more susceptible to voltage transients from the AC supply.
Err08 — Drive Overload
Err08 indicates the AC10's thermal model calculated that drive components have exceeded safe operating temperature based on output current and duration. This is electronic overload protection based on current integration rather than actual temperature measurement on smaller frame sizes. Continuous operation at or near rated current in elevated ambient temperatures will trigger Err08. Check that the drive rating matches or exceeds motor current requirements with appropriate service factor for the duty cycle. Verify panel ventilation and ambient temperature are within specifications.
When to Repair vs Replace Your Parker Drive
New Parker AC drives represent significant capital investment, with AC890 drives ranging from $2,000 for small frames to over $15,000 for larger models, and legacy AC690+ units—while discontinued—commanding premium prices on the secondary market due to their reputation for reliability. The AC690+ series, in particular, presents a repair-versus-replace decision point since Parker discontinued this product line years ago, making new units unavailable. For operations standardized on AC690+ drives, component-level repair is often the only option that doesn't require complete system reconfiguration. Typical professional Parker drive repair costs range from $500 to $1,500 depending on fault severity and components requiring replacement, representing 10-30% of new drive cost. Parts availability increasingly favors repair: as these drives age, Parker OEM component stock diminishes, but experienced repair facilities stock commonly-failed components and have developed alternative sourcing for critical parts. The repair decision becomes particularly compelling for less common frame sizes, custom configurations, or drives integrated into complex control systems where replacement would require extensive reprogramming and commissioning.
How Flexa Systems Repairs Parker Drives
Flexa Systems specializes in component-level Parker AC drive repair for AC690+, AC890, and AC10 series drives, serving industries where downtime costs far exceed repair expenses. Our process begins with comprehensive diagnostic testing using specialized load banks and programmable power supplies to replicate actual operating conditions—we don't just power up the drive and call it tested. Every Parker drive repair receives detailed inspection of power components (IGBTs, gate drivers, bus capacitors), control board circuitry, power supply sections, and protection circuits. Common repairs include IGBT module replacement with proper thermal interface compound and torque specifications, electrolytic capacitor replacement (addressing the most common age-related failure), gate driver board component-level repair, control board repair for processor and memory issues, and cooling fan replacement with upgraded units. We maintain extensive component inventory specifically for Parker/SSD drives, including hard-to-find parts for discontinued AC690+ models. Every repaired drive undergoes full-load testing across the operating speed range, verification of all protective trip functions, and parameter backup before return shipment. Our VFD repair service includes a 2-year warranty covering parts and labor—we stand behind our work because we perform genuine root-cause repair, not component swapping. Free diagnostics mean you know exactly what failed and what the repair will cost before committing, and our no-fix no-charge policy ensures you only pay for successful repairs.
Get a Free Parker Drive Repair Quote
Don't let a faulted Parker AC drive force you into expensive emergency replacement. Whether you're troubleshooting an AC690+ Trip 10, an AC890 F12 fault, or any other Parker drive fault code, Flexa Systems provides expert diagnosis and component-level repair with a 2-year warranty. Call (855) 600-1938 to speak with a drive repair specialist who understands Parker/SSD drives and can provide technical guidance on fault codes and repair options. Our free diagnostic service identifies the exact failed components and provides a detailed repair quote—no fix, no charge means zero risk. Ship your drive to our facility for evaluation, or request a repair quote online with your drive model and fault code information. With typical turnaround times of 5-10 business days and emergency rush service available, we minimize your production downtime while maximizing cost savings compared to new drive replacement. Trust your critical Parker drive repair to specialists who invest in proper test equipment, maintain deep component inventory, and deliver genuine repairs backed by comprehensive warranty protection.
