Parker MB series control modules are a workhorse of modern transit buses. They sit behind the dashboard, under the floor, or near the engine bay — managing door operation, HVAC control, kneeling systems, lighting, and dozens of other multiplexed functions across the vehicle. When one fails, an entire subsystem on the bus stops working, and the operator either pulls the bus from service or runs it with reduced functionality until the part is replaced.
At Flexa Systems, we repair Parker MB series modules at component level — diagnosing the actual failed circuit, replacing the affected components with industrial-grade equivalents, testing the module under simulated CAN bus load, and returning it with a 2-year warranty. This guide covers what these modules do, why they fail in transit applications, and what your repair options look like when one goes down.

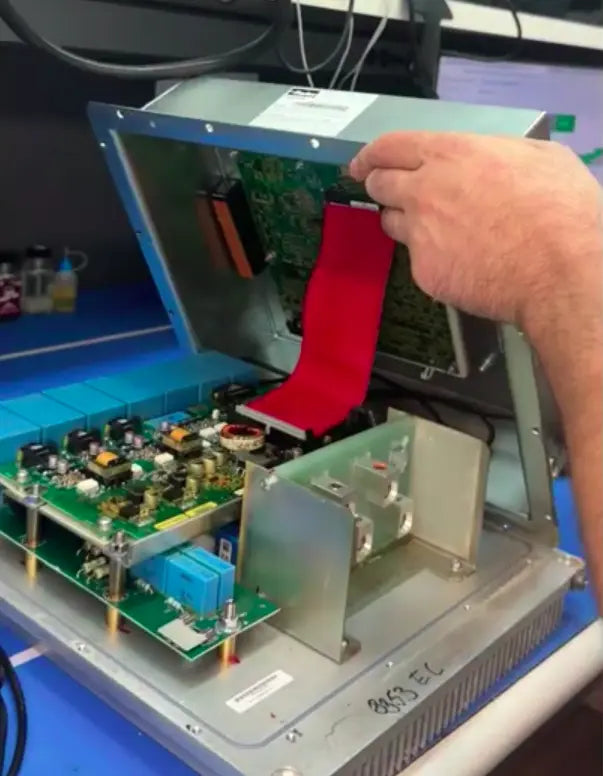

Here is a short walkthrough we recorded showing a Parker MB module on the bench — module identification, typical wiring, and the points we check first during diagnosis:
What the Parker MB Series Does on a Bus
Parker MB modules are CAN-based input/output controllers designed for mobile equipment — transit buses, motor coaches, construction machinery, and specialty vehicles. On a bus, a single vehicle typically runs several MB modules networked over a J1939 or proprietary CAN bus, with each module dedicated to a zone or function group.
Typical functions handled by Parker MB modules on a transit bus:
- Door control — solenoid valves, position sensors, obstacle detection, interlock with the brake system
- Kneeling and ramp — pneumatic or hydraulic actuators, position feedback, safety interlocks
- HVAC zones — fan speed, damper position, temperature sensors, refrigeration cycle control
- Lighting and signaling — interior LED zones, destination signs, exterior marker lights, brake/turn integration
- Driver controls — switch panels, multiplexed switch inputs, audible alerts
- Data logging — fault history, operating hours, event timestamps for fleet diagnostics
Each MB module has a mix of digital inputs, digital outputs (often high-side switched with current monitoring), analog inputs for sensors, and PWM outputs for variable-load devices. The modules speak to each other and to the central vehicle controller over CAN, which is why a single failed module can knock out functions that physically have nothing to do with the failed hardware — the network loses the data it needs.
Why Parker MB Modules Fail in Bus Service
Bus service is one of the harshest environments in mobile electronics. A typical city bus accumulates 50,000 to 80,000 miles per year, with 2,000+ door cycles per day and constant vibration. The MB modules designed for this duty are robust, but they are not invincible. Understanding the failure modes helps you decide whether to repair, replace, or refurbish.
Vibration Damage
Surface-mount components on the MB main board are subjected to constant low-frequency vibration. Over years of service, solder joints under heavy components — large electrolytic capacitors, transformers, output transistors, and connector pins — develop microcracks. The fault often shows up as intermittent operation: a function works when the bus is cold and fails when it warms up, or works fine on a smooth road and faults out over rough pavement.
Reflowing or rework of suspect joints is a standard first step in our diagnostic process. We inspect every solder joint on a high-power section under magnification before assuming a component-level fault.
Water and Salt Ingress
Buses operate in road spray, snow, and salt. The MB modules are sealed to a high IP rating, but seals age, cable glands loosen, and any breach allows moisture in. Salt-laden water is conductive and corrosive — it creates leakage paths between traces, attacks via barrels, and slowly eats through copper.
Symptoms of water ingress include random output activations, intermittent CAN bus faults, false sensor readings, and eventual complete module failure. Once corrosion is advanced, repair requires careful neutralization, ultrasonic cleaning, and selective component replacement on the affected circuit areas.
Voltage Spikes and Load Dump
The 24V electrical system on a bus is not as clean as it looks. Starting cranks, alternator load dumps, and inductive switching from solenoids and relays generate transient voltage spikes that can exceed 100V for brief periods. MB modules have transient suppression on every input and output, but these protection devices have a finite energy capacity.
Repeated transients degrade the TVS diodes and MOVs over years. Eventually a single hard transient — an alternator regulator failure, a poorly clamped solenoid — punches through the protection and damages the input or output stage. Symptoms range from a single dead output channel to a completely bricked module if the spike reaches the microcontroller power rail.
Heat Cycling
The engine bay or under-floor compartment can swing from -20°F on a winter morning to over 150°F when the bus is parked on hot pavement with the engine running. This thermal cycling stresses every solder joint, every component lead, and the substrate of the PCB itself. After 8 to 12 years of service, accumulated thermal damage starts to show up as random failures that have no obvious electrical cause.
CAN Bus Faults
The CAN transceiver chip is one of the most exposed components on the module. It sits directly on the bus wiring, which runs the full length of the vehicle and acts as an antenna for any electrical interference on board. Transceiver failures are common after a wiring fault elsewhere on the network — for example, a CAN line shorted to 24V or to ground will often take out the transceivers on multiple modules at once.
A failed CAN transceiver typically presents as the module dropping off the bus entirely, or as the module sending corrupted frames that disturb other nodes. Replacing the transceiver and verifying the rest of the bus wiring is a standard repair.
Diagnosing a Suspect Parker MB Module
Before pulling a module from a bus, basic diagnostics can confirm whether the module is actually the problem. A surprising number of "bad module" calls turn out to be wiring, sensor, or power supply issues that the module is correctly reporting.
Step 1 — Check Power and Ground
Measure the supply voltage at the module connector with the bus running. It should be in the range specified for the module — typically 18V to 32V for a 24V system. Voltage dropouts during cranking are normal; sustained low voltage indicates an alternator or wiring issue. Check the chassis ground at the module — corroded ground straps are a common cause of erratic behavior.
Step 2 — Read CAN Bus Activity
With a CAN tool — a basic OBD-style J1939 scanner is enough — confirm the module is broadcasting on the bus. A module that is powered but silent on CAN is almost certainly internally faulty. A module that broadcasts intermittently usually has a transceiver, supply, or microcontroller issue.
Step 3 — Check Inputs and Outputs Individually
If the module is on the bus but a specific function fails, check the input and output channels for that function. Many MB modules report per-channel current draw and detect open/short faults — read these diagnostic flags before assuming a component-level fault.
Step 4 — Pull and Bench Test
If on-vehicle diagnostics confirm a module fault, the module comes out for bench testing. On the bench we apply a controlled 24V supply, terminate the CAN bus correctly, and exercise each input and output channel through a test fixture. This isolates the failed circuit in a way that on-vehicle troubleshooting cannot match.
Repair vs Replace: The Real Cost
A new Parker MB module from the OEM, depending on configuration and channel count, ranges from several hundred to over two thousand dollars. Lead times have stretched in recent years — 6 to 16 weeks is common for bus-specific configurations. For a fleet operator, that is six to sixteen weeks of either a bus out of service or a workaround that adds risk.
Component-level repair at Flexa Systems typically costs 30 to 50 percent of new replacement price, with a 5 to 10 day turnaround. The repaired module is tested under simulated load, every output channel verified, every input range checked, and the CAN transceiver confirmed at full bus rate. We return the module with a 2-year warranty — the same warranty you get on any of our repairs.
For fleets, we also keep tested refurbished modules in inventory for common configurations, allowing same-day or next-day swap when production downtime is the priority.
Preventive Practices for Fleet Operators
Some MB module failures are preventable. The fleets that get the longest service life from these modules tend to follow a few practices:
- Inspect cable glands and seals annually — the most common source of water ingress is a connector that was disturbed during another repair and not properly resealed
- Clean ground points every 2 years — corroded ground straps cause the kind of intermittent faults that get blamed on the module
- Check alternator regulation and battery condition — a failing alternator regulator throws transients that progressively degrade module protection circuitry
- Verify CAN bus termination after any wiring repair — incorrect termination accelerates transceiver failure across the whole network
- Document fault histories — modules that fault repeatedly under specific conditions are a leading indicator of an upcoming hard failure
When to Send a Module for Repair
If a Parker MB module on your bus fleet has any of these symptoms, repair is usually the most cost-effective path:
- Single function dead but the module is otherwise on the bus and reporting
- Intermittent operation that gets worse over time
- Visible corrosion, water marks, or burned components on inspection
- Module dropping off the CAN bus randomly
- Multiple outputs reporting open/short faults that on-vehicle testing confirms are the module side, not the load side
- Module declared dead by the OEM with a long replacement lead time
We work on Parker MB modules across the configurations used in transit, motor coach, and specialty vehicle applications. Send us the module with a description of the fault as observed on the bus, and we will diagnose at no charge before quoting the repair.
Conclusion
Parker MB series modules are well-engineered for the harsh duty of bus service, but no electronic module is maintenance-free in this environment. Vibration, water, heat, and electrical transients accumulate damage over years until something fails. When it does, the choice between waiting weeks for a new module or sending the existing one for component-level repair often comes down to whether the bus can stay out of service.
For most fleets, repair plus a small stock of refurbished swap units gives the best balance of cost, downtime, and warranty coverage. With proper diagnosis, the right replacement components, and full bench testing, a repaired MB module delivers another decade of reliable service.
If you have a Parker MB module that is faulting on a bus or has failed completely, contact Flexa Systems. We provide free diagnosis, fast component-level repair, and a 2-year warranty on every module we return to service.
