When your production line depends on precise, coordinated motion, selecting the right Parker 890 AC drive is a critical engineering and procurement decision. The Parker 890 drive platform — available as the Parker 890SD standalone drive and the Parker 890CD common-bus module — is one of the most capable AC vector and servo drive systems in industrial automation. Whether you are replacing a failed unit, expanding a multi-axis web line, or commissioning a new converting machine, this guide covers everything you need to evaluate the 890 family, decode part numbers, and source in-stock units from Flexa Systems in Lewisville, TX.
What Is the Parker 890 Drive System?
The Parker 890 drive traces its origins to SSD Drives, a UK-based industrial controls manufacturer that was acquired by Parker Hannifin. Under Parker, the platform was refined into one of the most respected modular AC drive systems in North American industry. Today it carries the full Parker Hannifin engineering pedigree and is widely specified wherever precision multi-axis control is required.

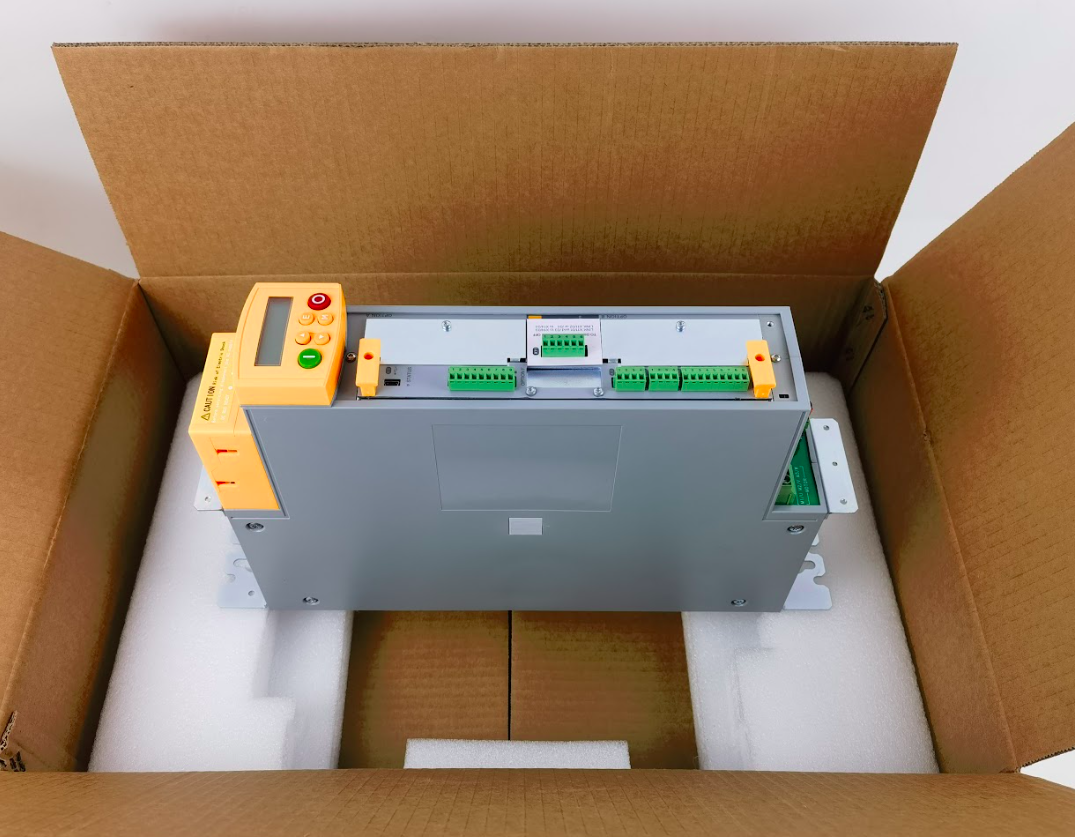

At its core, the 890 is a modular, scalable AC drive platform engineered for demanding coordinated-motion applications. It supports closed-loop vector control of AC induction motors and closed-loop servo control of permanent-magnet servo motors, giving machine builders flexibility without changing drive families. The architecture is designed around a shared DC bus, which makes it particularly well suited for machines with regenerative loads — energy from a decelerating axis can be reused by an accelerating one, improving overall efficiency.
Target applications include web converting lines, winding and unwinding stands, flexographic and gravure printing machines, packaging lines, and material handling systems — anywhere multiple axes must be electronically geared together with tight synchronization. The 890 operates on 400 V and 460 V AC supply classes, aligning with standard North American industrial voltages. Its open, communications-centric architecture supports DeviceNet, PROFIBUS, CANopen, and Ethernet fieldbus options, making integration into modern PLC or DCS environments straightforward.
890SD vs 890CD vs 890PX: The Modular Family
Understanding the Parker 890 family means understanding how each module fits into a complete drive system. There are three primary variants plus the 890GT gateway product.
890SD — Standalone Drive: The 890SD is a self-contained AC drive. It includes its own input rectifier, DC bus capacitors, and output inverter section, so it can be connected directly to a three-phase AC supply and drive a single motor. This makes it the right choice when you need an independent axis that does not share energy with other drives, or when you are adding a single drive to an existing machine without a common DC bus infrastructure. The Parker 890SD-433156F1-B00-1B000 standalone drive in Flexa's current inventory is a typical 890SD unit suited to these independent-axis scenarios.
890CD — Common-Bus Drive Module: The 890CD is an inverter-only module. It has no front-end rectifier. Instead, it connects to a shared DC bus supplied by an 890PX power supply or another front-end rectifier module. In a multi-axis system, one 890PX feeds a DC bus rail, and multiple 890CD modules draw from that rail to drive individual axes. This architecture reduces harmonic distortion on the AC supply, enables regenerative energy sharing between axes, and simplifies cabinet construction. The 890CD is the backbone of coordinated multi-axis machines.
890PX — Common-Bus Power Supply: The 890PX provides the rectified, regulated DC bus voltage that feeds a bank of 890CD modules. It handles line conditioning, regeneration back to the supply where specified, and bus protection. Every multi-axis 890CD system requires at least one 890PX (or equivalent front-end) in the drive train.
890GT: The 890GT is a gateway and application controller module that can host the master application program for coordinated motion, managing electronic gearing, cam profiles, and inter-axis communication across the 890 system.
In short: choose the 890SD for independent standalone axes; choose the 890CD when you are building or expanding a common-bus multi-axis system. Consult the full Parker drive catalog at Flexa for additional Parker drive families if your application requirements fall outside the 890 platform.
How to Read a Parker 890 Part Number
Parker 890 part numbers encode the drive type, frame size, power rating, voltage class, build options, and regional designation. Understanding the structure helps you confirm that a unit in stock matches your application before you request a quote. Note that Parker uses two catalog-number formats for the 890 — a hyphenated format (e.g., 890CD-532120B0-000-1B000) and a slash-delimited format (e.g., 890CD/5/0002B/N/00/A/US). Both describe the same product line; the slash format is typically the base catalog number, while the hyphenated string may encode a fully configured or firmware-stamped variant.
Consider the Parker 890CD-532120B0-000-1B000 common-bus drive and the Parker 890CD/5/0002B/N standalone module as reference examples. Across both formats, the following fields are present:
- Product Type: "890CD" identifies a Common-bus Drive module; "890SD" identifies a Standalone Drive. This is always the first field.
- Frame / Size Code: A numeric field (e.g., "5" in the slash format, or embedded in the hyphenated string) that maps to a physical frame size and associated current rating range. Do not assume a specific ampere or kilowatt value solely from this digit — confirm against Parker's current frame-size table or contact Flexa.
- Power / Current Rating Field: A four-digit code (e.g., "0002") represents a current class within the frame. Again, cross-reference the Parker catalog for the precise continuous output current; do not infer exact horsepower from the code alone.
- Voltage Class: Indicated by a letter suffix — "B" commonly denotes 460 V (400/480 V class) operation in the 890 series.
- Feedback / Encoder Option: A field (e.g., "N" in the slash format) indicates the feedback interface fitted — encoder, resolver, or none.
- Communications / Options: Additional fields encode the fieldbus option card, brake chopper presence, and other factory-installed options.
- Regional Designation: "US" at the end of the slash-format number confirms North American build standard, including UL/cUL listing and North American EMC/safety compliance.
The Parker 890CD/5/0002B/N (full US config) variant in Flexa's inventory represents the same base module with a fully populated configuration string — useful when your procurement system requires the complete catalog number for a purchase order. When in doubt, provide your existing nameplate data to Flexa's team for confirmation before ordering.
In-Stock Parker 890 Drives at Flexa Systems
Flexa Systems maintains a rotating inventory of Parker 890 drives sourced for the North American market. The units listed below are currently in stock and available as new or refurbished. Each unit has been verified against Parker's catalog nomenclature. To confirm current availability, lead time, and condition options, request a quote directly — no list prices are published, and availability changes frequently.
| Model / Part Number | Drive Type | Best For |
|---|---|---|

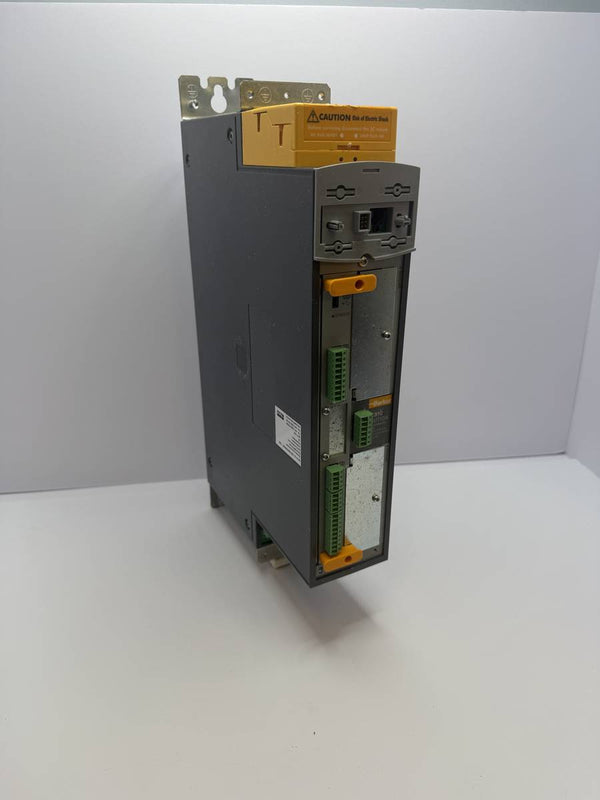

| Parker 890CD-532120B0-000-1B000 | 890CD — Common-Bus Drive Module | Multi-axis common-bus systems; coordinated web, winding, or converting lines requiring a DC-bus-fed inverter axis |

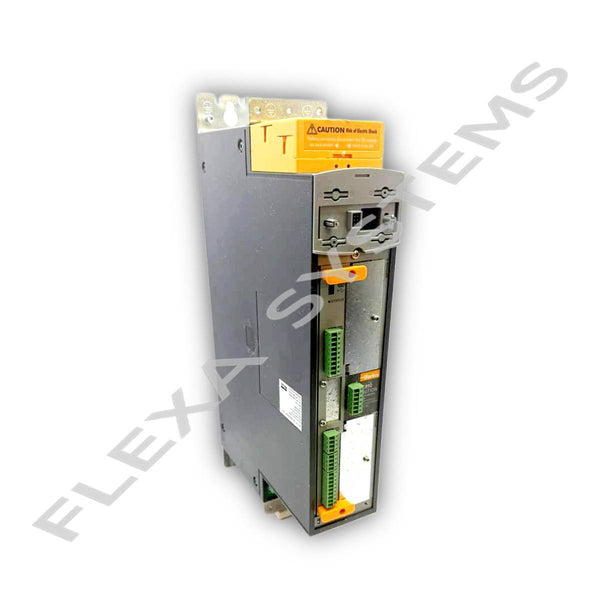

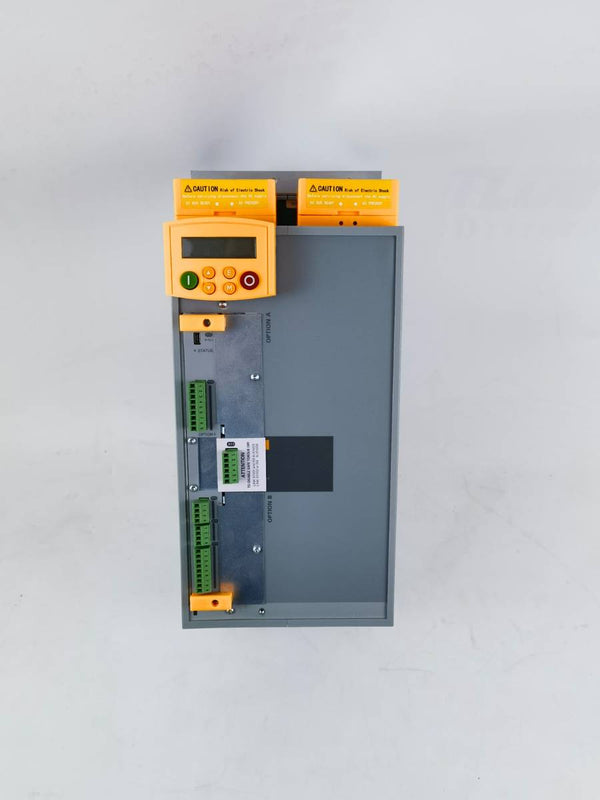

| Parker 890CD/5/0002B/N/00/A/US | 890CD — Common-Bus Drive Module | Common-bus multi-axis installations; 460 V class, North American build, base configuration without extended option string |
| Parker 890CD/5/0002B/N/00/A/US (full config) | 890CD — Common-Bus Drive Module | Same base 890CD module as above; full catalog configuration string included for PO documentation and system cross-referencing |
| Parker 890SD-433156F1-B00-1B000 | 890SD — Standalone Drive | Single-axis applications with direct AC supply connection; independent induction or servo motor control without a shared DC bus |
Both new and refurbished units are available for the models listed above. Refurbished 890 drives are fully inspected, tested, and cleaned to operational standards before shipment. To check current stock levels and obtain a formal quotation, visit the request a Parker 890 quote page or call Flexa at (855) 600-1938. All units ship from Lewisville, TX, to anywhere in the contiguous United States.
How to Choose Between 890SD and 890CD
The single most important selection criterion for the Parker 890 family is whether your application requires an independent drive or a shared DC bus architecture.
Choose the 890SD when you are driving a single motor from a standard three-phase AC supply without any common-bus infrastructure. Typical scenarios include a standalone conveyor, a single-axis test stand, or an upgrade to an existing machine where only one axis is being replaced and no 890PX power supply is present. The Parker 890SD-433156F1-B00-1B000 standalone drive is ready to connect to a 460 V three-phase supply and drive an AC induction or PM servo motor after configuration.
Choose the 890CD when you are building, expanding, or maintaining a multi-axis coordinated system — a web line with unwind, intermediate pull rolls, and rewind; a printing press with multiple color decks; or a packaging machine with multiple synchronized axes. In these systems, an 890PX or equivalent front-end feeds a DC bus, and each 890CD module — such as the Parker 890CD-532120B0-000-1B000 common-bus drive — provides one inverter axis off that bus. The shared bus enables energy exchange between axes and reduces the total supply current demand.
Beyond topology, consider these factors:
- Motor type: Both 890SD and 890CD support AC induction and PM servo motors in closed-loop vector mode. Confirm the feedback option code in the part number matches your encoder or resolver.
- Fieldbus: Verify the communications option code matches your PLC or motion controller — DeviceNet, PROFIBUS, CANopen, and EtherNet/IP variants exist within the 890 family.
- Frame size and current rating: Match the drive's rated output current to your motor's full-load current with appropriate service factor. When unsure, engage Flexa's technical team before ordering.

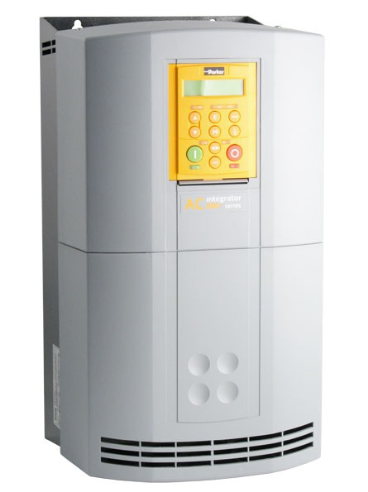

For a broader comparison of Parker's AC drive portfolio, the Parker 690 AC drive buying guide covers the 690 series, which occupies a different performance and price tier within Parker's lineup.
New vs. Refurbished — Availability and Lead Time
One of the most common questions Flexa receives from maintenance and procurement teams is whether a specific Parker 890 unit is available new, refurbished, or both. For the four in-stock units described in this guide, Flexa carries both new and refurbished inventory depending on the model and configuration.
New units are factory-fresh, in original Parker packaging, with full documentation. They are the right choice when the application is critical, the unit will be put into long-term service, or when a customer's engineering standards require new hardware.
Refurbished units go through a structured reconditioning process at Flexa's Lewisville, TX facility. Each refurbished 890 drive is inspected at the component level, cleaned, tested under load conditions, and verified against Parker's published performance specifications before it is returned to inventory. Refurbished units carry the same 2-year warranty as new units sold through Flexa, making them a practical option when lead time or budget flexibility is a priority.
Parker 890 drives — particularly less common 890CD configurations — can carry extended lead times through distribution channels when ordered new from the factory. Flexa's in-stock inventory is specifically maintained to serve customers who cannot wait for factory lead times. US-only shipping ensures fast domestic transit with proper export compliance for controlled industrial electronics.
To confirm which condition options are available for a specific part number and to receive a formal quotation, visit the Parker 890 quote request page or contact Flexa directly at (855) 600-1938.
Repair and Support for Your Existing 890
If you have a Parker 890 drive already installed that has faulted, failed, or is showing degraded performance, replacement is not always the only path. Flexa's Parker 890 repair service provides component-level diagnostics and repair for 890SD and 890CD modules, including gate driver failures, power module faults, control card issues, and capacitor degradation — common failure modes in drives that have seen years of industrial service.
The repair process begins with a free diagnostic evaluation. Flexa's technicians identify the root cause of failure before any repair work is authorized, so you receive a clear picture of the fault and the repair scope before committing. Repaired units are returned to service with a documented test report and a warranty covering parts and labor.
For customers maintaining multi-axis 890 systems, the Parker MB module repair guide provides additional context on maintaining bus control and communication modules within Parker drive systems. If your facility also operates Parker DC drives alongside the 890 platform, the Parker 590 DC drive guide covers maintenance and sourcing considerations for that related product family.
Whether you need a drop-in replacement from stock or a repaired return of your existing module, Flexa supports both paths. Contact the team to discuss the fastest route back to production for your specific 890 installation.
Frequently Asked Questions
What is the difference between the 890SD and 890CD?
The 890SD is a standalone drive with its own input rectifier, capable of connecting directly to a three-phase AC supply to drive a single motor independently. The 890CD is a common-bus drive module — an inverter only — that draws power from a shared DC bus fed by an 890PX power supply. The 890CD is used in multi-axis coordinated systems; the 890SD is used for independent single-axis applications.
Can the 890CD run standalone without an 890PX power supply?
No. The 890CD is an inverter-only module and has no internal rectifier or DC bus charging circuit. It requires a regulated DC bus voltage supplied by an 890PX common-bus power supply or equivalent front-end rectifier. Attempting to operate an 890CD without a proper DC bus source will result in a drive fault and potential damage to the unit. Always ensure the 890PX is properly sized and commissioned before energizing 890CD modules on the bus.
How do I read a Parker 890 part number?
Parker 890 part numbers encode the drive type (SD or CD), frame size, current class, voltage class (typically "B" for 460 V), feedback option, fieldbus option, and regional build (US for North American compliance). Two catalog formats exist — hyphenated and slash-delimited — both conveying the same information. Do not infer exact kilowatt or ampere ratings solely from the code; cross-reference against Parker's frame-size table or contact Flexa with your nameplate data for confirmation.
Do you sell new and refurbished Parker 890 drives?
Yes. Flexa Systems stocks both new and refurbished Parker 890 drives, including 890CD and 890SD models. Refurbished units are component-level inspected, tested under load, and verified against Parker specifications before being returned to inventory. Both new and refurbished units are available for the in-stock models listed on this page. No prices are published online — submit a quote request or call (855) 600-1938 for current availability and pricing.
What warranty comes with a Parker 890 drive purchased from Flexa?
All Parker 890 drives sold by Flexa Systems — both new and refurbished — are backed by a 2-year warranty covering parts and labor. This warranty applies to in-stock 890SD and 890CD units shipped from Flexa's Lewisville, TX facility. The warranty provides coverage against defects and premature failure, giving maintenance and procurement teams confidence whether they are purchasing a spare, a drop-in replacement, or a unit for a new machine build.
