When your application demands precise motor control, high dynamic response, and the ability to handle demanding industrial loads, the Parker 690 AC drive belongs on your shortlist. The Parker 690+ AC drive — also known by its earlier SSD Drives heritage — is a proven variable-frequency drive platform engineered for high-performance sensorless and closed-loop vector operation across a wide range of voltages and frame sizes. Whether you are buying a Parker 690 VFD for a new installation or replacing a failed unit on an existing line, this guide covers everything you need to know: the model family, how to read a 690 part number, what Flexa Systems has in stock right now, and how to move quickly from evaluation to purchase.
What Is the Parker 690+ AC Drive?
The Parker 690+ traces its origins to SSD Drives, a UK-based motion control specialist that was acquired by Parker Hannifin and absorbed into the Parker SSD Drives division. For context on the broader portfolio, the Parker Hannifin drives overview covers the full family history. The 690+ is an AC variable-frequency drive built for demanding industrial environments where standard V/Hz control is not sufficient. It supports sensorless vector control — delivering good speed and torque regulation without an encoder — as well as full closed-loop vector control when paired with encoder feedback hardware, enabling tight speed regulation even at low speeds or under rapidly changing loads.
Target industries include metals processing, paper and board mills, plastics extrusion, material handling conveyors, crane and hoist applications, and continuous process lines where consistent web tension or speed synchronization is critical. The drive is available in multiple frame sizes, from compact wall-mount enclosures for lower-power applications up to large floor-standing and cubicle-frame configurations for high-current industrial loads. The 690+ is typically rated for 380–460 V three-phase input, with 400 V class variants common in legacy installations. Its longevity in the field means spare units and replacement drives are still in active demand across North American plants that standardized on this platform years ago.
Parker 690 Models and Build Codes (690+, 690PB, 690PD)
The 690 family consists of a base drive platform with variant designations that reflect communications options, feedback hardware, and application-specific firmware configurations.

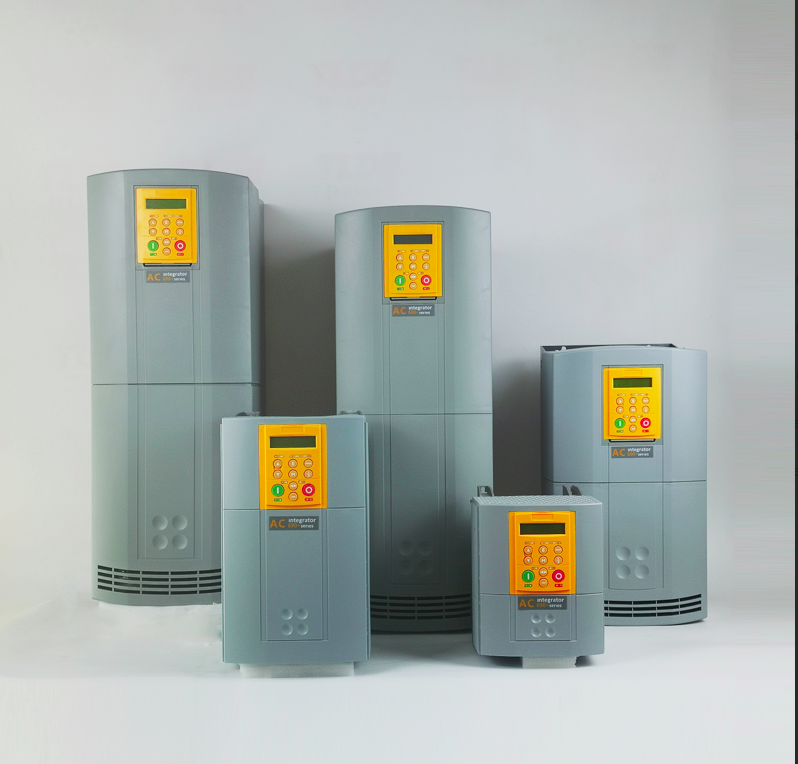

The 690+ (sometimes written 690P) is the core AC variable-frequency drive. It is configurable through option cards and firmware to suit a wide range of applications. Frame sizes span from compact, wall-mount enclosures suited to lower-current loads all the way to large floor-standing cabinets for high-current industrial applications. The 460 V class is dominant in North American installations; the 400 V class is common in legacy or export-spec equipment.
The 690PB designation identifies a Frame B drive — the smallest chassis in the 690+ range. The letter after "690P" is the frame size, not a communications option: 690PB is Frame B, 690PC is Frame C, 690PD is Frame D, and the range continues through Frame F. Frame size determines physical dimensions, mounting, cooling and the power band the unit covers, so it is the first thing to match when you are replacing a drive in an existing panel.
The 690PD designation identifies a Frame D drive, physically larger and covering a higher power band than Frame B or C. Communications and feedback options are not encoded in the frame letter at all — they appear as separate blocks later in the product code. PROF means a Profibus option card is fitted and HTTL means encoder feedback hardware is fitted, which is why a full code reads like 690PD/0180/400/0011/SP/HTTL/PROF/0/0/B0/0/0. A Frame D unit without those blocks has neither.
Option cards across the family cover additional communications protocols, application-specific firmware (for tension control, draw control, and similar process functions), and I/O expansion. When evaluating a 690 for your application, read the frame letter first to match the physical unit, then read the option blocks at the end of the code to confirm which communications and feedback hardware is actually fitted.
How to Read a Parker 690 Part Number
Parker 690 part numbers encode critical application information in a structured string. Understanding this structure helps you confirm you are ordering or replacing the correct drive. While exact amp and kilowatt ratings for each specific code should be verified against the Parker datasheet, the fields below define what to look for.
Power Field: The four-digit block after the frame designation is the power output in kilowatts, not a current rating: 0022 is 2.2 kW, 0055 is 5.5 kW, 0110 is 11 kW and 0180 is 18.5 kW. The Parker 690+ 0003/460/1BN compact wall-mount drive uses the older quick-code style where 0003 denotes 3 HP, while the Parker 690PD/0180/400 with HTTL encoder and Profibus reads directly as 18.5 kW on a Frame D chassis. Always confirm the kW figure against your motor's rating before ordering.
Voltage Field: The three-digit block following the current code identifies the input voltage class. 460 = 460 V three-phase (North American standard); 400 = 400 V three-phase (common in legacy or European-spec equipment). Confirm your supply voltage before ordering.
Build and Option Fields: The blocks after the voltage and phase codes identify the build configuration and the options actually installed. Examples include 1BN (standard build, no special comms), CBN (a specific build variant, as in the Parker 690+ 0040D/460/CBN unit), HTTL (encoder feedback hardware fitted), PROF (Profibus option card fitted), and a brake block such as B0. Configured units, such as the Parker 690-431550B0-B00W00-B400 configured drive, use the numeric product code format instead, which carries the same information in a different order.
When sourcing a replacement or new 690 drive, confirm these fields:
- Current/power code — must meet or exceed your motor's FLA
- Voltage class — must match your supply (460 V or 400 V)
- Build code — must match the required option hardware
- Communications option — check for a PROF block in the code; its absence means no Profibus card is fitted
- Encoder feedback — HTTL required for closed-loop vector
- Frame size — physical mounting dimensions and wiring space
In-Stock Parker 690 Drives at Flexa Systems
Flexa Systems maintains in-stock inventory of six Parker 690 drives covering compact through large frame sizes, 460 V and 400 V classes, base builds and Profibus-equipped variants. The table below summarizes each unit currently available. All units are available new or refurbished — to confirm availability and request pricing, use the links below or contact our team directly.
| Model | Build / Options | Best For |
|---|---|---|
| Parker 690+ 0003/460/1BN | 460 V, standard 1BN build, compact wall-mount frame | Lower-power fan, pump, conveyor, or lab/test applications on 460 V supply |
| Parker 690+ 0030/460/1BN mid-frame drive | 460 V, standard 1BN build, mid-range frame | Mid-size conveyors, compressors, and general-purpose industrial drives at 460 V |
| Parker 690+ 0040D/460/CBN | 460 V, C build variant (CBN), larger frame | Higher-current 460 V loads; applications requiring the C build option set |
| Parker 690 431550B0-B00W00-B400 configured unit | Factory-configured option string, 400 V class | Replacement or drop-in for existing installations built to this exact configuration |
| Parker 690PB/0022/400 (Frame B, 2.2 kW) | Frame B, 2.2 kW, 400 V, three-phase, US-market build, no Profibus card fitted | Compact 400 V installations in the 2.2 kW class where panel space is tight |
| Parker 690PD/0180/400 (Frame D, 18.5 kW) | Frame D, 18.5 kW, 400 V, with HTTL encoder feedback and a Profibus card fitted | Closed-loop vector applications: winders, unwinders, cranes, coordinated line drives |
Both new and refurbished units are available across this inventory. Refurbished drives are fully tested and inspected before shipment. To confirm current stock levels and receive a quote, visit our Parker 690 quote request page or call our team directly. No prices are listed online — all quotes are provided on request based on your specific configuration and quantity.
How to Choose the Right 690 Drive
Selecting the correct Parker 690 comes down to matching five key parameters to your application: motor current, supply voltage, required control mode, communications bus, and encoder feedback needs.
Motor Current and Frame Size: Start with your motor's full-load amps (FLA) from the nameplate. The drive's continuous output current rating must equal or exceed this value with appropriate service factor. The current code in the part number (0003, 0030, 0040D, 0180, etc.) maps to a frame size — physically larger frames handle higher currents. Do not attempt to derate a smaller frame to save cost; undersizing leads to nuisance trips and premature failure.
Supply Voltage: Confirm whether your panel feeds 460 V (common in North America) or 400 V (legacy or international equipment). Mixing voltage classes is a common sourcing error. The Parker 690+ 0030/460/1BN is a 460 V unit; the 690PB/0022/400 Profibus drive is a 400 V unit — they are not interchangeable.
Control Mode: If your process requires precise speed regulation across load changes or at very low speeds, select a variant capable of closed-loop vector with HTTL encoder feedback. For applications where encoder installation is not practical, sensorless vector mode on the base 690+ is often sufficient.
Communications: If your control system uses Profibus DP, look for a PROF block in the product code — on any frame size. A 690PB or 690PD without that block has no Profibus card. Do not attempt to retrofit Profibus on a build without the option unless the option card bay supports it and you have the correct firmware.
Feedback Hardware: Applications such as winders, crane hoists, or extruder lines typically require the HTTL encoder option, which appears as its own block in the product code. Review the full Parker drive catalog at Flexa Systems if you need to compare the 690 against newer platforms. For applications that have outgrown the 690 platform, the Parker 890 AC drive buying guide covers the next-generation option.
New vs. Refurbished — Availability and Lead Time
Flexa Systems offers Parker 690 drives in both new and refurbished condition. Understanding the difference helps you make the right decision for your timeline and application requirements.
New units come in original or equivalent packaging with full factory specifications. They are the right choice when you are building a new line or when your maintenance standards require virgin components.
Refurbished units are professionally reconditioned Parker 690 drives that have been disassembled, inspected, cleaned, tested under load, and verified against factory performance specifications before being returned to stock. Every refurbished 690 drive sold by Flexa carries the same 2-year warranty as a new unit — there is no second-tier coverage for refurbished inventory.
For plant engineers working against a production deadline or facing long lead times on new stock, refurbished units often represent the fastest path to getting a line back up. Flexa ships from its Lewisville, Texas facility to buyers across the United States, with fast processing on in-stock orders.
Because availability changes with inventory turns, we strongly recommend contacting us before committing to a procurement schedule. Use the request a quote form to confirm availability of the exact 690 model you need, specify new or refurbished preference, and receive a formal quote for your purchasing department.
Repair and Support for Your Existing 690
If you already operate a Parker 690 drive that has developed a fault — whether a DC bus overvoltage, gate drive failure, IGBT fault, control board issue, or communication card failure — Flexa Systems offers component-level drive repair services.
Our Parker 690 AC drive repair service includes a free diagnostic evaluation. Your drive is inspected at the component level, a repair scope is defined, and you receive a report before any repair work begins. This means no surprise charges and a clear decision point: repair the existing unit, or replace it with a stocked new or refurbished drive.
Repaired 690 drives are tested under load before return shipment and carry a warranty on the repair work. If your plant runs other Parker platforms alongside the 690, the Parker 590 DC drive guide covers repair and sourcing for the DC drive side of the portfolio, and the Parker Hannifin drives and automation overview provides broader context on the full product range.
Whether your 690 needs a board swap, a power section rebuild, or a full parameter re-commission after repair, Flexa's technical team works with plant and maintenance engineers to minimize downtime on your production line. We serve buyers and repair customers across the United States from our Lewisville, TX facility.
Frequently Asked Questions
What is the difference between the 690+, 690PB, and 690PD?
The 690+ is the drive platform; the letter that follows "690P" is the frame size. 690PB is a Frame B unit, 690PD is a Frame D unit, and the range runs through Frame F. Frame size sets the physical envelope and the power band. Communications and feedback are separate option blocks in the product code — PROF for a Profibus card, HTTL for encoder feedback — so a drive of any frame size may or may not have them. Match the frame first, then the options.
How do I read a Parker 690 part number?
A Parker 690 product code encodes the frame size (the letter after 690P), the power output in kilowatts (0022 = 2.2 kW, 0180 = 18.5 kW), the voltage class (400 or 460), the supply phases, and then a series of option blocks covering keypad, language, encoder feedback (HTTL), communications (PROF) and braking. Confirm the kW figure against your motor rating, match the voltage class to your supply, and read the option blocks before ordering.
Do you sell new and refurbished Parker 690 drives?
Yes. Flexa Systems stocks Parker 690 drives in both new and refurbished condition. Refurbished units are fully tested, inspected, and verified before shipment. Both new and refurbished drives are available for the models listed on our website. No prices are listed online — contact us or submit a quote request to confirm current availability and receive pricing for your specific model and quantity requirements.
Is the Parker 690 still supported, or should I upgrade?
The Parker 690 remains in active use across many North American plants and replacement drives are available. However, for new installations or capacity expansions, Parker's newer platforms — including the 890 series — offer updated communications, enhanced diagnostics, and broader firmware support. See the Parker 890 AC drive buying guide for a comparison. For existing 690-based lines, replacement drives and repair services remain readily available through Flexa Systems.
What warranty comes with a Parker 690 drive from Flexa Systems?
Every Parker 690 drive sold by Flexa Systems — whether new or refurbished — carries a 2-year warranty. This warranty covers the drive against defects and is backed by Flexa's US-based technical support team in Lewisville, Texas. Warranty terms apply to both stocked replacement units and drives returned after component-level repair service. Contact us for full warranty terms specific to your order.
Buy a Parker 690 Drive or Get a Quote
Flexa Systems is your US-based source for Parker 690 AC drives — new and refurbished, in stock, and ready to ship from Lewisville, Texas. Whether you need a compact Parker 690+ 0003/460/1BN wall-mount unit, a large-frame Frame D 690PD with HTTL encoder feedback and a Profibus card, or any model in between, our team can confirm availability and provide a formal quote quickly. All drives include a 2-year warranty. To get started, visit our request a Parker 690 quote page, browse the full Parker VFD catalog, or call us directly at (254) 254-0005. Our team is ready to help you identify the right 690 model, verify compatibility with your application, and move your order forward without delay.
