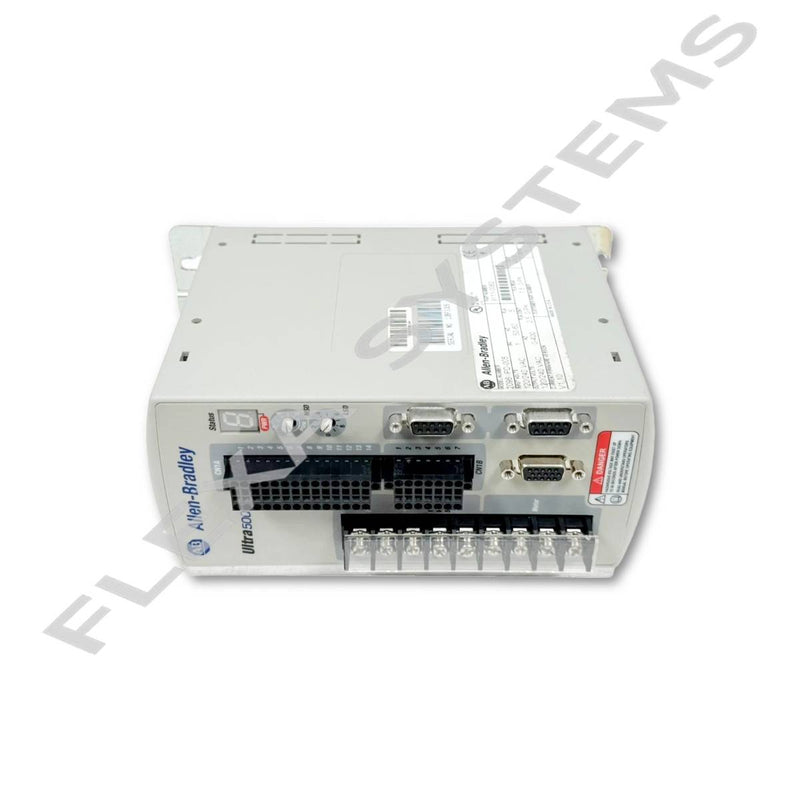

Allen-Bradley 2098-IPD-005-DN

Within Allen-Bradley's Servo lineup, the Allen-Bradley 2098-IPD-005-DN functions as a compact intelligent power module belonging to the Ultra 3000 servo drive series — a platform designed for precise motion control in coordinated multi-axis machine architectures. The 2098-IPD-005-DN specifically represents the DeviceNet-enabled variant of the IPD (Intelligent Power Drive) sub-family, rated at 5-amp continuous output current for smaller servo motor pairings. Its core purpose is to regulate torque, velocity, and position on servo axes where deterministic response and tight loop bandwidth are required, rather than the simpler variable-speed applications handled by general-purpose drives. The unit accepts single-phase or three-phase AC input and delivers PWM-controlled output to compatible Allen-Bradley servo motors, handling commutation and feedback processing internally. At this power level, the 2098-IPD-005-DN is particularly suited to light-duty and mid-duty axis work where physical footprint and cabinet space are constraints. The DeviceNet suffix distinguishes this model from analog-only and serial-only siblings in the same Ultra 3000 product tier.

Integration-wise, the Allen-Bradley 2098-IPD-005-DN communicates over a DeviceNet network node, allowing it to receive motion commands and report drive status back to a supervisory controller without dedicated point-to-point wiring for each parameter. This positions the drive naturally within Allen-Bradley ControlLogix and CompactLogix PLC ecosystems, where RSLogix 5000 and Studio 5000 Logix Designer handle axis configuration through the Motion Instruction set. Compared to Ultra 3000 siblings that rely solely on analog reference signals, the 2098-IPD-005-DN supports network-based parameter management, which simplifies commissioning across multi-axis cells and reduces field wiring labor. Technicians can browse the full catalog of all Servo units we repair to cross-reference compatible drive families when planning an axis upgrade or replacement strategy. Typical deployment environments include packaging machinery in food and beverage facilities, robotic pick-and-place cells in electronics assembly, label applicators in pharmaceutical lines, and precision feed axes in converting equipment. The drive accepts incremental encoder feedback from compatible motors, and its onboard auto-tuning assists with loop gain configuration during initial machine setup, reducing the need for manual servo tuning expertise at the machine level.

Like other Servo units in heavy industrial duty, the Allen-Bradley 2098-IPD-005-DN operates in environments that progressively stress its internal power stage and control electronics — heat cycling from repeated start-stop duty, DC bus voltage transients during aggressive deceleration, and particulate contamination infiltrating ventilation paths are among the primary aging mechanisms for this drive class. The IGBT power module and gate driver circuitry are the components most commonly implicated in Allen-Bradley 2098-IPD-005-DN repair scenarios, followed by capacitor degradation on the DC bus and DeviceNet interface faults that manifest as node communication dropouts. Facilities sourcing an Allen-Bradley 2098-IPD-005-DN replacement after an unexpected failure should verify the firmware revision on the substitute unit, as Ultra 3000 axis configurations stored in the PLC project may reference revision-specific parameters. Those looking to buy Allen-Bradley 2098-IPD-005-DN stock for spare inventory or active replacement will find both new and Allen-Bradley 2098-IPD-005-DN refurbished options relevant depending on budget and lead-time constraints. Consulting available Servo repair services before committing to new procurement can recover operational units at substantially lower cost, particularly for drives where only the control board has failed. Details on the broader Allen-Bradley repair program cover additional drive families and evaluation procedures for mixed-fleet automation environments. Facilities can ship the Allen-Bradley 2098-IPD-005-DN to Flexa Systems for board-level repair, exchange for a refurbished unit, or order new stock — repairs are backed by a 2-year warranty from our Lewisville, TX shop.
