HMI stands for Human-Machine Interface. In industrial settings, an HMI is the hardware and software that allows operators and technicians to interact with automated equipment — displaying process data, accepting operator commands, showing alarm conditions, and providing the visual window into what a machine or process is doing. If a PLC is the brain of an automated system, the HMI is the face. Without it, operators have no visibility and no control beyond what physical pushbuttons and indicator lights can provide.
Table of Contents
- How HMIs Work
- Types of Industrial HMI
- HMI vs. SCADA: What's the Difference
- How HMIs Communicate with PLCs
- Major HMI Brands in U.S. Industry
- What Happens When an HMI Fails
- Expert Repair Services
- Frequently Asked Questions
- Read Next
Key Takeaways
| Point | Details |
|---|---|
| Definition | HMI = Human-Machine Interface; the operator interface to automated systems |
| Function | Displays real-time process data, accepts operator inputs, shows and acknowledges alarms |
| Communication | Reads/writes PLC memory tags via EtherNet/IP, PROFINET, Modbus, or serial protocols |
| Types | Pushbutton stations, panel-mount touchscreens, PC-based HMIs, mobile/tablet HMIs |
| HMI vs. SCADA | HMI = single machine; SCADA = plant-wide, multi-PLC supervisory system |
| Failure impact | Lost visibility and operator control; machine may still run but operators are blind |
How HMIs Work
An industrial HMI is fundamentally a display and input device connected to a controller. The HMI software runs a project — a collection of screens, graphics, tag definitions, and alarm configurations developed by an engineer using HMI programming software. Each element on the screen (a numerical display, a trend graph, a button, a status indicator) is linked to a tag. Tags are mapped to memory addresses in the connected PLC or controller.
At runtime, the HMI continuously polls the PLC for the current values of the tags its screens reference. When a process value changes in the PLC (a temperature increases, a motor starts, a sensor activates), the HMI reads that change on the next communication cycle and updates the screen accordingly. When an operator touches a button on the HMI screen, the HMI writes the corresponding value to the PLC's memory address, which the PLC reads on its next scan cycle and acts on.
This read-write communication between HMI and PLC happens continuously while the system is running — typically 100–500ms polling intervals for panel-mount HMIs, faster for PC-based SCADA systems. The HMI is always a client requesting data; the PLC is always the server holding the live process state. The PLC remains in control regardless of HMI status — if the HMI fails, the PLC continues executing its program and the machine continues running (or running its safety shutdown sequence, depending on the application).
Types of Industrial HMI
HMI hardware ranges from simple pushbutton/indicator stations to sophisticated multi-monitor PC-based operator workstations. The main categories are:
Pushbutton/Pilot Light Stations
The most basic form of HMI: physical buttons, selector switches, and indicator lights mounted in an enclosure or on a panel. No screen, no graphics — just direct hardwired I/O to the PLC. Still common on simple machines, emergency stop stations, and as supplementary controls alongside touchscreen panels. Extremely reliable but limited in information density.
Operator Interface Terminals (OITs)
Small text-based displays with function keys — often 4–8 lines of alphanumeric text. Common on older machines and simple process equipment. Products like the Allen-Bradley MicroView and older Siemens OP7/OP17 fall into this category. Limited but rugged and easy to maintain.
Panel-Mount Touchscreen HMIs

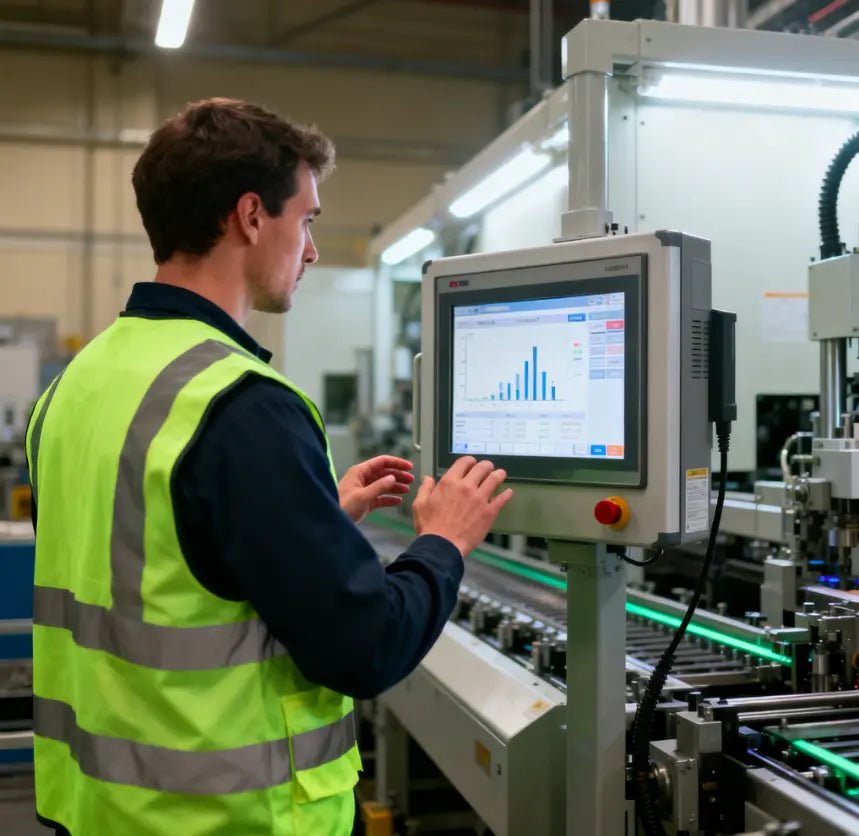

The dominant HMI type in modern manufacturing. Dedicated embedded computers with display sizes from 4 inches to 21 inches, running a proprietary real-time OS and HMI runtime application. Examples: Allen-Bradley PanelView Plus 7, Siemens SIMATIC TP700/TP1200/TP1900 Comfort, Mitsubishi GOT2000, Proface GP4000 series. Panel-mount HMIs are designed for industrial environments: they are rated for NEMA 4 or 4X front panel sealing, operate over wide temperature ranges, and withstand vibration and electrical noise.
PC-Based HMIs
Industrial PCs running Windows with SCADA/HMI software (FactoryTalk View SE, Wonderware, iFIX, Ignition) acting as operator stations. More powerful than dedicated HMI panels — can handle complex graphics, historical data logging, report generation, and integration with MES/ERP systems. Higher maintenance burden (Windows updates, antivirus, larger software stack) than panel-mount HMIs. Common as central control room workstations and SCADA servers.
Mobile and Web-Based HMIs
Increasingly common as IIoT connectivity enables browser-based or tablet-based HMI views. Engineers and managers can view process status from a phone or tablet without being physically at the machine. These are typically read-only or limited-write supplementary interfaces rather than primary operator controls — safety and usability requirements for machine operation generally favor a fixed, panel-mount primary HMI.
HMI vs. SCADA: What's the Difference
| Characteristic | HMI | SCADA |
|---|---|---|
| Scope | Single machine or production cell | Multiple machines, entire plant or facility |
| Hardware | Panel-mount touchscreen, dedicated embedded device | Server + operator workstation PC(s) |
| Data logging | Limited (event logs, alarms) | Full historian with years of trend data |
| Multi-PLC | Typically 1 PLC connection | Dozens to hundreds of PLC/RTU connections |
| Reporting | Limited or none | Production reports, compliance reports, OEE |
| Typical location | Machine-mounted, control panel | Control room, server room |
In practice, the distinction blurs in smaller facilities. A single FactoryTalk View SE station connected to 5 PLCs in a small manufacturing plant serves as both HMI and SCADA. In a large facility, dedicated panel-mount HMIs at each machine feed local operators while a SCADA system aggregates data for supervisors and production management.
How HMIs Communicate with PLCs
Modern HMIs communicate with PLCs via industrial Ethernet protocols. Allen-Bradley PanelView HMIs use EtherNet/IP to communicate with ControlLogix, CompactLogix, and MicroLogix PLCs. Siemens SIMATIC HMIs use PROFINET or S7 protocol to communicate with S7 series PLCs. Cross-brand communication is common through drivers — a Proface HMI connecting to a Siemens S7-1200 via Modbus TCP, for example.
Older HMIs and PLCs use serial communication: RS-232, RS-422, or RS-485 with protocols like Modbus RTU, DF1, or DH+. These serial connections are slower and shorter range than Ethernet but remain in service on legacy machines. Converting a serial-connected HMI to Ethernet typically requires updating both the HMI project (changing driver and connection settings) and the PLC configuration, or using a serial-to-Ethernet gateway device.
"Operators tell us they can run the machine, but they can't see what it's doing without the HMI. That's not really running the machine — that's flying blind. HMI availability is as critical as PLC availability." — Controls manager, U.S. packaging plant
Major HMI Brands in U.S. Industry
| Brand | Common Product Lines | Associated PLC Platform |
|---|---|---|
| Allen-Bradley | PanelView 800, PanelView Plus 7 | ControlLogix, CompactLogix, MicroLogix |
| Siemens | SIMATIC KTP700/1200/1900, TP Comfort series | S7-1200, S7-1500, S7-300/400 |
| Mitsubishi | GOT2000 series (GT27, GT25) | MELSEC iQ-R, Q-series, FX series |
| Proface / Schneider | GP4000, GP4100 series | Multi-brand via drivers |
| Red Lion | Graphite, Crimson series | Multi-brand via drivers |
| Weintek / eWON | MT8000 series | Multi-brand, strong IIoT connectivity |
| Omron | NS series, NA series | NJ/NX series PLCs |
Pro Tip: When selecting an HMI for a new machine, choose a brand that has strong market presence and an active support ecosystem. HMI projects can last 15–20 years on long-lived machines — you'll need programming software, spare hardware, and repair support for that entire period. An HMI brand that loses market share or discontinues a product line mid-machine-lifecycle creates expensive migration work.
What Happens When an HMI Fails
When an HMI fails, the PLC continues running — the machine doesn't necessarily stop. But operators lose the ability to see process status, acknowledge alarms, or make setpoint changes. In many applications, this is sufficient to force a controlled shutdown: quality-critical processes where operators need to monitor readings, applications where alarms require acknowledgment within a time limit, or machines where startup requires operator confirmation steps through the HMI.
The operational impact of an HMI failure therefore depends on the application. A conveyor in automatic mode running a fixed cycle may continue indefinitely without operator intervention. A batch chemical process that needs operator confirmation at each recipe step cannot proceed. A CNC machining center can keep running the current program but cannot load a new job. This variability means HMI repair response time should be calibrated to the specific operational dependency — not all HMI failures are equal in urgency.
A common and underappreciated risk: when an HMI fails and operators resort to manual control via hardwired buttons, alarms may not be visible, interlocks that are HMI-mediated may be bypassed, and the machine operates outside its designed control envelope. This is when injuries and equipment damage occur. Fast HMI repair is not just an availability issue — it's a safety issue.
Expert Repair Services

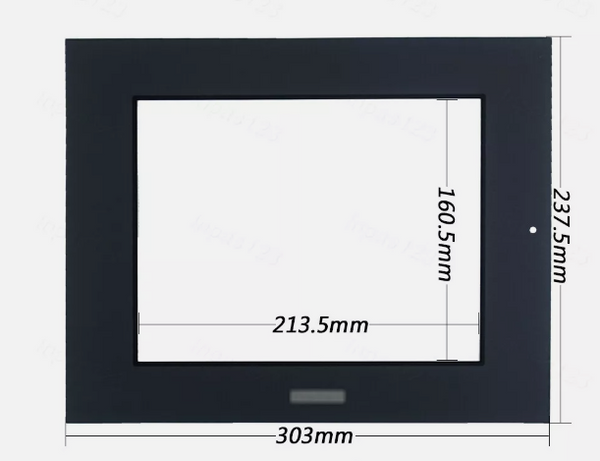

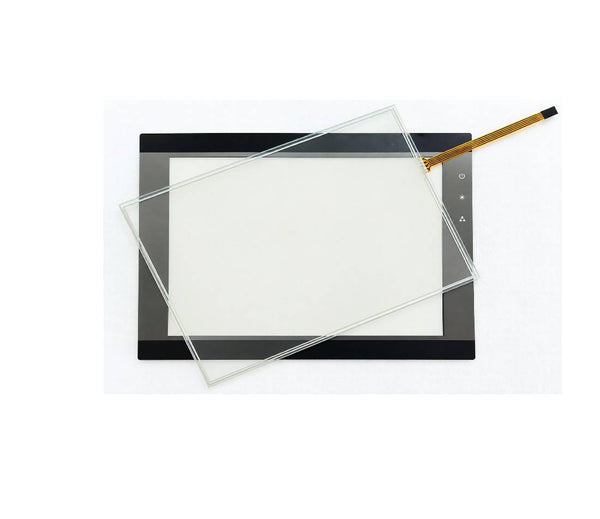

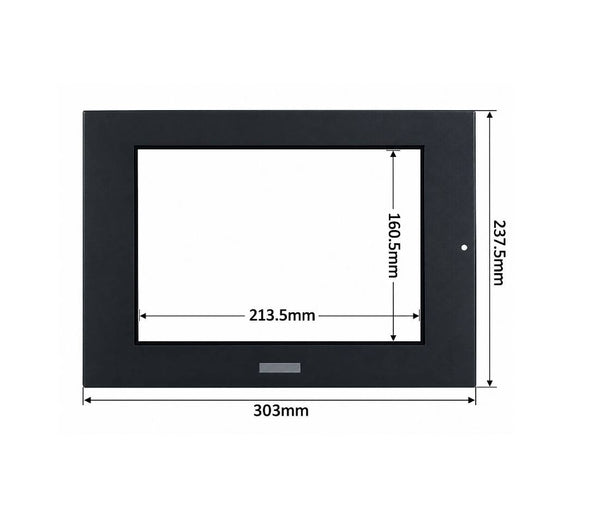

Flexa Systems repairs industrial HMI panels for all major brands including Allen-Bradley PanelView, Siemens SIMATIC, Mitsubishi GOT, Proface, Red Lion, and others. Repairs include display and backlight replacement, touchscreen overlay replacement, and board-level component repair. All repairs carry a 2-year warranty. Free evaluation, flat-rate quotes, and same-day rush service available. Lewisville, TX. Learn more at flexa-systems.com/pages/hmi-repair.
Frequently Asked Questions
Can I replace an HMI with a different brand than the original?
Technically yes, if the new HMI supports a communication driver compatible with the existing PLC. However, the HMI project (screens, tags, alarms) must be completely rebuilt from scratch in the new platform's software — it cannot be migrated directly. For a complex HMI project, this rebuild cost can exceed the price of repairing or finding a used replacement of the original model. Brand replacement makes sense when the original platform is discontinued and no parts or repair support is available, or when you're standardizing an entire facility's HMI fleet.
What is the lifespan of an industrial HMI touchscreen?
The touchscreen overlay (resistive type) typically lasts 1–3 million actuations or 5–10 years in continuous industrial use, whichever comes first. Display backlights (CCFL) typically last 30,000–50,000 hours, or approximately 3–6 years at continuous operation — this is why backlight replacement is so common on units over 5 years old. The underlying electronics and display panel can last much longer — 15–20 years is common for units that are maintained and protected from extreme environments. Replacing wearable components (backlight, touch overlay) as they age is far more cost-effective than whole-unit replacement.
Do I need to back up my HMI project, and how often?
Yes, absolutely. Back up the HMI project every time it changes, and store backups in at least two locations (local and offsite or cloud). The project should also be backed up before any hardware work on the HMI or connected PLC, as a safety precaution. Use the OEM software for the backup: FactoryTalk View Studio for PanelView units, TIA Portal for Siemens HMIs. If you inherit a machine without documentation, a qualified repair shop may be able to upload the project from a functional HMI — do this before any failure occurs, not after.
