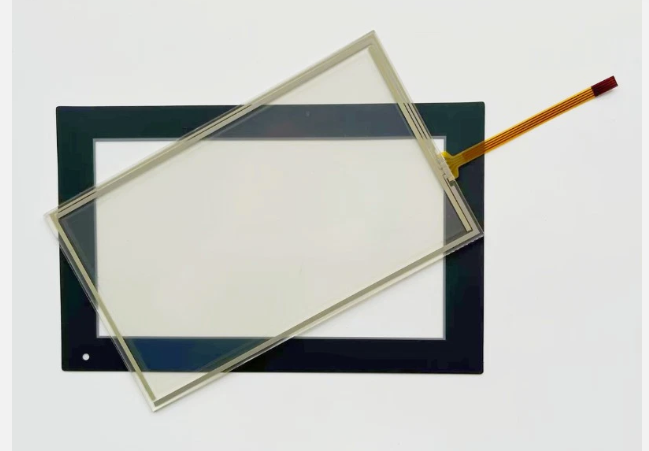

Allen-Bradley 2711R-T7T Touchscreen + Overlay

Engineers integrating ALLEN BRADLEY's product line rely on the 2711R-T7T Touchscreen + Overlay as a compact operator interface within the PanelView 800 series — a family of entry-level HMI terminals designed for machine-level control where cost efficiency and straightforward deployment matter. The ALLEN BRADLEY 2711R-T7T Touchscreen + Overlay is a 7-inch color touchscreen unit that combines the display panel and protective overlay into a single assembly, giving it a defined replacement and upgrade path in panel builds. Operating at a 800 x 480 WVGA resolution, the unit delivers clear process visualization without the overhead of larger, more complex operator terminals. Its primary function is to provide local operator interaction with connected control systems — displaying status, accepting input, and surfacing alarm conditions in real time. The 2711R-T7T sits at the higher end of the PanelView 800 display-size range, making it appropriate for applications that require readable screen area within constrained cabinet footprints. This HMI terminal is built around a resistive touchscreen technology, which informs both its operating characteristics and its typical wear profile over time.

On the technical side, the ALLEN BRADLEY 2711R-T7T Touchscreen + Overlay communicates via Ethernet/IP, connecting directly to Logix-family controllers including CompactLogix and MicroLogix platforms without requiring a dedicated communication module. This native Ethernet/IP support positions the unit as a straightforward fit in modernized machine architectures that already use a standard network backbone rather than proprietary fieldbus wiring. Configuration and application development are handled through Connected Components Workbench software, Allen-Bradley's no-charge engineering tool, which keeps the programming environment consistent across the broader ALLEN BRADLEY HMI repair and maintenance ecosystem. Unlike larger PanelView Plus 7 terminals, the 2711R-T7T does not support VNC remote access or multi-language runtime switching at the same depth, so application requirements should be scoped accordingly before specifying it. Among the all HMI units we repair in the PanelView 800 series, the T7T variant represents the largest available display size, a distinction that makes it common in packaging line end-of-arm tooling stations, food and beverage filling systems, and pharmaceutical tablet press control panels. Its IP66-rated front face allows flush installation in wash-down environments where periodic cleaning with water or mild chemical agents is routine.

Over years of continuous operation, the 2711R-T7T Touchscreen + Overlay accumulates wear primarily at the resistive touch surface, where repeated operator input in fixed zones — typically E-stop acknowledgment buttons and mode selection areas — degrades touch calibration accuracy and eventually causes missed or misregistered inputs. The overlay layer itself is a consumable component; scratching, delamination at the edges, and UV-related yellowing are common in units that have seen five or more years of continuous shift operation under fluorescent or high-UV ambient lighting. Backlight degradation is the other predominant failure mode, presenting as progressively dimming display output before full backlight failure renders the screen unreadable under normal ambient conditions. Facilities sourcing a 2711R-T7T Touchscreen + Overlay replacement for an aging machine should account for overlay condition separately from display functionality, since the overlay can fail visually before the underlying electronics show any fault. For operations evaluating a 2711R-T7T Touchscreen + Overlay for sale in the refurbished market, confirming that both the overlay and touch calibration have been addressed in the refurbishment process is essential to avoid a short second service life. Detailed information on what the restoration process covers is available through industrial HMI repair services documentation. Sourcing options for the 2711R-T7T Touchscreen + Overlay include depot repair, in-stock refurbished units, and new replacement supply through Flexa Systems in Lewisville, TX, with a 2-year warranty on all repairs.
