Variable frequency drives (VFDs) — also called AC drives, frequency inverters, or motor drives — are among the most widely used components in industrial automation. Most manufacturing facilities that run AC induction motors rely on variable frequency drives for speed control, energy efficiency, and process consistency.
This article covers how VFDs work, where they are used, the energy savings they deliver, and what maintenance teams need to know to keep industrial motor drives running reliably.
Table of Contents
- How Variable Frequency Drives Work
- Key VFD Applications in Manufacturing
- VFD Energy Savings: The Affinity Laws
- Process Control Benefits of VFDs
- VFD Maintenance Fundamentals
- Common VFD Failure Modes and Warning Signs
- VFD Repair Services
- Frequently Asked Questions
- Read Next
Key Takeaways
| Topic | Key Point |
|---|---|
| Operating principle | VFDs convert fixed AC to variable-frequency AC by rectifying to DC, then inverting via PWM |
| Energy savings | Affinity Laws: reducing motor speed by 20% cuts power consumption by ~49% |
| Soft start | Variable frequency drives remove inrush current (up to 6–8x FLA), extending motor and drivetrain life |
| Process control | Speed reference from PLC, pressure/flow sensor, or analog setpoint enables closed-loop process control |
| Maintenance priority | Cooling system maintenance is the single highest-impact preventive task for VFD longevity |
How Variable Frequency Drives Work
A variable frequency drive controls an AC induction motor's speed by varying the frequency and voltage of the power it receives. Motor speed depends directly on supply frequency (synchronous speed = 120 × frequency / number of poles). Changing the frequency gives continuous speed adjustment from zero to above base speed.
A modern VFD — whether an Allen-Bradley PowerFlex, Siemens SINAMICS, Yaskawa A1000, or ABB ACS drive — has three internal stages:
- Rectifier (AC to DC conversion) — A diode bridge or SCR rectifier converts the incoming AC line voltage (typically 230V or 460V, 3-phase) to DC. The resulting DC voltage is roughly 1.35 × the line-to-line AC voltage (650V DC for a 480V AC input).
- DC bus (energy storage and filtering) — Large capacitors smooth the DC voltage and store energy. The DC bus also absorbs energy from loads that are slowing down.
- Inverter (DC to variable AC) — Six IGBTs switch the DC voltage at high frequency (2–16 kHz) to produce a variable-frequency, variable-voltage AC output using pulse-width modulation (PWM). The motor's inductance filters the PWM signal into a smooth current the motor treats as a true AC supply.
The control board manages the PWM pattern, reads feedback signals (speed, current, motor temperature), runs protection functions (overcurrent, high voltage, low frequency, ground fault), and connects to the plant control system via fieldbus or analog I/O.
Key VFD Applications in Manufacturing
Variable frequency drives appear in almost every motor-driven application where speed variation helps — which covers most industrial motor uses. The most common VFD applications:
| Application | Motor Load Type | VFD Benefit |
|---|---|---|
| Pumps (HVAC, process, cooling) | Variable torque (centrifugal) | Speed matches flow demand; major energy savings |
| Fans and blowers | Variable torque (centrifugal) | Airflow control without damper throttling losses |
| Conveyors | Constant torque | Speed matching between line segments; soft start/stop |
| Compressors | Variable torque or constant torque | Pressure control; reduced cycling losses |
| Machine tools (spindles, feed axes) | Constant or variable torque | Programmable speed profiles; position control with encoder feedback |
| Mixers and agitators | Constant torque | Adjustable mixing speed for recipe control |
| Winders and unwinders | Torque-controlled | Tension control via torque regulation |
In food and beverage processing, VFDs control filling lines, mixers, and conveyors with precise speed profiles. In HVAC, AC drives handle energy-efficient air and fluid flow. In oil and gas, variable frequency drives run compressors and pumps in demanding environments. In packaging, motor drives keep machine axes in sync for accurate product handling.
VFD Energy Savings: The Affinity Laws
Variable frequency drives on centrifugal loads (pumps, fans, blowers) save energy through the Affinity Laws — fluid mechanics rules that describe how flow, pressure, and power change with impeller speed:
- Flow varies directly with speed: reduce speed by 20%, flow drops by 20%.
- Pressure (head) varies with the square of speed: reduce speed by 20%, pressure drops by 36%.
- Power varies with the cube of speed: reduce speed by 20%, power drops by 49%.
The cubic relationship between speed and power is why VFDs save so much energy on centrifugal loads. A fan running at 80% speed uses only about 51% of the power it needs at full speed. Over a year of continuous operation, that difference adds up significantly on any facility's energy bill.
For constant-torque loads (conveyors, extruders, positive-displacement pumps), VFD energy savings are smaller. But the process and mechanical benefits — soft starting, programmable ramps, precise speed matching — still justify the AC drive investment.
The U.S. Department of Energy estimates electric motors use roughly 65% of industrial electricity. Variable frequency drives on centrifugal loads can cut that use by 20–50%, making them one of the best-ROI investments in industrial energy efficiency.
Process Control Benefits of VFDs
Beyond energy savings, variable frequency drives add process control capabilities that fixed-speed motor starters cannot match.
Soft starting and stopping — VFDs ramp motors up and down on a programmed curve, removing the inrush current spike (typically 600–800% of full-load amps) that across-the-line starting causes. This reduces mechanical stress on couplings, belts, gearboxes, and the motor — extending drivetrain life. It also removes voltage sag events that can trip other equipment on the same feeder.
Closed-loop process control — When a VFD receives a feedback signal (pressure, flow, temperature), it adjusts motor speed on its own to hold a setpoint — no PLC control loop needed. A pressure-controlled pump, a static-pressure fan, or a temperature-regulated mixer are all examples of closed-loop AC drive control.
Programmable speed profiles — Multi-step speed presets, jog functions, and programmable ramp profiles let variable frequency drives handle complex motion sequences without extra PLC programming — simplifying machine control for repetitive tasks.
Pro Tip: For VFDs on critical process equipment, enable the flying start (speed search) function. This lets the drive restart a spinning motor smoothly — avoiding mechanical shock and cutting restart downtime after brief power interruptions.
VFD Maintenance Fundamentals
Variable frequency drives are solid-state devices with few wear parts, but they are not maintenance-free. These components have a limited service life and need regular attention:
Cooling fans — The internal fan is typically rated for 50,000–100,000 hours, but dirty environments (dust, oil mist) can cut that sharply. A failed fan causes the VFD to trip on overheating, or run hot — which speeds up capacitor aging. Replace fans on a set schedule — most AC drive makers publish recommended intervals.
DC bus capacitors — Capacitors age due to heat, ripple current, and time. As they age, capacitance drops and internal resistance rises — increasing bus ripple and stressing the IGBTs. Typical service life is 10–15 years at rated temperature; higher heat speeds up aging. Replacing capacitors before failure is more cost-effective than replacing them after a VFD failure.
Cooling system (heat sink and air path) — Keep heat sink fins and air ducts clear of dust and debris. Clean them yearly, or more often in dirty environments. Thermal imaging during operation can spot hot areas that point to blocked airflow or worn thermal compound before a failure occurs.
Control board capacitors — Smaller capacitors on the control and power supply boards also age and can cause erratic behavior or communication failures. Maintenance teams often overlook these, but they cause many intermittent faults on older variable frequency drives.
Common VFD Failure Modes and Warning Signs
Knowing AC drive failure patterns helps maintenance teams catch problems before they cause production stoppages.
| Failure Mode | Warning Signs | Root Cause |
|---|---|---|
| IGBT failure | Sudden overcurrent fault on start; output phase missing | Overcurrent event, gate driver fault, thermal stress |
| DC bus capacitor degradation | High-voltage trips under load; erratic speed; ripple noise on output | Age, heat, high ambient temperature |
| Overheating trips | VFD trips under load, especially in warm months; cooling fan noise | Blocked heat sink, failed fan, high ambient |
| Ground fault | GF fault code; nuisance trips; motor running rough | Motor insulation degradation, cable damage |
| Control board failure | Communication errors; parameter loss; erratic display behavior | Component aging, ESD damage, moisture |
A variable frequency drive that trips and resets, then trips again under load, or shows intermittent fault codes is signaling a problem. Ignoring these signs turns a manageable VFD repair into a full failure. Log the fault history and have the drive checked before it fails in production.
VFD Repair Services — All Major Brands

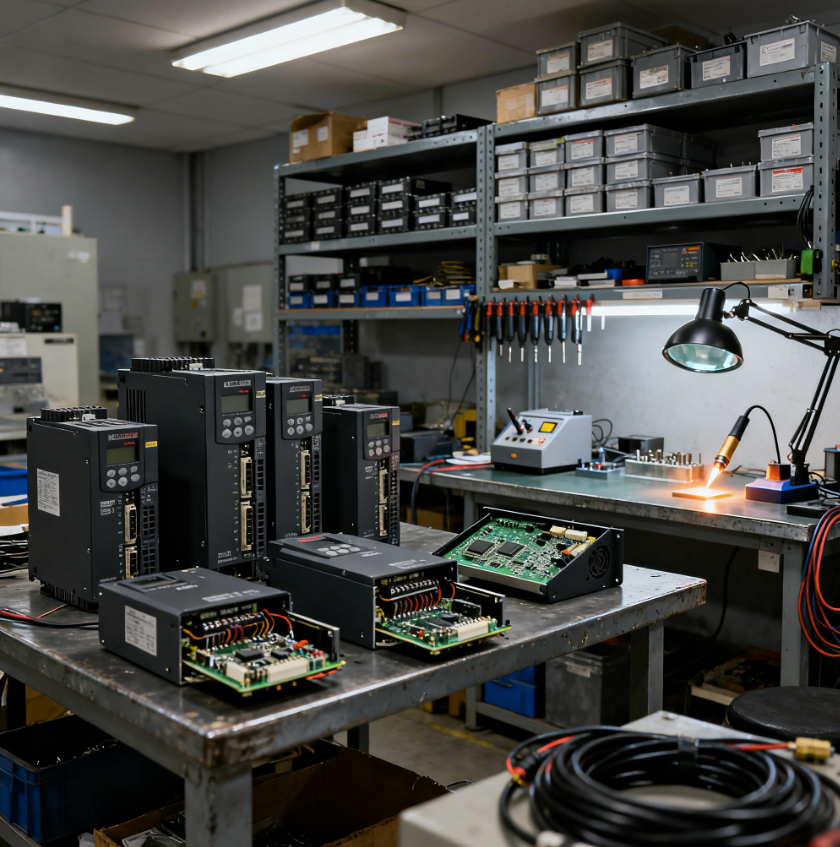

When a variable frequency drive fails, Flexa Systems provides component-level VFD repair for all major brands — Allen-Bradley PowerFlex, Siemens SINAMICS, Yaskawa V1000/A1000/G7, ABB ACS550/ACS800, Danfoss FC302, Lenze 8200/8400, Mitsubishi FR-A, and more — from our facility in Lewisville, TX.
Every AC drive repair includes a written diagnostic report, load testing under operating conditions, and a 2-year warranty. Standard turnaround is 5–7 business days, with rush service available for critical production line failures. VFD repair typically costs 40–70% less than buying a new drive. Request a free quote or call (254) 254-0005.
Frequently Asked Questions
What is the difference between a VFD and a soft starter?
Both devices control how an AC motor starts and stops. A soft starter only manages the start and stop ramp. Once the motor reaches full speed, the motor bypasses the soft starter and runs directly on line voltage at fixed speed.
A variable frequency drive provides continuous speed control across the full operating range. It allows speed changes during normal operation and supports closed-loop process control.
For applications that only need soft start/stop, a soft starter is simpler and cheaper. For applications that need variable speed, use a VFD.
How much does VFD repair cost compared to replacement?
Variable frequency drive repair typically costs 40–70% less than buying a new AC drive. A new Allen-Bradley PowerFlex 755 or Siemens SINAMICS S120 can run $3,000–$15,000+, with lead times of 4–12 weeks on backorder.
Component-level VFD repair at Flexa Systems typically costs $300–$3,500 depending on drive size and failure type, with a 5–7 day standard turnaround. Rush VFD repair (24–72 hours) is available for critical production line failures.
Can a variable frequency drive extend motor life?
Yes, in multiple ways.
Removing inrush current on starts cuts the thermal and mechanical stress that causes winding and bearing wear. Controlled ramps reduce shock loads on couplings and drivetrain parts. Running at reduced speed during partial-load conditions lowers motor temperature and extends insulation life.
One caveat: running a standard AC induction motor at low speeds on a VFD can reduce cooling, since the shaft fan slows with the motor. For extended low-speed operation, use a separately cooled or inverter-duty motor.
How often should DC bus capacitors be replaced in a VFD?
Manufacturer guidelines vary. A general rule for DC bus capacitors in a well-cooled variable frequency drive is 10 years at rated ambient temperature.
For every 10°C above rated ambient, capacitor life roughly halves (Arrhenius relationship).
In practice, replace VFD capacitors at 10–12 years, or when testing shows capacitance has dropped below 80% of rated value. This prevents aging capacitors from stressing IGBTs or causing bus failure.
Some facilities replace capacitors on a set overhaul schedule rather than waiting for test results — especially on critical AC drives where downtime is costly.
Which VFD brands do you repair?
Flexa Systems repairs all major variable frequency drive brands at the component level, including:
- Allen-Bradley — PowerFlex 4, 40, 523, 525, 700, 753, 755
- Siemens — SINAMICS G110, G120, G120C, S120, V20, MICROMASTER 440
- Yaskawa — V1000, A1000, P1000, G7, F7, GA500, GA700
- ABB — ACS150, ACS355, ACS550, ACS580, ACS800, ACS880, ACH550
- Danfoss — FC51, FC102, FC202, FC302, VLT 2800/5000/6000
- Lenze — 8200 Vector, 8400 StateLine/TopLine, i500, i550, 9300
- Mitsubishi — FR-D700, FR-E700, FR-A700, FR-A800, FR-F700
