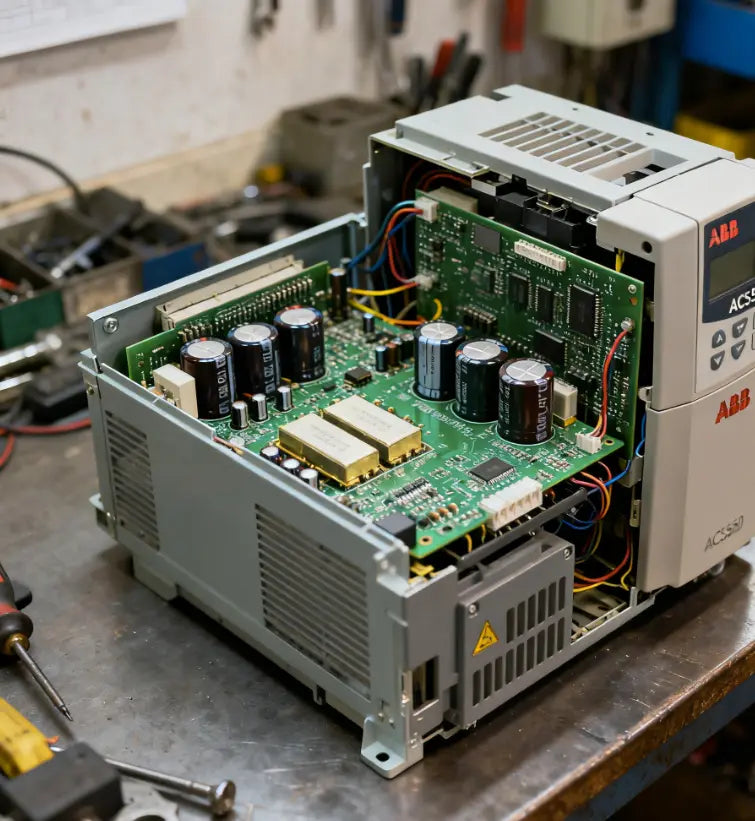

ABB variable frequency drive repair is one of the most common requests we handle at Flexa Systems — and for good reason. ABB VFDs are pivotal components in modern industrial settings, offering precise control over motor speed and torque across manufacturing, HVAC, water treatment, and dozens of other applications. When they fail, production stops. Understanding how to maintain and repair these drives efficiently can mean the difference between a quick recovery and weeks of costly downtime.
At Flexa Systems, we perform ABB variable frequency drive repair at component level — identifying the actual failed part, replacing it with an industrial-grade equivalent, testing under full load, and returning the drive with a 2-year warranty. This guide shares the expert knowledge behind that process so you can make better decisions about maintaining your ABB drives.
Understanding ABB VFDs: How They Work
ABB VFDs control motor speed and torque by adjusting the frequency and voltage supplied to an electric motor. The working principle involves three main stages: a rectifier converts incoming AC power to DC, the DC bus smooths and stores that energy, and an inverter converts it back to controlled AC output at the desired frequency.
ABB builds its drives — including the ACS550, ACS850, ACS880, and ACS355 series — for demanding industrial applications: manufacturing, HVAC, water treatment, oil and gas, and marine. Their robust construction and advanced control algorithms make them reliable, but no drive lasts forever without proper maintenance.
Familiarity with the main functional blocks — rectifier, DC bus, IGBT inverter stage, gate driver boards, and control circuitry — is essential for effective troubleshooting. A technician who understands what each section does can isolate a fault in minutes rather than hours.
Common Issues with ABB VFDs
Overheating
Overheating is one of the most frequent causes of ABB VFD failure. Common causes include inadequate ventilation, blocked cooling paths, failed cooling fans, and excessive ambient temperatures. ABB drives rely on forced-air cooling through heatsink fins and internal fans — when airflow is restricted, component temperatures rise rapidly.
Sustained overheating degrades capacitors, stresses IGBT modules, and can cause permanent damage to gate driver circuits. The drive will typically log an overtemperature fault and shut down as a protective measure, but repeated thermal cycling shortens component life even before a hard fault occurs.
Capacitor Aging
DC bus electrolytic capacitors have a finite lifespan — typically 7 to 12 years depending on operating temperature and load. As they age, capacitance drops and equivalent series resistance (ESR) rises. Symptoms include longer charge times, DC bus overvoltage or undervoltage faults, random shutdowns under load, and instability during acceleration.
Drives stored idle for extended periods — seasonal equipment, backup drives — are particularly vulnerable. On first power-up after long storage, the capacitors may have degraded to the point where the drive appears completely dead.
IGBT and Power Module Failure
IGBTs (Insulated Gate Bipolar Transistors) are the switching devices in the inverter stage. They switch at high frequency under significant current and voltage stress. Failure modes include gate-emitter short circuits, open collector failures, and thermal runaway. Symptoms range from output phase imbalance and motor vibration to immediate overcurrent faults on power-up.
IGBT failures are often secondary — caused by a faulty gate driver board sending incorrect drive signals, or by DC bus capacitor failure creating voltage spikes. Replacing only the IGBT without diagnosing the root cause leads to repeated failures.
Electrical Noise and Interference
Poor grounding, inadequate EMC filtering, or nearby equipment generating conducted interference can disrupt VFD operation. Symptoms include erratic motor behavior, unexpected shutdowns, fluctuating output frequency, and communication faults on fieldbus networks. ABB drives include built-in EMC filters on many models, but external installation practices matter equally.
Component Wear: Fans and Contactors
Internal cooling fans have a rated lifespan (typically 3–5 years at full load). A failing fan causes progressive overheating that eventually damages more expensive components. Pre-charge contactors and relays also wear over time, particularly in applications with frequent start/stop cycles.
Essential Tools for Variable Frequency Drive Repair
Efficient diagnosis requires the right equipment. Basic visual inspection and fault code reading are starting points, but component-level variable frequency drive repair demands more:
- Digital multimeter — voltage, current, and resistance measurements across the rectifier, DC bus, and output stages
- Oscilloscope — waveform analysis to detect gate driver signal issues, output asymmetry, and harmonic distortion
- ESR meter and capacitance meter — essential for evaluating DC bus capacitor condition before replacement
- Insulation resistance tester (megohmmeter) — checks motor insulation integrity and identifies leakage paths that stress the drive
- Thermal imaging camera — detects hotspots and uneven heat distribution inside the drive during operation, revealing failing components before they cause a shutdown
- Variable autotransformer (Variac) — for slowly reforming aged capacitors on drives that have been stored idle for extended periods
Having genuine ABB diagnostic software (DriveComposer or Drive Window) also allows you to read full fault histories, monitor real-time parameters, and run motor identification routines after repair.
Step-by-Step Troubleshooting Approach
Step 1 — Read the Fault Log
ABB drives store fault histories with timestamps. Before touching anything, read the stored faults via the panel or software. The sequence of faults often tells the story: a thermal warning followed by an overcurrent fault points toward a cooling problem rather than a failed IGBT.
Step 2 — Visual Inspection
Inspect the drive physically. Look for burned components, damaged capacitors (swollen tops, electrolyte leakage), corrosion on PCB traces, damaged wiring insulation, and clogged heatsink fins. Check that all cooling fans spin freely and confirm the ventilation path is clear.
Step 3 — Check Input Supply
Measure the incoming three-phase supply voltage. Verify all three phases are present, balanced within 2–3%, and within the drive's specified input range. Phase loss or severe imbalance is a common cause of rectifier diode failure.
Step 4 — DC Bus Measurement
After discharge (allow at least 5 minutes after power-off and verify with a meter), measure residual DC bus voltage. Measure capacitance and ESR on individual capacitors if any fault codes point to DC bus issues. A healthy DC bus should hold its charge longer than a degraded one.
Step 5 — IGBT Gate Driver Testing
Use an oscilloscope to verify gate drive signals from the driver board to each IGBT. Missing, asymmetric, or incorrectly timed signals indicate a faulty gate driver board — which must be repaired or replaced before fitting new IGBT modules.
Step 6 — Output Phase Check
With the motor disconnected, power the drive and measure output voltage across all three phases at low speed. All three should be balanced. An imbalance indicates a failed power device on that phase.
Step 7 — Motor Insulation Test
Before reconnecting the motor, perform an insulation resistance test between each phase and ground. A degraded motor winding puts stress on the drive's output stage and can cause repeated IGBT failures. The motor must be healthy for the repaired drive to survive in service.
Best Practices for Preventive Maintenance
A proactive maintenance schedule is far cheaper than emergency repair and unplanned downtime. For ABB VFDs, we recommend the following:
- Every 3 months: Clean heatsink fins with dry compressed air. Inspect cooling fans for noise, vibration, or reduced airflow. Check that ventilation clearances around the drive enclosure are maintained.
- Every 6 months: Check all power and control terminal connections for tightness. Loose connections cause arcing, localized heating, and eventually drive failure. Log ambient temperatures in the enclosure.
- Every 12 months: Read and clear the fault log. Perform thermal imaging inspection during operation. Measure DC bus capacitance and ESR if the drive is more than 5 years old.
- Every 3–5 years: Replace internal cooling fans as a precautionary measure regardless of condition. Replace DC bus capacitors in drives operating in high-temperature environments or continuous duty.
- After any extended shutdown: Reform capacitors slowly using a Variac before applying full mains voltage. This is critical for drives stored more than 12 months.
Monitoring operating data over time with DriveComposer or similar software allows you to track trends in motor current, drive temperature, and DC bus voltage. Deviations from baseline often predict failures weeks before they occur.
When to Seek Professional Variable Frequency Drive Repair
Preventive maintenance and basic troubleshooting can resolve many issues. But some situations require specialist variable frequency drive repair:
- Recurrent failures despite maintenance — persistent faults indicate an underlying root cause that has not been identified
- IGBT or power module replacement — requires proper desoldering equipment, torque-controlled assembly, and full load testing before return to service
- Gate driver board repair — requires component-level PCB diagnostics and oscilloscope verification of drive signals
- Firmware updates or parameter reconfiguration — incorrect firmware loading can brick a drive; parameter mistakes can damage connected motors
- Water or contamination ingress — requires thorough cleaning, drying, and inspection of every PCB for corrosion damage before powering up
At Flexa Systems, we handle all of these scenarios. We work on ABB ACS355, ACS550, ACS800, ACS850, and ACS880 drives across the full power range. Every repair includes component-level diagnosis, quality replacement parts, full load testing, and a 2-year warranty.
Cost-Effective Variable Frequency Drive Repair vs. Replacement
ABB VFDs range from a few hundred to tens of thousands of dollars new depending on power rating and series. Component-level variable frequency drive repair at Flexa Systems typically costs 20–40% of replacement price — and the repaired drive, with fresh capacitors and a tested IGBT stage, can deliver another decade of reliable service.
The most cost-effective strategy combines repair with preventive maintenance. A drive that is regularly maintained, cleaned, and inspected rarely fails catastrophically. When it does need repair, the fault is usually isolated and the turnaround is fast.
Maintaining a small inventory of critical spare parts — cooling fans for your most critical drive models, pre-charge resistors, fuses — further reduces downtime by allowing immediate partial repairs while waiting for component-level service.
Future Trends: IoT and Predictive Maintenance
The next generation of VFD maintenance is data-driven. IoT-enabled drives collect real-time data on temperature, current, voltage, vibration, and bearing condition. AI algorithms analyze this data to predict failures before they occur, recommend optimal maintenance intervals, and detect performance degradation trends invisible to periodic manual inspection.
ABB's ABB Ability platform and similar tools are moving in this direction. For facilities managing large numbers of drives, predictive maintenance reduces both planned and unplanned downtime, optimizes spare parts inventory, and provides historical data that makes repairs faster and more accurate.
Energy efficiency is another focus area. Modern ABB drives already incorporate advanced PWM techniques and low-loss IGBT technology to minimize power losses. As motor systems account for a large share of industrial energy consumption, even small efficiency gains across a large installation add up significantly.
Conclusion
ABB VFDs are durable, well-engineered drives — but they are not maintenance-free. Overheating, capacitor aging, IGBT failure, and electrical interference are the issues we see most in our workshop. All of them are manageable with the right knowledge, tools, and a consistent preventive maintenance program.
When problems do occur, systematic troubleshooting — starting with fault codes, progressing through visual inspection, electrical measurements, and component-level testing — leads to accurate diagnosis and lasting repairs. Replacing components without understanding the root cause leads to repeated failures.
Whether you are managing a single critical drive or a large fleet, the principles are the same: keep the drive cool, keep connections tight, monitor capacitor health, and address faults before they cascade. A well-maintained ABB VFD can deliver reliable service well beyond its nameplate design life.
If your ABB drive needs repair or you want a professional assessment, contact Flexa Systems. We provide fast, component-level variable frequency drive repair with full load testing and a 2-year warranty.
