5 Signs Your VFD Needs Repair Before It Fails Completely

Most variable frequency drive failures don't happen without warning. The drive that trips at 2AM on a Tuesday and takes your production line down with it almost always gave you signals first — a sound that wasn't there before, a fault code that cleared itself, a motor that hesitated for a fraction of a second before running normally. The problem isn't that the warning wasn't there. It's that nobody knew what to look for.

VFDs don't fail instantly. They degrade. And the difference between catching that degradation early and dealing with a full failure is the difference between a scheduled repair during a maintenance window and an emergency shutdown on your most critical line.

Here are five signs your variable frequency drive is heading toward failure — and what to do about each one before it becomes a production crisis.

1. Unusual Noises Coming From the Drive or the Motor

A properly functioning VFD and its driven motor should run quietly and consistently. New noises — especially noises that weren't there during commissioning — are almost always meaningful.

What to listen for:

• High-pitched buzzing or whining from the drive enclosure — often indicates a failing DC bus capacitor or a cooling fan bearing beginning to wear
• Intermittent clicking from inside the drive — can indicate arcing across a relay or contactor, or loose component connections on the control board
• Motor humming louder than normal — often caused by asymmetric output voltage from a degrading IGBT in one phase, producing uneven torque and acoustic noise in the motor windings
• Rattling or vibration from the drive cabinet — loose hardware, deteriorated fan mounts, or a fan blade beginning to delaminate

Why it matters: By the time an IGBT is degrading enough to produce audible noise in the motor, it's already operating outside its design parameters. The next step is typically a hard fault — often F005 Hardware Overcurrent on Allen-Bradley PowerFlex drives, or an equivalent overcurrent trip on ABB, Siemens, or Yaskawa platforms. At that point, you're not doing preventive maintenance anymore — you're doing emergency repair.

What to do: Document the noise — when it started, what it sounds like, and under what operating conditions it occurs. Then contact a qualified industrial repair service for evaluation. In many cases, an early-stage IGBT or capacitor issue can be repaired before it causes a full failure.

2. Overheating and Recurring Thermal Fault Codes

Variable frequency drives generate significant heat during normal operation — that's expected. What's not expected is a drive that trips on thermal fault codes repeatedly, or that runs noticeably hotter than it used to.

Common thermal fault codes by platform:

• Allen-Bradley PowerFlex: F008 (Heatsink OverTemp), F007 (Motor Overload)
• ABB ACS series: Fault 9 (Motor Overtemperature), Drive temperature warnings
• Siemens SINAMICS: F30004 (Overtemperature power unit), A05006
• Yaskawa: oH1, oH2, oH3 (Drive/Heatsink overheat)

The three most common causes:

• Cooling fan failure or degradation — fan bearings wear over time, reducing airflow before the fan stops completely. A drive running at reduced cooling capacity will run progressively hotter until it either trips or suffers heat-related component damage.

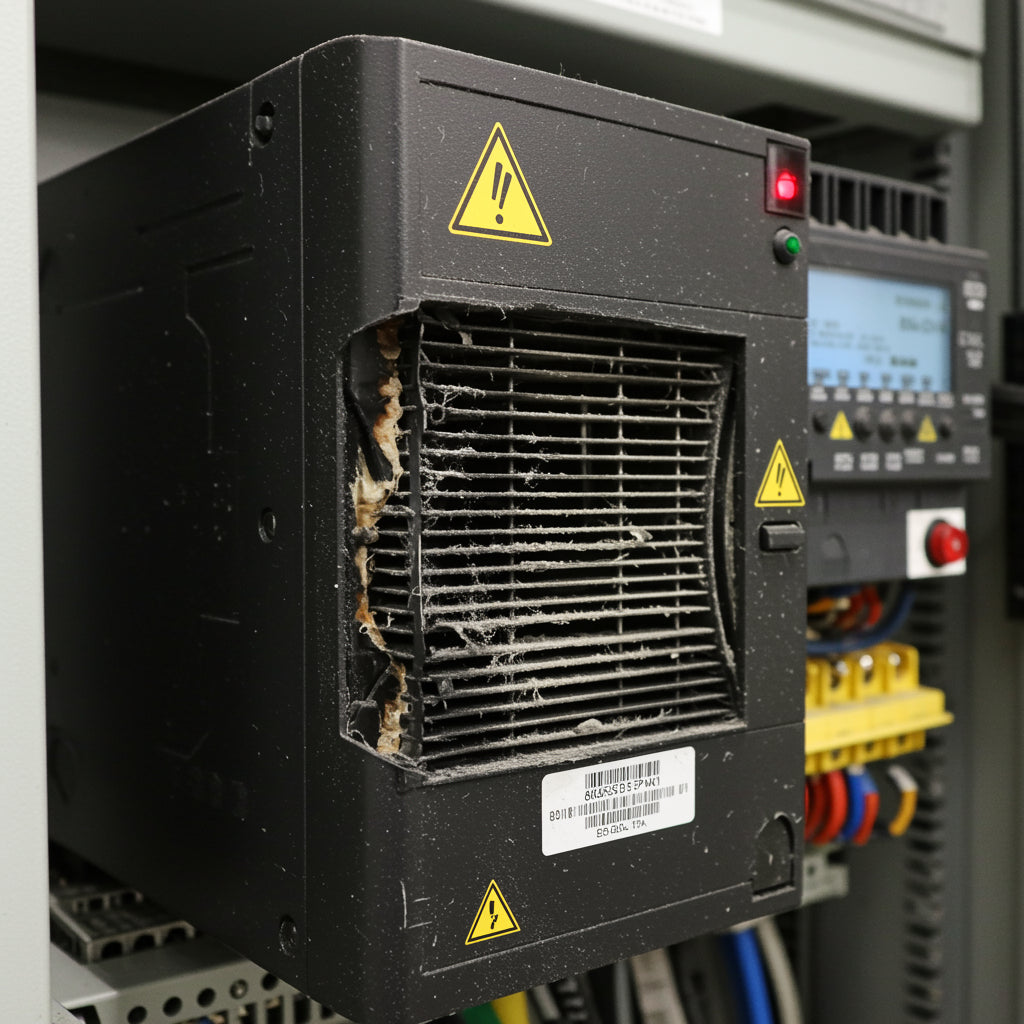

• Blocked ventilation — dust accumulation on heat sink fins dramatically reduces thermal dissipation. A heat sink that's 30% blocked by dust can raise IGBT junction temperatures by 20–30°C under load.
• Degraded thermal interface material — the thermal compound between IGBTs and heat sinks dries out and cracks over time, sharply reducing heat transfer efficiency. This is one of the most commonly overlooked causes of recurring thermal faults in drives over 7 years old.

What to do: Clean the drive's ventilation path and inspect the cooling fan for blade wear and bearing noise. If the fan is original and the drive is more than 5 years old, replace it proactively — fan replacement is inexpensive compared to IGBT damage caused by thermal runaway. If thermal faults continue after cleaning and fan replacement, the thermal interface material or the heat sink itself likely needs professional attention.

3. Erratic Motor Behavior — Speed Inconsistency, Hesitation, or Torque Ripple

The motor is often the most visible indicator of a degrading VFD. When the drive's output stage begins to fail, it shows up as inconsistent motor behavior long before the drive actually trips.

Signs to watch for:

• Motor hesitates at startup before accelerating normally — can indicate a weak phase in the output section or a gate driver that's delayed on one IGBT
• Speed fluctuates under constant load — the drive isn't maintaining the commanded frequency consistently, often due to control board instability or feedback circuit issues
• Torque ripple or jerking at low speeds — particularly noticeable in sensorless vector or closed-loop control modes, often caused by asymmetric IGBT switching or a degrading current sensor
• Motor runs hot even at light loads — uneven current distribution across the three output phases (caused by a degrading IGBT in one leg) forces the motor to compensate, increasing heating and reducing efficiency

Why this is serious: Erratic motor behavior caused by a degrading VFD output stage doesn't just risk the drive — it risks the motor. Asymmetric current from a failing IGBT accelerates motor winding insulation degradation and bearing wear. A drive problem left unaddressed long enough becomes a drive problem AND a motor problem. That's a significantly larger repair or replacement cost.

What to do: If you have a clamp-type power analyzer or three-phase current logger, check the output current balance across all three phases under load. More than 2–3% imbalance between phases at steady state is a flag. If you don't have test equipment, a qualified industrial electronics repair service can perform this analysis as part of a diagnostic evaluation — often at no charge.

4. Intermittent Fault Codes That Clear Themselves

This is the most deceptive early warning sign — and the one most likely to be dismissed. A fault code appears, the operator resets it (or it clears on its own), and the drive runs normally. Then it happens again two days later. Then again. And then one day it doesn't clear.

Intermittent faults are not random. They're the drive telling you that a component is at the edge of its failure threshold — functioning within spec under normal conditions, failing under specific combinations of temperature, load, and time. Common patterns:

• Undervoltage faults (F010, F003) that clear on restart — often caused by DC bus capacitors that are degraded but not yet failed. They can still charge the bus under light load but fail to maintain voltage under transient load conditions.
• Ground fault codes (F013) that appear and disappear — intermittent ground faults in a VFD or its cabling often indicate partial insulation breakdown that will eventually become a continuous fault.
• Communication loss faults (F081, Comm Loss) that self-clear — can indicate a deteriorating EtherNet/IP PHY chip or marginal solder joints on the communication board that fail intermittently under thermal cycling.
• Overcurrent faults at startup only — a gate driver that's beginning to fail may produce late or incomplete gate signals at low temperatures, causing overcurrent during the first few seconds of operation before the drive warms up.

What to do: Log every fault — fault code, time, ambient temperature, load conditions, and how long the drive had been running. A pattern will emerge. Share that log with a repair technician: it's the single most valuable diagnostic information you can provide and will often allow a technician to identify the failing component before the drive even arrives at the shop.

5. Age, Operating Hours, and Known Component Lifespans

The most underutilized predictive maintenance tool in industrial automation is the simplest one: knowing how old your equipment is and what its components' design lifespans are.

Key VFD component lifespans under normal operating conditions:

• Electrolytic capacitors: 5–10 years, heavily dependent on ambient temperature. Every 10°C increase in operating temperature roughly halves capacitor life. Capacitors in a hot, dusty environment may reach end-of-life in 4–5 years.
• Cooling fans: 3–5 years of continuous operation. Fan bearing failure is the most common cause of thermal damage in VFDs that pass the 5-year mark.
• IGBTs: Theoretically long-lived, but subject to degradation from thermal cycling, overvoltage transients, and fault events. A drive that has experienced multiple hard overcurrent faults has accumulated IGBT stress that shortens remaining service life.
• Overall drive lifespan: 10–15 years under normal conditions, but with significant variation based on environment, load profile, and maintenance history.

What to do: If your VFDs are approaching the 7–10 year mark, schedule a preventive evaluation — not because they've shown symptoms, but because the probability of failure increases sharply in this window. A preventive evaluation that catches degraded capacitors and a worn cooling fan costs a fraction of an emergency repair and eliminates the downtime risk entirely. For drives on critical production lines, consider sending one unit for evaluation as a representative sample of your installed base.

What to Do When You See These Signs

The instinct when a drive shows warning signs is to monitor and wait — especially if production is running and nothing has actually failed yet. That instinct is understandable, but it's usually more expensive than acting early.

The decision framework is simple: if the failure of this drive would stop your line or create a safety hazard, it's a candidate for proactive repair or spare stocking. If it's on a non-critical application with redundancy available, monitoring and planning a scheduled repair is reasonable.

For critical applications, the two-track approach works well: send the at-risk drive for repair during a scheduled maintenance window, and use a refurbished spare to keep the line running. When the repaired drive returns, it becomes your new spare — and you've eliminated the failure risk without accepting any unplanned downtime.
