The Allen-Bradley Kinetix 300 was discontinued in July 2024. That means no more factory replacements, no official repair support, and lead times on used units that can stretch for weeks. If your 2097-V33PR3, 2097-V34PR5, or 2097-V34PR6 has gone down, repair is almost certainly your fastest — and cheapest — path back to production.
At Flexa Systems, we repair Allen-Bradley Kinetix 300 servo drives at component level. We diagnose the actual failed part — IGBT module, DC bus capacitor, pre-charge resistor, feedback circuit — replace it with an industrial-grade equivalent, and return a drive that works. No board-swap guesswork. No unnecessary replacements.

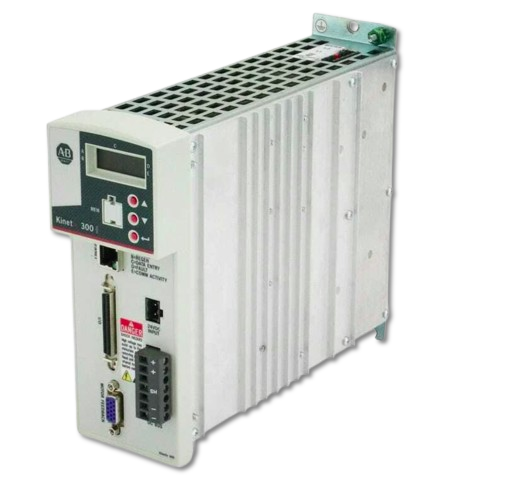

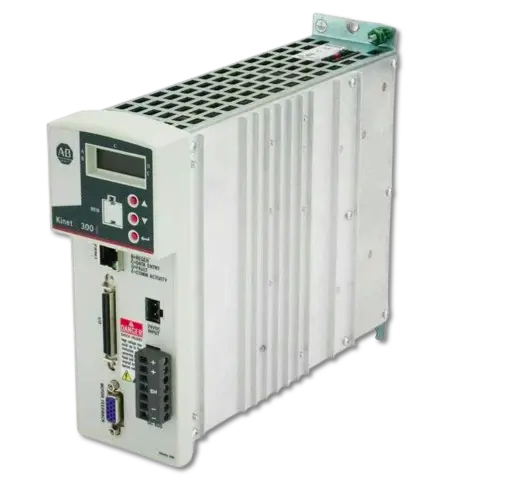

What Is the Allen-Bradley Kinetix 300?
The Kinetix 300 (catalog series 2097-Vxx) is a single-axis EtherNet/IP indexing servo drive designed for low-to-mid power applications: packaging lines, indexing conveyors, assembly automation, filling stations, and material handling. It covers 0.4 kW to 3.0 kW continuous output power and supports input voltages from 120V single-phase up to 480V three-phase.
What made it popular with machine builders was its flexibility: the Kinetix 300 works with Micro800 (Micro820, Micro830, Micro850, Micro870), MicroLogix 1100/1400, CompactLogix, and ControlLogix — the only Kinetix drive to support Micro-class controllers. That is exactly why upgrading to a newer drive is not always possible without a full control system redesign.
Common Catalog Numbers We Repair
- 2097-V31PR0 / 2097-V31PR2 — 120–240V single-phase, 2–4A, 400–750W
- 2097-V32PR0 / 2097-V32PR2 / 2097-V32PR4 — 240V single-phase with integrated AC line filter
- 2097-V33PR3 — 240V, 1/3-phase, 4A, 1.0 kW
- 2097-V33PR5 / 2097-V33PR6 — 240V, 1/3-phase, 8–12A, 2.0–3.0 kW
- 2097-V34PR3 — 480V three-phase, 2A, 1.0 kW
- 2097-V34PR5 — 480V three-phase, 4–5.7A, 1.5–2.0 kW

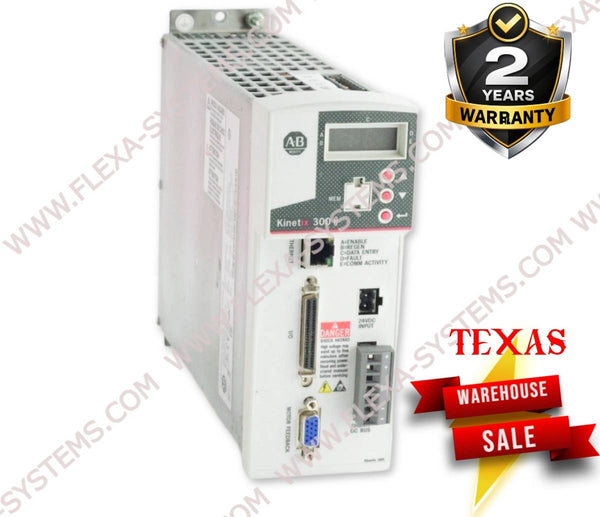

- 2097-V34PR6 — 480V three-phase, 8.5A, 3.0 kW
We repair all variants. If your catalog number is not listed, contact us — it is almost certainly one we have worked on before.
Why Kinetix 300 Drives Fail — The 7 Most Common Faults We See
Servo drives operate in demanding environments. Vibration, heat, power quality issues, and years of continuous cycling all degrade components that were never designed to last forever. Here is what we find on the bench most often:
1. DC Bus Capacitor Degradation — The Silent Killer
This is the most common hardware failure in the Kinetix 300, and the most misdiagnosed. The DC bus electrolytic capacitors age gradually — capacitance drops, ESR rises, and the drive starts behaving erratically: intermittent faults on power-up, random shutdowns under load, or refusing to hold a charge after the machine sits idle over a weekend.
When capacitance falls below 90% of nominal value, IGBT damage becomes a real risk. We measure every electrolytic under operating conditions. Below-spec caps are replaced with 105°C-rated, low-ESR industrial equivalents — not generic consumer parts.
Symptom: Drive seems dead after sitting idle, works after several power cycles, or shuts down unpredictably under load.
2. IGBT Power Module Failure
The IGBT module is the heart of the drive's power stage — it switches the DC bus voltage at high frequency to create the sinusoidal output that drives the servo motor. IGBTs fail from two causes: voltage spikes and thermal stress.
Voltage spikes on the DC bus (caused by fast deceleration with undersized shunt resistors, or by long motor cables without proper termination) can push bus voltage past 780V DC — the breakdown threshold for the IGBT. Once it goes, the drive is effectively dead: no output, usually blown fuses, sometimes a burnt smell.
Thermal failure occurs when the drive runs at the edge of its thermal rating — ambient temperature too high, heat sink clogged, or mounting orientation wrong. The IGBT degrades over time and eventually shorts.
What we do: Full power stage analysis. IGBT replacement with matched industrial-grade modules. We also identify the root cause — if a shunt resistor was undersized, we flag it so the failure does not repeat after the repair.
3. Pre-Charge Resistor Thermal Failure
The pre-charge resistor limits inrush current when the drive powers up, protecting the DC bus capacitors from being slammed with full voltage instantly. When it fails — usually from thermal stress after thousands of power cycles — the drive appears completely dead: no display, no LEDs, no response.
This is one of the most commonly misdiagnosed faults. Many perfectly good Kinetix 300 drives are scrapped because a technician sees "no display" and assumes the main board is dead. In many cases, it is just the pre-charge resistor — a component-level fix.
Symptom: Drive completely unresponsive on power-up. No display. No fault codes. Fuses intact.
4. Motor Feedback Circuit Faults (E07 / E11)
The Kinetix 300 reads motor position through a 15-pin D-sub feedback connector that carries encoder signals and generates +5V and +9V supply for the encoder. When this circuit has a fault — bad connector pin, corroded contact, broken cable shield, failed encoder supply — the drive throws E07 (Feedback Lost) or E11 (Illegal Hall State).
Nine times out of ten, the fault is in the cable or connector, not the drive. But one time in ten, the feedback circuit on the drive board itself has failed — usually a shorted diode or failed voltage regulator that killed the encoder power supply.
What we do: Test encoder supply voltages (+5V and +9V rails), check feedback signal integrity with oscilloscope, replace failed feedback components on the drive board.
5. EtherNet/IP Communication Loss (E19 / Fault 16 / Fault 47)
The Kinetix 300 communicates with the controller via EtherNet/IP. When the connection drops, the drive faults with E19 (Communication Loss) or Fault 47 (CIP Connection Timeout). In most cases this is not a hardware failure — it is a network configuration issue:
- RPI (Requested Packet Interval) mismatch between drive and controller
- IP address not retained after power cycle (check parameter P-115)
- Unmanaged switch causing broadcast storms — IGMP Snooping on a managed switch resolves this
- Duplicate IP addresses on the network
When we see E19/F47, we verify the network first before touching the hardware. If the Ethernet port itself has failed (blown transceiver, failed magnetics), that is a component-level board repair.
6. Loss of Home Position (E27)
E27 — "Absolute move attempted without homing" — is arguably the most frustrating Kinetix 300 fault because it stops production without any obvious hardware failure. The drive loses its absolute position reference, usually after a power cycle, and refuses to run motion until it is re-homed.
The root cause is almost always one of two things: the homing routine is configured as a relative move (cannot establish absolute reference) or the encoder type is set incorrectly in the drive parameters. In rare cases, the backup battery for absolute position data has failed.
What we do: Full parameter audit, homing routine review, battery replacement if required. We also verify that the 2097-MEM memory module (if fitted) has a valid parameter backup to prevent recurrence.
7. Safe Torque-Off (STO) Circuit Issues
The Kinetix 300's STO function requires +24V DC on both STO-4 and STO-6 terminals simultaneously for the drive to operate. When STO is not satisfied, the drive will not enable — no fault code, no output, just a drive that refuses to run.
This is the most common "false repair" call we see: a machine wiring issue that makes the drive look dead. Before sending a Kinetix 300 in for repair, verify +24V is present on both STO terminals. If the drive still won't enable after confirming STO, then there is a real hardware fault.
Fault Code Quick Reference
| Code | Name | Most Likely Cause |
|---|---|---|
| E04 | Motor Overtemperature | Motor thermostat tripped; ambient >40°C or sustained overcurrent |
| E05 | Motor Overload | Continuous overcurrent; check motor sizing and load |
| E06 | Hardware Overtravel | Overtravel limit switch triggered; check wiring and travel limits |
| E07 | Feedback Lost | Encoder cable open/shorted; damaged 15-pin connector; failed encoder supply |
| E11 | Illegal Hall State | Encoder wiring fault; shield continuity >0.1Ω; damaged encoder |
| E19 | Communication Loss | EtherNet/IP timeout; RPI mismatch; IP address issue; Ethernet port failure |
| E27 | No Homing | Absolute move without valid home; incorrect homing type configured |
| F16 | Network Loss | IP address not retained; Ethernet link down |
| F33 | DB Resistor Overload | Shunt resistor undersized for deceleration energy; resistor failed |
| F47 | CIP Timeout | Broadcast storm; unmanaged switch; RPI too aggressive |
Repair vs. Replace: Why Repair Wins on the Kinetix 300
The Kinetix 300 was discontinued in July 2024. That changes the economics of repair vs. replacement completely:
- New units: No longer available new. OEM market only — expect $1,500–$4,500+ depending on model and availability, with no warranty from the seller.
- Kinetix 5100 (the recommended replacement): Not a plug-and-play swap. Requires new configuration software (KNX5100C), different EtherNet/IP control mode, and full reprogramming of the motion application. Budget for 1–3 days of engineering time per axis, plus full motion recommissioning.
- Repair at Flexa Systems: Component-level repair at 20–40% of OEM replacement cost. 5–10 business day standard turnaround. 12-month warranty. Same drive, same parameters, same performance.
In plants running Micro800 or MicroLogix controllers, upgrade is even harder — the Kinetix 5100 does not support those platforms. The 2097-V34PR5 or 2097-V33PR3 is your drive; keeping it running is the only option that does not require re-engineering the machine.
Our Servo Drive Repair Process
Every Kinetix 300 that arrives at our shop goes through the same disciplined process — the same process we apply to every servo drive, VFD, PLC, HMI, and industrial circuit board we repair:
- Incoming documentation: Visual inspection, photographs, condition notes. We record every fault code and symptom reported by the customer.
- Controlled power-up: Current-limited bench supply. We measure all power rails before applying full voltage — this prevents secondary damage to a partially-failed unit.
- Component-level fault isolation: ESR testing on all electrolytics, oscilloscope analysis of power and feedback signals, thermal imaging on the power stage, IGBT switching waveform verification.
- Root cause analysis: We identify not just what failed, but why — so the failure does not repeat. Undersized shunt resistor, wrong RPI setting, inadequate cable shielding — we note it all in our repair report.
- Component replacement: Industrial-grade parts only. 105°C-rated capacitors, matched IGBT modules, precision resistors — sourced from authorized distributors, not grey market.
- Functional testing: Drive tested under load with a servo motor on our test bench. We verify all fault codes clear, EtherNet/IP communication works, and STO function operates correctly.
- 24-hour burn-in: The repaired unit runs continuously in our test environment. We monitor all voltages, temperatures, and communication throughout.
- Repair report + 12-month warranty: You get a written report of what we found and what we did. If the same fault returns within 12 months, we fix it at no charge.
We Also Repair What Runs With Your Kinetix 300
Industrial machines don't fail in isolation. When a Kinetix 300 goes down, often the fault is upstream or downstream — the controller, the HMI, or the motor. We repair the full chain:
- PLC repair: CompactLogix, ControlLogix, Micro820, MicroLogix — board-level repair, firmware recovery, I/O module repair
- VFD repair: Allen-Bradley PowerFlex 4, 40, 400, 520, 525, 755 variable frequency drives
- HMI repair: PanelView, PanelView Plus — touchscreen replacement, backlight repair, board repair
- Servo motor repair: MPL-A1510V-VJ42AA, MPL-B1520U-VJ72AA and other Bulletin 2090/MPL/VPL series motors
- Industrial circuit board repair: Any control board, driver board, or power board — we work at component level across all manufacturers
If your machine is down and you are not sure what failed, send us everything. We will diagnose it and tell you exactly what needs repair before charging for anything.
Compatible Units and Related Parts in Stock
If repair is not possible or you need a spare unit while yours is being repaired:
- Allen-Bradley 2097-V34PR5 — Kinetix 300, 480V 3-phase, 2.0 kW — tested, ready to ship
- Allen-Bradley 2097-V33PR3 — Kinetix 300/350, 240V, 1.0 kW

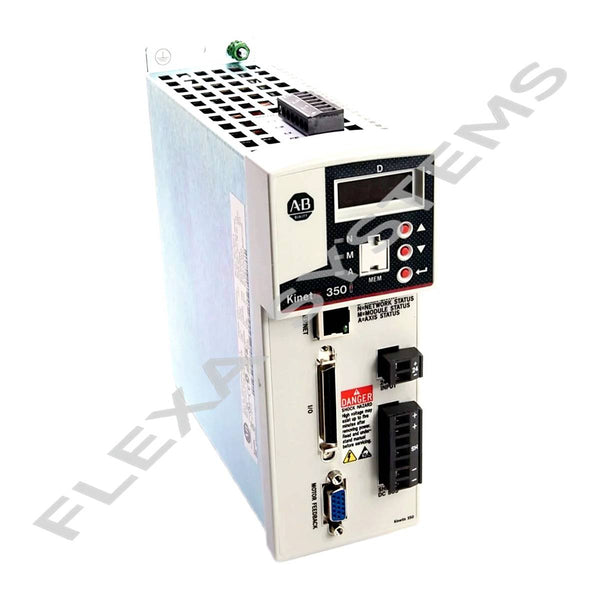

- Allen-Bradley 2097-V34PR3 — Kinetix 350, 480V, 1.0 kW — drop-in upgrade for 480V 300 applications on ControlLogix/CompactLogix
- Allen-Bradley 2097-V34PR5-LM — Kinetix 350, 480V, 2.0 kW

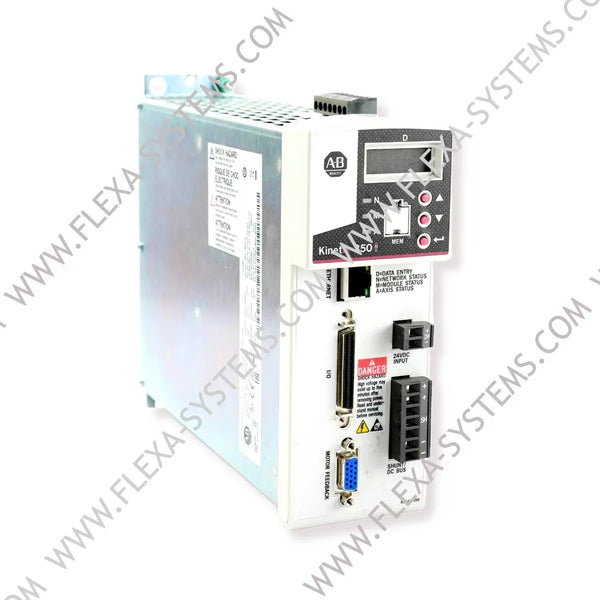

- Allen-Bradley 2097-V34PR6-LM — Kinetix 350, 480V, 3.0 kW
- MPL-A1510V-VJ42AA — Allen-Bradley MPL servo motor, 0.16 kW, 230V

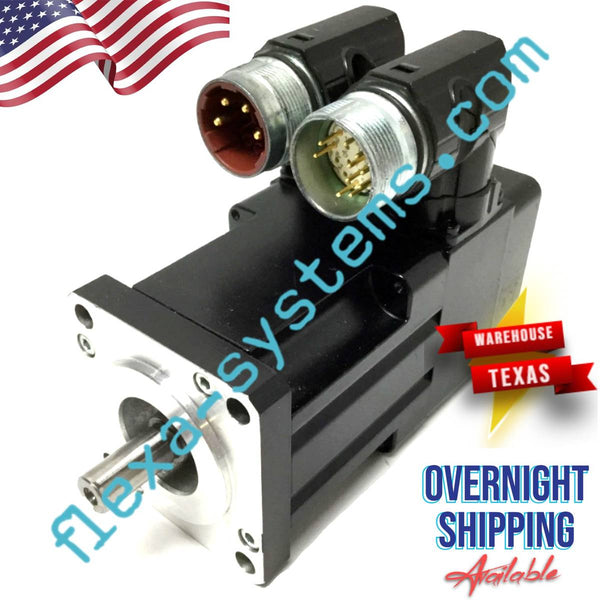

- MPL-B1520U-VJ72AA — Allen-Bradley MPL servo motor, 0.27 kW, 480V
Need a specific catalog number not listed? Contact us — we source Kinetix 300 units and components regularly.
Frequently Asked Questions
Can you repair a Kinetix 300 that shows no display at all?
Yes — and this is one of the most common repair scenarios we see. A completely dead display is often a failed pre-charge resistor or a failed internal power supply stage, not a dead main board. We have successfully repaired many units that were condemned as "dead" by other shops. Send it to us before writing it off.
My Kinetix 300 keeps losing its home position after every power cycle — is that a hardware fault?
Usually not. E27 (loss of home position) is almost always a configuration issue — incorrect homing type, wrong absolute encoder initialization, or a missing/corrupted 2097-MEM memory module. We will audit the parameters and correct the homing configuration as part of the repair.
Is the Kinetix 5100 a direct replacement for the Kinetix 300?
No. The Kinetix 5100 uses a completely different programming model (KNX5100C software, IO Mode for EtherNet/IP control) and does not support Micro800 or MicroLogix controllers. Migration requires full motion reprogramming and recommissioning. If you want a true drop-in replacement drive for ControlLogix/CompactLogix applications, the Kinetix 350 is a closer match — same form factor, same power range, CIP Motion compatible.
How long does a Kinetix 300 repair take?
Standard turnaround is 5–10 business days from receipt of the drive. For production-critical situations, our rush service delivers 48–72 hour turnaround. We confirm timing within 24 hours of receiving the unit, after initial diagnostic.
Do you repair other Allen-Bradley equipment?
Yes — we repair the full Allen-Bradley product range: PowerFlex VFDs (4, 40, 400, 520, 525, 700, 753, 755), Kinetix servo drives (300, 350, 5500, 5700), ControlLogix and CompactLogix PLCs, PanelView HMIs, and individual circuit boards. If it is Allen-Bradley, we repair it.
