Siemens SIMATIC IPC 427E & IPC 827E Repair: What Fails and How We Fix It

When a Siemens SIMATIC IPC 427E or IPC 827E goes down, your production line stops. These compact industrial PCs are embedded deep inside control cabinets, running SCADA, softPLC, vision systems, and MES data collection simultaneously. There is no quick swap — and with lead times on new units stretching weeks or months, repair is almost always the fastest path back to production.

At Flexa Systems, we repair SIMATIC IPC units at component level, not board-swap level. That means we diagnose the exact failed component, replace it, and return a unit that works like new — at a fraction of the cost of replacement.

What Are the Siemens SIMATIC IPC E-Series?

The E-series is Siemens' current generation of SIMATIC Industrial PCs, built on 6th–8th generation Intel Core processors (Skylake / Coffee Lake). The letter suffix — B, C, D, E — tracks CPU generations. The E-series brought DDR4 memory, PCIe expansion, USB 3.0, and native support for Siemens Industrial Edge (IIoT) workloads.

The two units we see most in our workshop:

SIMATIC IPC 427E — The Fanless Microbox

The IPC 427E is a compact, completely fanless, diskless Microbox PC. No fans. No spinning disks. It mounts inside control cabinets on a DIN rail or panel, measuring just 262 × 139 × 50 mm. Siemens designed it for the harshest environments — dusty, vibration-heavy, oily — precisely where conventional PCs would die within months.

• CPU: Intel Core i3/i5/i7 (Skylake) or Celeron, up to 2.8 GHz
• RAM: DDR4, up to 16 GB
• Storage: SIMATIC CFast card or 2.5" SSD (SATA)
• Connectivity: 3× GbE, 4× USB 3.0, DisplayPort + DVI-I, 2× RS-232
• Operating temperature: 0°C to +55°C
• Industrial Edge certified: Runs Siemens Industrial Edge apps natively

Because it has no moving parts, the 427E is expected to run continuously for years without maintenance. When it does fail, the failure is almost always at component level — and that is exactly where we work.

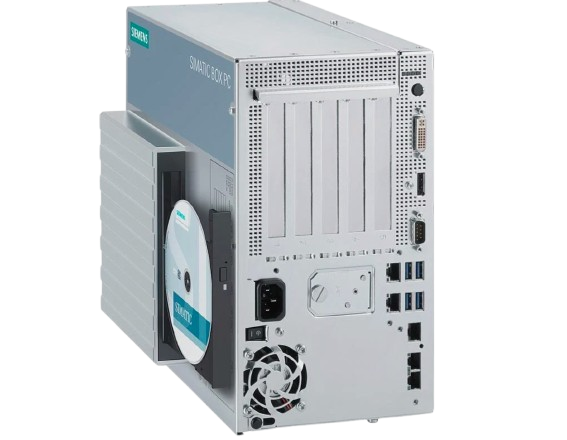

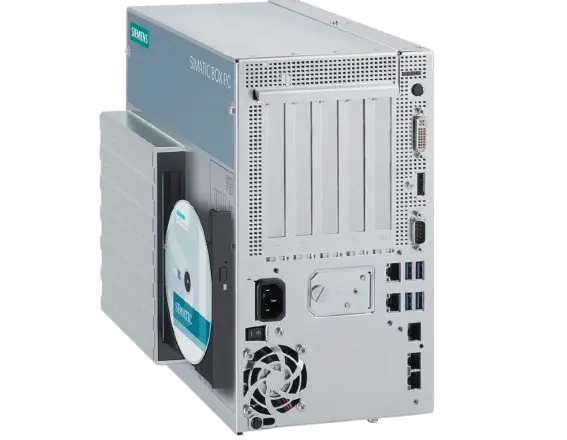

SIMATIC IPC 827E — The High-Performance Box PC

The IPC 827E (and its rack equivalent, the IPC 847E) is the heavy-duty station at the other end of the SIMATIC IPC lineup. More processing power, more expansion slots, more storage — used in applications requiring multiple PCIe cards, multi-monitor setups, or large RAID arrays.

• CPU: Intel Xeon or Core i7 (8th gen), up to 64 GB DDR4
• Storage: RAID1 (2× HDD/SSD), hot-swappable
• Slots: Up to 11 expansion slots (PCI + PCIe)
• Connectivity: 3× GbE, 4× USB 3.1, 2× DisplayPort, DVI-D, COM1
• Front panel: Diagnostic LEDs, lockable door, tool-less fan/filter access

Why SIMATIC IPCs Fail — The Most Common Faults We See

Industrial environments are hard on electronics. Power fluctuations, EMI from heavy machinery, thermal cycling, and years of continuous operation all take their toll. Here are the failures we diagnose most frequently:

1. Power Supply / DC-DC Converter Failure (IPC 427E)

This is the single most common IPC 427E failure. The unit simply will not power on — no display, no LEDs, nothing. The culprit is almost always a failed DC-DC converter stage or a shorted voltage rail on the main board. Industrial power is never perfectly clean: voltage spikes, brownouts, and switching transients gradually stress the power components until one fails.

What we do: Full power path analysis under load, identify the failed stage, replace the specific components. We do not replace the entire board.

2. BGA Chip Failure — CPU or Chipset

The IPC 427E's compact design means the CPU and chipset are soldered directly to the board as BGA (Ball Grid Array) packages. After years of thermal cycling — heating up during operation, cooling down during shutdowns — the microscopic solder balls underneath the chip develop micro-cracks. The machine starts showing random reboots, freezes, or black screen on startup, often temperature-dependent (fails when hot, works briefly when cold).

What we do: BGA rework using industrial rework stations — the chip is reflowed or replaced with correct temperature profiling. This requires specialized equipment that most repair shops do not have. We do.

3. CMOS Battery Depletion

The SIMATIC IPC 427E has a built-in BIOS battery. When it dies, the unit loses its BIOS configuration on every power cycle — wrong boot device, wrong time/date, or the machine simply refuses to boot because it cannot find its OS. Siemens' diagnostic software gives a roughly one-month advance warning via a status LED, but in production environments that warning is often missed.

What we do: Battery replacement and BIOS reconfiguration. Fast, affordable fix — if caught early. If ignored too long and settings corruption occurs, BIOS recovery may be required.

4. CFast / SSD Storage Failure

SIMATIC CFast cards are industrial-grade, but they have finite write cycles. In applications with heavy logging, frequent database writes, or OS paging to storage, CFast cards can wear out in 3–5 years. SSDs fare better but are not immune, especially in high-vibration environments where the SATA connector can develop intermittent contact.

Symptoms: Random crashes, OS corruption errors, Windows/WinCC refusing to load, BIOS showing "no bootable device."

What we do: Storage media replacement + OS recovery from backup or fresh reinstall (if backup is available). We always recommend maintaining a verified system image backup of your IPC.

5. RAM Power Rail Faults

If the DDR4 memory voltage regulators fail, the machine will not post — or will post to a memory error and halt. This is a component-level failure on the board, not a bad RAM stick. Replacing the RAM does nothing; the voltage regulator feeding the memory slots is the problem.

What we do: Identify the failed voltage regulator, replace it, verify all memory rails under load.

6. Fan Failure and Thermal Damage (IPC 827E)

Unlike the fanless 427E, the IPC 827E relies on active cooling. When a fan bearing fails, airflow stops. The CPU throttles, then the machine enters thermal shutdown. If the shutdown mechanism itself fails (or the machine is in a remote location and no one notices), the heat causes secondary damage to capacitors, voltage regulators, or even the CPU socket.

What we do: Fan replacement, thermal audit of the board, replace any heat-damaged components. We check capacitor ESR (equivalent series resistance) — swollen or aged caps are replaced proactively.

7. Electrolytic Capacitor Aging (Both Models)

Electrolytics are the weakest long-term component in any power supply or motherboard design. In an IPC that runs 24/7 for 8+ years at elevated temperatures, capacitor failure is not a question of if — it is a question of when. Failed caps cause instability, intermittent faults, and random reboots that are maddeningly difficult to reproduce.

What we do: ESR measurement of all electrolytics under operational conditions, replace all aging or failed caps with industrial-grade equivalents (105°C rated, low-ESR).

Repair vs. Replace: The Real Numbers

A new SIMATIC IPC 427E costs between $3,000 and $8,000+ depending on configuration. A new IPC 827E / 847E runs $5,000 to $15,000. And that is assuming stock is available — during supply chain disruptions, lead times have stretched to 16–26 weeks.

Repair at Flexa Systems typically costs 20–40% of the replacement price, with a turnaround of 5–10 business days for standard repairs. For production-critical situations, we offer rush service with 48–72 hour turnaround.

There is also a second consideration that is often overlooked: software and validation. In pharmaceutical and food manufacturing plants, the IPC runs validated software under strict change-control procedures. Replacing the hardware means revalidating the system — a process that can take months and cost more than the hardware itself. Repairing the original board eliminates that requirement entirely.

Our Repair Process

Every SIMATIC IPC that comes through our workshop goes through the same systematic process:

1. Incoming inspection: Visual inspection for obvious damage, burn marks, corrosion, swollen components. We photograph the unit and document its condition.
2. Power-up diagnostics: Controlled power-on sequence with current-limited bench supply. We measure all voltage rails and identify which stages are missing or out of spec before applying full power.
3. Fault isolation: Systematic component-level testing — ESR measurement, oscilloscope analysis of power and data signals, thermal imaging to identify hot spots.
4. Component replacement: We use industrial-grade components from authorized distributors. Not generic consumer parts — industrial-rated, same or better specification than the original.
5. BGA rework (when required): Full temperature-profiled BGA reflow or chip replacement using our dedicated rework station.
6. Burn-in testing: The repaired unit runs under load for a minimum of 24 hours in our test environment. We monitor all voltages, temperatures, and system stability throughout.
7. Return with warranty: Every repair carries a 24-month warranty on the repaired fault. If the same fault returns within the warranty period, we fix it at no charge.

Compatible Components and Spare Parts

Alongside repair, we stock tested components and spare parts compatible with the SIMATIC IPC series. If your unit needs a replacement board or you are building a spare inventory, these are units we have available:

• Siemens A5E03383665 — IPC 827 Main Board (circuit board, tested) — the core processing board for the IPC 827 platform, pulled from production hardware and verified functional
• Siemens 6BK1000-8AE10-0AX0 — SIMATIC IPC 827 complete unit — full IPC 827 Box PC, tested and ready for deployment or use as a spare
• Siemens 6AG4131-2GM21-0AX6 — SIMATIC IPC 627D Box PC — previous-generation IPC with Intel Xeon E3 processor, ideal for like-for-like replacement in existing installations

If you need a specific component not listed here — a CFast card, power supply module, or expansion card — contact us. We source components regularly and can often find parts that are no longer available through standard channels.

Industries We Serve

SIMATIC IPC 427E and IPC 827E units appear across every sector of heavy industry. We regularly repair units from:

• Automotive manufacturing — end-of-line testing stations, torque monitoring, vision inspection systems
• Food and beverage — batch control systems, recipe management, SCADA nodes in dusty processing environments
• Pharmaceutical — validated process control systems where hardware replacement triggers costly revalidation
• Oil, gas, and energy — remote SCADA and process data acquisition nodes
• Water and wastewater treatment — plant control and monitoring systems
• Machine builders (OEMs) — cabinet-mounted control PCs running softPLC (S7-1500 Software Controller on IPC 427E)

In all of these environments, the common thread is the same: downtime is expensive, replacement lead times are long, and software/validation concerns make like-for-like hardware swap the only viable option. That is where we come in.

Frequently Asked Questions

How long does a SIMATIC IPC 427E repair take?

Standard turnaround is 5–10 business days from receipt of the unit. For production-critical situations, our rush service offers 48–72 hour turnaround. We will give you a firm timeline after initial diagnosis, typically within 24 hours of receiving the unit.

Do you repair both hardware and software issues?

Yes. We handle hardware repair (component-level board repair, BGA rework, power supply repair) as well as OS recovery, BIOS repair, and storage media replacement with OS reinstall where needed.

Can you repair my IPC 427D or IPC 827D (previous generation)?

Yes. We repair the full SIMATIC IPC lineup including D-series, C-series, and earlier generations. The component-level repair approach applies equally to all generations.

What if my unit is beyond repair?

In that case, we will tell you clearly — and we will help you find the best path forward, whether that is a tested refurbished unit, compatible spare, or advice on a replacement. We do not charge a diagnostic fee if the unit is not repairable.

Is the repair covered by a warranty?

Every repair carries a 12-month warranty covering the specific fault repaired. If the same fault recurs within the warranty period, we repair it at no charge.

Send Us Your Faulty SIMATIC IPC

If your Siemens SIMATIC IPC 427E or IPC 827E has failed — or is showing signs of instability — do not wait for a complete failure to happen on the production floor. Send it to us for diagnosis.

Request a repair quote — tell us the model, the fault symptoms, and how urgently you need it back. We will respond within 4 business hours.

You can also call us directly or use our contact page to discuss your situation with one of our repair engineers before committing to anything.
