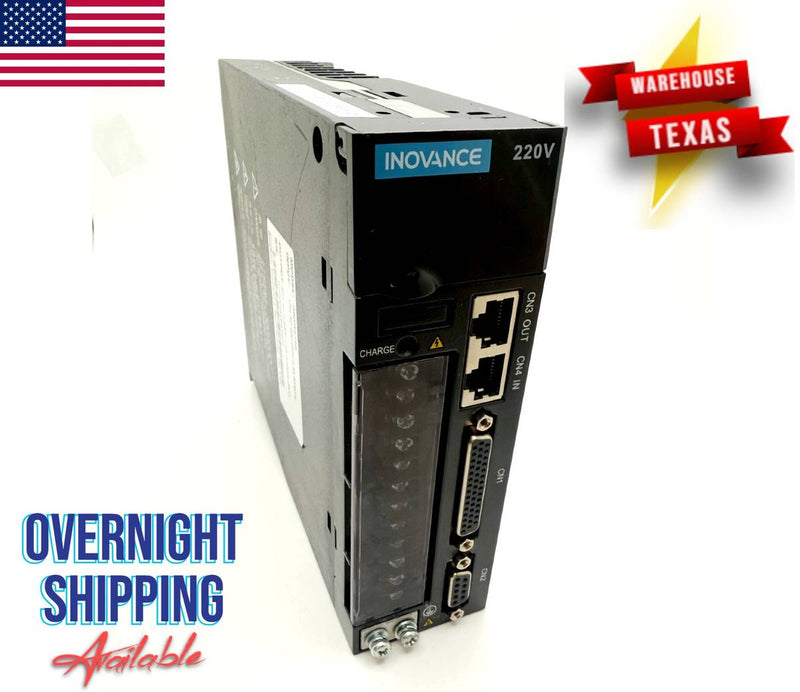

Inovance IS620NS5R5I

Within Inovance's Servo lineup, the IS620NS5R5I functions as a compact, single-axis AC servo drive belonging to the IS620N series — a mid-range family engineered for motion control applications demanding precise torque, speed, and position regulation. The Inovance IS620NS5R5I carries a rated output current of 5.5A, positioning it toward the lower end of the IS620N power spectrum while still handling demanding cyclic load profiles. As a servo drive, this unit converts DC bus power into variable-frequency, variable-amplitude output to govern a paired permanent-magnet synchronous servo motor with closed-loop feedback. The IS620N series distinguishes itself within Inovance's broader drive portfolio through its integrated safety inputs, compact DIN-rail-friendly footprint, and support for high-resolution encoder interfaces. The IS620NS5R5I specifically targets applications where cabinet space is constrained but dynamic response cannot be compromised. Its control architecture supports position, speed, and torque operating modes selectable via parameter configuration, making it adaptable across a variety of machine types without hardware changes.

Integration-wise, the IS620NS5R5I supports CANopen and Modbus RTU communication as standard, with optional EtherCAT connectivity that allows it to slot into high-speed synchronous multi-axis networks — a capability that distinguishes it from lower-tier IS620 variants lacking real-time fieldbus support. Compatible with Inovance's own InoProShop commissioning software and the AM600 series PLCs, the drive can also be configured through third-party controllers adhering to standard CANopen DS402 motion profiles, broadening its deployment flexibility. The onboard incremental and 17-bit absolute encoder interfaces allow pairing with a correspondingly spec'd Inovance servo motor without additional signal conditioning hardware. Across all Servo units we repair, the IS620N series appears frequently in applications such as automated PCB assembly pick-and-place systems, CNC tool changers, pharmaceutical blister packaging machinery, and textile rapier loom drives — environments where sub-millisecond response to position commands is operationally critical. The drive's STO (Safe Torque Off) input meets SIL 2 / PLd requirements, satisfying functional safety demands in collaborative work-cell installations. Parameter cloning via the optional LED keypad unit further simplifies fleet deployment on multi-machine production lines.

Like other Servo units in heavy industrial duty, the IS620NS5R5I operates in thermally and electrically demanding environments that gradually stress internal components over service life. Electrolytic capacitors on the DC bus are among the first components to degrade, presenting as DC bus undervoltage faults or erratic speed regulation before complete failure. IGBT modules within the power stage are susceptible to failure following sustained overload events or inadequate heatsink airflow — a common finding during IS620NS5R5I repair evaluations. Encoder feedback signal loss, often triggered by cable flex fatigue at the motor connector, produces position error alarms that can be misdiagnosed as motor faults. Facilities sourcing an IS620NS5R5I replacement after sudden drive failure, or those looking to buy IS620NS5R5I units for retrofit stock, should verify firmware revision compatibility with existing motor and PLC configurations before installation. Reviewing Inovance's published fault code documentation alongside a drive history log helps distinguish chronic thermal issues from one-time transient events. For units beyond self-service restoration, Flexa Systems' Servo repair services cover board-level diagnosis of the Inovance IS620NS5R5I through component-level rework. Facilities can ship the IS620NS5R5I to Flexa Systems for board-level repair, exchange for a refurbished unit, or order new stock — repairs are backed by a 2-year warranty from our Lewisville, TX shop.
