Lenze

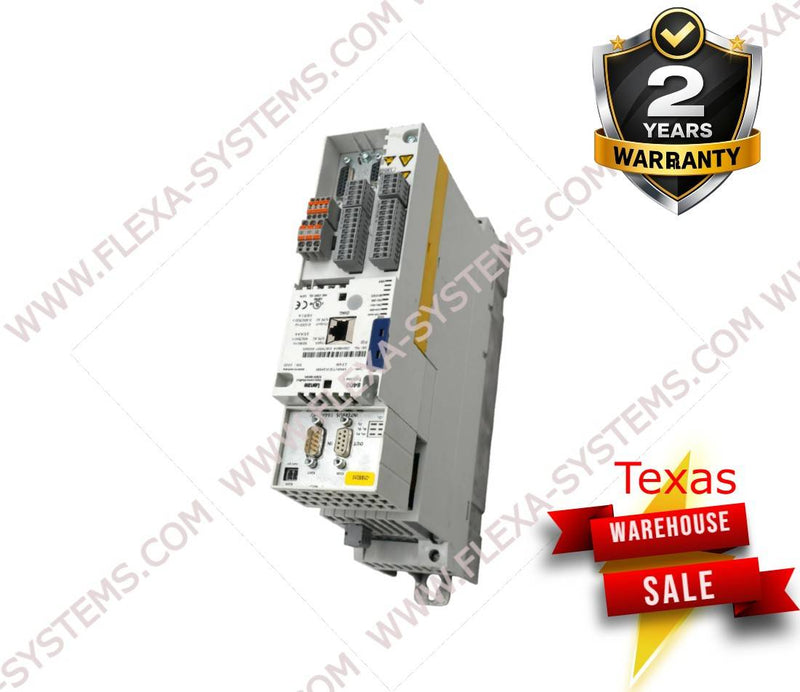

E84AVTCE1524SB0
No reviews
SKU: 2100000021864
$1,150.00
Contact us for pricing
2-Year Warranty
Free Diagnostics
5–30 Day Turnaround
Nationwide Service
E84AVTCE1524SB0 repair service is available for this Lenze 8400 TopLine C frequency inverter, a high-performance variable frequency drive engineered for precise AC motor control in demanding industrial environments. Whether you need Lenze E84AVTCE1524SB0 repair after an unexpected fault shutdown or are sourcing an E84AVTCE1524SB0 refurbished unit to minimize downtime costs, Flexa Systems has the technical expertise and inventory to get your line running again. This drive is built around a 15 kW (20 HP) power rating in the 8400 TopLine C series, delivering closed-loop vector control with encoder feedback for applications requiring tight speed and torque regulation such as conveyors, extruders, winding machines, and centrifugal pumps. If you have been searching for E84AVTCE1524SB0 repair near me, Flexa Systems provides nationwide depot repair with rapid turnaround from our Lewisville TX facility. Technicians performing E84AVTCE1524SB0 troubleshooting will find this unit equipped with an integrated safety function (STO per IEC 62061), multi-encoder interface support, and onboard PLC functionality through the Lenze Application Library. Industrial VFD repair on this platform requires familiarity with the Lenze Engineer software environment and its parameter management system, as firmware mismatches are a frequent source of post-repair communication faults. The 8400 TopLine C architecture supports dynamic braking, motor temperature monitoring via KTY/PTC inputs, and configurable digital/analog I/O — making it a technically sophisticated drive that demands specialized repair procedures rather than simple component swaps.
Technical Specifications
Part Number
E84AVTCE1524SB0
Manufacturer
Lenze
Package / Type
TopLine C frequency inverter / VFD
Compatibility
The E84AVTCE1524SB0 is compatible with standard three-phase AC induction motors and permanent magnet synchronous motors using IEC or NEMA frame configurations, and it communicates natively over CANopen (CiA 402) as well as optional fieldbus modules supporting PROFIBUS DP, EtherCAT, EtherNet/IP, and PROFINET IO. Lenze E84AVTCE1524SB0 integration with Siemens TIA Portal-based control systems is achieved through the PROFINET communication module (E82ZAFPC010), while Allen-Bradley ControlLogix and CompactLogix PLCs interface via the EtherNet/IP adapter module (E82ZAFEC010). The E84AVTCE1524SB0 replacement for earlier Lenze 8200 vector series drives (such as the E82EV152K4C and E82EV222K4C) is feasible with parameter migration using Lenze Engineer software, though keypad and mounting footprint differences must be accounted for. Compatible accessories within the Lenze catalog include the E84AYCCA keypad operator panel, line reactors from the EZAELN series, and braking resistors from the ERBD series, all of which are validated for use with this inverter platform.
Service Options
Repair Service
Ship your faulty E84AVTCE1524SB0 to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.
Refurbished
In-stock Lenze E84AVTCE1524SB0 variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.
Brand New
New E84AVTCE1524SB0 in original Lenze packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.
Common Failure Modes
DC bus overvoltage fault (Err OV / C0168 threshold breach) triggered during deceleration ramps on E84AVTCE1524SB0 units lacking a properly sized braking resistor — particularly common on high-inertia loads like centrifuges where regenerative energy spikes exceed the internal voltage clamp limit.
IGBT bridge short-circuit faults (hardware trip Err OH or Err OC) resulting from electrolytic DC bus capacitor degradation after 7–10 years of service, causing insufficient DC link filtering and allowing voltage ripple to exceed gate driver tolerance on the output power stage.
E84AVTCE1524SB0 fault code Err dEF (parameter default mismatch) appearing after a firmware update or battery-backed RAM failure, causing the drive to refuse to run until parameters are fully reloaded via Lenze Engineer — a critical step often missed during E84AVTCE1524SB0 troubleshooting in the field.
Encoder feedback signal loss fault (C0417 encoder error) on units using HTL incremental encoders, caused by shield continuity failures in encoder cables or degraded SUB-D connector contacts at the X8 encoder interface, resulting in erratic speed regulation or immediate drive trip in closed-loop vector mode.
Frequently Asked Questions
Is the E84AVTCE1524SB0 compatible with or interchangeable with other Lenze or third-party VFD models?
The E84AVTCE1524SB0 compatible with other drives in the Lenze 8400 TopLine C series means that units sharing the same power class and voltage rating — such as the E84AVTCE1524SBX or E84AVTCE1524SB1 — can serve as direct E84AVTCE1524SB0 replacement candidates with parameter file transfer. Cross-brand replacement using third-party drives like the ABB ACS550-01-031A-4 or Danfoss FC-302P15K is technically possible at the 15 kW power level but requires full I/O rewiring, fieldbus reconfiguration, and application program re-engineering since parameter structures and safety function implementations differ significantly. For shops running mixed Lenze fleets, the 8400 StateLine C and 8400 MotionLine C series share the Lenze Engineer software toolchain but are not pin-compatible replacements. Always verify the firmware revision and application block library version before substituting units to prevent unexpected behavior on restart.
How do I know whether my E84AVTCE1524SB0 is worth repairing or should be replaced outright?
A Lenze E84AVTCE1524SB0 is generally a strong candidate for E84AVTCE1524SB0 repair when the fault is isolated to the control board, gate driver board, fan assembly, or DC bus capacitors — components that are serviceable and widely available for the 8400 TopLine C platform. Units with catastrophic IGBT module failure caused by sustained overcurrent or a phase-to-phase short at the motor terminals can still be economically repaired if the control electronics are intact, though repair cost versus replacement cost should be evaluated at that point. Signs that may push the decision toward replacement include severe PCB burn damage at the power input terminals, corrosion from coolant or chemical exposure throughout the chassis, or a unit that has experienced multiple successive power stage failures indicating a systemic application problem that repair alone will not resolve. Sending the unit in for free diagnostics is the most reliable way to get an accurate assessment before committing to a repair or sourcing path.
Where can I get E84AVTCE1524SB0 repair service with a warranty?
Flexa Systems, based in Lewisville TX, provides depot-level E84AVTCE1524SB0 repair service with a 2-year warranty on all repaired and refurbished units, covering both parts and labor from the ship date. Standard turnaround is 5–7 business days from receipt of the unit, with expedited options available for critical production situations, and we ship nationwide so geography is never a barrier to getting service. Customers looking to buy E84AVTCE1524SB0 USA stock can also source tested, refurbished units directly from Flexa Systems as an immediate swap-out option while their failed drive is in for repair. Contact our technical team with your unit's serial number and fault history so we can pre-stage the correct firmware and parameter baseline before your drive even arrives at our facility.
Where can I get E84AVTCE1524SB0 repair service with a warranty?
Flexa Systems provides professional E84AVTCE1524SB0 repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.
Flexa Systems specializes in Lenze E84AVTCE1524SB0 variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.
Repair option: send in your faulty unit for component-level repair — $1,150.00 with free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Learn more about our VFD repair service.
Technical Specifications
Part Number:
E84AVTCE1524SB0
Manufacturer:
Lenze
Type:
TopLine C frequency inverter / VFD
Ask for Price
