Allen-Bradley

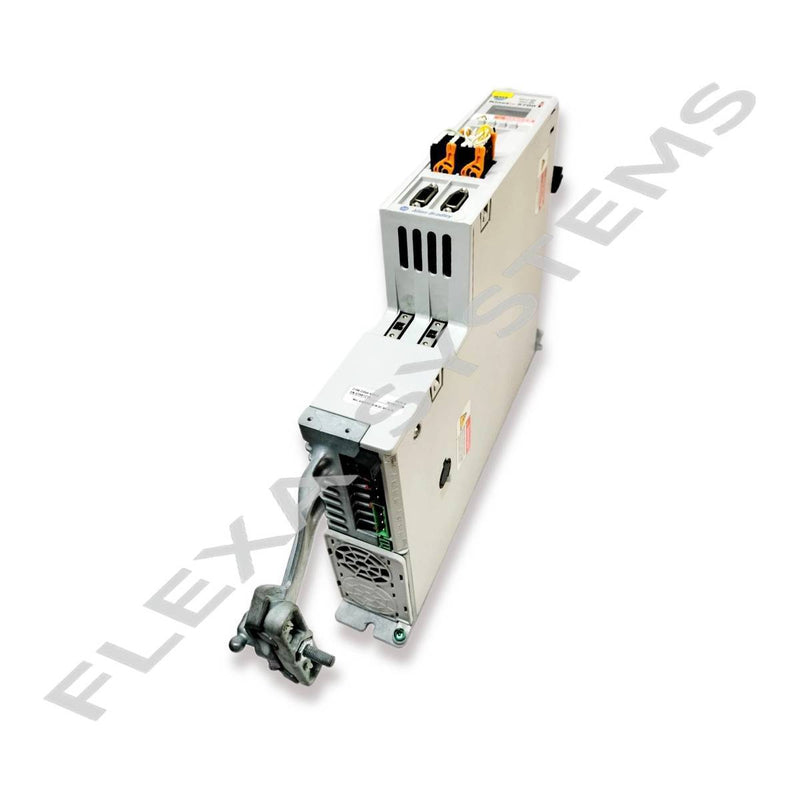

Allen-Bradley 2198-D006-ERS3

SKU: 2100000017249

$1,300.00 $2,200.00

2-Year Warranty

Free Diagnostics

5–30 Day Turnaround

Nationwide Service

Repair option: component-level repair is available for this model — free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Request a repair quote.

2198-D006-ERS3 repair service is available for this Allen Bradley Kinetix 5700 dual-axis servo drive, and facilities running this unit will find that ALLEN BRADLEY 2198-D006-ERS3 repair is far more cost-effective than full replacement — especially when a 2198-D006-ERS3 refurbished unit can restore full motion control capability at a fraction of OEM pricing. Operating at 600V DC bus voltage with a dual-axis output rating of 2 x 2.5 amps continuous, this compact drive module is engineered to deliver precise torque and velocity control in multi-axis servo systems. If you've been searching for 2198-D006-ERS3 repair near me, Flexa Systems provides depot-level industrial VFD repair from its facility in Lewisville, TX, with nationwide shipping for fast turnaround. This drive is commonly deployed in packaging machinery, material handling conveyors, and precision assembly equipment where coordinated multi-axis motion is critical. 2198-D006-ERS3 troubleshooting often reveals specific fault patterns tied to IGBT degradation, DC bus capacitor wear, or encoder feedback signal integrity issues that experienced technicians can isolate and resolve at the board level. The unit operates as a dual-axis extension module within the Kinetix 5700 architecture, sharing a common DC bus with a base servo drive rather than drawing directly from AC mains. For facilities that need to buy 2198-D006-ERS3 USA without the extended lead times of new OEM procurement, a fully tested and warranted refurbished unit is often the fastest path back to production.

Technical Specifications

Part Number	2198-D006-ERS3
Manufacturer	ALLEN BRADLEY
Voltage	600VDC
Current Rating	2 xc 2.5 Amps
Package / Type	KINETIX 5700 Servo Drive

Compatibility

The 2198-D006-ERS3 is compatible with the Allen Bradley Kinetix 5700 servo drive system and is designed to operate exclusively as a dual-axis extension module paired with a 2198-Sxxx or 2198-Pxxx series regenerative or non-regenerative bus supply. ALLEN BRADLEY 2198-D006-ERS3 integration is managed through the Studio 5000 Logix Designer environment using the Logix 5000 motion instruction set, making it fully compatible with ControlLogix (1756-L series) and CompactLogix (5069-L series) controllers over EtherNet/IP with CIP Motion protocol. The 2198-D006-ERS3 replacement for units like the 2198-D012-ERS3 or 2198-D020-ERS3 follows the same mechanical and electrical footprint within the Kinetix 5700 family, differing only in continuous current rating, so drive rail and bus bar connections remain consistent. Compatible motor families include Allen Bradley VPL, VPF, MPL, and MPM series servo motors with single-turn or multi-turn absolute feedback (2198-H040-ERS or 2090-XXNFMF-Sxx feedback cables) and the drive also supports safe torque-off (STO) wiring per IEC 62061 SIL 2 requirements.

Service Options

Repair Service

Ship your faulty 2198-D006-ERS3 to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.

Refurbished

In-stock ALLEN BRADLEY 2198-D006-ERS3 variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.

Brand New

New 2198-D006-ERS3 in original ALLEN BRADLEY packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.

Common Failure Modes

DC bus undervoltage fault (Axis Major Fault, error code 0x0010) triggered during high-inertia load deceleration — frequently observed in 2198-D006-ERS3 units where the shared bus supply is undersized relative to the total regenerative energy of the axis group.
IGBT desaturation fault causing immediate drive inhibit with a non-recoverable axis fault, typically resulting from prolonged operation at peak current demand beyond the 2.5A continuous rating — a common finding during 2198-D006-ERS3 troubleshooting on machines with incorrect axis sizing in Studio 5000.
Encoder feedback loss fault (CIP Motion error code 0x0107) on one or both axes due to internal SFD (Serial Feedback Device) interface circuitry failure, often caused by electrostatic discharge events on the feedback connector during field cable swaps.
2198-D006-ERS3 fault condition presenting as a safe torque-off (STO) channel mismatch alarm where STO input channel 1 and channel 2 disagree, traced to deteriorated optocoupler components on the safety I/O board — common in units operating in high-vibration or high-ambient-temperature environments above 40°C.

Frequently Asked Questions

Is the 2198-D006-ERS3 compatible with other Kinetix drive families or can it replace a PowerFlex axis module?

The 2198-D006-ERS3 compatible with designation applies strictly within the Kinetix 5700 platform — it cannot be used as a drop-in 2198-D006-ERS3 replacement for Kinetix 5500 (2198-Hxxx series) or Kinetix 6500 drives, as those families use different bus architectures and feedback protocols. It is not interchangeable with Allen Bradley PowerFlex 527 or PowerFlex 755 drives either, since those are AC-input variable frequency drives rather than DC bus servo extension modules. Within the Kinetix 5700 family, the 2198-D006-ERS3 is dimensionally and electrically interchangeable with the 2198-D012-ERS3 and 2198-D020-ERS3, provided the bus supply capacity is sufficient and the axis parameters are reconfigured in Studio 5000 to match the correct drive catalog number.

How do I know whether my 2198-D006-ERS3 is worth repairing or should be replaced outright?

In most cases, 2198-D006-ERS3 repair is the right call unless the unit has sustained physical damage such as a cracked PCB, burned bus bar connections, or severe corrosion from coolant or chemical exposure. ALLEN BRADLEY 2198-D006-ERS3 units presenting with recurring IGBT faults, DC bus capacitor bulging, or gate driver failures are all repairable at the component level by a qualified servo drive technician with access to the correct replacement power modules and test fixtures. Units that have been subjected to a sustained overvoltage event above the 600V DC bus rating warrant closer inspection, but even many of these are recoverable if the fault was brief and did not cascade into the logic supply or FPGA-based control board. Free diagnostics will confirm repairability before any work is authorized, so there is no risk in submitting the unit for evaluation.

Where can I get 2198-D006-ERS3 repair service with a warranty?

Flexa Systems, based in Lewisville TX, provides depot repair for the 2198-D006-ERS3 with a 2-year warranty covering all replaced components and labor, and typical turnaround is 5–7 business days from receipt of the unit. Every repaired or 2198-D006-ERS3 refurbished unit is load-tested on a live servo system prior to shipment to verify full axis functionality, STO circuit integrity, and feedback communication. Facilities that need to buy 2198-D006-ERS3 USA stock quickly can also source tested exchange units directly from Flexa Systems, avoiding the long lead times currently associated with new OEM procurement. Nationwide shipping is available with expedited options for critical downtime situations, and the free diagnostics evaluation ensures you receive a firm quote before committing to any repair cost.

Where can I get 2198-D006-ERS3 repair service with a warranty?

Flexa Systems provides professional 2198-D006-ERS3 repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.

Flexa Systems specializes in ALLEN BRADLEY 2198-D006-ERS3 variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.
