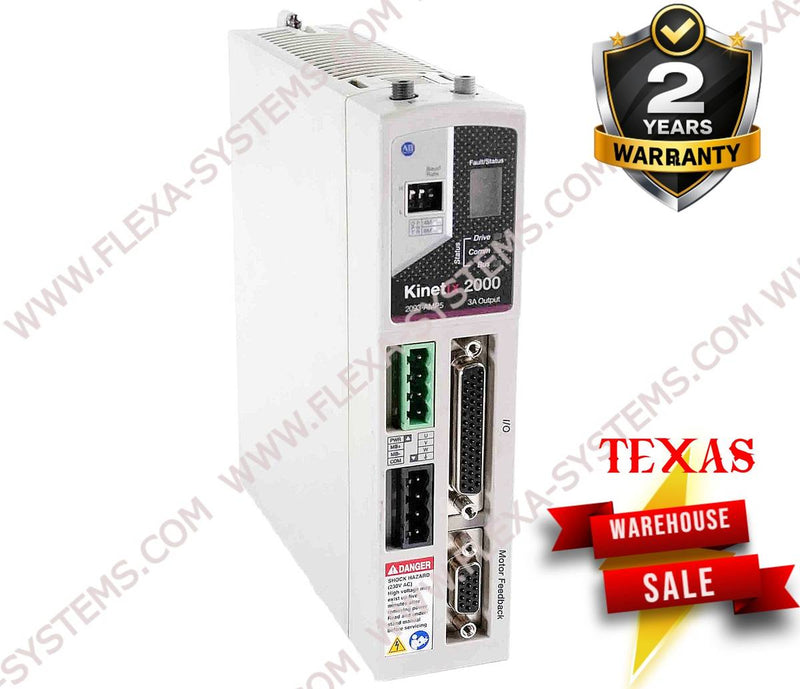

Allen-Bradley 2093-AMP5
Repair option: send in your faulty unit for component-level repair — $1,160.00 with free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%.
2093-AMP5 repair service is the most cost-effective solution when this Allen Bradley Kinetix 2000 axis module goes down on your production line, and our team handles ALLEN BRADLEY 2093-AMP5 repair alongside supply of 2093-AMP5 refurbished units for facilities that need a ready-to-install spare. The 2093-AMP5 is a single-axis power module operating at 325V DC bus voltage (230V AC class) with a 3.0A continuous output current and 0.9 kW power rating, making it the compact workhorse of multi-axis servo systems where panel space is constrained. Engineers searching for 2093-AMP5 troubleshooting resources often discover that this module's failure symptoms — nuisance overcurrent trips, bus undervoltage, and gate drive faults — are well-documented and frequently repairable rather than requiring full replacement. The unit pairs with the Kinetix 2000 integrated axis module (IAM) to share a common DC bus, meaning a single failed AMP module can bring an entire coordinated motion system to a halt in packaging, assembly, and material handling applications. If you're sourcing 2093-AMP5 fault codes from the drive's status indicators or from Studio 5000 diagnostics, those data points are exactly what our technicians need to perform a precise, targeted repair rather than a blanket component swap. Industrial VFD repair at this power class requires calibrated test equipment and OEM firmware knowledge, both of which Flexa Systems maintains in-house. Whether you need emergency turnaround or a bench-tested exchange unit, we keep this model in our repair queue and inventory rotation to minimize your downtime.
The 2093-AMP5 is compatible with the Allen Bradley Kinetix 2000 system architecture, specifically designed to operate as an expansion axis module alongside the 2093-AC05-MP1 and 2093-AC05-MP2 integrated axis modules that supply and regulate the shared 230V AC class DC bus. ALLEN BRADLEY 2093-AMP5 integration is supported through the SERCOS motion network used natively in the Kinetix 2000 platform, with configuration and commissioning performed entirely within Studio 5000 Logix Designer using ControlLogix or CompactLogix controllers such as the 1756-L73 and 1769-L36ERM. The 2093-AMP5 is a direct 2093-AMP5 replacement for other single-axis expansion modules in the same current class within the Kinetix 2000 line, including the 2093-AMP1 and 2093-AMP3, provided the system IAM is sized to handle the combined bus load. Compatible servo motors include Allen Bradley MP-Series and TL-Series frames with standard 15-pin DSL feedback connectors, and the module supports resolver and high-resolution encoder feedback types consistent with the broader Kinetix 2000 axis module family.
- Axis inhibited fault (Axis Fault 13 — Hardware Overtravel) triggered by degraded gate drive circuitry on the output IGBT bridge, causing the 2093-AMP5 to drop the enable signal intermittently under load despite no mechanical overtravel condition being present.
- DC bus undervoltage fault (Fault Code 33) during acceleration ramps in 2093-AMP5 troubleshooting scenarios, typically traced to failed bulk capacitors on the shared bus that can no longer hold voltage during high-demand transients in multi-axis Kinetix 2000 configurations.
- Persistent 2093-AMP5 fault code indicating module communication loss on the SERCOS ring, caused by a failed fiber-optic transceiver on the RX or TX port — commonly misdiagnosed as a cable or IAM issue before the AMP module itself is isolated for bench testing.
- Output phase-to-phase short detection fault on startup with no motor connected, resulting from thermal stress cracking of the IGBT substrate or failed snubber capacitors on the power stage — a failure pattern seen in 2093-AMP5 units installed in enclosures without adequate thermal management or derated airflow.
Technical Specifications
| Part Number: | 2093-AMP5 |
| Manufacturer: | ALLEN BRADLEY |
| Voltage: | 325V DC (230V AC class) |
| Current: | 3.0 A |
| Power: | 0.9 kW |
| Type: | BOX/MODULE |
