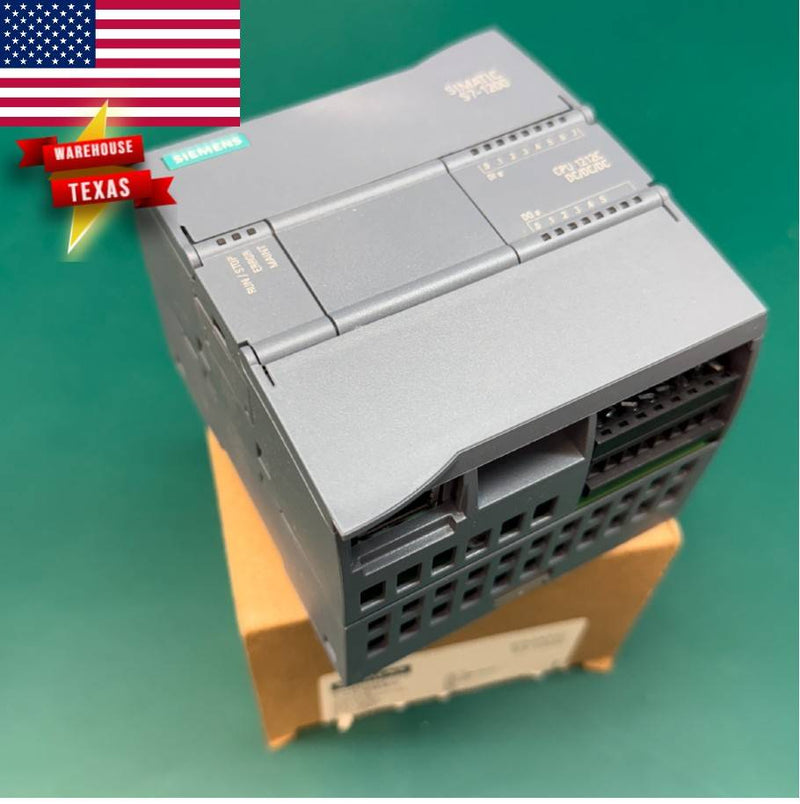

Siemens 6ES7 212-1AE40-0XB0

The 6ES7 212-1AE40-0XB0 is a compact CPU module belonging to Siemens' SIMATIC S7-1200 series, a line of small-footprint programmable logic controllers designed for discrete and process automation at the machine level. This particular unit is the CPU 1212C AC/DC/Relay variant, meaning it accepts 120/240 V AC line power, provides 24 V DC digital inputs, and switches outputs via onboard relay contacts. The Siemens 6ES7 212-1AE40-0XB0 ships with 8 digital inputs, 6 relay outputs, and 2 analog inputs integrated directly on the housing, giving it a self-contained I/O footprint suited to standalone machine control without requiring immediate expansion. Onboard memory stands at 75 KB work memory for program data and 4 MB load memory, accommodating moderately complex ladder, FBD, or SCL programs. The CPU communicates natively over PROFINET via its built-in RJ45 port and supports up to 3 communication modules and 1 signal board for configuration flexibility. Operating temperature tolerance runs from 0 °C to 55 °C, making the Siemens 6ES7 212-1AE40-0XB0 appropriate for standard industrial enclosure environments rather than extreme-duty installations.

Distinguishing the 6ES7 212-1AE40-0XB0 from sibling models, the AC/DC/Relay power configuration sets it apart from the DC/DC/DC variant (6ES7 212-1AE40's DC-powered counterparts) by eliminating the need for a separate 24 V DC power supply in panels already fed by AC mains — a meaningful difference during panel design and wiring. The relay outputs, rated at 2 A per point, handle inductive loads such as solenoid valves and contactor coils directly, whereas transistor-output siblings require external relays for those same loads. This CPU sits one tier below the CPU 1214C in the S7-1200 family, sharing the same TIA Portal V13 SP1 and later programming environment but offering fewer onboard I/O points and a smaller memory ceiling, which positions it for single-machine or auxiliary equipment roles rather than coordinating multi-axis systems. Via TIA Portal, the 6ES7 212-1AE40-0XB0 integrates with Siemens HMI panels running WinCC Basic, SINAMICS drives over USS or Modbus RTU, and broader PROFINET networks including S7-1500 controllers acting as supervisory nodes. Browse our PLC repair catalog for additional S7-1200 and related controller units. Industries where this CPU is regularly deployed include food and beverage filling line controls, HVAC air-handling unit sequencing, plastics injection molding auxiliaries, and small-batch pharmaceutical mixing stations.

Field service experience with the 6ES7 212-1AE40-0XB0 shows that relay output contacts are statistically the first wear point, particularly in applications cycling contactor coils at high frequency — contact erosion or welding becomes apparent after several hundred thousand operations in aggressive duty cycles. The onboard 24 V DC sensor supply is a secondary failure point, often stressed by poorly fused field wiring that allows overcurrent conditions to degrade internal regulation components. Firmware corruption following uncontrolled power loss during a TIA Portal download is another documented failure mode, producing a CPU that enters STOP mode and refuses normal startup recovery without a factory reset sequence. Facilities sourcing a 6ES7 212-1AE40-0XB0 replacement following these failures should verify the firmware revision on any substitute unit matches the project's TIA Portal version to avoid compatibility issues; operators looking to buy 6ES7 212-1AE40-0XB0 stock should confirm the hardware version stamp on the label as well. Our Siemens PLC repair page covers the full range of S7-1200 fault conditions we routinely address, and our industrial PLC repair services outline the bench evaluation and testing process applied to every unit. A refurbished 6ES7 212-1AE40-0XB0 that has undergone relay contact inspection and power supply validation can serve as a cost-effective standby spare. Flexa Systems offers 6ES7 212-1AE40-0XB0 repair, refurbished 6ES7 212-1AE40-0XB0 units, or new 6ES7 212-1AE40-0XB0 from Lewisville TX — repairs include a 2-year warranty.
