Allen-Bradley Kinetix 5500 — Overview

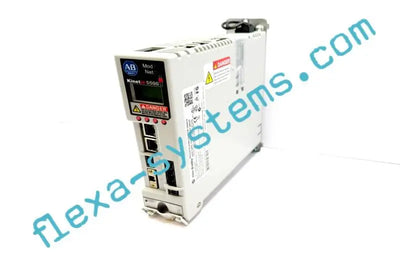

The Allen-Bradley Kinetix 5500 (catalog 2198-Hxx) is a single-axis EtherNet/IP servo drive designed for distributed motion control applications. With power outputs from 0.2 to 14.6 kW and integrated motion capabilities, the Kinetix 5500 extended the midrange Kinetix portfolio and became a workhorse in packaging machinery, material handling systems, assembly equipment, and OEM motion platforms requiring coordinated motion over EtherNet/IP networks.
Component-level repair is particularly cost-effective for the Kinetix 5500 series. New drives range from $2,500 to $8,000 depending on power rating, while professional repair typically costs $650–$1,800. Our technicians address power stage failures, feedback circuit issues, control board defects, and IPM faults at the component level, restoring drives to original performance specifications while preserving your configuration and saving 30–60% versus new unit replacement.
| Catalog | 2198-Hxxx-ERS / -ERS2 |
| Voltage | 195–264V single-phase, 195–528V three-phase |
| Power Range | 0.2–14.6 kW (1–23A continuous) |
| Axes | Single-axis |
| Feedback | Hiperface DSL (digital absolute); Hiperface via 2198-H2DCK converter kit |
| Communication | EtherNet/IP, Integrated Motion on EtherNet/IP |
| Control Modes | Position, Velocity, Torque |
| STO Safety | Hardwired (-ERS) or integrated (-ERS2) STO |
Common Kinetix 5500 Failures We Repair
Every failure repaired at component level — root cause fixed, not just the fault code cleared.
IPM / IGBT Power Module Failure
Intelligent Power Module (IPM) failures present as FLT S10 (Inverter Overcurrent) or FLT S16 (Ground Current) faults, typically caused by overcurrent events, thermal stress, or gate driver degradation. Symptoms include immediate drive shutdown, inability to enable, or intermittent trips under load. We replace failed IPM assemblies with OEM-equivalent modules and verify gate drive circuit integrity.
DC Bus Capacitor Degradation
Electrolytic bus capacitors lose capacitance over time, which can show up as FLT S35 (Bus Overvoltage) or FLT S33 (Bus Undervoltage) faults during acceleration/deceleration cycles. Degraded capacitors reduce ripple filtering and regenerative braking performance. Our repair includes ESR testing and replacement of out-of-spec capacitors with high-reliability components rated for extended service life.
Encoder Feedback Circuit Failure
FLT S45 (Feedback Comm) and FLT S47 (Feedback Device Failure) faults can result from failed differential receivers, damaged isolation circuits, or contaminated feedback connectors. Loss of position feedback causes immediate axis shutdown and motion system faults. We diagnose feedback signal integrity at the component level, repair damaged transceiver circuits, and verify Hiperface DSL or sin/cos signal quality.
Gate Driver Circuit Defects
Gate driver IC failures or optocoupler degradation prevent proper IGBT switching, resulting in FLT S10 (Inverter Overcurrent) trips or asymmetric motor current. These failures often follow power transients or thermal cycling. We replace damaged gate drivers, verify isolation barrier integrity, and test switching characteristics under rated load conditions.
Control Board Processor Failure
Main control board failures manifest as communication loss, failure to boot, or erratic axis behavior without specific fault codes. Causes include voltage regulator failure, corrupted firmware, or processor damage from electrical transients. We perform board-level diagnostics, replace failed ICs, restore firmware, and validate EtherNet/IP communications and motion profile execution.
Thermal Management System Issues
Failed cooling fans, blocked heatsinks, or faulty thermal sensors cause FLT S11 (Inverter Overtemperature) faults and premature IPM shutdown. Inadequate cooling reduces IGBT current capacity and accelerates component aging. Our repair includes fan replacement, thermal interface material renewal, heatsink cleaning, and thermistor circuit verification to restore proper thermal protection.
Kinetix 5500 Fault Codes Reference
Fault codes as printed in Allen-Bradley fault-code reference 2198-RD005 for the 2198-Hxxx drives. The display shows them as FLT Sxx followed by a short description; FL means a factory-set limit was exceeded.
| Code | Name | Cause & Fix |
| FLT S10 | INV OVERCURRENT | Inverter current exceeded the hardware instantaneous limit. Check the motor power cable and windings for shorts, verify wire gauge, operate within the continuous rating, reduce acceleration. If it returns with motor and cable proven good, the power stage needs repair. |
| FLT S16 | GROUND CURRENT | Excessive ground current sensed in the power stage. Check motor power wiring and cable for shorts; replace the motor if it persists; check DC-bus wiring when a capacitor module is used. |
| FLT S35 | BUS OVERVOLT FL | DC-bus voltage above the factory limit. Change the deceleration profile of all drives on the bus, unplug the shunt connector and measure the shunt; replace the drive if the shunt resistor is open. |
| FLT S33 | BUS UNDERVOLT FL | DC-bus voltage below the factory limit. Verify the incoming AC voltage, monitor the source for glitches or line droop, consider a UPS. |
| FLT S25 | CONV PRECHARGE FAILURE | The DC bus did not reach its precharge level in time, or is too high. Check AC input on all phases and input wiring, check for an inverter or motor shorted to ground; replace the drive if it persists. |
| FLT S23 | AC PHASE LOSS | One AC input phase was lost while the drive was enabled. Check AC input voltage on all phases. |
| FLT S20 | CONV OVERLOAD FL | The converter thermal model exceeded its 110% limit. Reduce the number of shared-DC follower drives or the duty cycle of the commanded motion. |
| FLT S29 | BUS REG OVERLOAD FL | The internal shunt (bus regulator) thermal model exceeded its limit. Modify the duty cycle, add an external shunt or a capacitor module. |
| FLT S31 | BUS REG FAILURE | The shunt circuit detected a shorted shunt resistor. Check the shunt connector and measure the resistor; replace the drive if the shunt is shorted. |
| FLT S07 | MTR OVERLOAD FL | The motor thermal model exceeded its factory limit. Modify the command profile to reduce speed or increase time. |
| FLT S11 | INV OVERTEMP FL | Inverter temperature exceeded the factory limit. Reduce ambient temperature, verify airflow through the drive, modify the command profile. |
| FLT S45 | FDBK COMM FL | Missed or corrupted serial data from the motor feedback device. Check the feedback cable and connector, shield terminations and motor frame grounding. |
| FLT S47 | FDBK DEVICE FAILURE | The DSL or Hiperface feedback device reported an internal error. Check cable continuity and motor phasing, cycle control power; replace the motor if it continues. |
