Allen-Bradley Kinetix 350 Repair
Allen-Bradley Kinetix 350 servo drive down? Flexa Systems specializes in component-level repair of 2097-V3x series drives with a 2-year warranty and free diagnostics. We fix IGBT failures, power supply faults, encoder issues, and bus voltage problems—typically saving 30-60% versus buying new.
Allen-Bradley Kinetix 350 — Overview
The Allen-Bradley Kinetix 350 (catalog 2097-V3x) is a single-axis EtherNet/IP servo drive designed for low-to-mid power motion control applications from 0.4 to 3.0 kW. Built on the same 2097-V3x hardware as the Kinetix 300 but running Integrated Motion on EtherNet/IP, it's widely deployed in indexing conveyors, packaging machinery, assembly automation, filling stations, and material handling systems where precise single-axis positioning is required. It supports multiple feedback types including TTL incremental, sin/cos, EnDat, and Hiperface encoders, with embedded EtherNet/IP communication for seamless integration into modern Logix control architectures.
Component-level repair makes strong economic sense for the Kinetix 350. With new drives costing $2,000–$5,000+ and facing limited availability, professional repair at $450–$1,200 delivers the same performance at a fraction of the cost. Our technicians repair the actual failure point—IGBT modules, gate drivers, power supplies, control boards—rather than replacing entire assemblies. This preserves your existing drive configuration, motor tuning, and parameter sets while extending service life with industrial-grade components backed by our 2-year warranty.
| Catalog | 2097-V3x |
| Voltage | 120/240V single-phase, 240V or 480V three-phase |
| Power Range | 0.4–3.0 kW continuous output |
| Axes | Single-axis |
| Feedback | TTL incremental, Hiperface, Tamagawa 17-bit serial |
| Communication | EtherNet/IP (embedded) |
| Control Modes | Position, Velocity, Torque |
| STO Safety | Hardware STO standard (PL d, SIL CL2) |
Common Kinetix 350 Failures We Repair
Every failure repaired at component level — root cause fixed, not just the fault code cleared.
IGBT / Power Module Failure
The most common failure mode, typically caused by overcurrent events, motor short circuits, or regenerative overvoltage. Symptoms include F 10 (Inverter Overcurrent) faults, no motor response, or immediate tripping on enable. We replace failed IGBT modules, test gate drive circuits, and verify thermal management to prevent recurrence.
DC Bus Capacitor Degradation
Electrolytic capacitors in the DC bus circuit lose capacitance over time, which can show up as F 35 (Bus Overvoltage) or F 33 (Bus Undervoltage) faults and erratic operation under load. We measure ESR and capacitance, replace degraded capacitors with industrial-grade equivalents rated for high ripple current, and test across the full voltage range.
Encoder Interface Circuit Failure
Failed line receivers, termination resistors, or 5V/9V encoder power supplies trigger F 43 (Feedback Loss) faults. Often caused by electrical noise, improper grounding, or encoder cable damage. We repair the feedback interface circuitry, verify signal integrity with oscilloscope analysis, and test with multiple feedback types to ensure compatibility.
Gate Driver Board Damage
Gate driver circuits control IGBT switching and are vulnerable to voltage transients and short-circuit feedback. Failures cause erratic motor behavior, F 10 (Inverter Overcurrent) faults, or protective shutdowns. We replace damaged optocouplers, gate resistors, and driver ICs, then verify proper IGBT switching waveforms under load conditions.
Power Supply Section Faults
Internal switching power supplies provide logic voltage, gate drive power, and encoder excitation. Failures cause no-power conditions, erratic fault codes, or communication loss. We diagnose failed controllers, switching transistors, and output diodes, replacing components and testing all voltage rails under full load to OEM specifications.
Control Board / DSP Processor Failures
Less common but critical—failed DSP processors, memory chips, or communication controllers prevent drive initialization or cause intermittent faults. Often heat-related or caused by power supply transients. We perform board-level diagnostics, replace failed ICs using precision rework equipment, and verify full EtherNet/IP communication and motion control functionality.
Kinetix 350 Fault Codes Reference
Fault codes as printed in Allen-Bradley user manual 2097-UM002 for the 2097-V3x drives. The four-digit display scrolls them as F, a space and two digits (for example F 33).
| Code | Name | Cause & Fix |
| F 10 | Inverter Overcurrent | Power transistors were turned off for overcurrent, overtemperature or a power supply problem. Check motor cable continuity and motor phase-to-phase and phase-to-ground, vents, fan and ambient, reduce acceleration. Continuity from the DC bus to U/V/W with power removed means the drive needs repair. |
| F 35 | Bus Overvoltage | DC bus above the factory limit from excessive regeneration or a motor driven by the load. Change the deceleration profile, use a larger system or install a shunt resistor. |
| F 33 | Bus Undervoltage | DC bus below the limit with three-phase power present. Verify incoming AC, check the source for glitches or line drop, consider a UPS. |
| F 11 | Inverter Overtemperature | The inverter thermal switch tripped: failed drive fan, cabinet ambient above rating, duty cycle above the continuous rating, or blocked airflow. A failed fan means the drive must be repaired or replaced. |
| F 43 | Feedback Loss | Feedback signals lost or invalid, or wiring open, shorted, missing or noisy. Check encoder wiring, run the Hookup test, use shielded cables away from noise, then check the motor encoder. |
| F 05 | Motor Overtemperature | The motor temperature sensor shows its factory limit exceeded: high ambient or excessive current. Check MF and TS+/COM wiring, operate within the continuous torque rating, verify the motor selection. |
| F 07 | Motor Thermal Protection | The motor thermal model exceeded 110% of rating. Change the command profile to reduce speed or increase time. |
| F 03 | Motor Overspeed | Motor speed exceeded 125% of its maximum rated speed. Check motor wire phasing, cable noise and tuning. |
| F 54 | Excessive Position Error | Position error limit exceeded: partial loss of feedback, undersized drive or motor, or mechanics out of specification. Check MF wiring, sizing, gains and limits. |
| F 61 | Drive Enable Input | The hardware enable input dropped while enabled, or software enable was attempted with it inactive. Check enable wiring and its 24V source. |
| nF 03 | Hardware Fault | Internal hardware problem. Cycle control power; if it returns, the drive needs repair or replacement. |
How Kinetix 350 Repair Works
4-step process — ship us the drive, get it back repaired with a 2-year warranty
Free Diagnostic
Ship your servo drive. Component-level diagnostic within 24–48hrs. No charge, no obligation.
Written Quote
Detailed repair quote: what failed, what we replace, exact cost. Approve before any work.
Component Repair
Service engineers perform circuit board and component-level repair. Root cause fixed.
Load Test & Ship
Full load test under operating conditions. Ships back with 2-year warranty.

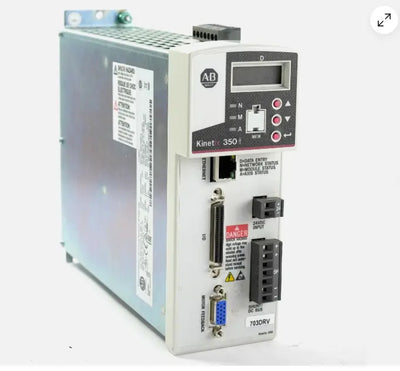

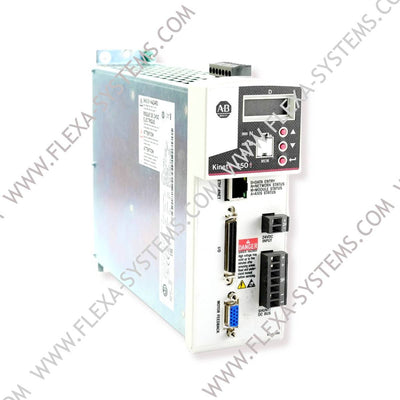

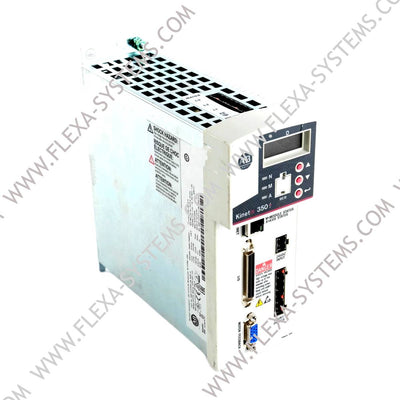

Kinetix 350 Drives In Stock
Tested, refurbished Kinetix 350 units available for immediate purchase or exchange. All units carry our 2-year warranty.
Kinetix 350 Repair — FAQ
Answers to the most common questions about our Allen-Bradley Kinetix 350 (2097-V3x series) servo drive repair service
How much does Kinetix 350 repair cost?
Kinetix 350 (2097-V3x) repair typically costs $450–$1,200 depending on the failure mode and power rating, compared to $2,000–$5,000+ for new drives with limited availability. We provide free diagnostics with detailed failure analysis, and every repair includes our 2-year warranty with no-fix no-charge guarantee. Call (254) 254-0005 for a quote on your specific catalog number.
What is the most common Kinetix 350 failure?
IGBT and power module failures are the most common issue, typically presenting as F 10 (Inverter Overcurrent) faults that return with the motor and cable proven good. These failures result from motor short circuits, overcurrent events, or regenerative overvoltage conditions. We replace failed IGBTs, repair associated gate driver circuits, and test across the full power range to ensure reliable operation.
How long does Kinetix 350 repair take?
Most Kinetix 350 repairs ship in 5–30 business days from receipt, including diagnostics, component-level repair, burn-in testing, and final quality inspection. Rush service is available with 24–72 hour turnaround for critical production environments. We provide tracking and status updates throughout the repair process.
Do you repair legacy Kinetix 350 drives?
Yes, we specialize in repairing legacy Kinetix 350 models regardless of production status. With component-level repair expertise, we source or cross-reference obsolete components and maintain repair capability long after OEM support ends. This extends the service life of proven automation systems without costly retrofits or control architecture changes.
Will my Kinetix 350 parameter and motion settings be preserved?
Yes, component-level repair preserves your existing drive configuration including motion profiles, tuning parameters, scaling, I/O settings, and network configuration stored in non-volatile memory. We repair the failed hardware components (IGBT modules, power supplies, gate drivers) without disturbing the control processor or parameter storage, so your drive returns ready to reinstall with existing settings intact.
What is your warranty on Kinetix 350 repairs?
Every Kinetix 350 repair includes a comprehensive 2-year warranty covering parts and labor on the repaired circuits and components. We also offer a no-fix no-charge guarantee—if we cannot successfully repair your drive to OEM specifications, you pay nothing for the attempt. Our warranty is backed by documented testing and quality assurance processes that meet or exceed original equipment standards.
Ready to Get Your Kinetix 350 Repaired?
Free diagnostic evaluation, no obligation. Most repairs returned in 5–30 business days. Rush service available in 24–72 hours for critical equipment.
