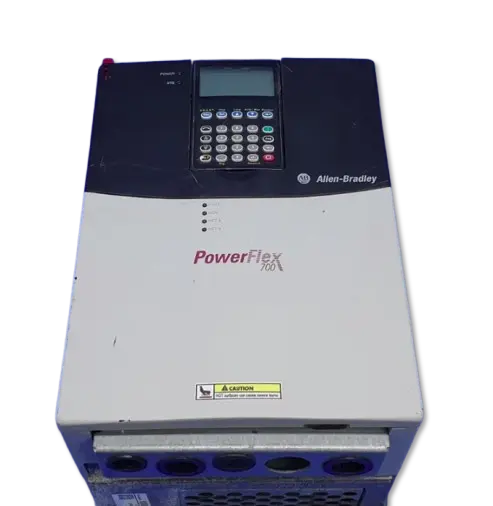

The Allen-Bradley PowerFlex 700 series (20B) remains one of the most widely deployed variable frequency drives in industrial automation, with tens of thousands of units operating in critical applications worldwide. Originally introduced in the early 2000s, many PowerFlex 700 drives have now been in continuous service for 10-15 years, placing them squarely in the age range where component degradation accelerates and fault codes become increasingly common. Whether you're troubleshooting a sudden shutdown or dealing with nuisance trips, understanding PowerFlex 700 fault codes is essential for minimizing downtime and making informed repair-versus-replace decisions.
Understanding PowerFlex 700 Fault Codes
The PowerFlex 700 family—including 20BD, 20BB, 20BC, and 20BE variants—displays fault codes in a standardized F### format using three digits on the HIM (Human Interface Module) or keypad display. When a fault occurs, the drive stores it in an internal fault log accessible through Port 0 (keypad interface) or Port 5 (communication networks). Understanding the difference between fault types is critical: Type 1 faults are non-recoverable and require manual intervention to clear, typically indicating serious hardware issues or unsafe operating conditions. Type 2 faults allow automatic restart attempts if auto-restart is enabled, useful for transient conditions like momentary voltage sags. The fault history buffer stores the last eight faults with timestamps, providing valuable diagnostic information when intermittent problems occur. Accessing parameter A060 through A067 reveals this fault history, while parameter A059 displays the active fault code.
Power Section Faults
F004 — Undervoltage
F004 trips occur when DC bus voltage drops below the minimum threshold, typically 350-380 VDC for 480V class drives. Common causes include incoming power disturbances, blown line fuses, weak utility supply during motor starting, or failing precharge components. On aging PowerFlex 700 units, deteriorating electrolytic capacitors in the DC bus section can reduce the drive's ability to ride through voltage sags, making F004 faults progressively more frequent. Check incoming line voltage first—it should remain within ±10% of nominal. Examine the drive's event log to determine if the fault coincides with other equipment starting on the same bus. Internal causes include failing power supply modules, damaged bridge rectifiers, or loose DC bus connections. If F004 persists with stable incoming power, the drive likely requires component-level repair of the power conversion section.
F005 — Overvoltage
F005 faults indicate DC bus voltage has exceeded safe limits, typically 800-820 VDC for 480V class drives. The most common cause is regenerative energy from decelerating high-inertia loads overwhelming the drive's ability to dissipate power. The PowerFlex 700 without a dynamic brake resistor has limited capacity to handle regen energy—it can only "pump" back through the line reactors. Sudden loss of line power during motor operation can also cause F005 as the spinning motor acts as a generator. Check deceleration ramp times and extend them if possible. Verify that any installed dynamic brake resistor and chopper module are functioning correctly. For drives with regen capability (20BD with active front end), examine the line-side converter for proper operation. Internal component failures in the brake chopper circuit or DC bus overvoltage detection circuits can also trigger false F005 faults requiring repair.
F012 — Hardware Overcurrent
F012 is among the most serious PowerFlex 700 fault codes and represents the single most common reason these drives require professional repair. This fault indicates that hardware-level overcurrent detection circuits have identified instantaneous current exceeding safe IGBT limits—typically responding within 3-5 microseconds to protect the power semiconductors. Unlike software overcurrent monitoring, F012 represents a hardware shutdown that bypasses the microprocessor. Primary causes include failed IGBT modules, gate driver failures, short circuits in motor cables, ground faults, or contamination bridging DC bus bars. On aging drives, thermal cycling degrades solder joints and silicone gel in IGBT modules, increasing failure probability. When F012 occurs, immediately disconnect motor leads and attempt a start into no load—if the fault persists, internal power section damage has occurred. This fault almost always requires component-level repair including IGBT module replacement, gate driver board repair, and comprehensive testing of all power semiconductors.
F070 — Power Unit
F070 indicates the drive has detected a serious power section malfunction that doesn't fit other specific fault categories. This catch-all fault typically points to gate driver circuit failures, IGBT desaturation detection, or communication failures between control boards and power modules. In PowerFlex 700 drives, the gate driver boards—which provide the isolated high-voltage switching signals to IGBT gates—are common failure points after years of thermal stress. Symptoms preceding F070 often include erratic operation, motor cogging, or unusual acoustic noise. The fault may be accompanied by visible damage such as burned components, discolored circuit boards, or damaged fiber optic cables connecting control to power sections. Thorough diagnosis requires oscilloscope analysis of gate signals and systematic testing of each power section component. Component-level repair typically involves gate driver board rebuild or replacement, IGBT testing, and verification of all isolated power supplies.
F048 — Precharge Fault
F048 occurs when the drive's precharge circuit fails to properly charge the DC bus capacitors before closing the main line contactor. The precharge circuit uses a resistor and relay to gradually charge high-capacity DC bus capacitors, preventing inrush current that could damage bridge rectifiers or weld the main contactor. This fault indicates the DC bus voltage did not reach the expected threshold within the precharge timeout period (typically 5-10 seconds). Common causes include failed precharge resistors (often cracked or open from thermal stress), stuck or failed precharge relays, blown bridge rectifier diodes preventing current flow, or damaged DC bus capacitors with reduced capacity. On older PowerFlex 700 units, precharge resistors commonly fail due to repeated thermal cycling. Diagnosis requires measuring DC bus voltage during startup sequence and testing precharge components. This repair is straightforward but critical—operating without proper precharge damages other components.
Motor & Thermal Faults
F007 — Motor Overload
F007 indicates the drive's electronic motor overload protection has tripped, calculated using an I²t thermal model that simulates motor heating based on current and time. This protection prevents motor insulation damage from prolonged overcurrent conditions. The fault typically results from mechanical overload—jammed conveyors, seized bearings, or process upsets requiring excessive torque. However, F007 can also indicate incorrect motor parameters (especially motor nameplate amps), inadequate motor cooling due to low speed operation, or single-phasing conditions if the drive continues running on two phases. Check parameter P040 (Motor Overload Limit) and P042 (Motor Thermal Capacity) for proper configuration. Examine mechanical load conditions and verify motor current against nameplate ratings. If F007 occurs at light loads or proper parameters are confirmed, the drive's current sensing circuits may require calibration or repair, particularly CT (current transformer) signal conditioning boards.
F008 — Heatsink Overtemperature
F008 trips when the power module heatsink temperature exceeds safe limits, typically 85-90°C, as measured by thermistors embedded in the heatsink. This fault protects IGBT modules from thermal destruction, as junction temperature directly correlates with heatsink temperature. Primary causes include blocked cooling airflow, failed cooling fans, ambient temperature exceeding drive ratings, or excessive load duty cycle. On aging PowerFlex 700 units, accumulated contamination—oil mist, dust, or particulate—significantly reduces heatsink thermal transfer efficiency. Check all cooling fans for operation and verify airflow paths are clear. Clean heatsinks using appropriate methods for your environment. Verify drive enclosure ventilation is adequate and ambient temperature is within specifications. Internal causes include failed thermistors giving false readings, deteriorated thermal compound between IGBT modules and heatsinks, or actual overloading requiring drive upsizing. Persistent F008 with clean heatsinks and proper cooling often indicates component degradation requiring repair.
F013 — Ground Fault
F013 indicates the drive has detected current flowing to ground, representing a serious safety hazard and potential equipment damage. The PowerFlex 700 monitors ground fault current through residual current detection—comparing current flow in all three motor phases and detecting imbalance indicating leakage to ground. Common causes include damaged motor cable insulation, moisture in motor terminal boxes, failed motor winding insulation, or damaged cables crushed by equipment or cable carriers. Water intrusion into motors is particularly common in outdoor applications or wash-down environments. Begin diagnosis by disconnecting motor cables and megger-testing motor winding insulation to ground—readings below 2 megohms indicate motor problems. Inspect cable routing for damage, particularly at conduit entries and stress points. If motor and cables test good, the drive's internal ground fault detection circuitry may have failed or require calibration. Some nuisance F013 faults result from high-frequency common-mode currents in long motor cables, resolvable with output reactors or dV/dt filters.
F064 — Drive Overload
F064 occurs when drive output current exceeds the drive's continuous current rating for an extended period, calculated using the drive's own I²t thermal model. Unlike F007 which protects the motor, F064 protects the drive itself from thermal damage. This fault typically indicates the drive is undersized for the application, the load duty cycle exceeds design assumptions, or mechanical problems are forcing the motor to draw excessive current. Applications with frequent starts, rapid reversing, or sustained high-torque requirements at low speeds are particularly susceptible. Check actual RMS current against drive nameplate ratings using the drive's built-in current metering. Review duty cycle and consider whether a larger frame size is required. Parameter P046 (Drive Overload Limit) can be adjusted but should not exceed drive ratings. If F064 occurs with current well below drive ratings, internal current sensing calibration issues may exist requiring professional repair.
Communication Faults
F081 — Communication Loss
F081 indicates the drive has lost communication with the controlling device—typically a PLC or HMI—on the configured communication network. The PowerFlex 700 supports multiple protocols including ControlNet, DeviceNet, EtherNet/IP, and various serial protocols depending on installed communication modules. When communication is lost and the drive is configured to fault on loss (rather than coast or continue at last reference), F081 trips to prevent uncontrolled operation. This is a critical safety feature in automated systems. Troubleshooting begins with verifying physical layer integrity—check cable connections, terminating resistors, and network power supplies. Use network diagnostic tools to verify the drive appears on the network and responds to polling. Review parameter P097 (Comm Loss Action) to confirm intended behavior. Examine PLC communication error logs to determine if the fault originates from controller side or drive side. In older drives, failing communication modules, corrupted firmware, or damaged communication boards may require repair. Verify network traffic levels aren't saturating bandwidth, causing packet loss and timeouts.
F033 — Auto Restart Exceeded
F033 occurs when the drive's automatic restart function has attempted the maximum configured number of restart attempts without achieving stable operation. Auto-restart is a powerful feature allowing recovery from transient faults like momentary power loss or nuisance trips, but repeated failures indicate an underlying problem requiring attention. The fault prevents indefinite restart cycling that could damage equipment or create safety hazards. Parameters P059-P063 configure auto-restart behavior including number of attempts, delay times, and qualifying faults. When F033 occurs, examine the fault history to identify which underlying fault triggered the restart attempts. Common scenarios include intermittent ground faults, voltage instability, or mechanical problems causing repeated overloads. F033 itself is a symptom—focus diagnostic efforts on the root cause fault.
F042 — Analog Input Loss
F042 indicates loss of the analog reference signal used for speed or torque control, typically a 4-20mA current loop from a PLC or process controller. Modern process control relies on 4-20mA signaling because the 4mA "live zero" allows fault detection—if current drops below 3.5mA, the drive knows the signal is lost rather than commanding zero speed. This fault protects against unintended operation if wiring fails. Check physical connections at terminal strips, verify PLC analog output is functioning and sourcing proper current, and examine wiring for breaks or shorts. Parameter P096 (Analog Input Loss Action) determines drive behavior—fault, coast, or hold last reference. Measure actual current at drive terminals with the loop connected. Internal causes include failed analog input conditioning circuits on the control board, requiring component-level repair to restore functionality.
Hardware & Internal Faults
F063 — Software Overcurrent
F063 represents software-based overcurrent detection that operates alongside hardware protection. While F012 indicates instantaneous hardware shutdown, F063 trips when the processor detects sustained overcurrent based on current feedback signals. This fault may indicate developing problems in the power section, current sensor drift, or actual load current exceeding safe limits. Causes overlap with F012 but typically represent less severe or slower-developing conditions. Check motor current under normal operation and compare against drive ratings. Verify acceleration and deceleration ramps aren't too aggressive. If F063 occurs with moderate current levels, current sensor calibration or signal conditioning circuits may require attention through professional repair.
F100 — Parameter Checksum
F100 indicates the drive has detected corruption in its non-volatile parameter memory, where all configuration parameters are stored. This serious fault means the drive cannot trust its configuration data and refuses to operate until the problem is resolved. Causes include electronic component degradation in EEPROM or flash memory chips (common after 10-15 years), electrical noise or voltage transients corrupting memory, or battery failure on drives with battery-backed RAM. Immediate response requires restoring parameters from a backup file if available, or manually re-entering all parameters from documentation. After clearing the fault and restoring parameters, monitor carefully—recurring F100 indicates hardware failure requiring control board repair or replacement. Always maintain current parameter backups using DriveTools software or manual documentation. On aging PowerFlex 700 drives, F100 is often an early warning of impending control board failure.
F036 — Line Sync Fault
F036 appears on PowerFlex 700 regenerative drives (20BD series with active front end) and indicates failure to synchronize the line-side converter with incoming AC power. The active front end must precisely synchronize switching with line voltage to properly control power factor and regenerate energy back to the supply. This fault indicates the drive cannot detect proper line voltage phase and frequency information. Causes include loss of AC input phases, incorrect line voltage configuration parameters, damaged line voltage sensing circuits, or failed synchronization circuitry on the AFE control boards. Verify three-phase input power is present and balanced. Check line voltage sensing fuses and transformers. Review parameter configuration for correct input voltage and frequency. On drives with confirmed good input power and correct parameters, F036 typically requires component-level repair of the active front end control circuitry.
When to Repair vs Replace Your PowerFlex 700
The PowerFlex 700 series reached end-of-life status years ago, with Allen-Bradley discontinuing most 20B variants and positioning the PowerFlex 755 as the replacement platform. This creates a challenging situation for facilities with installed PowerFlex 700 bases—replacement units are either unavailable or available only as "remanufactured" units through distributors with limited warranties and uncertain component quality. New PowerFlex 755 replacements require comprehensive system changes including different mounting dimensions, updated programming software, and often communication module upgrades. Current lead times for new PowerFlex 755 drives range from 16-24 weeks due to global supply chain constraints, with pricing from $3,000 for smaller frames to over $15,000 for large horsepower units.
In contrast, professional component-level repair of PowerFlex 700 drives typically costs $500-$1,200 depending on fault severity and required components, with turnaround times of 5-10 business days for most repairs. The economics strongly favor repair in nearly all scenarios—even multiple repairs over several years cost substantially less than replacement. More importantly, repair maintains your existing system configuration, parameter sets, communication integration, and operator familiarity. Repair is the clear choice when downtime is measured in production losses and replacement involves engineering changes, programming updates, and commissioning time.
The critical factor is choosing a repair partner with genuine component-level capabilities rather than simple board swapping. Many "repair" services merely replace entire board assemblies with salvaged parts from other failed drives—an approach that fails to address root causes and often introduces components of unknown history. True component-level repair identifies specific failed semiconductors, capacitors, resistors, and ICs, replaces only defective components with new OEM-quality parts, and performs comprehensive functional testing under load conditions that simulate actual application requirements.
How Flexa Systems Repairs PowerFlex 700 Drives
Flexa Systems specializes in component-level PowerFlex 700 repair for all variants including 20BD, 20BB, 20BC, and 20BE series drives from fractional through 1000+ HP frame sizes. Our Lewisville, Texas facility houses specialized test equipment capable of full-load testing repaired drives before return shipment, ensuring reliability in your critical applications. Every repair begins with comprehensive diagnostics at no charge—we identify all failed components, test associated circuits, and provide a detailed quote before proceeding with any billable work. If we determine your drive is not economically repairable, you pay nothing for our diagnostic efforts.
Our component-level approach means we repair gate driver boards, replace individual failed IGBTs, rebuild power supply sections, repair control boards with corrupted memory, and address cooling system failures. We maintain extensive component inventory specifically for PowerFlex 700 series drives, enabling rapid turnaround without waiting for parts availability. Each repair includes cleaning, thermal compound renewal, connection inspection, and verification of all firmware. Following repair, drives undergo performance testing on our dynamometer load banks, confirming proper operation across the full speed and torque range.
Every PowerFlex 700 repair from Flexa Systems includes our comprehensive 2-year warranty covering all repaired components and labor. This industry-leading warranty reflects our confidence in component-level repair quality and our commitment to your operation's reliability. We also maintain a strict no-fix no-charge policy—if we cannot successfully repair your drive to full functionality, you owe nothing beyond return shipping.
