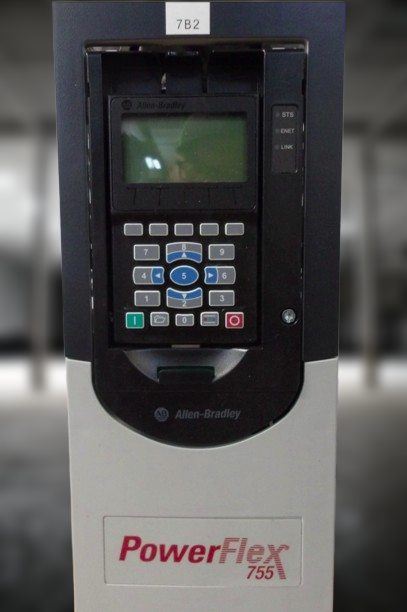

The Allen-Bradley PowerFlex 755 (20G series) represents the flagship of Rockwell Automation's high-performance AC drive platform, designed for demanding industrial applications requiring precise motor control, advanced diagnostics, and scalable power architecture. Unlike traditional monolithic VFD designs, the PowerFlex 755 employs a modular construction with separate control, power, and I/O modules connected via a common DC bus architecture. This modularity delivers significant advantages for redundancy and serviceability, but it also introduces complexity in fault diagnosis—requiring technicians to identify not just the fault type, but also the specific module generating the error. Understanding PowerFlex 755 fault codes is essential for minimizing downtime and making informed repair decisions in critical production environments.
How PowerFlex 755 Fault Codes Work
PowerFlex 755 drives utilize a comprehensive five-digit fault code structure, typically displayed as F0xxx, where the numerical portion identifies the specific fault condition detected by the drive's diagnostic systems. The modular architecture means faults can originate from multiple sources: the control module (which houses the primary DSP and fault logic), individual power modules (each containing its own gate drivers, IGBT protection, and thermal monitoring), or optional I/O and communication adapter modules. When a fault occurs, the drive logs the event with a timestamp and stores fault history accessible through the HIM (Human Interface Module) or connected programming software. Advanced PowerFlex 755 installations often integrate Device Logix—embedded logic controller functionality within the drive—which can generate custom fault responses and sequencing. The drive differentiates between faults (which require manual reset) and alarms (warnings that don't stop operation), with configurable fault action parameters determining whether the drive coasts to stop, ramps down, or attempts auto-restart sequences based on application requirements.
Power Section Faults
F0004 — DC Bus Undervoltage
DC Bus Undervoltage (F0004) indicates the intermediate DC link voltage has fallen below the acceptable threshold for the configured input voltage rating. On PowerFlex 755 drives, this fault typically triggers when bus voltage drops below approximately 390VDC on 480V systems or 195VDC on 240V configurations. Common causes include incoming AC supply voltage sags, utility brownout conditions, input phase loss, or failure of the precharge circuit to properly establish DC bus voltage during startup. The modular power structure means you should verify DC bus voltage is consistent across all power modules if operating in a multi-module configuration. Check incoming line voltage under load conditions, inspect AC line contactors and fuses, and examine precharge resistor assemblies for thermal damage. On drives with regenerative modules, verify the regeneration circuit isn't creating bus instability. The fault may also appear during deceleration if DC bus capacitors have degraded and cannot maintain voltage during regenerative energy absorption.
F0005 — DC Bus Overvoltage
DC Bus Overvoltage (F0005) occurs when the intermediate DC link exceeds safe operating limits—typically around 820VDC on 480V systems or 410VDC on 240V systems. This fault most commonly appears during rapid deceleration of high-inertia loads when regenerative energy returns to the DC bus faster than it can be dissipated. PowerFlex 755 drives require proper deceleration time programming or external dynamic braking resistors to handle regenerative energy. Verify deceleration ramp parameters are appropriate for the load inertia, and if equipped with a dynamic brake module, confirm the brake resistor is properly sized, connected, and functional. Check for incoming AC voltage transients or overvoltage conditions that could elevate the DC bus. On common bus configurations with multiple power modules sharing the DC link, one module experiencing a fault condition could affect bus voltage for all units. Examine DC bus capacitors for loss of capacitance, which reduces energy absorption capability during regeneration events.
F0012 — HW Overcurrent
Hardware Overcurrent (F0012) represents a critical protection fault triggered by the IGBT desaturation detection circuits within the power modules when instantaneous current exceeds safe switching thresholds. This is a hardware-level trip that operates independently of software current monitoring, activating within microseconds to protect power semiconductors from catastrophic failure. F0012 typically indicates IGBT failure, gate driver malfunction, or severe output short circuit conditions. On modular PowerFlex 755 configurations, the fault diagnostic data should identify which specific power module detected the overcurrent condition. Immediate causes include shorted motor windings, damaged output cables with phase-to-phase or phase-to-ground shorts, or internal IGBT/diode failures within the power module itself. This fault often results from progressive IGBT degradation due to thermal cycling, voltage transients, or previous overcurrent stress. Component-level repair requires identification of the failed power module, followed by IGBT testing, gate driver circuit analysis, and current sensor verification. The modular design allows replacement of individual power cells, though underlying causes (motor insulation breakdown, mechanical binding) must be corrected to prevent recurrence.
F0070 — Power Unit Fault
Power Unit Fault (F0070) indicates a general power module malfunction detected by the module's internal diagnostics but not classified as a specific overcurrent or thermal event. This fault commonly points to gate driver circuit failures, power module communication errors with the control board, or IGBT gate control problems that prevent proper switching operation. The PowerFlex 755's modular architecture means each power module contains isolated gate driver circuits, local fault detection, and communication with the main control module. F0070 can result from gate driver power supply failures, optocoupler degradation in the gate drive isolation circuits, or fiber optic communication faults between control and power sections. Diagnosis requires isolation of the specific power module generating the fault code, followed by gate signal verification and gate driver voltage measurements. The modular design advantage is that the affected power cell can be removed and replaced without disturbing functional modules, reducing repair time and cost compared to monolithic drive designs.
F0013 — Ground Fault
Ground Fault (F0013) activates when the drive detects current imbalance indicating current flow to ground rather than through the normal motor circuit. PowerFlex 755 drives monitor for ground faults using residual current detection—comparing the sum of output phase currents, which should equal zero in a balanced system. Any deviation indicates ground leakage. Common sources include motor winding insulation breakdown (particularly in older motors subjected to PWM voltage stress), damaged output cable insulation, moisture intrusion in motor terminal boxes, or contamination on motor windings creating leakage paths. Begin troubleshooting by disconnecting the motor and measuring winding insulation resistance to ground using a megohmmeter—readings below 2 megohms at rated voltage suggest insulation compromise. Inspect output cables for physical damage, particularly at bend points and where cables enter conduit. On long motor cable runs, high-frequency PWM switching can create capacitive charging currents that mimic ground faults; output reactors or dV/dt filters may be required. Verify ground fault threshold parameters are appropriately set for the installation.
Thermal & Overload Faults
F0007 — Motor Overload
Motor Overload (F0007) indicates the drive's electronic overload protection has determined the motor has exceeded its thermal capacity based on accumulated I²t (current-squared-time) calculations. The PowerFlex 755 implements sophisticated motor thermal modeling that accounts for current magnitude, duration, and cooling conditions to prevent motor damage. This fault suggests the motor is being operated beyond its continuous duty rating, often due to mechanical overload, excessive starting frequency, blocked rotor conditions, or inadequate motor ventilation. Verify motor FLA parameters are correctly programmed to match the actual motor nameplate—incorrect settings cause nuisance trips or inadequate protection. Investigate the mechanical load for binding, excessive friction, or process changes that increased torque requirements. Check motor cooling fan operation on TEFC motors. Review application duty cycle to ensure the motor is appropriately sized. On PowerFlex 755 drives, motor overload parameters can be customized for specific duty cycles, but proper motor selection remains the primary solution for chronic overload conditions.
F0008 — Heatsink OT
Heatsink Overtemperature (F0008) trips when thermal sensors on the power module heatsinks detect excessive temperature, typically above 85-90°C depending on the specific frame size and configuration. Larger PowerFlex 755 frames utilize liquid cooling systems with integrated heat exchangers, temperature sensors, and coolant flow monitoring. This fault indicates inadequate heat dissipation from power semiconductors, which can result from cooling system failures, high ambient temperatures, or excessive drive loading. For liquid-cooled units, verify coolant flow rate, check for air in the cooling system, inspect heat exchanger cleanliness, and confirm coolant temperature remains within specifications (typically below 40°C inlet temperature). On air-cooled configurations, examine cooling fans for operation and airflow obstruction, clean heatsink fins, and verify adequate enclosure ventilation with proper hot-aisle/cold-aisle separation. Blocked air filters or inadequate cabinet cooling commonly cause this fault. Check drive loading—continuous operation above rated current generates excessive heat even with functional cooling systems.
F0064 — Drive Overload
Drive Overload (F0064) indicates the drive itself has exceeded its thermal capacity based on accumulated power dissipation in the IGBT modules and associated power components. While similar to motor overload, this fault specifically protects the drive rather than the motor, and considers drive current, switching frequency, and thermal conditions. F0064 suggests the drive is undersized for the application, experiencing excessive regenerative duty, or operating in high ambient temperature conditions beyond its rating. The PowerFlex 755's modular architecture allows parallel power modules for increased current capacity, but each module must remain within its thermal limits. Verify the drive's continuous current rating is appropriate for the load, considering that ratings typically assume 40°C ambient with proper cooling. Reduce PWM switching frequency if possible, as higher frequencies increase switching losses. Consider that applications with frequent acceleration/deceleration cycles or high-speed operation above motor base speed impose additional drive heating beyond simple FLA calculations.
Communication & Control Faults
F0081 — Comm Loss
Communication Loss (F0081) indicates the drive has lost communication with a network or control device configured as critical for operation, with the fault action parameter set to trip on communication failure. The PowerFlex 755 natively supports EtherNet/IP as its primary industrial network protocol, with integrated dual-port switching for device-level ring topology. Additional network protocols—ControlNet, DeviceNet, PROFIBUS, or others—require installation of communication adapter modules in the drive's option module slots. When F0081 occurs, first identify which communication network has failed by examining the fault detail information. For EtherNet/IP, verify physical network connections, check switch/router operation, and confirm IP address configuration hasn't changed. Examine network traffic loading and ensure the RPI (Requested Packet Interval) settings are appropriate for network performance. For adapter-based protocols, verify the adapter module is properly seated, check adapter status indicators, and confirm network power supply. The fault can also result from controller program faults that stop updating the communication connection. Review the communication timeout parameter settings—overly aggressive timeouts can cause nuisance trips on heavily loaded networks.
F0042 — Analog Input Loss
Analog Input Loss (F0042) trips when the drive detects the analog speed reference or other critical analog signal has fallen outside valid operating range, typically below 2-3mA on 4-20mA inputs. This fault protects against broken wire conditions or transmitter failures that would otherwise result in unpredictable drive operation. Verify the analog signal source (PLC analog output, external transmitter, potentiometer) is functioning and providing signal within the expected range. Check wiring connections at both source and drive terminals, looking for loose connections or broken conductors. Measure the actual analog signal at the drive input terminals under operating conditions. Review the analog input configuration parameters, ensuring the scaling, offset, and loss-of-signal threshold settings match the application requirements. On PowerFlex 755 drives with optional I/O modules, verify the correct input terminal is being monitored. Consider that electromagnetic interference can corrupt analog signals—ensure proper shielding, grounding, and separation from power conductors.
F0033 — Auto Restart Exceeded
Auto Restart Exceeded (F0033) indicates the drive has attempted automatic restart after a fault condition multiple times and has reached the programmed retry limit without successful recovery. The PowerFlex 755 supports configurable auto-restart functionality for resilient operation in critical processes where brief disturbances shouldn't cause extended downtime. This fault suggests a persistent problem that prevents successful drive operation rather than a transient disturbance. Review the fault history to identify what underlying fault is triggering the restart attempts—addressing the root cause is essential. Common scenarios include repeated overcurrent trips indicating motor or mechanical problems, communication loss on unstable networks, or thermal faults in marginally sized systems. Verify auto-restart parameters are appropriately configured for the application, including retry count limits and delays between attempts. Some fault types should never use auto-restart (ground faults, hardware overcurrent) due to safety implications.
Hardware & Module Faults
F0063 — SW Overcurrent
Software Overcurrent (F0063) represents a current limit trip detected by the drive's DSP-based current monitoring algorithms rather than hardware-level protection circuits. This fault activates when measured motor current exceeds the programmed current limit threshold for the specified duration, providing controllable overcurrent protection. Unlike the instantaneous F0012 hardware overcurrent, F0063 allows brief current spikes during acceleration or transient load changes while still protecting against sustained overload. Investigate motor loading conditions, mechanical binding, or process changes that increased torque requirements. Verify current limit parameters are set appropriately—overly conservative settings cause nuisance trips, while excessive limits risk motor or drive damage. Check motor parameter programming including rated current, which forms the basis for overcurrent detection thresholds. Review acceleration and deceleration time settings to ensure adequate ramp times for the load inertia.
F0100 — Parameter Checksum
Parameter Checksum Fault (F0100) indicates the drive has detected corruption in the stored parameter database, where the calculated checksum doesn't match the stored value. This suggests memory corruption, which can result from electrical noise during parameter writes, power interruption during parameter save operations, battery backup failure allowing NVRAM data loss, or component-level failure of the memory storage devices. The PowerFlex 755 stores parameters in non-volatile memory to retain configuration across power cycles. When F0100 occurs, the drive typically reverts to default parameters, erasing all custom configuration. If you have recent parameter backup files, these can be restored using programming software. If backups aren't available, manual reconfiguration is required. Investigate the root cause—if the fault recurs after parameter restoration, suspect failing memory components on the control board requiring component-level repair or board replacement. Always maintain current parameter backup files for critical drives to minimize recovery time from this fault.
F0122 — IO Module Fault
I/O Module Fault (F0122) indicates malfunction or communication failure with an optional I/O expansion module installed in the PowerFlex 755's option module slots. These modules provide additional digital inputs/outputs, analog I/O, relay outputs, or specialized functions beyond the control module's integrated I/O. The fault suggests the module isn't responding to communication from the control board, has failed internal diagnostics, or has been physically removed/unseated. Verify the I/O module is properly installed in its slot with secure mechanical retention. Check for loose backplane connections or contamination on connector contacts. Power cycle the drive to reinitialize module communication. Review module status indicators if accessible. If the fault persists, the I/O module itself may have failed and require replacement. Note that some applications can continue operating with degraded functionality if the failed I/O isn't critical to basic operation.
F0048 — Precharge Fault
Precharge Fault (F0048) occurs when the DC bus fails to reach proper voltage level during the initial power-up sequence, indicating problems with the precharge circuit that safely establishes DC bus voltage before connecting the main charging path. The precharge circuit uses current-limiting resistors to slowly charge the DC bus capacitors, preventing inrush current damage to rectifier diodes and input components. This fault suggests precharge resistor failure (open circuit from thermal damage), precharge contactor malfunction, shorted DC bus capacitors drawing excessive charging current, or control circuit problems preventing proper precharge sequencing. Measure DC bus voltage during attempted startup—failure to rise indicates open precharge path or severe DC bus short. Inspect precharge resistors for thermal damage or open circuits. Verify precharge relay/contactor operation. Check DC bus capacitors for short circuits. The PowerFlex 755's modular design means precharge circuits may exist in individual power modules, requiring identification of which module is experiencing precharge failure.
When to Repair vs Replace Your PowerFlex 755
The decision between repairing or replacing a faulted PowerFlex 755 drive involves careful consideration of costs, downtime implications, and long-term reliability requirements. New Allen-Bradley PowerFlex 755 drives range from approximately $5,000 for smaller frame sizes to well over $30,000 for high-power configurations with multiple power modules, advanced communication options, and specialized I/O—with lead times that can extend weeks or months for non-stock configurations. Professional component-level repair typically costs between $800 and $2,500 depending on the specific fault and required parts replacement, representing 15-30% of new drive cost while delivering comparable reliability when performed by experienced facilities offering comprehensive warranties.
The PowerFlex 755's modular architecture provides significant advantages for repair economics. Unlike monolithic drives where a single component failure necessitates complete replacement, the 755's separate control, power, and I/O modules mean failures can often be isolated to individual assemblies. A control module with failed DSP or memory components can be repaired or replaced independently of functional power modules. Similarly, a single failed power module in a multi-module configuration can be addressed without replacing the entire drive system. This modularity extends component-level repair viability even for drives that would be uneconomical to repair in traditional designs.
Consider repair when the drive is no longer under manufacturer warranty, when replacement lead times would cause unacceptable production losses, or when the drive contains custom configurations or programming that would require significant engineering time to replicate. Repair becomes particularly advantageous for drives that are part of larger coordinated systems where maintaining consistent hardware across the installation simplifies spare parts inventory and technician training. The 2-year warranty provided by reputable repair facilities like Flexa Systems offers long-term reliability assurance that makes repair a defensible choice even from a purely financial perspective.
How Flexa Systems Repairs PowerFlex 755 Drives
Flexa Systems specializes in component-level Allen-Bradley PowerFlex repair, with extensive experience in the PowerFlex 755 (20G series) platform's unique modular architecture and complex diagnostic systems. Our repair process begins with comprehensive free diagnostics that identify fault root causes rather than simply addressing symptoms—critical for modular drives where visible failures may result from problems in interconnected subsystems. We utilize specialized test equipment calibrated for high-power VFD testing, including controlled load banks, precision DC bus analyzers, and gate driver test systems that verify proper IGBT switching under realistic operating conditions.
Component-level repair addresses failures at the individual semiconductor, capacitor, and integrated circuit level, replacing failed components with OEM-specification parts while identifying and correcting the underlying conditions that caused the original failure. Our technicians are trained in PowerFlex 755 architecture, understanding the interaction between control modules, power modules, gate driver circuits, and communication subsystems. This expertise is particularly valuable for complex faults that span multiple modules or involve the common DC bus architecture.
Every repaired PowerFlex 755 undergoes full-load testing at rated voltage and current to verify proper operation across all operating modes before return to service. We provide a comprehensive 2-year warranty covering all repaired components and workmanship, demonstrating confidence in repair quality that matches or exceeds typical manufacturer warranty periods. Our no-fix, no-charge policy means you only pay for successful repairs—if we determine a drive is uneconomical to repair, diagnostics are provided at no cost. For more information about our comprehensive VFD repair services, contact our technical team.
