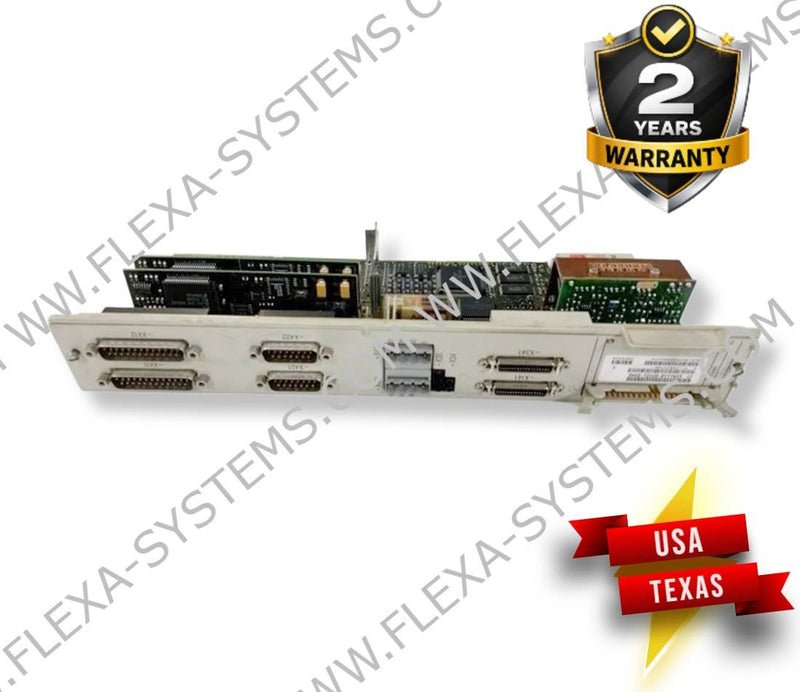

6SN1118-0DH21-0AA0 repair service is a critical need for manufacturers running Siemens SIMODRIVE 611-D digital drive systems, as this discontinued performance module was officially phased out by Siemens on September 30, 2010 — making Siemens 6SN1118-0DH21-0AA0 repair and sourcing a 6SN1118-0DH21-0AA0 refurbished unit often the only cost-effective path to restoring machine tool operations. This plug-in performance control module is a two-axis closed-loop unit engineered specifically for digital FDD (Frequency Domain Drive) motor control without a direct measuring system, making it a core component in CNC machining centers, grinding machines, and multi-axis milling platforms. Engineers searching for 6SN1118-0DH21-0AA0 troubleshooting support should understand that this module interfaces directly with the SIMODRIVE 611-D drive bus and handles velocity and current loop regulation for two axes simultaneously within a shared power section. The unit is particularly common in Siemens 840D and 810D CNC control architectures found on high-precision German-manufactured machine tools, and its failure often brings an entire machining cell to a halt. Those in need of industrial VFD repair for this module will find that common fault conditions stem from aging IGBT gate drivers, degraded DC link capacitors, and corrupted firmware on the DSP control layer. If you're searching for 6SN1118-0DH21-0AA0 repair near me or looking to buy 6SN1118-0DH21-0AA0 USA from a stocking repair facility, Flexa Systems maintains inventory and repair capability for this exact part number. The manufacturer-designated successor is the 6SN1118-0DH21-0AA1, but direct swap-in compatibility must be verified against your drive system's firmware and hardware revision level before substitution.
The 6SN1118-0DH21-0AA0 compatible with configurations includes the Siemens SIMODRIVE 611-D drive system family, where it slots into the NE/NE power supply modules such as the 6SN1124-1AA00-0DA0 and 6SN1145-1BA01-0BA0, sharing the internal 600V DC bus common to that platform. Siemens 6SN1118-0DH21-0AA0 integration is primarily validated for use with SINUMERIK 840D and SINUMERIK 810D CNC controllers communicating over the proprietary SIMODRIVE drive bus, with axis assignment and parameterization handled through Siemens SIMODRIVE 611-D commissioning software (SimoCom U). This module supports 1FK6 and 1FT6 series Siemens servo motors equipped with resolver or incremental encoder feedback (without direct measuring system — i.e., no linear scale input), and is designed to work within a modular booksize drive rack alongside other 6SN1118-series double-axis modules. The 6SN1118-0DH21-0AA0 replacement for aging or failed units should also consider cross-compatibility with neighboring modules in the rack such as the 6SN1118-0AA11-0AA0 single-axis module and the 6SN1118-0DG21-0AA0, though firmware version alignment across the drive system is essential for stable multi-axis operation.
- Axis-specific overcurrent fault (A1011 or F1011) triggered during high-acceleration moves, often caused by degraded IGBT modules on the 6SN1118-0DH21-0AA0 output stage that can no longer sustain peak current demand in CNC contouring cycles.
- 6SN1118-0DH21-0AA0 fault code F0002 (hardware fault on the control board) appearing at power-up, typically traced to a failed DSP or corrupted EPROM on the performance control PCB — a condition confirmed during 6SN1118-0DH21-0AA0 troubleshooting when the drive fails self-test before enabling the drive bus.
- Encoder signal loss alarm (F0200 series) on Axis 2 while Axis 1 operates normally, indicating a failed differential line receiver IC on the encoder interface section of the plug-in module rather than a cable or motor fault.
- Intermittent DC bus undervoltage alarm (F0010) under load caused by electrolytic capacitor degradation on the local bypass filtering circuit of the performance module, a known aging failure in units manufactured before 2008 that were stored or operated in high-humidity environments.
Technical Specifications
| Manufacturer: | Siemens |
| Type: | SIMODRIVE 611-D CLOSED LOOP PLUG-IN UNIT |
