Allen-Bradley

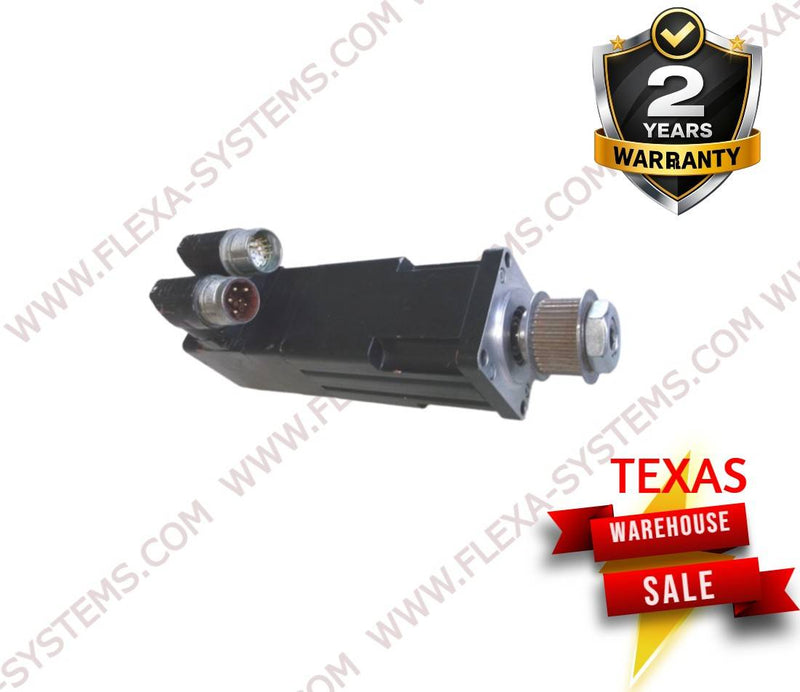

MPL-B1530F-V-X218
No reviews
SKU: 2100000019380
$2,100.00
Contact us for pricing
2-Year Warranty
Free Diagnostics
5–30 Day Turnaround
Nationwide Service
Repair option: send in your faulty unit for component-level repair — $1,950.00 with free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%.
ALLEN BRADLEY MPL-B1530F-V-X218 repair service is a core specialty at Flexa Systems, where we handle this Kinetix MP-Series low-inertia permanent magnet AC servo motor with the same precision required by the high-cycle manufacturing lines it powers. Whether you need ALLEN BRADLEY MPL-B1530F-V-X218 repair or are sourcing an MPL-B1530F-V-X218 refurbished unit to minimize downtime, understanding this motor's specifications is critical — it operates at 460V RMS with a continuous current rating of 6.13A, placing it squarely in the mid-range servo class used for pick-and-place systems, CNC axes, and web-tension control applications. Customers searching for MPL-B1530F-V-X218 repair near me frequently find Flexa Systems because we service this unit from our Lewisville TX facility and ship repaired units nationwide. The MP-Series low-inertia design gives this motor an exceptionally fast response to velocity commands, making it a preferred choice for high-throughput packaging, semiconductor handling, and precision assembly automation. If you're evaluating MPL-B1530F-V-X218 troubleshooting options before committing to a full replacement, our engineers can assess feedback device integrity, winding insulation, and resolver or encoder health before any work begins. Our industrial VFD repair process covers this unit end-to-end, from power stage analysis to motion parameter validation against the original Logix drive configuration. We offer free diagnostics on all incoming units so you know the full scope of failure before authorizing any repair.
Technical Specifications
Part Number
MPL-B1530F-V-X218
Manufacturer
ALLEN BRADLEY
Voltage
460V RMS
Current Rating
6.13 A
Package / Type
Kinetix MP-Series
Compatibility
The MPL-B1530F-V-X218 compatible with Allen-Bradley Kinetix servo drives is a critical pairing — this motor is engineered to operate with the Kinetix 5500 (2198-Hxxx series) and Kinetix 6500 (2094-BCxx-Mxx) drive platforms, both of which communicate over EtherNet/IP using the SERCOS-over-EtherNet or CIP Motion protocol managed through Studio 5000 Logix Designer. ALLEN BRADLEY MPL-B1530F-V-X218 integration into ControlLogix and CompactLogix-based motion systems is standard, with the motor's multi-turn absolute feedback option (when equipped with the 2090-series feedback cable) enabling axis homing-free restarts after power cycle. The MPL-B1530F-V-X218 replacement for earlier Kinetix 6000-paired MPL-B1530F-SH variants is feasible with connector and cable adapter verification, and the motor frame is also dimensionally compatible with mounting patterns used alongside 2094-AMP5-S Axis Modules in multi-axis Kinetix 6000 configurations. Feedback wiring must be verified against 2090-XXNPMP-Sxx cable assemblies, and drive parameter files should be re-imported from the Rockwell Motion Analyzer tool to confirm tuning matches the inertia and torque profile of this specific motor catalog number.
Service Options
Repair Service
Ship your faulty MPL-B1530F-V-X218 to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.
Refurbished
In-stock ALLEN BRADLEY MPL-B1530F-V-X218 variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.
Brand New
New MPL-B1530F-V-X218 in original ALLEN BRADLEY packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.
Common Failure Modes
Stator winding short-to-ground fault triggered by insulation breakdown in the slot liners — common in MPL-B1530F-V-X218 units operating in high-ambient-temperature enclosures above 40°C with inadequate derate applied to the 6.13A continuous current rating.
MPL-B1530F-V-X218 fault code E28 (Motor Feedback Loss) generated by a failed multi-turn absolute encoder or corrupted battery backup on the feedback module, often appearing as a non-recoverable drive fault on Kinetix 5500 drives after an uncontrolled power loss event.
Bearing raceway spalling causing audible high-frequency noise and elevated vibration signatures at the driven end — detectable during MPL-B1530F-V-X218 troubleshooting via spectrum analysis showing harmonics at bearing defect frequencies, typically accelerated by side-load misalignment on the output shaft.
Resolver-to-digital converter signal degradation inside the Kinetix drive pairing, traced to damaged 2090-series feedback cable shielding on the MPL-B1530F-V-X218 — manifests as erratic velocity feedback, axis oscillation, and intermittent SVC (Stall Velocity Control) faults during high-speed contouring moves.
Frequently Asked Questions
Is the MPL-B1530F-V-X218 compatible with other Allen-Bradley servo drives, or can it replace other motor models?
The MPL-B1530F-V-X218 compatible with Kinetix 5500 and Kinetix 6500 drives is well-documented in Rockwell's Motion Analyzer tool, and the motor can also be paired with the older Kinetix 6000 platform using the appropriate 2094-series Axis Module with verified cable assemblies. As a direct MPL-B1530F-V-X218 replacement for the MPL-B1530F-SH or MPL-B1530F-MJ catalog numbers, the frame dimensions and mounting bolt pattern are identical, though the feedback connector pinout and cable part number must be confirmed before swapping. Cross-referencing to competing platforms such as Siemens 1FK7 or Fanuc αiS series is not a direct drop-in and requires full drive re-commissioning, motor parameter file creation, and mechanical coupling verification. Always validate the inertia ratio and peak torque against the application profile in Motion Analyzer before finalizing any substitution.
How do I know if my MPL-B1530F-V-X218 is worth repairing or if I should replace it outright?
MPL-B1530F-V-X218 repair is typically cost-effective when the failure is isolated to the feedback device, bearing assembly, or connector damage, as these components are serviceable without replacing the motor's wound stator or permanent magnet rotor. If ALLEN BRADLEY MPL-B1530F-V-X218 inspection reveals winding resistance imbalance greater than 5% between phases, a phase-to-ground insulation resistance below 1 MΩ at 500VDC megger test, or visible rotor demagnetization from overtemperature events, replacement of the unit becomes the more economical path. Shaft damage from a crash event — including bent shafts or spalled bearing seats — is borderline repairable depending on the severity and the availability of OEM replacement subassemblies. Flexa Systems performs a no-cost incoming evaluation that clearly identifies which failure category applies before any repair authorization is requested.
Where can I get MPL-B1530F-V-X218 repair service with a warranty?
Flexa Systems, based in Lewisville TX, provides MPL-B1530F-V-X218 repair service with a 2-year warranty covering all repaired components and workmanship, with a standard turnaround of 5–7 business days for most units. We serve customers nationwide, meaning whether you are sourcing locally or need a depot repair shipped from across the country, our logistics process is built around minimizing your line downtime. If you're looking to buy MPL-B1530F-V-X218 USA stock rather than waiting on a repair cycle, we maintain an inventory of MPL-B1530F-V-X218 refurbished units that have been fully tested against OEM electrical and mechanical specifications. Contact Flexa Systems directly for a free diagnostic evaluation quote or to confirm MPL-B1530F-V-X218 for sale availability from our current refurbished inventory.
Where can I get MPL-B1530F-V-X218 repair service with a warranty?
Flexa Systems provides professional MPL-B1530F-V-X218 repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.
Flexa Systems specializes in ALLEN BRADLEY MPL-B1530F-V-X218 variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.
Technical Specifications
Part Number:
MPL-B1530F-V-X218
Manufacturer:
ALLEN BRADLEY
Voltage:
460V RMS
Current:
6.13 A
Type:
Kinetix MP-Series
Ask for Price
