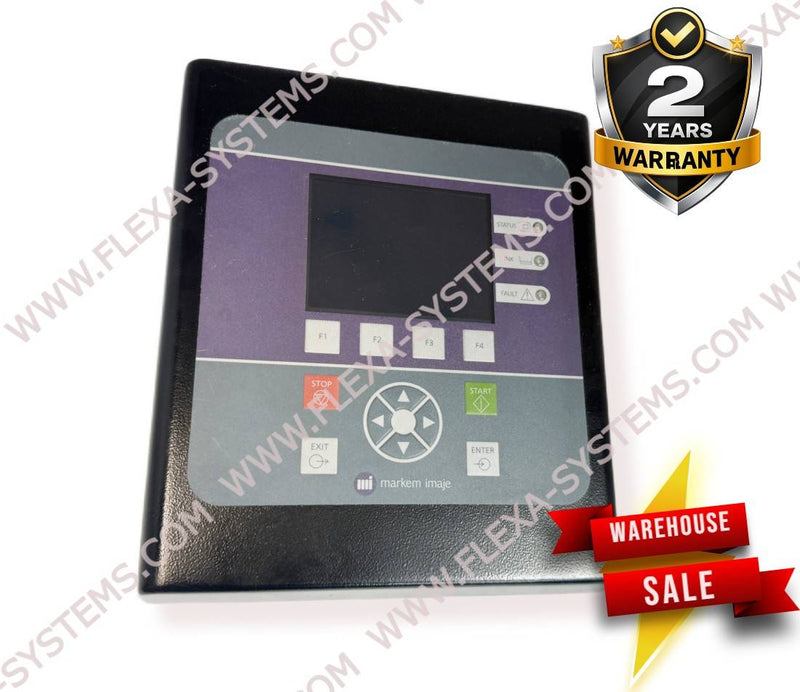

Markem Imaje 5200/5400 1061008 1061009 repair service is available through Flexa Systems for facilities that depend on continuous coding and marking operations — and sourcing a 5200/5400 1061008 1061009 refurbished unit is often the fastest path back to production when a primary HMI display fails on a dry printer line. The 5200/5400 1061008 1061009, operating at 24 VDC, functions as the human-machine interface controller for Markem Imaje 5200 and 5400 series dry inkjet printers, providing operator input, print parameter management, and real-time status feedback for the marking system. Technicians searching for 5200/5400 1061008 1061009 troubleshooting support will find that most display failures trace back to backlight inverter degradation, corrupted firmware, or failed touchscreen digitizer layers rather than logic board faults. If you've been asking yourself where to repair Markem Imaje VFD or HMI components without lengthy OEM lead times, Flexa Systems offers industrial VFD repair and HMI bench services with rapid turnaround. These units are deployed across food and beverage packaging, pharmaceutical labeling, and industrial product identification lines where continuous uptime is critical. The 24 VDC input architecture means the interface is powered directly from the printer's onboard supply, making voltage transient events on the DC rail a common contributor to premature HMI failure. Whether you need a fully tested exchange unit or depot-level repair, Flexa Systems stocks and services the 5200/5400 1061008 1061009 to get your Markem Imaje dry printer back online quickly.
Technical Specifications
| Part Number |
5200/5400 1061008 1061009 |
| Manufacturer |
Markem Imaje |
| Voltage |
24 VDC |
| Package / Type |
Human Machine Interface (HMI) |
Compatibility
The 5200/5400 1061008 1061009 is compatible with the Markem Imaje 5200 and 5400 series dry inkjet printer platforms, functioning as the primary operator interface within those printer control architectures. Markem Imaje 5200/5400 1061008 1061009 integration is supported alongside companion controller boards such as the Markem Imaje 5200 CPU module and the 5400 I/O interface card, ensuring coordinated print head timing and fault reporting across the system. The 5200/5400 1061008 1061009 serves as a direct 5200/5400 1061008 1061009 replacement for earlier HMI panel variants used in the 5200 and 5400 printer families, including units originally fitted with part numbers compatible with the Markem 5400 print engine control board and the Imaje S8 series interface module. Communication between the HMI and the printer's internal control bus follows the proprietary Markem Imaje serial interface protocol, and the unit is also compatible with line encoder inputs and external trigger signals standard to production conveyor integration in packaging environments.
Service Options
Repair Service
Ship your faulty 5200/5400 1061008 1061009 to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.
Refurbished
In-stock Markem Imaje 5200/5400 1061008 1061009 variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.
Brand New
New 5200/5400 1061008 1061009 in original Markem Imaje packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.
Common Failure Modes
- Blank or non-illuminated display on power-up despite confirmed 24 VDC supply present — typically caused by backlight inverter board failure internal to the 5200/5400 1061008 1061009 HMI panel, often misdiagnosed as a power supply fault.
- Touchscreen input unresponsive or registering incorrect coordinates during print parameter entry, a known 5200/5400 1061008 1061009 fault resulting from digitizer layer delamination or failed resistive touch controller IC on the display assembly.
- HMI freezes at boot splash screen and fails to complete initialization sequence — 5200/5400 1061008 1061009 troubleshooting in these cases consistently points to corrupted firmware in the onboard flash memory, frequently triggered by an uncontrolled power loss event during a write cycle.
- Intermittent communication loss between the HMI and the printer's main CPU board, presenting as random print parameter resets or loss of job queue data, caused by cold solder joints on the internal serial interface connector degrading under thermal cycling in high-ambient-temperature production environments.
Frequently Asked Questions
Is the 5200/5400 1061008 1061009 compatible with other Markem Imaje printer models, or can it replace HMI panels from other manufacturers?
The 5200/5400 1061008 1061009 compatible with the 5200 and 5400 printer series is not a direct cross-brand substitute, as it relies on Markem Imaje's proprietary internal communication bus rather than open industrial protocols like EtherNet/IP or Modbus. However, within the Markem Imaje product family, it has been confirmed interchangeable with HMI assemblies originally installed in the Markem Imaje 5400 Dual print engine and certain configurations of the Imaje 5200 Twin-head printer variant. If your facility is also running Markem Imaje S8 or 9040 series coders, note that those platforms use a different HMI form factor and the 5200/5400 1061008 1061009 is not a direct 5200/5400 1061008 1061009 replacement for those units without additional hardware adaptation. Always verify the printer's control board revision before swapping HMI panels across model variants.
How do I know whether to repair or replace my 5200/5400 1061008 1061009, and is the unit typically repairable?
The Markem Imaje 5200/5400 1061008 1061009 is repairable in the majority of failure scenarios — display backlight failures, touchscreen digitizer faults, and firmware corruption are all component-level issues that do not require full unit replacement. 5200/5400 1061008 1061009 repair becomes more cost-questionable when the main logic PCB shows signs of physical damage such as burnt traces, cracked substrate from impact, or extensive corrosion from coolant or cleaning fluid ingress. A unit that powers on partially, shows any form of display activity, or communicates intermittently with the printer CPU is almost always a strong candidate for depot repair rather than outright replacement. If the unit shows no response whatsoever at 24 VDC input, Flexa Systems' free diagnostics process will confirm whether internal power regulation has failed before any repair commitment is made.
Where can I get 5200/5400 1061008 1061009 repair service with a warranty?
Flexa Systems, based in Lewisville TX, provides professional bench repair and exchange services for the 5200/5400 1061008 1061009 with a 2-year warranty on all completed repairs and refurbished units. Standard repair turnaround runs 5-7 business days from unit receipt, and expedited service is available for critical production situations. Customers looking to buy 5200/5400 1061008 1061009 USA stock will find that Flexa Systems maintains exchange inventory so a tested unit ships before your core is even received, minimizing downtime. Nationwide shipping and returns are handled directly through Flexa Systems, and free diagnostics are included for any unit sent in for evaluation — even if a repair is ultimately declined.
Where can I get 5200/5400 1061008 1061009 repair service with a warranty?
Flexa Systems provides professional 5200/5400 1061008 1061009 repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.
Flexa Systems specializes in Markem Imaje 5200/5400 1061008 1061009 variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.
