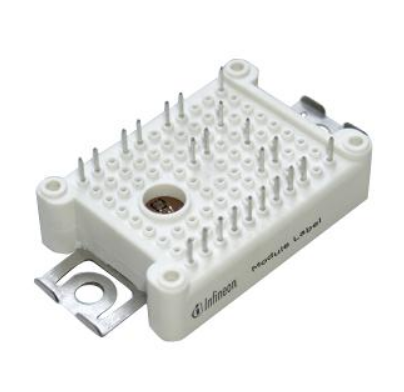

Infineon FP25R12W2T4_B11
Repair option: component-level repair is available for this model — free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Request a repair quote.
FP25R12W2T4_B11 repair service is a core specialty at Flexa Systems, where our engineers handle the full scope of Infineon Technologies FP25R12W2T4_B11 repair work — including units returned for FP25R12W2T4_B11 refurbished exchange when same-day production continuity is required. The FP25R12W2T4_B11 is a 1200V-class IGBT power module rated at 25A continuous collector current, built on Infineon's EconoPACK platform and widely deployed in variable frequency drive output stages for three-phase motor control. Facilities searching for FP25R12W2T4_B11 repair near me often discover that local shops lack the curve-tracer equipment and gate-drive test fixtures needed to properly validate this module class — Flexa Systems operates that infrastructure in-house. Used across industrial VFD repair workflows in press drives, HVAC compressor inverters, conveyor systems, and regenerative braking applications, the W2T4 package variant is optimized for low thermal resistance in forced-air-cooled heatsink assemblies. Engineers performing FP25R12W2T4_B11 troubleshooting should note that this module integrates six IGBT dice with freewheeling diodes in a half-bridge configuration, making internal short-circuit failures between collector and emitter a distinct diagnostic category requiring isolation before driver board testing. The module's 1000V DC bus rating gives it meaningful derating headroom in 480VAC line-fed inverter topologies, which is a key reason it appears in medium-duty spindle drives and pump inverters across North American manufacturing facilities. Free diagnostics are included with every unit submitted to Flexa Systems, and our Infineon Technologies VFD repair process covers both the power module itself and associated gate driver circuitry that frequently sustains secondary damage during a phase-leg shoot-through event.
The FP25R12W2T4_B11 is compatible with inverter platforms built around the EconoPACK 2 footprint, including Infineon's own reference inverter designs and third-party VFD manufacturers that adopted the standardized 62mm module pinout for their output power stages. Infineon Technologies FP25R12W2T4_B11 integration is confirmed in drive assemblies using the 1ED020I12-F2 and 1ED44I12MH gate driver ICs, which provide the isolated, short-circuit-rated gate signals this IGBT module requires for safe switching at frequencies up to 20kHz. The FP25R12W2T4_B11 replacement for modules such as the FP25R12W2T4, FP25R12KT4, and FP25R12W2T4_B15 is straightforward when heatsink mounting geometry and gate driver threshold voltages are verified to match, as minor B-suffix revisions can affect gate charge characteristics. This module also interfaces correctly with control boards using standard resolver or incremental encoder feedback (TTL, 5V differential) when paired with compatible DSP-based control platforms such as those running Texas Instruments C2000-series processors commonly found in Infineon reference drive hardware.
- Phase-leg shoot-through resulting in a hard collector-emitter short across the low-side IGBT — the most frequently encountered FP25R12W2T4_B11 fault, typically triggered by gate driver under-voltage lockout failure allowing simultaneous high- and low-side conduction during a DC bus transient.
- DC bus overvoltage condition (commonly logged as an OV trip in the host inverter) during deceleration ramp in FP25R12W2T4_B11 units installed without a braking chopper or adequate bus capacitance, causing repetitive avalanche stress that degrades the freewheeling diode reverse recovery characteristics over time.
- Intermittent overcurrent fault on one output phase during FP25R12W2T4_B11 troubleshooting, traced to bond wire fatigue on a single IGBT die — a thermal-cycling failure mode accelerated in applications with frequent start-stop cycles and insufficient heatsink compound maintenance intervals.
- Gate oxide degradation producing elevated leakage current at the gate-emitter junction, identified during curve-tracer evaluation of returned modules and correlated with inverter systems where gate resistor values were reduced below Infineon's recommended minimum to increase switching speed, exceeding the IGBT's rated gate charge dissipation limits.
Technical Specifications
| Manufacturer: | Infineon Technologies |
| Voltage: | 1000V |
| Current: | 25A |
| Type: | IGBT Module |
