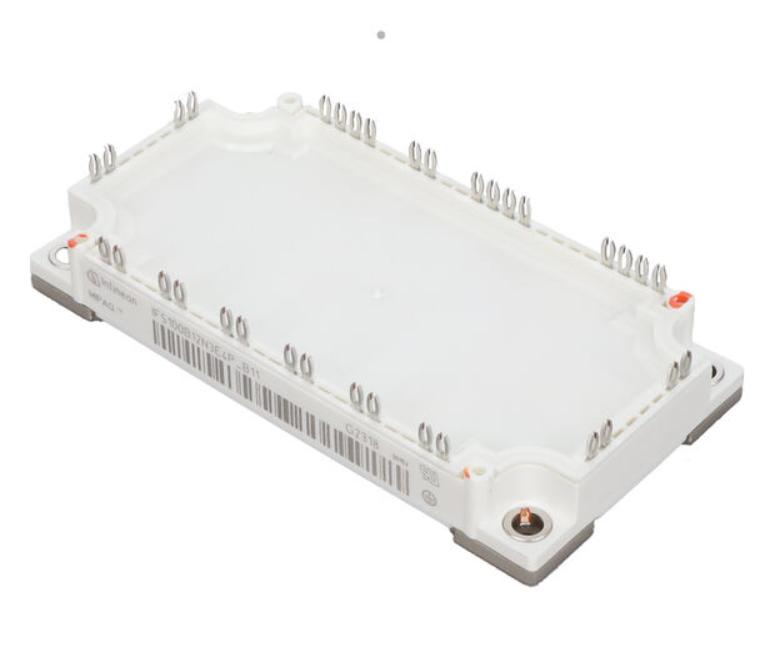

IFS150B12N3E4_B31

The IFS150B12N3E4_B31 compatible with Infineon Technologies drive platforms including the IPOSIM-designed inverter reference designs and driver ICs such as the 1ED020I12-F2 and 2ED300C17-ST gate driver series, which provide the isolated, short-circuit-protected gate signals the module requires. Infineon Technologies IFS150B12N3E4_B31 integration is commonly implemented alongside Infineon's EiceDRIVER gate driver evaluation boards and within third-party drive assemblies that conform to IEC 60747-9 IGBT module footprint standards, allowing compatibility with controller platforms running TIA Portal or custom DSP-based PWM controllers. The IFS150B12N3E4_B31 replacement for modules such as the FF150R12ME4, FS150R12KE3G, or SKiiP 132GD120-3DUL is technically feasible when base plate dimensions, Vce(sat) characteristics, and gate threshold voltages are verified against the target drive schematic. This module is also compatible with standard NTC thermistor monitoring circuits using 22kΩ B-value NTC sensors, which interface directly with most modern DSP inverter controller boards using 12V or 15V auxiliary power supplies common to Siemens and Schneider Electric drive platforms.

• Gate-emitter threshold voltage shift causing erratic PWM response — a common IFS150B12N3E4_B31 fault observed after thermal cycling stress in ambient temperatures exceeding 55°C, where bond wire fatigue alters individual IGBT switching characteristics within the sixpack array.
• DC bus shoot-through fault triggered by incomplete gate turn-off in one or more of the six IGBT cells, typically surfacing during IFS150B12N3E4_B31 troubleshooting when collector-emitter leakage current (Ices) measures above 2mA at 1200V during static hi-pot testing.
• Thermal runaway in the lower three IGBT cells due to dried or cracked thermal interface material between the module base plate and heatsink — identifiable by asymmetric temperature rise across the module during load testing below rated current.
• Isolation breakdown between the DCB substrate and base plate (typically measured as <10MΩ at 2500VDC) caused by micro-cracking in the aluminum nitride ceramic layer after repeated power cycling, resulting in ground fault trips and intermittent drive lockout faults.
