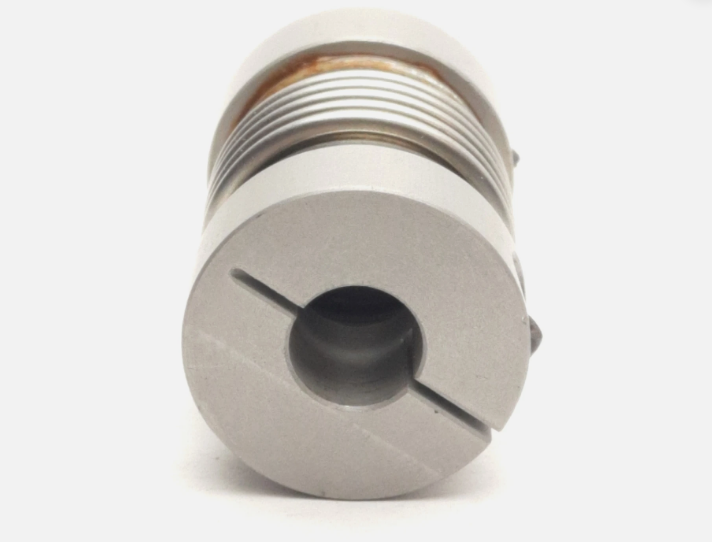

Gerwah DK20
Gerwah DK20 repair service is available at Flexa Systems for this precision metal bellows coupling used in servo and spindle drive applications throughout automated manufacturing lines. Whether you need a Gerwah DK20 repair or are sourcing a DK20 refurbished unit to minimize downtime, this coupling is a critical motion-control component that transmits torque while compensating for angular, axial, and parallel shaft misalignment. The DK20/37-8H7-9.5H7 features an 8mm x 9.5mm bore configuration with a 25mm outer diameter, making it a compact but highly torsionally stiff link between servo motors and encoder shafts or ballscrew assemblies. Technicians searching for DK20 repair near me will find that Flexa Systems handles this unit for customers across Texas and ships nationwide. The metal bellows element — rather than elastomeric or jaw-type elements — means fatigue cracking and bellows collapse are failure modes that require precise inspection rather than simple visual checks, which is why industrial VFD repair and drive-train component service go hand in hand on these systems. If you're doing DK20 troubleshooting and notice backlash, torsional chatter, or encoder feedback irregularities, the bellows element or hub interface is often the root cause. Facilities running high-cycle servo axes in semiconductor, packaging, or precision machining environments should keep a vetted replacement or refurbished spare on hand to avoid extended unplanned downtime.
The Gerwah DK20 integration is most commonly found in servo drive systems pairing motors with shaft diameters in the 8mm to 9.5mm range, including Siemens SIMOTICS S-1FK7 and 1FT7 series servo motors mated to precision ballscrew or encoder assemblies. DK20 compatible with Gerwah's own DK15 and DK25 series hub systems where bore sizes overlap, the DK20 can also serve as a DK20 replacement for the Gerwah BKL20 and EKL20 bellows coupling variants when equivalent torsional stiffness and OD constraints are maintained. The H7 tolerance bores make this coupling directly compatible with standard ISO h6 servo motor shaft fits as used on Bosch Rexroth MSK series and Yaskawa SGMJV series motors. For system integrators working within Siemens TIA Portal or Bosch Rexroth IndraWorks environments, the DK20's zero-backlash characteristic meets the encoder-coupling requirements specified for closed-loop position control with 1Vpp or TTL encoder feedback interfaces.
- Bellows fatigue fracture at the convolution root after sustained high-cycle operation — DK20 troubleshooting should include dye-penetrant or magnification inspection of the bellows when servo position error alarms appear intermittently under load.
- Hub-to-shaft fretting corrosion at the H7 bore interface caused by insufficient clamping torque on the split-collar hub, resulting in rotational slippage and progressive shaft damage detectable as irregular encoder velocity feedback spikes.
- Axial overload collapse of the metal bellows element when used in applications exceeding the DK20 fault threshold for axial force — typically triggered by improper motor-to-ballscrew alignment during installation, leaving the bellows permanently deformed and torsional stiffness severely reduced.
- Stress cracking at the hub-to-bellows weld joint due to repeated shock loading from abrupt servo reversals, a DK20 fault mode that manifests as audible ticking at reversal and escalating following error on the drive controller.
Technical Specifications
| Manufacturer: | Gerwah |
| Current: | 8mm x 9.5mm Bores, 25mm OD |
| Type: | Metal Bellows Coupling |
