Allen-Bradley 1756-l55

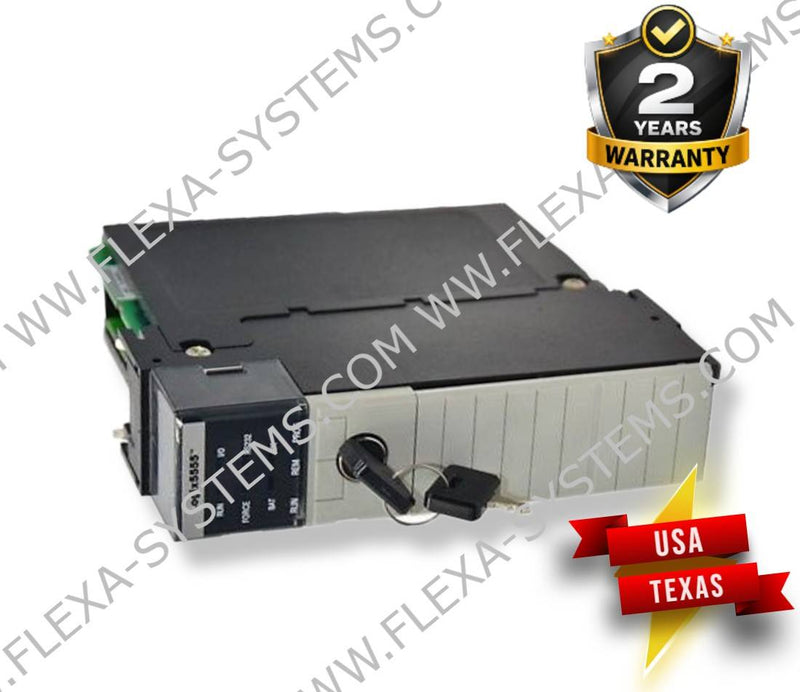

ALLEN BRADLEY 1756-l55 repair service is one of the most requested solutions we handle at Flexa Systems, and for good reason — this discontinued ControlLogix processor module remains deeply embedded in legacy automation infrastructure across North America, making both 1756-l55 refurbished units and depot repair critical options for facilities that cannot afford a full controls overhaul. The 1756-L55 is the Logix5555 processor module within the ControlLogix platform, drawing just 6.31 mA at 5.1 VDC and 14 mA at 24 VDC, and notably ships with no onboard user memory, requiring an external 1756-M series memory card to store and execute ladder logic or structured text programs. Engineers performing 1756-l55 troubleshooting often discover that system faults trace back to corrupted memory modules or backplane communication errors rather than the processor itself, which is why accurate diagnostics matter before committing to a replacement strategy. For facilities searching for 1756-l55 repair near me, Flexa Systems provides depot repair with fast turnaround from our Lewisville, TX facility, serving customers nationwide. Despite being categorized under VFD in legacy system documentation, this unit functions as the central processing brain of a ControlLogix chassis, coordinating I/O, motion control, and network communication tasks that ultimately govern drive behavior across the automation cell. Industrial VFD repair ecosystems frequently depend on healthy ControlLogix processors like the 1756-L55 to manage drive commands, feedback loops, and fault recovery sequences in manufacturing, oil and gas, and water treatment environments. Because Allen Bradley has officially discontinued this module, sourcing a tested and certified unit is increasingly difficult, and working with a qualified repair specialist extends the usable life of existing hardware without forcing a costly platform migration.
The 1756-l55 is compatible with the full ControlLogix 1756 chassis family, operating alongside I/O modules such as the 1756-IB16 and 1756-OB16, and communicating over EtherNet/IP, ControlNet, and DeviceNet via bridge modules like the 1756-ENBT and 1756-CNB. ALLEN BRADLEY 1756-l55 integration with Studio 5000 Logix Designer (and its predecessor RSLogix 5000) is straightforward for versions that supported the Logix5555 processor, making it a fit for existing program archives without recompilation in many cases. The 1756-l55 replacement for older processors like the 1756-L55M12, 1756-L55M16, and 1756-L55M24 requires matching the correct 1756-M series memory card to restore original program capacity, as the base processor carries no user memory independently. When paired with a 1756-DHRIO or 1756-DNB module, the unit can also bridge legacy DH+ and DeviceNet networks, preserving communication with older peripheral devices and drives still common in brownfield installations.
- Processor fault LED latches solid red with major fault code Type 1, Code 16 during backplane initialization — a known 1756-l55 fault caused by corrupted firmware on the onboard flash memory, often triggered by an uncontrolled power loss during a firmware update cycle.
- Loss of communication between the 1756-L55 and a 1756-ENBT bridge module presenting as I/O connection timeout faults in RSLogix 5000, typically traced to degraded backplane connector pins or oxidized gold contacts on the module edge connector after years of thermal cycling.
- 1756-l55 troubleshooting frequently uncovers intermittent Task Watchdog faults (Type 6, Code 1) in high-scan-rate applications where the processor attempts to execute motion and discrete I/O tasks simultaneously, indicating the processor is operating near its scan-time ceiling without proper task prioritization.
- Memory card read/write failures presenting as Recoverable Fault Type 2 Code 31, where the 1756-L55 repeatedly fails to load the user program at power-up due to a failing 1756-M series CompactFlash card — the card itself degrades over time and must be replaced independently of the processor module.
Technical Specifications
| Manufacturer: | ALLEN BRADLEY |
| Voltage: | 24 VDC |
| Type: | PROCESSOR MODULE |
