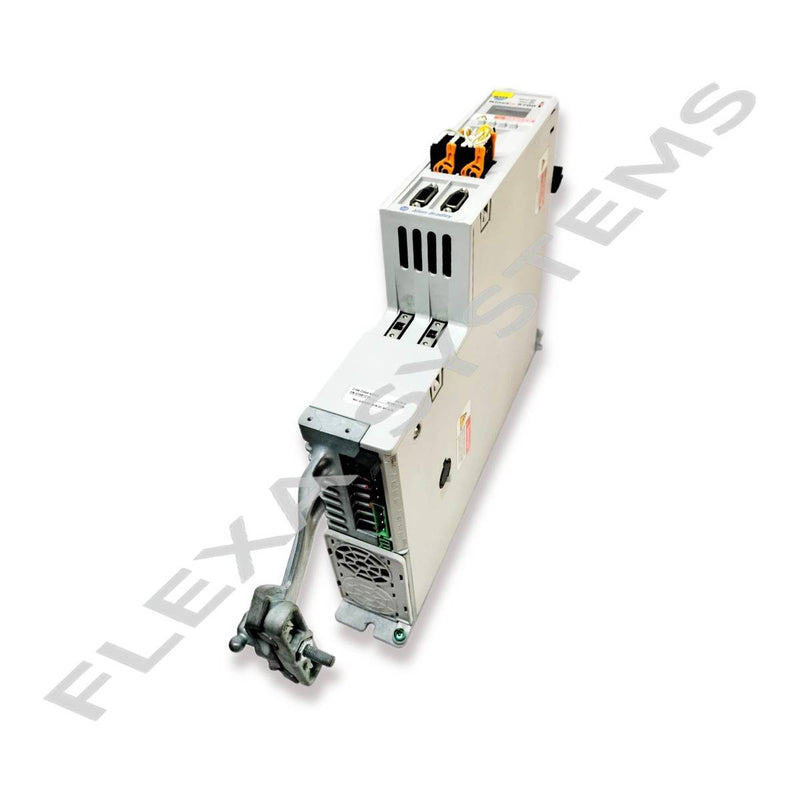

Allen-Bradley 2198-D020-ERS3

Within Allen-Bradley's Servo lineup, the Allen-Bradley 2198-D020-ERS3 functions as a mid-range servo drive belonging to the Kinetix 5700 series, a platform engineered specifically for multi-axis motion control in demanding industrial environments. Rated at 5.5 kW, this unit occupies a distinct power tier within the 2198-D series, bridging lighter-duty positioning tasks and the higher-power modules used in heavy-load applications. The 2198-D020-ERS3 is a DC-bus servo drive — meaning it draws regulated DC power from a shared bus supply rather than converting directly from AC mains — which allows multiple axes to share regenerated energy across a common rail. This architecture reduces overall cabinet footprint and simplifies power distribution in multi-axis cells. As an ERS3-designated variant, the drive incorporates the third-generation safe-speed monitoring safety option, enabling SIL 2 / PLe functional safety without requiring external safety relays on every axis. Its primary function is closed-loop torque, velocity, and position control of Allen-Bradley servo motors across applications where coordinated multi-axis motion profiles are mandatory.

Integration-wise, the Allen-Bradley 2198-D020-ERS3 is designed to operate exclusively within the Kinetix 5700 ecosystem, mounted on a shared DC bus alongside compatible 2198-Pxxx bus power supplies and other 2198-D axis modules. Communication is handled via the integrated EtherNet/IP port, allowing the drive to connect directly to Allen-Bradley CompactLogix and ControlLogix PLCs running Studio 5000 Logix Designer software — no separate motion network adapter is required. The drive supports CIP Motion protocol, which enables tight synchronization of motion commands with machine logic at deterministic update rates. Within the 2198-D family, the 020 designation places this unit at the 20-amp continuous output tier, distinguishing it from the lighter 2198-D006 and 2198-D012 siblings and from the higher-current 2198-D032 and above. Facilities considering all Servo units we repair will find the 2198-D020-ERS3 frequently specified in automotive body welding lines, bottling and filling machinery, CNC router gantries, and semiconductor wafer-handling systems where precise, coordinated movement across multiple axes is critical to process integrity. The onboard Safe Torque Off and SS1/SS2/SOS safety functions allow integration with machine safety circuits without sacrificing motion performance during normal operation.

Like other Servo units in heavy industrial duty, the Allen-Bradley 2198-D020-ERS3 operates in thermally challenging environments where continuous duty cycles stress internal bus capacitors, gate driver circuits, and IGBT power stages over time. Common field failure modes for this drive class include DC bus capacitor degradation — often presenting as voltage ripple faults or unstable bus regulation — along with IGBT desaturation faults triggered by accumulated thermal cycling or contamination on heatsink surfaces. Encoder feedback path errors and EtherNet/IP communication dropouts are also reported, frequently tracing back to connector wear or cable shield failures in high-vibration installations. Facilities sourcing an Allen-Bradley 2198-D020-ERS3 replacement after an unexpected shutdown should verify firmware revision compatibility with the resident Studio 5000 project before commissioning a substitute unit. Those looking to buy Allen-Bradley 2198-D020-ERS3 inventory — whether new, refurbished, or repaired stock — should confirm the ERS3 safety variant designation, as earlier ERS and ERS2 builds carry different safety function certifications. For Allen-Bradley 2198-D020-ERS3 repair assessment or for details on supported models, Allen-Bradley repair options and industrial Servo repair services are cataloged by part number to help maintenance teams identify the correct service path quickly. Facilities can ship the Allen-Bradley 2198-D020-ERS3 to Flexa Systems for board-level repair, exchange for a refurbished unit, or order new stock — repairs are backed by a 2-year warranty from our Lewisville, TX shop.
