Can I buy a 890CD-532160B0-000-1A000 from Flexa Systems?

Yes. Flexa Systems sells the 890CD-532160B0-000-1A000 outright — refurbished units reconditioned to OEM specifications and, where available, brand new stock. Units ship from our Lewisville, Texas facility to anywhere in the United States, and every unit we sell carries a 2-year warranty covering parts and labor. Current availability and pricing are shown on this page.

Does a 890CD-532160B0-000-1A000 purchased from Flexa Systems come with a warranty?

Yes. Every 890CD-532160B0-000-1A000 that Flexa Systems sells — refurbished or brand new — includes a 2-year (24-month) warranty covering parts and labor, starting on the date the unit ships from our facility. The same 2-year warranty applies to units we repair. Each unit is fully tested under load before it leaves our Lewisville, Texas facility.

How long does 890CD-532160B0-000-1A000 repair take?

Standard turnaround for 890CD-532160B0-000-1A000 repair is 5–30 business days from the day we receive the unit. Rush service (24–72 hours) is available — contact us before shipping.

Does the 890CD-532160B0-000-1A000 repair come with a warranty?

Yes. All 890CD-532160B0-000-1A000 repair, refurbished, and brand new units sold by Flexa Systems include a 2-year warranty covering parts and labor. Units are fully tested before shipping.

Can I get a quote before sending my 890CD-532160B0-000-1A000?

Yes. Use the Get Quote for Repair button on this page or contact us directly. We provide a free diagnostic estimate once we receive the unit. No repair charges if you decide not to proceed.

Parker

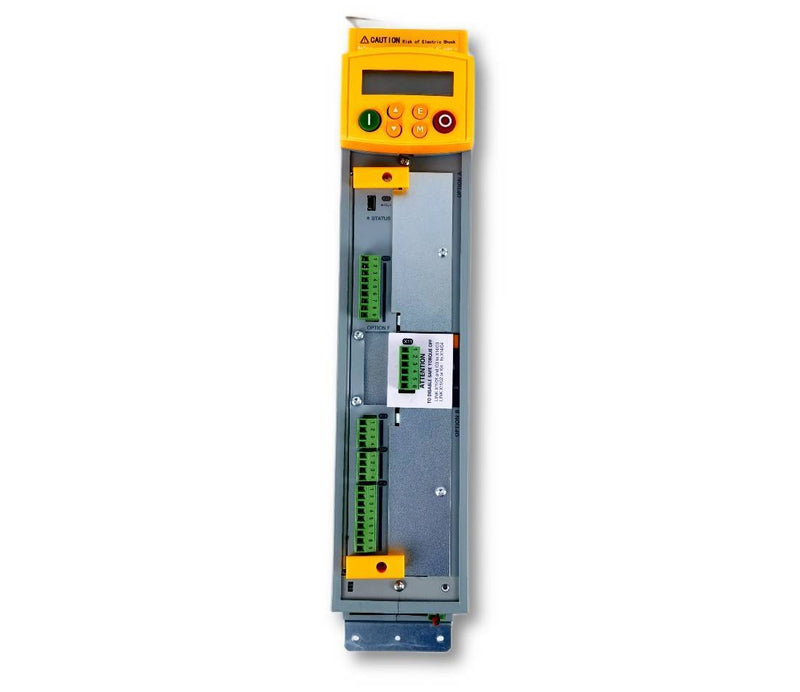

890CD-532160B0-000-1A000

SKU: 2100000023981

$3,875.00

2-Year Warranty

Free Diagnostics

Ships in 1–2 Business Days

Nationwide Service

890CD-532160B0-000-1A000 repair service is critical for facilities running Parker's AC890CD series drives, as these units serve as the backbone of precision motor control in demanding industrial environments. When a Parker 890CD-532160B0-000-1A000 repair is needed, fast turnaround matters — and sourcing an 890CD-532160B0-000-1A000 refurbished unit from a qualified shop can restore operations just as effectively as a new replacement. Rated at 680V DC bus input, 16 amps continuous output, and 7.5 kW (10 HP), this drive is deployed in applications such as web tension control, extruder lines, winding and unwinding systems, and coordinated multi-axis material handling. If you've been searching for 890CD-532160B0-000-1A000 repair near me, Flexa Systems provides depot-level industrial VFD repair from our Lewisville, TX facility with nationwide shipping and fast return times. Engineers troubleshooting intermittent faults or catastrophic failures alike will find that 890CD-532160B0-000-1A000 troubleshooting requires familiarity with Parker's DSE (Digital Speed Error) architecture and its onboard parameter set, which differs meaningfully from commodity drives. The 890CD series uses a DC common bus topology, making proper pre-charge sequencing and bus capacitor health essential to long service life. Flexa Systems offers free diagnostics on every unit received, so you know exactly what failed before committing to a repair path.

Technical Specifications

Part Number	890CD-532160B0-000-1A000
Manufacturer	Parker
Voltage	680VDc
Current Rating	16 Amps
Power Rating	7.5 KW 10HP
Package / Type	AC890 (890CD Common DC Bus Inverter/Drive)

Compatibility

The 890CD-532160B0-000-1A000 compatible with Parker's AC890 common DC bus system is designed to operate alongside other drives in the 890CD and 890SD series, including the 890CD-532260B0-000-1A000 (22A variant) and the 890SD-532160B0-000-1A000 standalone version, allowing mixed topologies on shared DC rails. Parker 890CD-532160B0-000-1A000 integration with fieldbus networks is supported through optional plug-in communication modules including Profibus-DP (CM-PROFIBUS), DeviceNet (CM-DEVICENET), EtherNet/IP (CM-ETHERNET), and CANopen, enabling direct coordination with Allen-Bradley ControlLogix and CompactLogix PLCs as well as Siemens S7-300/S7-400 via TIA Portal. The 890CD-532160B0-000-1A000 replacement for legacy Parker SSD 690+ or 584S series drives is achievable with wiring adaptation and parameter migration, as the AC890 platform was engineered as a functional successor to those product lines. This unit accepts incremental encoder feedback (5V or 12V TTL/HTL) for closed-loop vector control and is compatible with NEMA 143T through 215T frame induction motors as well as permanent magnet servo motors when configured in appropriate control modes.

Service Options

Repair Service

Ship your faulty 890CD-532160B0-000-1A000 to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.

Refurbished

In-stock Parker 890CD-532160B0-000-1A000 variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.

Brand New

New 890CD-532160B0-000-1A000 in original Parker packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.

Common Failure Modes

DC bus overvoltage trip (Trip 4) during deceleration ramps on 890CD-532160B0-000-1A000 units where the braking chopper IGBT has failed open, preventing the dynamic braking resistor from dissipating regenerated energy — confirmed by measuring collector-emitter resistance on the chopper transistor.
Gate drive board failure causing asymmetric IGBT firing in the output bridge, resulting in excessive motor current imbalance and a persistent Trip 2 (Overcurrent) fault during 890CD-532160B0-000-1A000 troubleshooting — typically traced to degraded optocoupler isolation on the drive's power board.
Electrolytic DC bus capacitor dry-out in aged 890CD-532160B0-000-1A000 units manifesting as a Trip 18 (Undervoltage) nuisance fault at light load, caused by increased ESR reducing effective capacitance below the drive's internal threshold during low-frequency ripple events.
890CD-532160B0-000-1A000 fault code Trip 9 (Earth Fault / Ground Fault) appearing intermittently in humid environments due to contamination-induced leakage current across the control card's analog input circuitry, often misdiagnosed as a motor winding fault before the drive's control board is inspected under magnification.

Frequently Asked Questions

Is the 890CD-532160B0-000-1A000 compatible with or interchangeable with other Parker drive models or third-party VFDs at the same power rating?

The 890CD-532160B0-000-1A000 compatible with other drives in the Parker AC890 family means it can operate alongside or be substituted by the 890CD-532160B0-000-1B000 (differing in option configuration) or the 890SD-532160B0 standalone variant with minor wiring changes. For cross-brand replacement, the 890CD-532160B0-000-1A000 replacement for an ABB ACS550-01-017A-4 or a Danfoss FC-302 at equivalent 7.5 kW ratings is possible, but fieldbus configuration, parameter mapping, and motor autotune procedures must be completed from scratch since control architectures differ significantly. Engineers should also note that replacing this unit with an Allen-Bradley PowerFlex 40 or PowerFlex 525 at 10 HP requires careful evaluation of the DC bus topology compatibility, as those drives are not designed for common bus operation without additional hardware. Always verify input voltage topology (DC bus vs. AC rectified input) before substituting across brands.

How do I know whether to repair or replace my 890CD-532160B0-000-1A000, and is it worth repairing?

In most cases, 890CD-532160B0-000-1A000 repair is the more cost-effective path unless the unit has suffered a catastrophic failure such as a exploded DC bus capacitor bank, severely burned PCB traces, or physical damage to the backplane or chassis that compromises structural integrity. The Parker 890CD-532160B0-000-1A000 is worth repairing when faults are isolated to the gate drive board, control card, power supply section, or IGBT modules — all of which are component-level repairable by a qualified shop with the correct firmware and calibration tools. Repair is typically not recommended when the output IGBT bridge shows secondary damage to the current sensing transformers and bus bars simultaneously, as collateral damage often exceeds 60–70% of new unit cost. A professional diagnostic will identify exactly which assemblies are affected before any repair commitment is made.

Where can I get 890CD-532160B0-000-1A000 repair service with a warranty?

Flexa Systems, based in Lewisville, TX, provides depot repair for the 890CD-532160B0-000-1A000 with a 2-year warranty on all completed repairs, covering both parts and labor. Every unit received undergoes free diagnostics before a repair quote is issued, so there's no cost to find out what failed. Standard turnaround is 5–7 business days from receipt, and nationwide shipping is available so customers across the U.S. can send in units regardless of location — if you're looking to buy 890CD-532160B0-000-1A000 USA or need an exchange unit while yours is being repaired, Flexa Systems maintains refurbished inventory to minimize downtime. Contact Flexa Systems directly to initiate a repair order or request an advance exchange on an 890CD-532160B0-000-1A000 for sale from our tested stock.

Where can I get 890CD-532160B0-000-1A000 repair service with a warranty?

Flexa Systems provides professional 890CD-532160B0-000-1A000 repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.

Flexa Systems specializes in Parker 890CD-532160B0-000-1A000 variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.

Repair option: component-level repair is available for this model — free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Request a repair quote. Learn more about our VFD repair service.

Technical Specifications

Part Number:	890CD-532160B0-000-1A000
Manufacturer:	Parker
Voltage:	680VDc
Current:	16 Amps
Power:	7.5 KW 10HP
Type:	AC890 (890CD Common DC Bus Inverter/Drive)
