Fuji Electric 7MBP75RA120

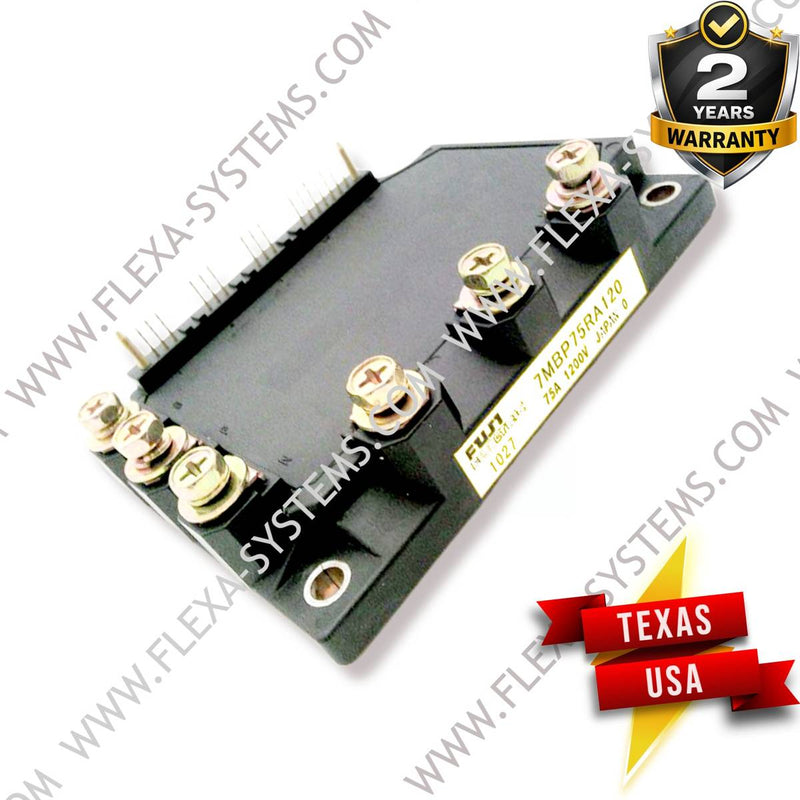

The 7MBP75RA120 is a 75-ampere, 1200-volt Intelligent Power Module (IPM) manufactured by Fuji Electric, belonging to the RA-series of sixth-generation IGBT-based power modules designed for use within variable frequency drive assemblies and other high-power inverter applications. Rather than a standalone VFD drive unit, the Fuji Electric 7MBP75RA120 is a discrete power module — a core switching component that sits at the heart of the inverter stage, converting DC bus voltage into controlled AC output to regulate motor speed and torque. The module integrates six IGBT switches along with freewheeling diodes and built-in gate drive circuitry, reducing external component count and simplifying inverter PCB layouts. At its rated 75A continuous current and 1200V blocking voltage, this module is sized for medium-power industrial motor control applications, typically driving motors in the 30–55 kW range depending on thermal management design. The 7MBP75RA120 operates within Fuji Electric's established RA-series platform, sharing a common package footprint with other current-rated siblings, which facilitates design reuse across product families.

Distinguishing the 7MBP75RA120 from sibling models, its 1200V voltage class positions it above the 600V RA-series variants, making it appropriate for 480V three-phase AC input systems with adequate DC bus headroom under regenerative or transient conditions, whereas lower-voltage siblings in the same package are constrained to 600V-class applications. The integrated gate drive and protection circuitry — including undervoltage lockout and overcurrent shutdown — reduces reliance on external discrete protection networks compared to earlier Fuji Electric IPM generations. OEMs and drive manufacturers have incorporated the Fuji Electric 7MBP75RA120 into VFD platforms that interface with Mitsubishi MELSEC and Siemens S7 PLC families via standard I/O or fieldbus layers including PROFIBUS and DeviceNet, depending on the host drive's communication hardware. This module appears frequently in equipment deployed across CNC machine tool spindle drives, HVAC air handling systems in commercial buildings, pump control panels in water treatment facilities, and conveyor drive systems in automotive assembly plants. Engineers sourcing components for drive redesigns or board-level repairs can cross-reference this module against all VFD units we repair to identify compatible alternatives or confirm applicability before ordering.

Field service experience with the 7MBP75RA120 shows that thermal cycling stress is the primary degradation mechanism, with solder joint fatigue at the DBC substrate interface accumulating over years of load cycling in applications with frequent start-stop duty, such as elevator drives and press machine feeds. Gate drive desaturation faults that trip the host drive's fault log are often an early indicator of IGBT cell degradation within the module rather than an external wiring fault, and misdiagnosis at this stage frequently leads to unnecessary replacement of surrounding drive boards. Coolant contamination or dried-out thermal interface material between the module baseplate and heatsink is another common finding during disassembly, contributing to elevated junction temperatures that accelerate end-of-life. Facilities sourcing a 7MBP75RA120 replacement for a failed drive should verify the host drive's gate resistor values and DC bus capacitor condition before reinstallation, since a marginal bus capacitor bank can re-stress a new module within a short operating period. Those looking to buy 7MBP75RA120 stock for MRO inventory or urgent field repairs can evaluate both new and 7MBP75RA120 refurbished options depending on lead-time constraints and budget. Qualified technicians performing 7MBP75RA120 repair at the board level should consult Fuji Electric's IPM application notes regarding minimum gate drive supply decoupling to avoid spurious shutdown events post-repair, and our industrial VFD repair services team follows these specifications during every rework. Flexa Systems offers 7MBP75RA120 repair, refurbished 7MBP75RA120 units, or new 7MBP75RA120 from Lewisville TX — repairs include a 2-year warranty.
