Siemens
6ES7-214-1AD23-0XB0
No reviews
SKU: 2100000021000
$372.00
Contact us for pricing
2-Year Warranty
Free Diagnostics
5–30 Day Turnaround
Nationwide Service

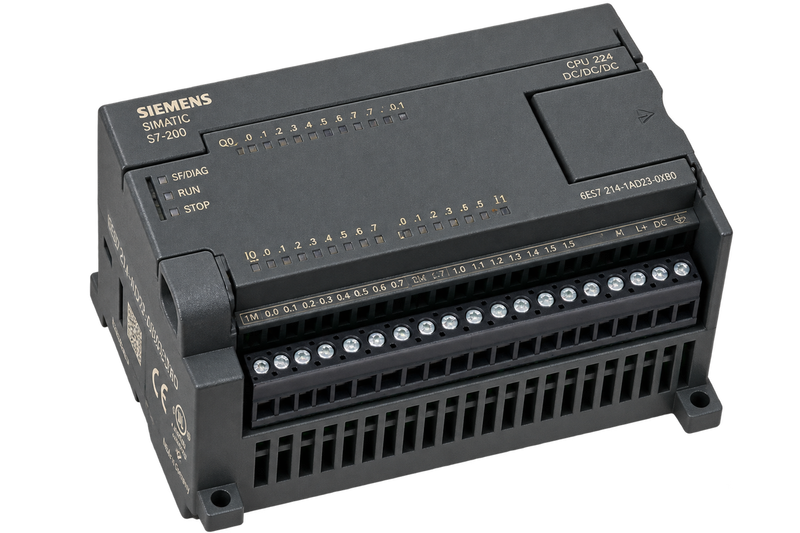

Siemens 6ES7-214-1AD23-0XB0 repair service is available at Flexa Systems for facilities that depend on the SIMATIC S7-200 CPU 224 to keep production lines running. Whether you need Siemens 6ES7-214-1AD23-0XB0 repair after an unexpected fault or are looking for a 6ES7-214-1AD23-0XB0 refurbished unit to minimize downtime, our technicians have deep familiarity with this compact PLC platform. Operating on 24 VDC, the CPU 224 delivers 14 digital inputs and 10 digital outputs in a space-efficient housing suited for machine-level control tasks including conveyor sequencing, packaging automation, and process monitoring. If you've been searching for 6ES7-214-1AD23-0XB0 troubleshooting support after a cryptic error LED pattern or communication dropout, our bench diagnostics can isolate the root cause quickly. The unit supports up to two expansion modules and communicates via the PPI and MPI protocols, making it a common controller in legacy industrial VFD repair scenarios where the S7-200 manages a connected drive's run/stop logic. Many plants running 6ES7-214-1AD23-0XB0 fault codes that point to corrupted program memory or failed onboard EEPROM find that professional repair restores full functionality at a fraction of replacement cost. Flexa Systems provides free diagnostics and a 2-year warranty on all repaired units, serving customers in Texas and nationwide from our facility in Lewisville TX.
Technical Specifications
Part Number
6ES7-214-1AD23-0XB0
Manufacturer
Siemens
Voltage
24 VDC
Package / Type
PLC (Programmable Logic Controller)
Compatibility
The Siemens 6ES7-214-1AD23-0XB0 is compatible with the full S7-200 expansion module lineup, including the EM 221 digital input module (6ES7 221-1BF22-0XA0), the EM 222 digital output module (6ES7 222-1HF22-0XA0), and the EM 231 analog input module (6ES7 231-0HC22-0XA0), allowing the CPU 224 to scale I/O capacity for more demanding control tasks. Siemens 6ES7-214-1AD23-0XB0 integration with SIMATIC S7-200 networks relies on the PPI multi-master protocol over RS-485, and the unit can also communicate with HMI panels such as the TD 200 text display and TP 070 touch panel using the same bus. The 6ES7-214-1AD23-0XB0 is a direct replacement for the earlier 6ES7 214-1AD21-0XB0 and 6ES7 214-1AD22-0XB0 CPU 224 variants, sharing the same form factor, terminal layout, and STEP 7-Micro/WIN programming environment. When connected to Siemens SINAMICS or MICROMASTER 440 drives via a USS protocol communication module such as the EM 277 PROFIBUS DP module (6ES7 277-0AA22-0XA0), the CPU 224 can issue speed references and read drive status, making it a functional controller in drive-integrated automation cells.
Service Options
Repair Service
Ship your faulty 6ES7-214-1AD23-0XB0 to our facility. Our certified technicians perform IGBT testing, capacitor inspection, gate driver diagnostics, and full load testing. Typical turnaround: 5–7 business days. 2-year warranty included.
Refurbished
In-stock Siemens 6ES7-214-1AD23-0XB0 variable frequency drive, reconditioned to OEM specifications and verified under load. Ships immediately. 2-year warranty included.
Brand New
New 6ES7-214-1AD23-0XB0 in original Siemens packaging. Full manufacturer warranty applies. Contact us to confirm availability and lead time.
Common Failure Modes
Onboard EEPROM corruption causing the CPU 224 to display a continuous RUN/STOP LED fault cycle and refuse to load the user program — a known 6ES7-214-1AD23-0XB0 fault that typically follows a power surge or improper shutdown during a program write cycle.
Failed 24 VDC internal power supply regulation resulting in erratic I/O behavior and intermittent loss of digital output states, often misdiagnosed as a field wiring issue before 6ES7-214-1AD23-0XB0 troubleshooting isolates the fault to the onboard DC-DC converter.
RS-485 communication transceiver failure causing the PPI port to drop all master/slave communication, presenting as a network timeout error in STEP 7-Micro/WIN and preventing any HMI or programming device from establishing a connection.
Cracked or cold-solder joints on the CPU 224 backplane connector leading to intermittent expansion bus faults and unpredictable EM module dropout, particularly common in units subjected to high-vibration environments such as press or compressor control panels.
Frequently Asked Questions
Is the 6ES7-214-1AD23-0XB0 compatible with other S7-200 CPU models, and can it replace units from other PLC families?
The 6ES7-214-1AD23-0XB0 is directly interchangeable with the CPU 224 revision variants 6ES7 214-1AD21-0XB0 and 6ES7 214-1AD22-0XB0, using the same physical mounting, terminal block layout, and STEP 7-Micro/WIN project files without modification. It is not a drop-in replacement for the CPU 226 (6ES7 216-2AD23-0XB0) due to differing I/O counts, though program logic can be migrated with minor hardware reassignment. Cross-brand replacement with controllers like the Allen-Bradley MicroLogix 1100 or Mitsubishi FX3U requires full I/O remapping and rewriting of the control program, as neither the instruction set nor the network protocol is compatible. For facilities standardized on the S7-200 platform, the 6ES7-214-1AD23-0XB0 compatible with the existing EM module rack is always the preferred and least-risk swap.
How do I know if my 6ES7-214-1AD23-0XB0 is worth repairing or if I should replace it outright?
In most cases, 6ES7-214-1AD23-0XB0 repair is cost-effective when the fault is isolated to the power supply section, the RS-485 transceiver, or EEPROM — components that can be replaced at the board level without sourcing a new CPU. If the Siemens 6ES7-214-1AD23-0XB0 shows physical damage such as burned PCB traces, a cracked processor, or corrosion penetrating the main logic board, the repair cost can approach replacement value and a refurbished unit may be the smarter financial decision. Units that fail due to firmware corruption or cold solder joints almost always return to full specification after professional rework, with no reduction in service life. Sending the unit in for free diagnostics is the most reliable way to get a definitive repair-vs-replace recommendation before committing any budget.
Where can I get 6ES7-214-1AD23-0XB0 repair service with a warranty?
Flexa Systems, located in Lewisville TX, provides depot repair service for the 6ES7-214-1AD23-0XB0 with a 2-year warranty on all completed repairs and a standard turnaround of 5 to 7 business days from receipt of the unit. Every repair includes free diagnostics, a full functional test under simulated load conditions, and a detailed fault report so your maintenance team understands exactly what failed and why. Customers outside Texas can ship units directly to our facility, and we serve industrial clients nationwide with the same warranty and turnaround terms. If you need to buy 6ES7-214-1AD23-0XB0 USA stock immediately while your failed unit is in repair, Flexa Systems also carries 6ES7-214-1AD23-0XB0 for sale as tested refurbished inventory ready to ship.
Where can I get 6ES7-214-1AD23-0XB0 repair service with a warranty?
Flexa Systems provides professional 6ES7-214-1AD23-0XB0 repair service from our facility in Lewisville, TX, serving customers nationwide. Standard turnaround is 5–7 business days from receipt and all repaired units ship with a 2-year warranty. Rush service (2–3 business days) is also available.
Flexa Systems specializes in Siemens 6ES7-214-1AD23-0XB0 variable frequency drive repair, supplying refurbished and new units backed by a 2-year warranty. All drives are load-tested before shipping. Serving industrial facilities nationwide from Lewisville, TX.
Repair option: send in your faulty unit for component-level repair — $372.00 with free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Learn more about our PLC repair service.
Technical Specifications
Part Number:
6ES7-214-1AD23-0XB0
Manufacturer:
Siemens
Voltage:
24 VDC
Type:
PLC (Programmable Logic Controller)
Ask for Price
