Allen-Bradley 5069-L320ERM

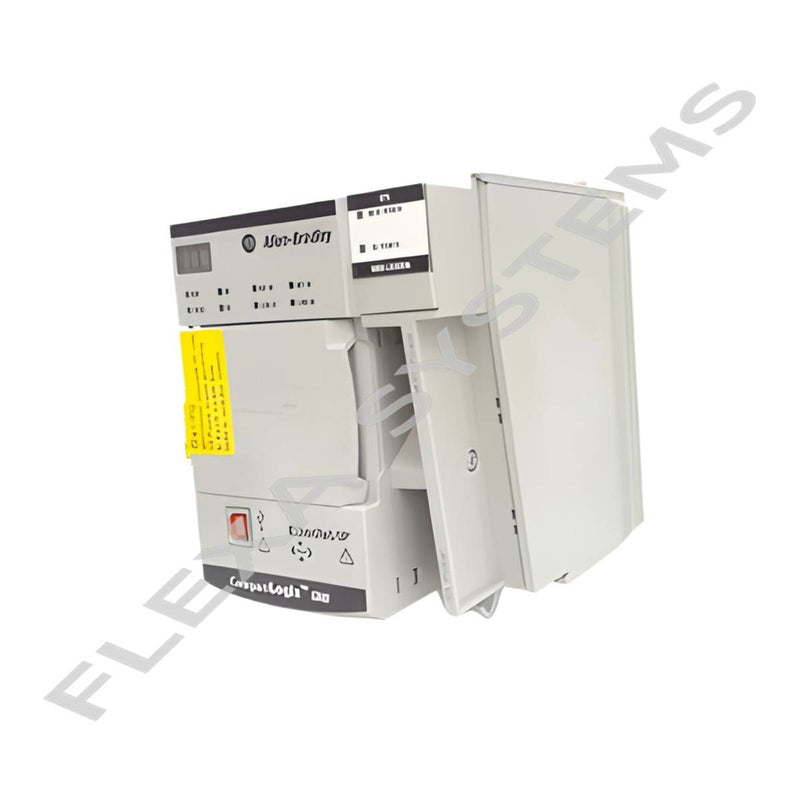

ALLEN BRADLEY engineered the 5069-L320ERM as a high-capacity Compact GuardLogix 5069 series programmable logic controller designed to handle complex motion, safety, and standard control tasks within a single integrated platform. The ALLEN BRADLEY 5069-L320ERM belongs to the Compact GuardLogix 5069 family, which represents Allen-Bradley's approach to consolidating safety-rated and standard PLC functionality into a compact form factor without sacrificing processing headroom. This particular model carries a 20 MB standard memory allocation paired with 20 MB of safety memory, making it one of the larger-memory units within the 5069 lineup. Its ERM designation indicates an embedded EtherNet/IP port configuration optimized for real-time motion coordination, supporting up to 31 coordinated motion axes. The controller operates on the Logix 5000 execution engine and is built around an SIL 2 / PLe safety rating, allowing it to govern safety-instrumented functions alongside standard process logic. Primary applications center on machinery requiring synchronized multi-axis motion control combined with integrated functional safety, all managed under a single Studio 5000 Logix Designer project.

ALLEN BRADLEY's engineering decisions on the 5069-L320ERM reflect a deliberate positioning within the Compact GuardLogix 5069 series that distinguishes it from lower-memory siblings like the 5069-L306ERM and the non-safety-capable CompactLogix 5380 counterparts. The embedded dual-port EtherNet/IP adapter supports Device Level Ring topology natively, which reduces wiring complexity and provides media redundancy without an external switch in environments where network continuity is critical. Unlike the 5069-L3100ERM at the top of the range, the 5069-L320ERM targets applications where 31 motion axes represent the practical ceiling rather than a constraint, keeping hardware costs proportional to actual system requirements. The controller integrates directly with Kinetix 5700 and Kinetix 5500 servo drives over EtherNet/IP, and participates in a broader ecosystem that includes Point I/O, Compact 5000 I/O, and FLEX 5000 I/O modules. Facilities managing our PLC repair catalog frequently encounter this model in automotive body-in-white welding lines, semiconductor wafer-handling equipment, and pharmaceutical packaging machinery where motion precision and safety certification are both mandatory. Programming and diagnostics run entirely through Studio 5000 Logix Designer with optional FactoryTalk View integration for operator interface. The safety task executes independently of the standard task, preserving deterministic safety response times even under peak standard-program load.

In typical industrial environments, the ALLEN BRADLEY 5069-L320ERM operates continuously under conditions that stress its internal power supply, backplane connectors, and EtherNet/IP communication hardware over multi-year service cycles. Heat accumulation within tightly packed control enclosures accelerates capacitor degradation on the internal power management circuitry, and this failure mode is among the more common reasons facilities seek a 5069-L320ERM replacement rather than a board-level fix. Firmware corruption following an unclean power cycle or an incomplete update procedure is another documented failure pattern specific to the Compact GuardLogix 5069 platform, often presenting as a controller that boots into faulted mode with cryptic error codes. Facilities sourcing a 5069-L320ERM for sale should verify firmware revision compatibility with their existing Kinetix drive configurations and I/O module firmware to avoid integration conflicts at commissioning. The safety memory and standard memory partitions each require independent validation after any hardware swap, which adds time to replacement projects and underscores the value of working with technicians familiar with Compact GuardLogix architecture — a point covered in detail on our PLC repair services page. Connector wear on the 5069 series backplane interface is also worth inspecting during any maintenance window, as intermittent I/O faults sometimes trace back to physical contact degradation rather than a controller fault. For context on the broader repair landscape for this manufacturer, the ALLEN BRADLEY PLC repair resource page outlines common failure patterns across the full Logix product line. 5069-L320ERM repair, refurbished exchange, and new-unit sourcing are available through Flexa Systems (Lewisville, TX) with a 2-year warranty on all repaired units.
