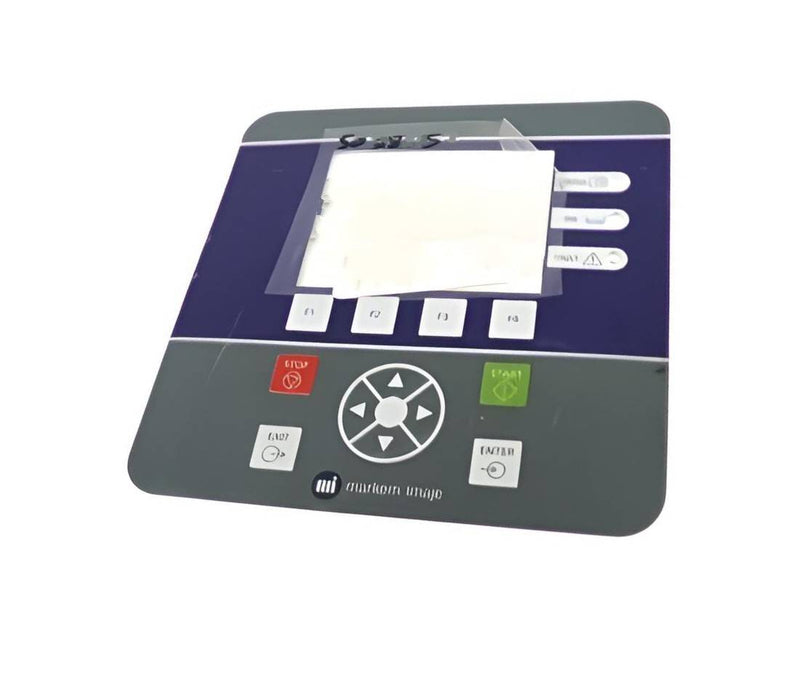

10039269 Keypad 5200/5400
10039269 Keypad 5200/5400 repair service is a critical need for production facilities running Markem Imaje continuous inkjet (CIJ) and thermal inkjet printing systems, where the Markem Imaje 10039269 Keypad 5200/5400 repair demand often spikes after membrane switch degradation or display controller faults — and sourcing a 10039269 Keypad 5200/5400 refurbished unit from a qualified shop is frequently the fastest path back to uptime. This keypad assembly serves as the primary operator interface on the Markem Imaje 5200 and 5400 series CIJ printers, housing the membrane keypad matrix, embedded display driver logic, and communication lines that relay operator commands directly to the print head controller board. For plants exploring 10039269 Keypad 5200/5400 troubleshooting, the most common entry points are unresponsive key zones, corrupted LCD character output, and loss of parameter navigation during active print runs. Those searching for 10039269 Keypad 5200/5400 repair near me will find that local availability of this specific interface module is extremely limited, making a depot-level repair service with documented test procedures the practical alternative to a costly OEM replacement. The unit operates within the low-voltage logic environment of the 5200/5400 printer platform, interfacing via a ribbon cable connector to the main CPU board, and is rated for continuous duty in factory floor environments with moderate particulate and solvent vapor exposure typical of packaging and bottling lines. Industrial VFD repair shops with broader Markem Imaje experience will recognize that keypad failures on this platform are often misdiagnosed as mainboard faults, making component-level evaluation essential before any board swap is authorized. Flexa Systems restores these assemblies to full OEM functional specification, covering membrane contact resistance normalization, display driver re-initialization, and connector integrity validation before return shipment.
The 10039269 Keypad 5200/5400 is compatible with the Markem Imaje 5200 and 5400 series continuous inkjet printer platforms, where it connects to the main CPU/controller board via a 20-pin or 26-pin flat flex ribbon interface — making Markem Imaje 10039269 Keypad 5200/5400 integration straightforward for technicians already familiar with the 5200 series wiring harness layout. The 10039269 Keypad 5200/5400 replacement for the earlier 5000 series operator panel is supported in many configurations, though firmware version alignment on the CPU board should be confirmed before installation, particularly on units running Markem Imaje firmware revisions below v3.2. Compatible printer models from the Markem Imaje catalog include the Imaje 5200, Imaje 5400, Imaje S200, and Imaje 5000 series printers, all of which share the same operator interface bus architecture and keypad command protocol. The assembly does not require external PLC integration for standalone printer operation, but in networked line configurations it functions correctly alongside Markem Imaje's RS-232 and RS-485 serial communication modules used for host message formatting and print trigger signaling.
- Membrane keypad dead zones in the numeric entry row — typically keys 4 through 6 — caused by contact layer delamination after prolonged solvent vapor exposure, a documented 10039269 Keypad 5200/5400 fault that causes the printer to display 'INPUT ERROR' and halt parameter entry mid-sequence.
- LCD display showing corrupted characters or a fully blanked screen despite normal backlight operation, traced to display driver IC failure (Hitachi HD44780-compatible controller) on the keypad PCB sub-assembly — common in 10039269 Keypad 5200/5400 troubleshooting scenarios where the mainboard is incorrectly replaced first.
- Intermittent loss of keypad communication with the CPU board during print runs, presenting as a frozen menu state or unresponsive navigation, caused by ribbon cable connector fretting corrosion at the ZIF socket — typically triggered by high-frequency vibration from adjacent conveyor or filling equipment.
- Complete keypad lockout following a power surge event, where the ESD protection diodes on the keypad interface lines are shorted, causing the CPU board to read all key inputs as simultaneously active and enter a fault lockout state that cannot be cleared via standard reset procedures.
Repair option: component-level repair is available for this model — free diagnostics, a 2-year warranty, and a 5–30 business day turnaround. Repair typically costs 40–70% of a new unit, saving you 30–60%. Request a repair quote. Learn more about our HMI repair service.
Technical Specifications
| Part Number: | 10039269 Keypad 5200/5400 |
| Manufacturer: | Markem Imaje |
| Type: | Keypad Membrane/Overlay |
