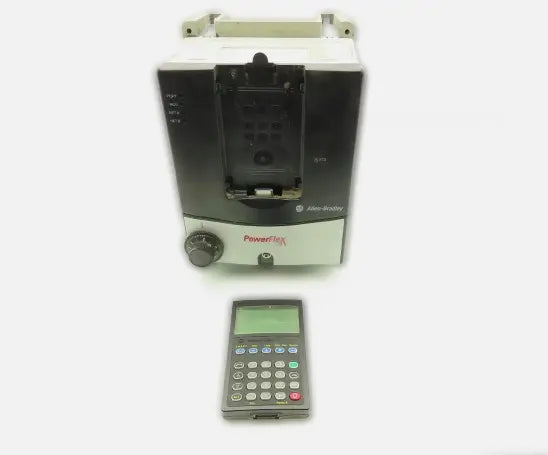

The Allen-Bradley PowerFlex 70 family of AC drives, encompassing the 20AB, 20AC, 20AD, and 20AE catalog numbers, has been the backbone of industrial motor control for over two decades. From water treatment facilities to conveyor systems, these drives have proven their reliability in demanding applications. Yet even the most robust equipment eventually displays fault codes that halt production. This comprehensive guide decodes every PowerFlex 70 fault code you're likely to encounter and provides actionable troubleshooting steps to get your system back online quickly.
How PowerFlex 70 Fault Codes Work
PowerFlex 70 drives display faults in the F### format on the HIM (Human Interface Module) keypad. When a fault occurs, the drive immediately stops motor operation and stores the event in its fault log with a timestamp. The drive categorizes faults into two severity types: Type 1 faults are minor conditions that may allow auto-restart if configured, while Type 2 faults are critical hardware failures requiring manual intervention. The fault log stores the three most recent faults, accessible through parameter 15 (Flt Code 1), parameter 16 (Flt Code 2), and parameter 17 (Flt Code 3). To clear a fault, you can cycle power, press the reset button on the HIM, or send a digital reset command through the control network. Auto-restart behavior is governed by parameters 64 through 68, which control retry attempts, delays, and lockout conditions after repeated fault events.
Power & Bus Faults
F4 — DC Bus Undervoltage
The F4 fault indicates the DC bus voltage has dropped below the acceptable threshold for drive operation. For 480V class drives, this typically occurs when bus voltage falls below approximately 410VDC. Common causes include input power loss, blown fuses in the incoming circuit, loose connections at the input terminals, or a failing DC bus precharge circuit. Check incoming line voltage at L1, L2, and L3 with a multimeter—you should see balanced three-phase voltage within 10% of nominal. Inspect the input fuses or circuit breaker for proper operation. If input power is present and correct, the rectifier bridge diodes may have failed, preventing proper DC bus charging. This fault can also occur during rapid deceleration if the drive lacks dynamic braking capability and regenerative energy exceeds the bus capacitance.
F5 — DC Bus Overvoltage
An F5 fault trips when DC bus voltage exceeds safe operating limits—approximately 820VDC for 480V class drives. This most commonly occurs during deceleration when the motor acts as a generator, pumping energy back into the DC bus faster than the drive can dissipate it. If your application involves high-inertia loads or rapid deceleration requirements, you need either a dynamic braking resistor assembly or adequate deceleration time settings. Verify parameter 6 (Decel Time) allows gradual motor slowdown. Check parameter 75 for proper braking resistor configuration if installed. Overvoltage faults can also result from input voltage spikes on the AC mains, particularly during load shedding events or capacitor bank switching. Less commonly, a shorted braking transistor or failed bus capacitors may prevent proper voltage regulation during normal operation.
F12 — HW Overcurrent Trip
The F12 hardware overcurrent fault represents one of the most serious conditions in PowerFlex 70 troubleshooting. This fault triggers when the drive's hardware-level current sensing circuits detect instantaneous current that exceeds safe limits—typically occurring in microseconds before the processor can intervene. The most common cause is catastrophic IGBT failure within the power module, often resulting from short circuits at the motor terminals, damaged motor cables, or internal component degradation. When you encounter F12, immediately disconnect motor leads and perform insulation resistance testing on both the motor and cables using a megohm meter. Inspect all output wiring for physical damage, pinched conductors, or water intrusion in conduit. If wiring tests acceptable, the IGBT power module has likely failed and requires replacement. The F12 fault often causes collateral damage to gate driver circuits, current sensors, and DC bus capacitors, making component-level repair essential for reliable restoration. Never simply reset an F12 fault without identifying root cause—repeated IGBT failure indicates underlying mechanical or electrical issues in your system.
F70 — Power Unit Failure
Fault code F70 indicates a critical malfunction within the drive's power electronics section, specifically involving the gate driver circuits or IGBT modules themselves. The drive continuously monitors gate driver status and IGBT health through diagnostic feedback signals. When these circuits report anomalies—such as desaturation detection, gate drive undervoltage, or module temperature faults—the F70 code triggers. This fault often follows thermal stress, voltage transients, or component aging in drives with thousands of operating hours. The gate driver boards receive low-voltage control signals from the processor and amplify them to the 15-20V levels required to switch IGBTs. Electrolytic capacitors on these boards degrade over time, causing erratic gate signals and false fault trips. Troubleshooting F70 requires oscilloscope analysis of gate signals and careful voltage measurements across isolated power supplies. This fault type demands component-level repair from experienced technicians with proper safety equipment for working on high-voltage DC bus circuits.
Motor & Thermal Protection
F7 — Motor Overload
The F7 motor overload fault protects your motor from thermal damage by monitoring current over time and calculating accumulated heat based on the electronic overload algorithm. The drive uses parameter 31 (Motor NP Current) to establish baseline thermal characteristics and parameter 32 (Motor OL Type) to select the protection curve. When calculated motor temperature exceeds 100% of thermal capacity, F7 trips the drive. Mechanical overload is the primary cause—jammed conveyors, seized pumps, or excessive material buildup all force the motor to draw elevated current. Verify the motor turns freely by hand with power removed. Check that parameter 31 matches the motor nameplate full-load amperage rating. Undersized motors for the application will repeatedly trip on F7. Compare actual running current (displayed in parameter 2) against motor nameplate—sustained operation above 100% rated current indicates mechanical problems or improper motor selection for the load requirements.
F8 — Heatsink Overtemp
Fault F8 triggers when the thermal sensor mounted on the drive's heatsink assembly detects excessive temperature, typically around 90-95°C depending on drive frame size. The heatsink dissipates heat generated by IGBT switching losses and must maintain adequate temperature margin for reliable operation. Blocked or dirty cooling fans are the most frequent cause—inspect the fan for proper rotation and check for accumulated dust on heatsink fins using compressed air for cleaning. Verify adequate panel ventilation and confirm ambient temperature remains below 40°C. High ambient temperatures, particularly in outdoor enclosures without climate control, dramatically reduce drive heat dissipation capacity. Check that cooling fan receives proper voltage at its connector; fan failures are common after years of continuous operation. Excessive output current from overloaded motors increases IGBT losses and heatsink temperature. Review parameter 2 (Output Current) during normal operation—sustained current near or exceeding drive rating generates excessive heat even with functional cooling systems.
F13 — Ground Fault
The F13 ground fault code indicates the drive has detected current flow to protective earth ground, signaling compromised insulation somewhere in the motor circuit. The PowerFlex 70 continuously monitors for imbalanced current across the three output phases—when the vector sum of output currents doesn't equal zero, current must be leaking to ground. Motor insulation breakdown is the primary culprit, particularly in motors exposed to moisture, chemical contamination, or thermal cycling. Cable damage from mechanical stress, improper installation, or rodent activity creates ground fault paths. Troubleshooting F13 requires systematic isolation testing using a 1000V megohm meter. Disconnect the motor leads at the drive and test insulation resistance from each motor winding to ground and between phases—readings below 100 megohms indicate compromised insulation. Test motor cables separately by disconnecting at both ends. Ground faults can be intermittent, appearing only when motors reach operating temperature or when contamination becomes conductive with humidity. If testing shows good insulation resistance, verify proper motor grounding and shield termination practices—improperly grounded cable shields can trigger false ground fault detection.
Communication & Control Faults
F64 — Drive Overload
Unlike F7 which protects the motor, the F64 fault protects the drive itself from thermal overload conditions. The drive calculates its own thermal capacity based on output current, switching frequency, and heatsink temperature. When the drive's thermal model predicts component temperatures approaching limits, F64 trips before damage occurs. This fault indicates you're operating near or beyond the drive's continuous current rating. Applications with frequent starts, reversing duty, or sustained high-speed operation generate higher losses than steady-state running. Review parameter 52 (Switching Frequency)—higher frequencies improve motor performance but increase drive losses significantly. Reducing switching frequency from 8kHz to 4kHz can reduce drive heating by 30-40%. Verify the motor load doesn't exceed drive current ratings at all operating speeds. Applications requiring continuous operation above 100% drive rating need a larger frame size. Improve panel ventilation and verify cooling fan operation to maximize drive thermal capacity.
F81 — Comm Loss
Fault code F81 indicates loss of communication between the drive and its network communication adapter or between the adapter and the control system. PowerFlex 70 drives use plug-in communication modules for ControlNet, DeviceNet, EtherNet/IP, and other industrial protocols. When the drive loses expected network messages for a duration exceeding the timeout setting, F81 triggers and the drive responds according to parameter 77 (Comm Loss Action)—options include coast to stop, ramp to stop, or continue running at present speed. First verify the communication module is properly seated in its slot and the status LEDs indicate proper network connection. Check network cable continuity and termination resistors if required by the protocol. Review network scan times and verify the controller is actively communicating with the drive. Parameter 76 (Comm Timeout) sets how long the drive waits before declaring communication lost—values between 1-10 seconds are typical. If using the drive in hardwired mode without network control, set parameter 76 to zero to disable communication fault detection. Network adapter failures require module replacement, though some issues stem from corrupted adapter firmware requiring reflashing or configuration restoration.
F33 — Auto Restart Exceeded
The F33 fault appears when the drive's automatic restart function has attempted to recover from a fault condition the maximum number of times without success. Parameters 64-68 control auto-restart behavior: the number of retry attempts, delay between attempts, and lockout time after repeated failures. F33 indicates a persistent underlying problem that auto-restart cannot resolve—typically recurring overcurrent, ground fault, or communication issues. Review the fault log to identify which fault code triggered the restart attempts. Three F7 motor overload faults suggest mechanical binding or excessive load. Multiple F13 ground faults point to intermittent insulation breakdown. Disable auto-restart (parameter 64 = 0) during troubleshooting to prevent equipment damage from repeated start attempts. Resolve the root cause fault condition before re-enabling automatic restart functionality.
Hardware Faults
F63 — Software Overcurrent
Fault F63 represents a software-detected overcurrent condition distinct from the hardware-level F12 fault. The drive processor continuously monitors output current and trips F63 when current exceeds acceptable limits based on drive rating and parameter settings. This fault typically indicates overload conditions that develop more gradually than the instantaneous events that trigger F12. Check for mechanical binding in the driven load or excessive material buildup causing elevated torque requirements. Verify parameter 49 (Current Limit) is set appropriately for your application—overly aggressive current limit settings can cause nuisance trips during normal acceleration. Review acceleration times in parameters 5 and 6 to ensure adequate ramp duration for high-inertia loads.
F100 — Parameter Checksum
The F100 parameter checksum fault indicates corrupted data in the drive's non-volatile memory where parameter values are stored. The drive calculates a checksum value based on all stored parameters and compares it against the stored checksum each time it powers up. When these values don't match, F100 trips to prevent operation with potentially incorrect or dangerous parameter settings. This fault most commonly occurs after power supply failure within the control board, during firmware updates that are interrupted, or when NVRAM chips reach end-of-life after years of read-write cycles. You can sometimes clear F100 by performing a parameter reset to factory defaults, though this erases all custom configuration. If the fault immediately returns after parameter restoration, the control board has failed hardware components requiring replacement or professional repair. The NVRAM chip or backup battery may need replacement to ensure reliable parameter retention.
F48 — Precharge Failure
Fault code F48 indicates the DC bus failed to reach proper voltage during the precharge sequence that occurs at drive power-up. When you first apply AC input power, the PowerFlex 70 charges its DC bus capacitors gradually through precharge resistors to prevent inrush current damage. After the bus reaches approximately 90% of expected voltage, a precharge relay bypasses the resistors for normal operation. If bus voltage remains low after the precharge time expires, F48 trips. Failed precharge resistors show visible burning or measure open circuit instead of their typical 40-100 ohm resistance. The precharge relay contacts can weld closed or fail to close, preventing proper circuit completion. Measure DC bus voltage during power-up—it should rise smoothly to approximately 650VDC for 480V input class drives. Low bus voltage points to failed rectifier diodes or shorted bus capacitors drawing excessive charging current.
When to Repair vs Replace Your PowerFlex 70
Many PowerFlex 70 catalog numbers, particularly the 20AB and 20AC series, have been discontinued for years as the product line matured. The current replacement offering is the PowerFlex 750 series, which offers enhanced features but requires different mounting dimensions, different parameter structures, and typically different communication modules. New PowerFlex 750 drives currently face lead times of 12-20 weeks due to ongoing supply chain constraints and component shortages affecting the entire automation industry. Pricing for new replacement drives ranges from $2,500 for fractional horsepower units to over $15,000 for larger frames—a significant capital expenditure that requires budget approval and project planning.
Professional component-level repair offers a faster, more economical alternative for most PowerFlex 70 failures. Typical repair costs range from $400 to $900 depending on drive frame size and failure mode, representing 60-80% savings compared to new replacement. More importantly, repair turnaround typically runs 5-10 business days from receipt, getting your production line operational weeks or months faster than new equipment procurement. Repaired drives retain all original parameters and programming, eliminating the commissioning time required for replacement drives. The key consideration is failure mode—drives with damaged housings, water intrusion throughout the assembly, or multiple catastrophic failures may exceed economical repair thresholds. However, most common failures including IGBT modules, gate drivers, control boards, power supplies, and capacitor banks are excellent repair candidates with reliability equivalent to new equipment when performed by qualified technicians.
How Flexa Systems Repairs PowerFlex 70 Drives
At Flexa Systems in Lewisville, Texas, we perform true component-level repair on all PowerFlex 70 drives including 20AB, 20AC, 20AD, and 20AE catalog numbers. Our process begins with comprehensive diagnostic testing using specialized equipment to identify all failed components—not just the obvious failures but also marginally degraded parts that could cause premature re-failure. We test IGBT modules using curve tracers that verify proper gate threshold voltage, saturation voltage, and switching characteristics. Power supply outputs are verified under load conditions across the full temperature range. All electrolytic capacitors are tested for ESR (equivalent series resistance) and capacitance value—we replace any capacitors showing degradation even if not completely failed, as aged capacitors cause numerous secondary issues.
Our technicians reform DC bus capacitors using controlled voltage ramps after extended storage to restore dielectric properties before returning drives to service. Every gate driver board undergoes signal integrity testing with oscilloscope verification of rise times, voltage levels, and timing characteristics. We replace thermal interface material between IGBTs and heatsinks with premium thermal compound to ensure optimal heat transfer. After component replacement, each drive undergoes full power load testing at rated voltage and current using our dynamometer test stands. We verify proper operation through multiple start-stop cycles, acceleration and deceleration ramps, and sustained full-load operation. Every repair includes a comprehensive 2-year warranty covering both parts and labor, demonstrating our confidence in component-level repair quality.
We maintain extensive inventory of common PowerFlex 70 components including IGBT modules, gate driver assemblies, control boards, and communication adapters to minimize repair turnaround time. Our free diagnostic service means you pay nothing if we determine your drive isn't economically repairable—no diagnostic fees, no evaluation charges, and no return shipping costs. This no-fix no-charge policy ensures you risk nothing by exploring the repair option before committing to expensive new equipment purchases. We provide detailed documentation with every repair identifying all replaced components and test results, giving you complete visibility into the work performed and the condition of your equipment.
Get a Free PowerFlex 70 Repair Quote
If you're experiencing any of these Allen-Bradley PowerFlex 70 fault codes, Flexa Systems can help get your drive back online quickly and affordably. Our component-level repair expertise covers all power & bus faults, motor protection issues, communication failures, and hardware problems across the complete 20A series platform. We offer free diagnostics, a comprehensive 2-year warranty, and competitive pricing with turnaround times that keep your downtime measured in days rather than weeks or months. Our team has decades of combined experience specifically with PowerFlex drives and industrial automation repair—we understand the urgency of production equipment failures and prioritize quick communication throughout the repair process.
Contact us today at (855) 600-1938 to discuss your PowerFlex 70 fault codes with our technical team. We can often provide preliminary troubleshooting guidance over the phone to help you determine whether you're facing a repairable drive failure or an external system issue. For detailed information about our complete range of services, visit our Allen-Bradley PowerFlex repair page or explore our broader VFD repair capabilities covering multiple drive manufacturers and product lines. Ready to get started? Request your free repair quote through our online quote form or call our team directly. We'll provide a firm price quote typically within 24 hours of receiving your drive, with no obligation and no hidden fees. Let Flexa Systems return your PowerFlex 70 to reliable operation with professional component-level repair backed by our commitment to quality and customer service.
