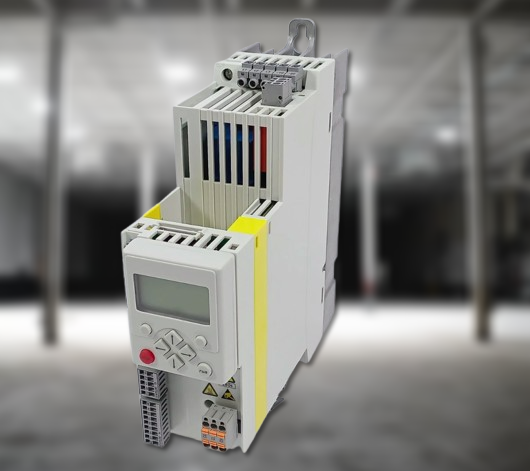

Lenze 8400 and i500 series drives are workhorses in industrial automation, powering material handling systems, packaging lines, and conveyor networks across North America. When these variable frequency drives display fault codes, production stops and troubleshooting begins. Understanding the difference between nuisance trips and catastrophic failures can save thousands in downtime costs. This comprehensive guide decodes every major Lenze 8400 and i500 fault code, explains root causes, and outlines when professional component-level repair makes economic sense versus full replacement.
How Lenze 8400/i500 Fault Codes Work
Lenze 8400 and i500 drives communicate faults through a multi-segment alphanumeric display on the keypad or control panel. When an error occurs, the drive typically halts operation and displays a fault code beginning with "E" (error) or "W" (warning). Error codes require manual acknowledgment and reset before the drive will resume operation, while warning codes may auto-reset once the condition clears. The drives maintain a fault history buffer accessible through parameter C074 (8400 series) or the diagnostic menu (i500 series), storing the last eight to sixteen faults with timestamps. This history proves invaluable when diagnosing intermittent problems. Understanding whether you're dealing with a soft fault caused by application issues or a hard fault indicating component failure is the first step in effective Lenze 8400 troubleshooting. The fault code structure follows a logical pattern, with letter prefixes indicating the fault category and numbers specifying the exact condition.
Overcurrent Faults
OC1 — Output Overcurrent (Acceleration)
The OC1 fault indicates the drive detected excessive current to the motor during acceleration. This is one of the most common Lenze drive fault codes in high-inertia applications. The drive's current monitoring circuits continuously measure output current against programmed limits, typically 150-200% of rated drive current depending on the frame size. When current exceeds this threshold during ramp-up, the drive trips to protect the IGBT output stage from thermal damage. Common causes include acceleration times set too aggressively for the load inertia, mechanical binding in the driven equipment, or a motor winding developing a partial short. Check parameter C013 (acceleration time) and increase it gradually. Verify the motor nameplate matches the drive's motor parameter settings in C020-C024. Inspect the mechanical system for seized bearings, misaligned couplings, or jammed conveyors. If OC1 persists with correct parameters and no mechanical issues, the output current sensors or IGBT gate drivers may have drifted out of calibration, requiring component-level drive repair.
OC2 — Output Overcurrent (Deceleration)
OC2 faults occur when regenerative energy during braking exceeds the drive's capability to dissipate it. Unlike acceleration overcurrent, OC2 relates to the physics of deceleration—the motor becomes a generator, pumping energy back into the drive's DC bus. Standard Lenze 8400 and i500 drives without braking resistors can only absorb limited regenerative energy through the input rectifier. High-inertia loads stopping quickly generate more energy than the drive can handle, causing DC bus voltage to spike and current limits to trip. Solutions include extending deceleration time in parameter C014, adding an external braking resistor and chopper module, or implementing a DC injection braking strategy. Conveyor systems with loaded belts running downhill are particularly susceptible. Verify the braking resistor (if installed) hasn't failed open-circuit—measure resistance with power disconnected. If OC2 appears randomly during normal deceleration with previously stable parameters, suspect aging electrolytic capacitors in the DC bus reducing energy absorption capacity or failing brake chopper IGBTs.
OC3 — Output Overcurrent (Constant Speed)
OC3 is the most serious overcurrent fault because it indicates the drive drew excessive current during steady-state operation when current demand should be stable and predictable. This Lenze i500 error code almost always points to either a motor problem or drive hardware failure. A healthy motor running at constant speed draws current proportional to mechanical load—sudden overcurrent suggests a developing motor winding fault, insulation breakdown, or rotor bar failure. Disconnect the motor and perform insulation resistance (megger) testing between phases and to ground. Values below 2 megohms indicate insulation deterioration. If the motor tests good, the problem lies within the drive's output stage. Failed or failing IGBT modules can create unbalanced output currents. Defective current transducers (Hall effect sensors) may report false overcurrent conditions. Gate driver circuits with marginal solder joints can cause IGBT misfiring and current spikes. OC3 faults that appear immediately upon start with no connected load definitively indicate internal drive failure requiring professional repair.
SC — Short Circuit
The SC fault code represents catastrophic failure—the drive detected a direct short circuit across its output terminals or within the IGBT power module itself. This is a non-resettable hard fault requiring immediate investigation. The drive's hardware protection circuits detect short circuits within microseconds and fire all IGBTs off to prevent complete destruction, but some damage typically occurs. External causes include damaged motor cables with shorted conductors, motor terminal box contamination creating phase-to-phase or phase-to-ground faults, or incorrect wiring during installation. Internal causes center on IGBT module failure—the power semiconductors themselves have shorted, usually from thermal stress, voltage transients, or end-of-life wear. Before sending the drive for repair, disconnect all motor cables and measure resistance between U-V-W output terminals with an ohmmeter. Shorted phases read near zero ohms. If outputs measure normal (high resistance), the motor circuit is the culprit. If outputs show short circuit with no external connections, the IGBT module requires replacement along with gate drivers and DC bus capacitors—a repair best handled by specialists with proper testing equipment and OEM-equivalent components.
Voltage Faults
OU — DC Bus Overvoltage
OU faults indicate the DC bus voltage exceeded safe limits, typically 410VDC for 230V drives or 820VDC for 460V units. This occurs when regenerative energy from decelerating loads cannot be dissipated fast enough, causing voltage to climb dangerously. The root cause mirrors OC2 but the protection circuit trips on voltage rather than current threshold. High-inertia systems like large fans, centrifuges, or incline conveyors are vulnerable during emergency stops. The drive's DC bus capacitors can only absorb limited energy before voltage rises. Without a braking resistor, the only dissipation path is back through the input rectifier to the AC supply—but diode rectifiers block reverse current flow. Check parameter C088 for overvoltage threshold settings and C014 for deceleration time. Installing a braking resistor kit eliminates most OU faults in regenerative applications. Nuisance OU trips can also result from unstable AC input voltage, particularly in facilities with poor power quality or undersized generators. If OU occurs during acceleration or at random times unrelated to deceleration, suspect failing DC bus capacitors with reduced capacitance unable to filter rectifier ripple voltage properly.
LU — DC Bus Undervoltage
LU faults signal DC bus voltage dropped below minimum operating threshold—approximately 200VDC for 230V drives or 400VDC for 460V units. This indicates insufficient input power reaching the drive's rectifier section. Common external causes include loose incoming power connections, blown fuses in the disconnect switch, phase loss on three-phase input, or building-wide voltage sags from large motor starts elsewhere. Check all three phases with a multimeter at the drive's input terminals L1-L2-L3 with power applied. Missing phase voltage or imbalanced phases (more than 2% difference) will trigger LU. Verify input fuses and circuit breaker contacts. If input voltage measures correctly, the problem exists within the drive's input stage. Failed rectifier diodes prevent DC bus charging from one or more AC phases, reducing available voltage. Aging electrolytic capacitors with high ESR (equivalent series resistance) cannot maintain bus voltage under load. Faulty charging resistor circuits used during power-up can prevent the bus from reaching operating voltage. Pre-charge relay contacts that weld closed or fail open create undervoltage conditions. Component-level diagnosis requires DC bus voltage measurement under load while monitoring input current to identify failing rectifier or capacitor bank sections.
Thermal Faults
OH — Drive Overheating
The OH fault activates when internal drive temperature exceeds safe limits, typically 85-90°C measured at the heatsink by thermistor sensors. Lenze drives implement thermal models that account for ambient temperature, load current, and switching frequency to protect power semiconductors from thermal destruction. External causes dominate OH faults—blocked cooling airflow is the primary culprit. Inspect cooling fans for operation; failed fans account for 40% of thermal faults. Clean heatsink fins clogged with dust, lint, or debris that insulate rather than dissipate heat. Verify minimum clearance specifications: 100mm above and below drive, 50mm on sides. Ambient temperature exceeding 40°C requires drive derating per the technical manual. Drives installed inside sealed enclosures without adequate ventilation will overheat regardless of fan operation. Internal causes include failed cooling fans, dried thermal compound between IGBTs and heatsink reducing heat transfer efficiency, or thermistor sensor failures reporting false high temperatures. Drives that trip OH immediately upon power-up typically have sensor faults. Those that trip after predictable run times under load have genuine thermal issues requiring improved cooling or component repair to restore heat dissipation capacity.
OL — Motor Overload
OL indicates the drive's electronic motor protection algorithm determined the motor exceeded thermal capacity based on I²t (current-squared-time) calculation. This sophisticated protection mimics traditional overload relays but responds faster and more accurately. The drive continuously monitors output current against the motor nameplate current programmed in parameter C021, calculating thermal accumulation. Unlike simple overcurrent trips, OL accounts for duration—a motor can handle 150% current briefly but not continuously. Causes include mechanical overload from jammed conveyors, seized bearings, or process upsets increasing torque demand. Undersized motors for the application will trip OL under normal operating conditions. Verify motor nameplate FLA matches C021 setting precisely. Check parameter C084 (motor protection class) is set correctly—typically Class 10 for standard motors. Confirm the driven load hasn't increased since installation. Measure actual motor current with a clamp meter during operation; if current matches or exceeds nameplate, the mechanical load requires investigation. If measured current is significantly below the trip level, the drive's current monitoring may be inaccurate due to failed current transducers requiring calibration or replacement during professional repair.
Communication Faults
CL — Communication Lost
The CL fault appears when the drive loses communication with its master controller over fieldbus networks including CANopen, PROFIBUS DP, PROFINET, EtherCAT, or Modbus RTU. Modern Lenze i500 drives integrate deeply into automation architectures, receiving start/stop commands and speed references via industrial networks rather than hardwired I/O. When communication breaks, the drive enters a safe state per parameter configuration—typically coast to stop with CL fault. First verify physical layer integrity: check network cable connections, termination resistors on bus ends (120 ohm for CAN and PROFIBUS), and cable shield grounding. Use network diagnostic tools to confirm the drive's node address is visible on the network. Review parameter C150-C160 range (varies by communication option card) for network settings: baud rate, node address, and timeout values. A common mistake is timeout set too aggressively—network congestion or PLC scan time variations can cause intermittent CL faults. Increase communication watchdog timer in 50ms increments. If CL persists with verified cabling and settings, the communication option card may have failed. These plug-in modules are replaceable but require parameter backup and restoration. Intermittent CL faults appearing randomly often indicate marginal solder joints on communication card connectors or failing optocouplers in the interface circuitry.
InF — Internal Communication Fault
InF represents a serious internal failure—the drive's control board cannot communicate with its power board over the internal system bus. Lenze drives use a high-speed serial connection between the microprocessor control section and the gate driver/protection circuits on the power board. This internal bus carries critical data including switching commands, fault status, and sensor readings. Loss of this communication path renders the drive inoperable. External causes are limited but include severe electrical noise from nearby welders, large contactors, or radio transmitters inducing voltage transients that disrupt digital signals. Check for proper grounding of the drive chassis and shielded motor cables. Internal causes include connector oxidation on board-to-board connections, cracked solder joints from thermal cycling or vibration, or component failure in the communication interface ICs. Power cycling may temporarily restore communication if oxidation is the issue, but the fault will recur. InF appearing after a power surge or lightning event suggests damaged communication ICs or microprocessor. This fault requires component-level board repair with oscilloscope diagnosis to trace signal integrity, reflow of suspect connections, and potential replacement of communication controller chips—repairs that demand specialized electronics expertise and schematic access.
Hardware Faults
EEP — EEPROM Error
The EEP fault indicates corruption or failure of the non-volatile memory that stores drive parameters. EEPROM (Electrically Erasable Programmable Read-Only Memory) chips retain parameter settings when power is removed, ensuring your configuration survives outages. When the drive boots, it performs a checksum verification of stored parameters. If the checksum fails, indicating data corruption, EEP fault appears and the drive loads factory default parameters instead. Common causes include end-of-life wear on the EEPROM chip (typically rated for 100,000 write cycles), electrical transients during parameter changes, or voltage drops during EEPROM write operations. If EEP appears once, clear the fault, reconfigure parameters from your backup documentation, and monitor for recurrence. Frequent EEP faults indicate failing memory that requires control board repair. Some Lenze 8400 models allow parameter upload to a keypad programmer or PC software—implement regular parameter backups as preventive maintenance. Power quality issues causing brown-outs during EEPROM writes can corrupt memory; install appropriate surge protection and voltage conditioning. In rare cases, firmware bugs can trigger false EEP faults—verify you're running the latest firmware version. Component-level repair replaces the EEPROM chip and verifies supporting circuitry including voltage regulators and write-enable signals.
GF — Ground Fault
GF signals the drive detected current leaking to ground, indicating insulation failure somewhere in the motor circuit. Ground fault protection prevents electric shock hazards and equipment damage from insulation breakdown. The drive monitors current balance between output phases and return ground path using residual current detection. When leakage exceeds threshold (typically 20-50% of rated current), GF trips. Motor cable insulation damage from abrasion, chemical exposure, or moisture intrusion commonly causes ground faults. Perform insulation resistance testing on motor and cables using a 500V or 1000V megger—readings below 1 megohm to ground indicate deteriorated insulation. Motor winding insulation fails from thermal aging, contamination, or manufacturing defects. In wet environments, condensation inside motor terminal boxes creates ground paths. Check for water ingress, clean and dry terminal boxes, and apply dielectric grease to connections. Drive-side GF faults (with motor disconnected) indicate failed output IGBTs with internal gate-to-case shorts or damaged output filter components. Some Lenze models include adjustable ground fault sensitivity in parameter C089—nuisance trips from high-frequency leakage current in long motor cables may require threshold adjustment. Persistent GF with verified motor and cable integrity suggests failed ground fault detection circuitry requiring control board repair.
When to Repair vs Replace Your Lenze 8400
The Lenze 8400 series, while extremely reliable, has been largely superseded by the i500 series featuring enhanced networking, higher switching frequencies, and improved diagnostics. Many 8400 frame sizes are discontinued, making new replacement units unavailable or requiring application redesign around i500 alternatives. This reality makes component-level repair economically attractive. A professional Lenze drive repair for common faults typically costs $350-$900 depending on failure mode and frame size, while new i500 drives range from $800 for fractional horsepower units to $4,000+ for 20HP and larger frames. Repair makes clear economic sense when the drive itself is sound but a specific component failed—IGBT module replacement, control board repair, cooling fan replacement, or power supply rebuilding. Drives with multiple simultaneous failures or severe damage from lightning, flooding, or catastrophic shorts may exceed repair viability. Consider the application: if the 8400 integrates with legacy equipment through specific I/O or communication protocols, replacing with i500 may require PLC programming changes and system reconfiguration adding significant cost. Repair preserves the existing drop-in functionality. For critical applications, maintain a spare drive rather than relying solely on repair turnaround times. Flexa Systems offers free diagnostic evaluation to assess repair viability versus replacement, providing transparent cost comparison before you commit to either path.
How Flexa Systems Repairs Lenze Drives
Flexa Systems specializes in component-level repair of Lenze 8400 and i500 series drives, going far beyond simple board swapping to diagnose and repair the actual failed components. The repair process begins with comprehensive intake testing on specialized VFD test stands capable of simulating real-world load conditions. Technicians document the reported fault code and verify the failure under controlled conditions. Using oscilloscopes, thermal imaging cameras, and in-circuit testers, they trace failures to specific components—failed IGBT modules, degraded gate drivers, dried electrolytic capacitors, corrupted firmware, or damaged current sensors. Repairs use OEM-equivalent or superior components, not generic substitutes. IGBT modules are sourced from original manufacturers like Infineon, Semikron, or Mitsubishi. Electrolytic capacitors are upgraded to 105°C rated components exceeding original specifications. All repaired drives undergo burn-in testing at full rated current for minimum four hours to verify repair integrity and identify infant mortality failures before return to service. Flexa Systems backs every VFD repair with a comprehensive 2-year warranty covering parts and labor, demonstrating confidence in repair quality. Turnaround time averages 5-7 business days for standard repairs, with rush service available for critical applications. The no-fix no-charge policy means if a drive is deemed unrepairable, you pay nothing for the diagnostic evaluation.
