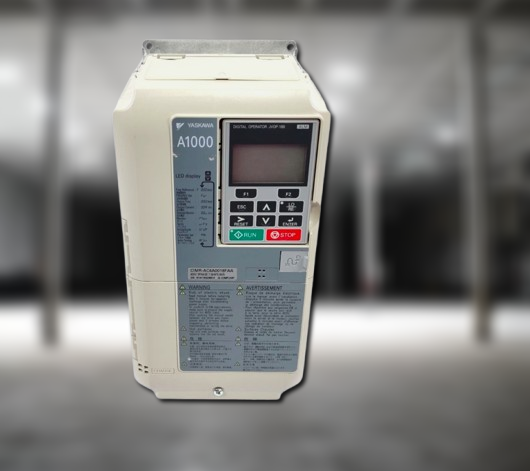

The Yaskawa A1000 (CIMR-AU series) has earned its reputation as one of the most versatile and reliable variable frequency drives on the market, trusted across industries from HVAC and water treatment to material handling and manufacturing. With its robust design, advanced vector control capabilities, and flexible programming options, the A1000 delivers consistent performance in demanding applications. However, like all industrial equipment, A1000 drives eventually display fault codes that halt production. Understanding these error codes is critical for maintenance technicians and plant managers who need to quickly diagnose issues and minimize downtime. This comprehensive guide walks you through the most common Yaskawa A1000 fault codes, their root causes, and practical troubleshooting steps.
How Yaskawa A1000 Fault Codes Work
The Yaskawa A1000 displays fault codes as alphanumeric characters on the keypad display when protective functions are triggered. When a fault occurs, the drive trips and stops motor operation while showing the current fault code. The A1000 stores fault history in parameters U2-02 through U2-20, allowing technicians to review the last 19 fault events along with frequency, current, voltage, and operating status at the time of each fault. This fault trace function provides invaluable diagnostic information for intermittent problems. Parameter U2-01 displays the most recent fault. To clear faults, you can cycle power, press the RESET button on the keypad, apply a reset signal to a digital input terminal, or send a reset command via communication networks. Some critical hardware faults like CPF (CPU Fault) cannot be cleared and require component-level repair. Understanding the fault history pattern helps distinguish between transient events and chronic failures requiring intervention.
Overcurrent Faults
oC (Overcurrent)
The oC fault indicates the drive detected excessive output current during acceleration, deceleration, or constant speed operation. This is one of the most common yaskawa a1000 fault codes and typically results from several scenarios. First, IGBT (Insulated Gate Bipolar Transistor) failure in the inverter section can cause current regulation to fail, triggering immediate overcurrent protection. Second, motor winding shorts or turn-to-turn faults create low-impedance paths that draw excessive current. Third, damaged motor cables with shorted conductors produce the same effect. Mechanical issues like seized bearings or jammed loads can also cause current spikes as the motor struggles against the obstruction. When troubleshooting oC faults, measure motor winding resistance and insulation resistance with a megohmmeter to rule out motor problems. Inspect cables for damage, particularly at flex points and cable entry locations. If the motor and cables test properly, the fault likely originates in the drive's power section, specifically failed IGBTs, gate drivers, or current sensors requiring professional repair.
GF (Ground Fault)
A GF fault triggers when the drive detects current leaking to ground, indicating motor insulation breakdown or cable damage. The A1000's ground fault detection circuit monitors for imbalanced current flow, responding within microseconds to protect personnel and equipment. Motor insulation deteriorates over time due to thermal cycling, moisture ingress, chemical exposure, or voltage stress. Cables routed through harsh environments develop insulation cracks where conductors contact grounded conduit or cable trays. To diagnose GF faults, disconnect the motor cables at the drive and measure insulation resistance from each motor phase to ground—readings should exceed 1 megohm, though higher is better. Test cables separately from the motor. If insulation resistance is low, the motor likely needs rewinding or replacement. Nuisance GF trips with good insulation may indicate failed ground fault detection circuitry in the drive itself.
SC (Short Circuit)
The SC fault represents a critical hardware failure where IGBTs in the inverter section experience shoot-through—simultaneous conduction of upper and lower devices in the same phase leg. This catastrophic condition creates a direct short across the DC bus, drawing thousands of amperes within microseconds. The A1000's desaturation detection circuits monitor IGBT voltage drop to detect and respond to shoot-through conditions before destruction occurs, though partial damage often results. SC faults stem from failed IGBT modules, defective gate driver boards, control board malfunctions sending incorrect switching signals, or DC bus capacitor failures creating voltage instability. Unlike oC faults that might clear after addressing external issues, SC faults always indicate internal drive damage requiring component-level repair. Never attempt to restart a drive after an SC fault without professional diagnosis—further damage to power boards and control electronics often results.
Voltage Faults
Uv (DC Bus Undervoltage)
The Uv fault occurs when DC bus voltage drops below the drive's minimum operating threshold, typically around 200VDC for 230V models or 400VDC for 460V models. Input power loss is the most obvious cause—blown fuses, tripped breakers, loose connections, or utility voltage sags. DC bus capacitor aging is another common culprit, especially in drives over ten years old. As electrolytic capacitors dry out, their capacity to maintain voltage during load transients diminishes, causing Uv trips during motor acceleration. Defective rectifier bridges or charging resistor circuits can also prevent proper DC bus charging. Check input voltage at the drive terminals with the unit powered but not running. Measure DC bus voltage at the P/+ and N/- terminals (exercise extreme caution—lethal voltage present). Compare actual voltage to the expected value based on input voltage (approximately 1.35 times line-to-line AC voltage). Significant deviation indicates rectifier or capacitor problems requiring repair.
ov (DC Bus Overvoltage)
The ov fault triggers when DC bus voltage exceeds safe limits, typically 410VDC for 230V drives or 820VDC for 460V drives. Regenerative energy from decelerating high-inertia loads is the most frequent cause. When the motor acts as a generator during deceleration, energy flows back into the DC bus faster than the drive's braking resistor can dissipate it or the rectifier can return it to the AC line (if that capability exists). Excessively fast deceleration times (parameter C2-02) exacerbate the problem. Input voltage spikes from poor utility power quality or overvoltage conditions can also trigger ov faults. Solutions include lengthening deceleration time, installing or upgrading the dynamic braking resistor, verifying proper braking resistor connections, or adding regenerative units for severe applications. Check that braking transistor circuitry operates correctly—failed braking IGBTs prevent energy dissipation even with proper resistors installed.
Thermal Faults
oH (Drive Overheating)
The oH fault indicates the drive's internal temperature exceeded safe limits, typically detected by thermistors in the heatsink assembly. Cooling fan failure is a primary cause—A1000 drives use axial fans that wear out after years of operation, particularly in dusty or hot environments. Blocked airflow from accumulated dust and debris on heatsink fins dramatically reduces cooling effectiveness. High ambient temperature beyond the drive's 50°C rating, inadequate cabinet ventilation, or excessive heat from adjacent equipment contribute to thermal issues. Undersized drives running continuously at high loads generate more heat than the cooling system can remove. When troubleshooting oH faults, verify fan operation and rotation direction, inspect heatsink cleanliness, measure cabinet ambient temperature, and review drive loading using parameter U1-03 (electronic thermal load level). Clean heatsinks with compressed air and replace failed fans. Consider cabinet cooling improvements or drive upsizing for chronic thermal problems.
oH1 (Heatsink Overtemperature)
The oH1 fault is more specific than oH, triggered directly by the heatsink thermistor reaching its trip point, typically 85-95°C depending on the drive model. This fault indicates critical thermal conditions in the power section requiring immediate shutdown to prevent IGBT damage. Causes mirror those of oH faults but represent more severe conditions or faster thermal rise rates. Failed thermal paste between IGBTs and heatsink reduces heat transfer, causing localized hot spots even with adequate airflow. Shorted or open thermistor circuits can cause false oH1 trips. After addressing cooling issues, monitor heatsink temperature using parameter U1-01 during normal operation. Temperatures consistently above 70°C suggest inadequate cooling or impending component failure. Component-level repair may be needed if thermal management improvements don't resolve persistent oH1 faults.
oL1 (Motor Overload)
The oL1 fault protects the motor using an electronic thermal model that calculates accumulated heat based on current and time. Unlike mechanical overload relays, the A1000's electronic thermal protection adapts to operating patterns and cooling conditions. oL1 trips occur when calculated motor temperature exceeds the threshold set in parameters H3-02 through H3-04. Common causes include mechanical overloading from process conditions, undersized motors for the application, poor motor cooling from failed motor fans or blocked ventilation, and incorrect motor parameters (especially H3-03 motor rated current) causing improper thermal calculations. To troubleshoot oL1 faults, verify the motor nameplate current matches parameter H3-03, check that mechanical loads haven't increased beyond motor ratings, and confirm motor cooling systems operate properly. Parameter U1-04 displays the electronic thermal load level for the motor—values consistently above 90% indicate chronic overload conditions requiring application changes.
oL2 (Drive Overload)
The oL2 fault indicates the drive's own electronic thermal model calculated excessive internal heating based on output current and duration. This protection prevents drive damage from prolonged operation beyond rated capacity. oL2 faults suggest the drive is undersized for the application, operating continuously in the high-load region above 100% rated current. Heavy frequent starting and stopping of high-inertia loads can trigger oL2 even if steady-state current remains reasonable. To diagnose oL2 problems, monitor parameter U1-03 (drive electronic thermal) during normal operation. Values consistently above 80-90% indicate marginal capacity. Review application duty cycle and current demands. Solutions include reducing load, improving drive cooling, or upgrading to a larger drive frame size. Note that oL2 protection is separate from oH/oH1—adequate cooling doesn't prevent oL2 if current demands exceed drive ratings.
Communication & Control Faults
CE (MEMOBUS/Modbus Communication Error)
The CE fault indicates communication loss on the RS-485 MEMOBUS or Modbus network when the drive is configured for communication control. The A1000 monitors communication health and trips if messages aren't received within the timeout period set in parameter C6-02. Common causes include physical cable problems like broken wires, poor terminations, or excessive cable length beyond the RS-485 specification limits. Incorrect network settings—mismatched baud rates (parameter C6-01), parity, or station addresses—prevent communication. Excessive electrical noise in industrial environments corrupts data packets, particularly with improper cable shielding or routing near high-voltage equipment. Network loading with too many devices or a malfunctioning device disrupting the bus causes intermittent CE faults. Troubleshoot by verifying cable continuity and 120-ohm termination resistors at both network ends, confirming communication parameters match the master controller, testing with minimal network configuration to isolate problematic devices, and using shielded twisted-pair cable with proper grounding.
EF0 (External Fault)
The EF0 fault triggers when a digital input programmed as an external fault input (typically S1-S7, programmable through H1 parameters) activates. This functionality allows external safety systems, process interlocks, or equipment protection devices to directly trip the drive. EF0 isn't a drive malfunction but rather a designed safety feature. To diagnose EF0 faults, identify which digital input is programmed for external fault (look for H1 parameter value "10"), then trace the external wiring to determine what activated that input. Common external fault sources include emergency stop circuits, temperature switches on external equipment, flow switches, pressure switches, or safety relay outputs. Review the machine's electrical drawings to understand the interlock logic. Clear the external fault condition before attempting to restart the drive.
CPF (CPU Fault)
The CPF fault indicates internal microprocessor or control board failure—one of the most serious yaskawa a1000 error codes. Unlike many faults caused by external conditions, CPF represents internal drive malfunction in the control circuitry. The A1000's control board contains multiple microprocessors running continuous self-diagnostics. CPF triggers when these diagnostics detect memory errors, watchdog timer failures, communication failures between processors, or calculation errors. CPF faults are non-recoverable through normal reset procedures. Causes include control board component failures from age, power supply issues feeding the control board, electrical transients damaging logic circuits, or corrupted firmware. Occasionally, loose connections between the control board and power board trigger false CPF faults. When CPF occurs, the drive requires professional component-level repair—the control board needs diagnosis and repair or replacement. Don't attempt repeated power cycling, as this may cause additional damage.
Hardware Faults
CPF00-CPF24 (Various CPU Faults)
The A1000 provides detailed CPU fault subcodes from CPF00 through CPF24, each indicating specific control board failures. CPF00 typically indicates a RAM error, CPF01 signals ROM checksum failure, CPF02 suggests EEPROM data corruption, while CPF03-CPF06 relate to various processor communication failures. CPF07 and higher often indicate peripheral chip failures—A/D converters, gate driver interface circuits, or option card communication problems. These specific codes help repair technicians pinpoint exact failure locations on control boards for targeted component-level repair. All CPF variants require professional service as they represent internal hardware or firmware faults beyond field repair capability. Document the exact CPF subcode when calling for repair services, as this information helps technicians prepare appropriate components and reduces turnaround time. Attempting to operate a drive with persistent CPF faults risks additional damage to control circuitry or power sections.
LF (Output Phase Loss)
The LF fault detects missing or imbalanced output current on one or more motor phases. The A1000 continuously monitors three-phase output currents and triggers LF protection when imbalance exceeds threshold values, indicating an open circuit in the motor connection. Common causes include broken motor cable conductors, loose terminal connections at the drive or motor terminal box, blown fuses in motor control circuits (if contactors are incorrectly installed on the drive output), or open motor windings. To troubleshoot LF faults, perform continuity testing on all three motor cables from drive to motor with power removed, inspect terminal tightness at both ends, and verify no contactors or fuses exist between drive and motor—these components must be on the input side only.
PF (Input Phase Loss)
The PF fault indicates the drive detected missing or severely imbalanced input voltage on one or more phases. The A1000's input phase loss detection monitors AC input voltage balance and frequency. Single-phasing conditions create excessive DC bus ripple and stress drive components. Common causes include blown input fuses, tripped breakers, loose input connections, utility power phase loss, or severely imbalanced utility voltage. Check input voltages at the drive's L1, L2, and L3 terminals with a voltmeter—all three line-to-line voltages should be within a few volts of each other. Inspect input fuses, breakers, and disconnect switch contacts. Verify tight connections at all input terminals. Persistent PF faults with good utility power may indicate failed rectifier diodes or input monitoring circuitry in the drive requiring repair.
When to Repair vs Replace Your Yaskawa A1000
The decision between repairing and replacing a faulted Yaskawa A1000 drive involves several economic and practical considerations. New CIMR-AU drives range from approximately $1,500 for fractional horsepower models to over $12,000 for larger frame sizes with advanced options. In contrast, professional component-level repair typically costs $400-$1,200 depending on the fault type and drive size—often 30-50% of new replacement cost. Yaskawa still actively supports the A1000 series with available parts and technical documentation, though some larger frame sizes are becoming scarce as the platform ages. Repair makes excellent sense for drives under fifteen years old with isolated failures—blown power sections, failed control boards, or defective power supplies. The A1000's modular design facilitates component replacement, and quality repairs with proper testing restore drives to original specifications. Consider replacement when multiple subsystems have failed, when the drive has experienced severe events like lightning strikes or flooding, or when the application requirements have changed necessitating different drive capabilities. Repair offers additional advantages including faster turnaround than procurement of new drives (which may face supply chain delays), maintaining existing programming and parameter settings, and environmental benefits of extending equipment life. A reputable repair facility offering a comprehensive 2-year warranty on repairs provides confidence comparable to new equipment.
How Flexa Systems Repairs Yaskawa A1000 Drives
Flexa Systems specializes in component-level repair of Yaskawa A1000 drives using advanced diagnostic equipment and OEM-quality replacement components. Our repair process begins with comprehensive testing to identify all failed components, not just obvious damage. We evaluate IGBT modules under full load conditions, test gate driver boards for proper switching signals, verify DC bus capacitor capacitance and ESR values, check control board processors and memory chips, and measure power supply output regulation. This thorough diagnostic approach—provided free of charge—ensures we identify all issues before beginning repairs. Our technicians replace failed components with high-quality equivalents meeting or exceeding original specifications, then conduct extensive burn-in testing under simulated load conditions to verify reliable operation. We test protective functions including overcurrent, overvoltage, and thermal shutdown to confirm all safety systems operate correctly. Every repaired A1000 receives our comprehensive 2-year warranty covering parts and labor, demonstrating our confidence in repair quality. Our no-fix, no-charge policy means you only pay if we successfully repair your drive. This approach has made us a trusted partner for facilities nationwide requiring reliable VFD repair services. With deep expertise in Yaskawa drive architecture and commitment to quality, Flexa Systems delivers repair solutions that extend equipment life while minimizing your capital expenditure.
Get a Free Yaskawa A1000 Repair Quote
If your Yaskawa A1000 drive has faulted and production is down, Flexa Systems is ready to help with fast, professional repair service. Our team has extensive experience with yaskawa a1000 troubleshooting across all CIMR-AU frame sizes and fault codes, from common issues like oC and Uv faults to complex CPF control board failures. We understand that downtime costs money, so we prioritize quick turnaround—most repairs are completed within 3-5 business days. Contact us today at (855) 600-1938 to speak with a technical specialist who can discuss your specific fault codes and provide repair recommendations. Our free diagnostic service means there's no risk in sending your drive for evaluation. We'll provide a detailed quote before performing any repairs, and our no-fix, no-charge guarantee ensures you only pay for successful repairs. Visit our quote request page to submit drive details online, or call now to expedite your repair. With Flexa Systems, you get expert component-level repair, competitive pricing, fast turnaround, and the peace of mind that comes with our industry-leading warranty. Let us help get your Yaskawa A1000 drive back in service quickly and reliably.
