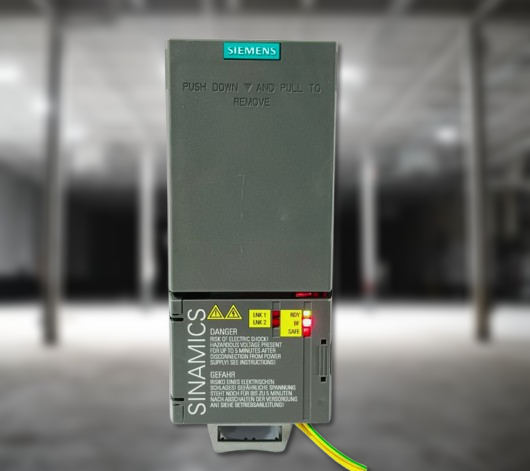

The Siemens SINAMICS G120 stands as one of the most widely deployed variable frequency drives in modern industrial automation, powering everything from conveyor systems to HVAC applications across manufacturing facilities worldwide. When these reliable drives throw fault codes, production stops and costs mount quickly. Understanding Siemens G120 fault codes is essential for maintenance teams who need to diagnose issues rapidly and get equipment back online. This comprehensive guide decodes the most common Siemens SINAMICS G120 error codes, explains their root causes, and provides expert troubleshooting strategies.
How Siemens G120 Fault Codes Work
Siemens SINAMICS G120 drives use a standardized fault code format consisting of five digits prefixed by either "F" for faults or "A" for alarms. The nomenclature follows the pattern F##### or A#####, where faults cause the drive to trip and shut down, while alarms serve as warnings that don't necessarily stop operation. The fault code structure distinguishes between Control Unit (CU) faults—which originate from the intelligent control module—and Power Module (PM) faults that indicate issues with the power electronics. Operators can view active faults on the BOP-2 (Basic Operator Panel) display, while the fault buffer parameter r0947 stores a historical log of up to eight previous faults with timestamps. This fault memory proves invaluable when diagnosing intermittent issues. Understanding whether you're dealing with a CU or PM fault immediately narrows the troubleshooting scope and helps determine if the issue is control-related or power-stage related.
Overcurrent & Short Circuit Faults
F7011 — Motor Overcurrent
Fault F7011 indicates that the drive has detected excessive current flowing to the motor, exceeding the configured current limits. This Siemens G120 fault code typically appears when the motor experiences mechanical overload, such as a jammed conveyor, seized bearing, or blocked pump impeller. The drive's internal current monitoring compares actual motor current against parameter p0640 (maximum current) and trips when this threshold is exceeded for the duration specified in p0642. Troubleshooting begins with inspecting the mechanical load—disconnect the motor from its load and run it unloaded to determine if the issue is mechanical or electrical. Check for phase imbalance in the motor windings using a megohmmeter, as a developing ground fault or shorted turns can cause asymmetric current draw. Verify that the motor nameplate data has been correctly entered into the drive parameters (p0307 through p0311), as incorrect motor parameters can cause the drive to deliver improper current. Review the load profile to ensure the application hasn't changed in ways that exceed the motor's continuous duty rating.
F7012 — Drive Overcurrent
F7012 represents an overcurrent condition detected within the drive itself, distinct from motor overcurrent. This fault triggers when the drive's power electronics detect current levels that threaten the IGBT modules or other internal components. Common causes include output short circuits, motor cable damage with phase-to-phase or phase-to-ground shorts, and improperly sized drives for high-inertia loads with aggressive acceleration rates. When troubleshooting F7012, disconnect the motor cable at the drive output terminals and perform insulation resistance testing on the cable—readings below 1 megohm to ground indicate cable damage. Examine the motor cable routing for damage from pinching, excessive bending, or contact with sharp edges. Check the ramp-up time parameter (p1120) and ensure acceleration isn't too aggressive for the load inertia, which can cause current spikes during starting.
F30001 — Power Module Overcurrent
The F30001 fault code signals overcurrent detection at the Power Module level, indicating a serious condition within the PM's IGBT circuitry. This fault often results from catastrophic IGBT failure, gate driver problems, or DC bus capacitor degradation. Unlike higher-level overcurrent faults that might resolve with parameter adjustments, F30001 typically indicates component-level damage requiring Siemens repair or module replacement. The fault can be triggered by output short circuits that weren't cleared quickly enough, repetitive overcurrent events that thermally stressed the IGBTs, or aging components that have exceeded their operational lifecycle. When F30001 appears, do not attempt repeated restarts, as this can cause additional damage to already-compromised power semiconductors. Instead, perform visual inspection of the PM for burn marks, swollen capacitors, or discoloration. Measure DC bus voltage when powered but not enabled—significant deviation from expected levels (approximately 1.35 times line voltage for 480VAC input) suggests DC bus or rectifier problems. Professional component-level repair is almost always required for F30001 faults.
Voltage Faults
F7902 — DC Link Overvoltage
F7902 appears when the DC link voltage exceeds the maximum threshold, typically caused by regenerative energy from decelerating high-inertia loads that cannot be dissipated quickly enough. During motor deceleration, the motor acts as a generator, pumping energy back into the drive's DC bus. If the deceleration rate is too fast or if a braking resistor is missing or undersized, this regenerated energy causes voltage to rise dangerously. Check parameter p1121 (ramp-down time) and increase it to allow more gradual deceleration. Verify that the braking resistor, if installed, is functioning—measure its resistance and confirm it matches the nameplate specification. Inspect the braking chopper circuit for proper operation. In some cases, F7902 occurs due to incoming line voltage fluctuations or utility power quality issues; monitor input voltage with a power quality analyzer during fault occurrence to rule out external causes.
F7901 — DC Link Undervoltage
The F7901 fault indicates DC link voltage has dropped below the minimum operational threshold, preventing the drive from maintaining proper motor control. Common causes include incoming power interruptions, loose power connections, failing DC bus capacitors, or rectifier bridge problems. This fault frequently appears during momentary power dips or during starting when inrush current causes voltage sag. Verify incoming power voltage stability and phase balance—missing phases or severe imbalance will trigger F7901. Inspect all power connections from the disconnect switch through the drive input terminals for tightness and corrosion. Check parameter p2172 (Vdc min controller) settings, though default values are typically appropriate. Measure the DC bus voltage at the PM's test points during operation; voltage significantly below expected levels indicates rectifier or capacitor degradation requiring component replacement.
F30003 — DC Link Undervoltage (PM)
F30003 represents a Power Module-level detection of DC link undervoltage, indicating the PM's internal monitoring has detected critically low bus voltage. This fault specifically points to issues within the PM itself rather than external power supply problems. Potential causes include failing electrolytic capacitors in the DC bus (common after 5-7 years of operation), damaged rectifier diodes, or faulty voltage sensing circuitry on the PM board. When F30003 appears alongside normal incoming voltage, the PM likely requires repair or replacement. Capacitor degradation is the most common culprit—electrolytic capacitors lose capacitance and increase ESR over time, reducing their ability to maintain stable DC voltage under load transients.
Thermal Faults
F7011 — Motor Overtemperature
Motor overtemperature fault F7011 triggers when thermal sensors embedded in the motor windings detect excessive temperature. Siemens G120 drives support both PTC thermistor and KTY84 temperature sensor inputs configured through parameter p0601. This fault protects the motor from insulation damage and winding failure due to thermal stress. Root causes include inadequate ventilation around the motor, blocked cooling fans, excessive ambient temperature, continuous operation above rated load, or too-frequent start/stop cycles that don't allow adequate cooling time. Verify the motor's cooling fan operates correctly and that airflow paths are unobstructed. Check that the application duty cycle matches the motor's rating—continuous duty motors shouldn't be used in high-cycling applications without appropriate derating. Confirm the thermal sensor connections at terminal X3 on the CU and verify parameter p0601 matches the installed sensor type (PTC, KTY84, or bimetal).
F30004 — Power Module Overtemperature
F30004 indicates the Power Module's heatsink temperature has exceeded safe operating limits, as measured by the PM's integrated temperature sensor. This Siemens drive fault code appears when ambient temperature is excessive, cooling airflow is blocked, cooling fans have failed, or the drive is operating beyond its continuous current rating. Inspect the drive's ventilation—ensure minimum clearances are maintained (typically 100mm above and below), clean heatsink fins of dust and debris, and verify all cooling fans operate. Check the ambient temperature against the drive's specifications (typically 0-40°C for standard models). Review the load profile to confirm the drive isn't continuously operating above its rated current; parameter r0027 shows actual output current as a percentage of rated. If the drive is properly sized but still overheating, this may indicate degraded thermal interface material between IGBTs and heatsink or failing thermal sensors requiring professional repair.
Communication Faults
F7910 — PROFINET Communication
Fault F7910 signals a PROFINET communication failure between the G120 and the PLC or controller. This fault appears when the cyclic data exchange is interrupted for longer than the configured monitoring time (parameter p2045). Common causes include network cable damage, incorrect IP address configuration, network topology issues, or PLC program faults. Begin troubleshooting by verifying physical layer connectivity—check the PROFINET cable for damage, confirm proper RJ45 termination, and ensure the link LED on the CU illuminates green. Verify IP addressing in parameters p8920-p8923 matches the configuration in your TIA Portal or STEP 7 project. Check that the PROFINET device name (p8929) matches exactly, as name mismatches prevent proper connection establishment. Use the network diagnostics features in TIA Portal to identify topology problems or EMI issues. Ensure the PLC's PROFINET configuration includes the correct GSD file for your specific CU model, as mismatched configurations cause communication failures even with proper physical connectivity.
F8501 — PROFIBUS Communication
The F8501 error code indicates PROFIBUS DP communication has been lost or interrupted beyond the tolerance time. This occurs when the PROFIBUS master can no longer communicate with the G120's PROFIBUS slave module. Typical causes include termination resistor problems, bus cable faults, incorrect baud rate settings, or address conflicts on the network. Verify that exactly two terminating resistors exist on the PROFIBUS segment—one at each physical end—and that they're switched ON. Check the PROFIBUS address setting on the drive (parameter p0918) against the configured address in your PLC. Confirm baud rate consistency across all network devices using parameter p2021. Inspect connectors for proper seating and examine cable shields for continuous ground connection. Use a PROFIBUS tester to check signal quality, looking for reflections that indicate termination problems or excessive cable length.
F7085 — No Valid Setpoint
F7085 appears when the drive does not receive a valid speed or torque setpoint within the expected time window. This fault is intentional—it prevents the drive from running with undefined or potentially dangerous setpoint values. The fault typically occurs with fieldbus-controlled drives when communication interrupts or when analog setpoint signals are missing or out of range. Check the setpoint source configuration in parameter p1070 and ensure the selected source is active and providing valid data. For analog inputs, verify 0-10V or 4-20mA signals are present and within the scaling ranges defined in parameters p2000-p2003. For fieldbus control, this fault often accompanies communication faults—resolve the underlying communication issue first.
Hardware Faults
F30011 — Power Module Internal
F30011 is a critical fault indicating an internal Power Module malfunction detected by the PM's self-diagnostics. This generic hardware fault can represent various internal PM failures including EEPROM errors, internal communication problems between the PM microcontroller and gate drivers, or voltage supply irregularities within the PM. Unlike specific faults that point to particular components, F30011 requires detailed diagnosis to identify the failed component. Power cycle the drive completely—disconnect input power for at least 60 seconds to allow all capacitors to discharge, then restore power. If F30011 persists immediately upon power-up before enabling the drive, internal PM electronics have failed. This fault almost always requires component-level repair or PM replacement, as it indicates problems with the PM's control circuitry rather than the power stage. Professional VFD repair services can diagnose the specific failed components through board-level testing.
F30024 — Power Module Ground Fault
F30024 signals that the Power Module has detected a ground fault in the motor circuit, indicating current flowing to ground rather than through the intended motor windings. This protective function prevents equipment damage and electrical hazards. Ground faults most commonly result from motor winding insulation breakdown, damaged motor cables with compromised insulation, or moisture ingress into motor terminal boxes. Disconnect the motor cable from the drive outputs and perform insulation resistance testing on both the cable and motor—test each phase to ground and phase-to-phase using a 500V or 1000V megohmmeter. Acceptable readings are typically above 1 megohm, though motors in wet environments may show lower values. Readings below 1 megohm indicate insulation degradation requiring motor repair or cable replacement. Check the ground fault monitoring threshold in parameter p30803—while defaults are typically appropriate, some applications may require adjustment.
F7860 — Parameter Error
F7860 indicates a parameter conflict or invalid parameter value that prevents proper drive operation. This Siemens G120 troubleshooting scenario often occurs after parameter changes, firmware updates, or when loading parameter sets from incompatible drive configurations. The fault may appear with additional diagnostic information indicating which parameter caused the error. Review recent parameter changes and verify values are within allowable ranges as defined in the parameter manual. Check that interdependent parameters are configured consistently—for example, motor parameters must align logically, and control mode selections must have compatible supporting parameters configured. Perform a parameter comparison between r0949 (quick commissioning) and the actual parameter values to identify discrepancies. In severe cases, perform a factory reset (parameter p0970) and recommission the drive from scratch, though this should be a last resort after documenting existing parameters.
When to Repair vs Replace Your Siemens G120
The modular architecture of the SINAMICS G120 provides significant advantages when faults occur—the Control Unit (CU) and Power Module (PM) are separate, replaceable components, allowing targeted replacement of only the failed module rather than the entire drive. This modularity significantly reduces repair costs compared to integrated drive designs. When deciding between repair and replacement, consider the fault type and module involved. Control Unit failures (F7xxx codes) may be resolved by replacing just the CU, which is relatively inexpensive. Power Module failures (F30xxx codes) present more complex decisions.
New Power Modules range from $800-$3000 depending on frame size and current rating, while complete drive assemblies cost significantly more. Component-level repair offers substantial savings, typically ranging from $400-$1200 depending on the extent of damage and required parts. Repairs include comprehensive diagnosis, replacement of failed semiconductors, capacitors, gate drivers, and control boards, plus extensive testing to verify performance. A professional repair with a 2-year warranty provides reliability comparable to new equipment at a fraction of the cost.
Consider repair when the drive is out of warranty, when downtime permits shipping for repair (typically 5-10 business days), and when cost savings matter. Immediate replacement makes sense for critical applications where extended downtime is unacceptable and when spare modules are unavailable. For facilities with multiple G120 drives, maintaining one spare PM of each size provides the best of both worlds—immediate replacement capability while sending failed modules for cost-effective repair to replenish spare inventory.
How Flexa Systems Repairs Siemens G120 Drives
Flexa Systems specializes in component-level Siemens SINAMICS G120 repair, restoring failed drives to OEM specifications through comprehensive diagnosis and precision component replacement. Our repair process begins with free diagnostics—we thoroughly test every failed drive to identify all faulty components, not just obvious failures. This comprehensive approach prevents return failures caused by undetected secondary damage. Our technicians use advanced test equipment including programmable load banks, oscilloscopes, and thermal imaging to verify complete functionality across all operating conditions.
The repair process addresses common failure modes: IGBT module replacement and testing, electrolytic capacitor replacement (particularly important in drives over five years old), gate driver board repair, DC bus and control board component replacement, and firmware restoration. Each repaired drive undergoes extensive testing including full-load testing at rated current, thermal cycling to verify temperature sensor functionality, and parameter verification to ensure proper configuration storage. We back every repair with a comprehensive 2-year warranty, demonstrating our confidence in the quality and reliability of our work.
Flexa Systems operates on a no-fix, no-charge basis—if we cannot successfully repair your drive, you pay nothing for our diagnostic efforts. This policy eliminates risk and ensures you only pay for successful repairs. Our streamlined process minimizes downtime: contact us at (855) 600-1938 to discuss your failed drive, ship your unit using our provided instructions, receive free diagnostics within 24-48 hours of arrival, and approve the repair quote. Most repairs are completed and shipped back within 5-10 business days of approval. We maintain an extensive inventory of OEM and equivalent replacement components, enabling rapid turnaround even for older drive models with obsolete parts.
Get a Free Siemens G120 Repair Quote
Don't let Siemens drive fault codes keep your production offline longer than necessary. Flexa Systems offers the fastest, most cost-effective path to getting your SINAMICS G120 back in service with professional component-level repair backed by our comprehensive 2-year warranty. Our team of experienced technicians has repaired thousands of Siemens drives across all industries, from simple overcurrent damage to complex multi-component failures. We understand the urgency of your downtime and prioritize rapid turnaround without compromising repair quality.
Getting started is simple: call our technical support team at (855) 600-1938 to discuss your fault codes and failure symptoms, or visit our quote request page to submit details about your failed drive online. We'll provide immediate guidance on whether repair is the right solution for your specific situation and provide transparent pricing before you commit. Our experts can often provide troubleshooting assistance over the phone to help you determine if the issue might be resolved without repair, saving you time and money. For drives requiring service, we'll arrange convenient shipping with detailed instructions to ensure your unit arrives safely at our facility. Take advantage of our free diagnostic service—there's absolutely no risk or obligation, and you'll have complete information to make the best decision for your operation. Visit our Siemens repair page to learn more about our capabilities and process, or call now to speak with a repair specialist who can answer your questions about specific Siemens G120 error codes and get your equipment back online quickly.
