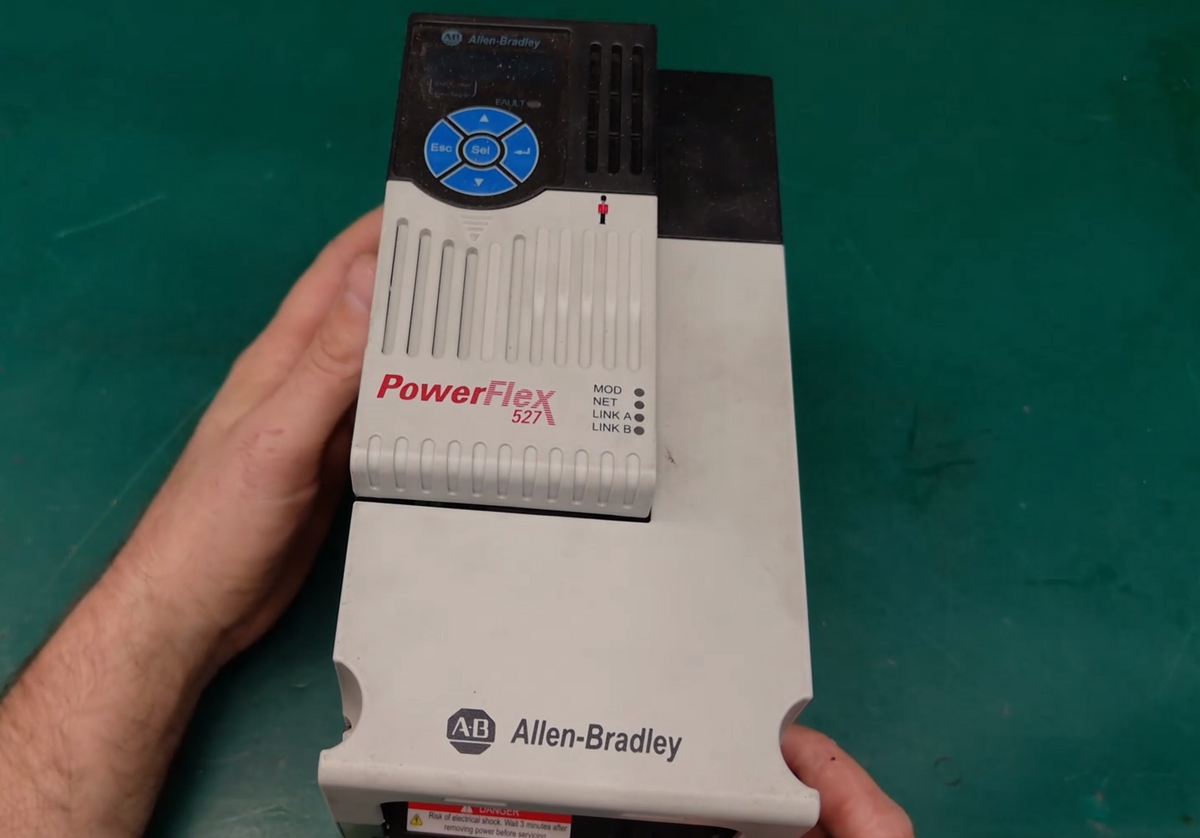

The Allen-Bradley PowerFlex 525 (catalog 25B) is one of the most popular compact AC drives in industrial automation — and when it throws a fault code, your production line stops. Whether you're seeing F002 (Auxiliary Input), F005 (Power Loss), F007 (Motor Overload), or any other fault on the HIM display, this guide covers every common PowerFlex 525 fault code with root causes, troubleshooting steps, and when to call in professional repair.
How PowerFlex 525 Fault Codes Work
The PowerFlex 525 uses two types of fault indicators:
- Type 1 Faults (F0xx): Automatically stop the drive and require a manual reset. The drive stores the last 8 faults in the fault queue (Parameters 40–47).
- Type 2 Faults (F1xx): Less severe — the drive attempts auto-restart based on Parameter 120 (Auto Restart) settings.
You can read fault codes on the integrated HIM keypad, via Connected Components Workbench (CCW), or through EtherNet/IP using Parameter 40 (Fault 1 Code).
Critical PowerFlex 525 Fault Codes
F002 — Auxiliary Input Fault
What it means: An external fault signal was received through a digital input configured as "External Fault" (Parameter 361–366).
Common causes:
- External safety relay or E-stop circuit opened
- Upstream contactor dropped out
- Wiring issue between safety circuit and drive digital input
Fix: Check the external safety circuit. Verify the digital input wiring. If the safety relay or contactor is failing intermittently, replace it. This fault is almost always external to the drive — the drive itself is fine.
F003 — Power Loss
What it means: The drive detected a loss of incoming AC power on the DC bus. The bus voltage dropped below the Power Loss Level threshold (Parameter 166).
Common causes:
- Momentary power interruption or brown-out
- Loose incoming power connections (L1, L2, L3)
- Undersized feeder wiring causing voltage drop under load
- Failed DC bus capacitors (drive can no longer hold voltage during brief sags)
Troubleshoot: Check incoming voltage at the drive terminals under load. If voltage is stable but the fault persists, the DC bus capacitors are likely degraded — this requires component-level repair. Request a free evaluation from Flexa Systems.
F005 — OverVoltage
What it means: DC bus voltage rose above the drive's maximum limit and the drive tripped to protect the bus capacitors and the IGBT module. On the PowerFlex 525 this is almost always regenerated energy the drive cannot absorb.
Common causes:
- Deceleration time too short for the load's inertia — the motor briefly acts as a generator
- Overhauling loads: downhill conveyors, hoists, unwinders driving the motor faster than commanded
- High or unstable incoming line voltage, or transients from other equipment on the same feeder
- No dynamic braking resistor where the duty cycle needs one, or a failed/disconnected one
Troubleshoot: Extend the decel time or enable bus regulation, and fit a braking resistor sized for the duty cycle if the load overhauls. Measure incoming line voltage under load. If the bus reads high with a stable supply and nothing regenerating, the bus voltage feedback circuit needs attention — Request a free evaluation from Flexa Systems.
F007 — Motor Overload Fault
What it means: The drive's electronic thermal overload (I²t) model calculated that the motor has exceeded its thermal capacity.
Common causes:
- Motor running at high current for extended periods
- Incorrect Motor Nameplate Data (Parameters 41–44) — wrong FLA, HP, voltage, or frequency entered
- Mechanical overload — jammed conveyor, stuck pump, bearing failure
- Motor overload level set too low (Parameter 135)
Fix: Verify motor nameplate parameters match the drive settings exactly. Check the mechanical load. If the motor is drawing rated current and still faulting, adjust Parameter 135 (Motor OL Current). If the motor itself is overheating, it may have a winding issue — separate from the drive.
F008 — Heatsink OvrTmp
What it means: The heatsink temperature sensor read above the trip threshold. The drive stops to protect the IGBT module.
Common causes:
- Blocked ventilation — heatsink fins or fan clogged with dust and debris
- Failed cooling fan
- Ambient temperature above the drive's rating, or an enclosure without enough airflow
- Carrier (PWM) frequency set higher than the drive's derating allows
- Continuous operation above the drive's rated current
Troubleshoot: Clean the heatsink and confirm the fan runs at power-up. Check ambient and enclosure temperature against the derating curve for your frame size. If the drive still trips with a clean heatsink, a working fan and normal ambient, the temperature sensor or the thermal interface to the IGBT module is suspect — Request a free evaluation from Flexa Systems.
F012 — HW OverCurrent Fault
What it means: The hardware current sensor detected an instantaneous overcurrent condition that exceeds the drive's maximum current capability.
Common causes:
- Short circuit in motor cables (phase-to-phase or phase-to-ground)
- Motor insulation breakdown causing ground fault
- Sudden mechanical jam causing extreme current spike
- Failed IGBT module — shorted output transistor
Critical: Do NOT repeatedly reset this fault. Measure motor insulation resistance (megger test) before restarting. If insulation is good and cables are clean, the drive likely has a damaged IGBT or gate driver board. Get a free diagnostic.
F013 — Ground Fault
What it means: The drive detected current flowing to ground — a portion of the output current is returning through the ground path instead of through the motor phases.
Common causes:
- Damaged motor cable insulation contacting conduit or tray
- Moisture in motor terminal box or junction box
- Motor winding insulation breakdown to frame
- Excessively long motor cable run (>100m) causing capacitive ground current
Fix: Disconnect the motor and megger test each phase to ground. Minimum acceptable reading is 5 MΩ. If motor passes, check cable insulation. If both pass, the drive's ground fault detection circuit may be overly sensitive or damaged — send it for evaluation.
F033 — Auto Restart Tries Exceeded
What it means: The drive attempted to auto-restart after a Type 2 fault but exceeded the maximum number of restart attempts (Parameter 121).
Common causes:
- Recurring underlying fault that the drive cannot clear on its own
- Parameter 121 set too low for the application
- Intermittent power quality issues causing repeated power loss faults
Fix: Check Parameter 40–47 to identify the original fault that triggered the restart attempts. Fix that underlying issue first.
F038 — Phase U/V/W to Ground Short Circuit
What it means: The drive detected a short circuit between an output phase and ground during the pre-charge or IGBT test sequence.
Common causes:
- Motor cable damage — a phase conductor is touching ground
- Motor winding failure to frame
- IGBT failure — output transistor shorted to the negative DC bus rail
This fault is almost always hardware failure. Disconnect motor cables and clear the fault. If it persists with no motor connected, the drive has a failed IGBT and requires component-level repair.
F048 — Params Defaulted
What it means: The drive has written factory default values to its parameter memory. It is telling you your commissioning data is gone — it is not, by itself, a hardware failure.
Common causes:
- A deliberate reset-to-defaults from the keypad or from software
- A firmware update, or a control module swapped onto a different power module
- Parameter memory corrupted by a power interruption during a write
Troubleshoot: Clear the fault, then reload the application parameters — from a saved copy in Connected Components Workbench, from the keypad's copy function, or from your commissioning record. Keep a current backup: without one, this fault turns a two-minute reset into a re-commissioning job. If the drive defaults itself repeatedly with nobody resetting it, the control board's non-volatile memory is failing — Request a free evaluation from Flexa Systems.
F063 — SW OverCurrent
What it means: The drive's firmware detected output current exceeding the software overcurrent limit. Different from F012 (hardware) — this is a firmware-level protection.
Common causes:
- Incorrect auto-tune — motor parameters don't match actual motor
- Acceleration time too fast for the load inertia
- Sudden load increase during operation
Fix: Run Auto-Tune (Parameter 160) with the motor connected. Increase acceleration time (Parameter 140). If the fault occurs at specific speeds, check for mechanical resonance.
F064 — Drive Overload
What it means: The drive's internal overload model timed out — output current stayed above the drive's continuous rating long enough to reach its thermal limit. This protects the drive itself; motor protection is F007.
Common causes:
- Drive undersized for the load, or a duty cycle heavier than the original design
- Mechanical problem raising torque demand: worn bearings, misalignment, jammed material
- Repeated rapid starts against high inertia
- Acceleration time too short
Troubleshoot: Compare measured output current against the drive's continuous rating, and check the driven machine for binding before blaming the drive. If current stays within rating and the fault still trips, the current feedback path needs checking — Request a free evaluation from Flexa Systems.
F100 — Parameter Checksum Error
What it means: The drive's non-volatile memory (EEPROM) has a corrupted parameter set.
Common causes:
- Power interruption during a parameter save
- EEPROM chip reaching end of life (limited write cycles)
- Firmware corruption
Fix: Try loading factory defaults (Parameter 160 = 1). If the fault persists after reset, the EEPROM chip is failed — this is a board-level repair. Contact Flexa Systems.
PowerFlex 525 Fault Code Quick Reference Table
| Code | Name | Severity | Common Cause | DIY or Repair? |
|---|---|---|---|---|
| F002 | Auxiliary Input | Medium | External safety circuit | DIY — check wiring |
| F003 | Power Loss | Medium | Incoming power / capacitors | Check power; if stable → Repair |
| F005 | OverVoltage | Medium | Regeneration / decel too fast | DIY — extend decel, add braking |
| F007 | Motor Overload | Medium | Wrong parameters / mechanical load | DIY — verify settings |
| F008 | Heatsink OvrTmp | Medium | Fan / ventilation | DIY — clean fan |
| F012 | HW Overcurrent | Critical | Short circuit / IGBT | Megger test; likely Repair |
| F013 | Ground Fault | High | Cable / motor insulation | Megger test; if passes → Repair |
| F033 | Auto Restart Exceeded | Medium | Recurring underlying fault | DIY — fix root cause |
| F038 | Phase-Ground Short | Critical | IGBT failure | Repair |
| F048 | Params Defaulted | Low | Reset to defaults / memory | DIY — reload parameters |
| F063 | SW OverCurrent | Medium | Auto-tune / accel time | DIY — re-tune |
| F064 | Drive Overload | Medium | Undersized drive / mechanical load | Check load; if OK → Repair |
| F100 | Parameter Checksum | High | EEPROM failure | Repair |
When to Troubleshoot vs. When to Send for Repair
You can usually fix these yourself:
- F002 (external wiring), F007 (parameter settings), F033 (find root cause), F048 (clean fan), F064 (re-tune motor)
These almost always need component-level repair:
- F008 with good cables (IGBT failure), F012 with good motor (IGBT/gate driver), F013 with good motor insulation (current sensor), F038 (IGBT short), F100 (EEPROM)
If you're seeing repeated faults that clear temporarily but keep coming back, the drive likely has a degrading component — capacitors, IGBTs, or gate drivers. Repeated resets can cause secondary damage. Get it evaluated before it fails catastrophically.
