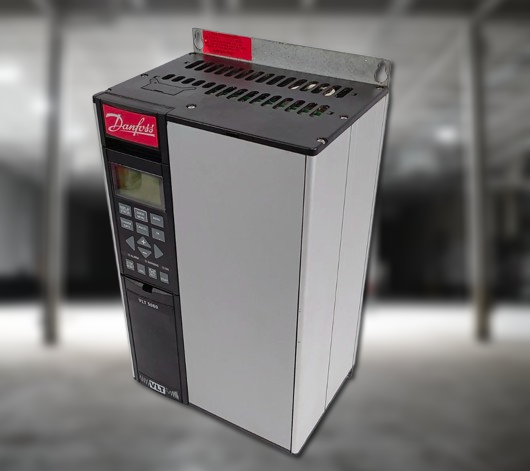

Danfoss VLT variable frequency drives have earned their reputation as workhorses in HVAC systems, water treatment facilities, and industrial manufacturing operations worldwide. When these drives throw fault codes, understanding the root cause quickly can mean the difference between a minor adjustment and extended downtime. This comprehensive guide walks through every major alarm and warning code across the FC102, FC202, and FC302 series, giving maintenance teams and facility managers the technical knowledge needed to diagnose issues accurately and make informed repair decisions.
How Danfoss VLT Fault Codes Work
Danfoss VLT drives distinguish between alarms and warnings based on severity. Alarms cause the drive to trip and stop motor operation immediately, protecting equipment from damage. Warnings indicate abnormal conditions that don't require an immediate shutdown but need attention. The drive stores fault information in the alarm word, a binary register accessible through parameter groups, and maintains an alarm log in parameters 15-30 that records the last ten events with timestamps. Each fault has defined behavior: trip-lock alarms require manual reset via the control panel or external reset signal, while auto-reset alarms clear automatically once conditions normalize. The Local Control Panel (LCP) displays active faults with alarm numbers and descriptions, and the LED array provides quick visual status indication even from a distance across the equipment room.
Overcurrent & Short Circuit Faults
Alarm 13 — Overcurrent
Alarm 13 appears when the drive detects output current exceeding safe operating thresholds during normal operation or acceleration. Unlike an instantaneous short circuit, this fault occurs when current gradually builds beyond the drive's rated capacity, typically 150-160% of nominal current for several seconds. Common causes include mechanical overload on the motor shaft, incorrect motor parameter settings (particularly nominal motor current in parameter 1-24), or a motor winding developing a partial short. Cable issues between the drive and motor can also trigger this fault—loose connections create resistance that causes current spikes. On the drive side, aging or damaged IGBT modules may lose their ability to regulate current properly. Begin troubleshooting by disconnecting the motor and running the drive unloaded; if Alarm 13 persists, the drive has internal component failure requiring professional Danfoss drive repair.
Alarm 14 — Earth Fault
Earth fault detection activates when the drive senses current leakage to ground, indicating insulation breakdown somewhere in the motor circuit. This safety-critical fault protects personnel from electric shock and prevents equipment damage. The most common culprit is motor winding insulation deterioration from moisture, contamination, or thermal aging. Perform a megohm test on the motor windings to ground—readings below 2 megohms typically indicate insulation problems. Cable damage is another frequent cause, particularly where cables run through conduit with sharp edges or where rodents have access. Before condemning the motor, test with the motor cable disconnected from the drive; if the fault clears, the issue lies downstream. If Alarm 14 persists with all output connections removed, internal drive components have failed, often the output IGBTs or gate driver circuits.
Alarm 16 — Short Circuit
Alarm 16 represents the most severe overcurrent condition—an instantaneous short circuit that triggers protective shutdown within microseconds. The drive's current sensing circuits detect a fault condition faster than normal overcurrent protection can respond. This almost always indicates catastrophic IGBT module failure, where the semiconductor junctions have broken down and created a direct short across the DC bus. Less commonly, a phase-to-phase short in the motor cable or motor terminal box causes this fault. The drive's internal protection acts so quickly that it usually saves surrounding components, but the affected IGBT module requires replacement. When this fault appears alongside scorch marks, burning smell, or visible damage to the power section, component-level repair is necessary. Never attempt to reset and run a drive showing Alarm 16 multiple times—each attempt risks cascading damage to additional components.
Voltage & Power Supply Faults
Alarm 7 — DC Overvoltage
The DC bus overvoltage fault triggers when voltage in the drive's internal DC link exceeds safe limits, typically around 410V on 230V models or 820V on 480V units. This most commonly occurs during regenerative braking when the motor acts as a generator, feeding energy back into the DC bus faster than the drive can dissipate it. Short deceleration times on high-inertia loads cause this frequently. Extending deceleration ramps usually resolves the issue. Incoming line voltage running high—above 10% of nominal—can also push the DC bus voltage into fault territory. Measure your facility's supply voltage during normal operation. For applications with frequent braking cycles, Danfoss offers brake chopper options that dissipate excess energy through resistor banks. If Alarm 7 occurs randomly during steady-state operation, suspect failing DC bus capacitors or rectifier problems requiring repair.
Alarm 8 — DC Undervoltage
DC undervoltage faults indicate the DC bus voltage has dropped below the minimum threshold needed for proper motor control, typically 200V on 230V models or 400V on 480V drives. Incoming power supply problems top the list of causes—check for loose connections at the input terminals, blown fuses in the facility's distribution panel, or voltage sags from other equipment starting up. Undervoltage events can occur when large motors or welders share the same transformer. Measure line voltage during operation and at startup. Within the drive, failing DC bus charging resistors or rectifier bridges prevent proper DC bus formation. Three-phase input issues show up here too—loss of one phase causes the DC bus to collapse. If your facility experiences chronic voltage instability, consider adding an AC line reactor or isolation transformer upstream of the VLT drive.
Alarm 3 — No Motor Connected
This fault appears when the drive attempts to start but cannot detect motor presence on the output terminals. During initial power-up, the drive performs checks including measuring output circuit resistance. Open motor contactors between the drive and motor trigger this alarm frequently in systems using external switching. Broken conductors in the motor cable, open motor thermal overloads, or disconnected motor leads at the terminal box all present as no load detected. Parameter setting errors, particularly incorrect motor nominal current values set much higher than the actual motor rating, can cause false detection. Verify continuity through the entire circuit from drive output terminals to motor windings. Check that enabling interlocks and emergency stop circuits are closed.
Thermal Protection Faults
Alarm 29 — Heatsink Temperature
Alarm 29 activates when the drive's heatsink temperature exceeds safe operating limits, typically 90-95°C depending on model. This thermal protection prevents IGBT destruction from overheating. Insufficient cooling airflow is the primary cause—verify that all cooling fans operate and that intake and exhaust vents aren't blocked. Drives installed in enclosed cabinets without adequate ventilation frequently overheat, especially in warm environments. Ambient temperature above the drive's rating (usually 40-45°C) contributes to thermal faults. Dust and debris accumulation on the heatsink fins insulates them from cooling airflow. Establish preventive maintenance schedules that include heatsink cleaning. Failed cooling fans require immediate replacement. Thermal compound between the IGBT modules and heatsink degrades over time, reducing heat transfer—this requires factory-level repair with proper thermal interface material application and torque specifications.
Alarm 72 — Dangerous Temperature
When heatsink temperature reaches critical emergency levels, Alarm 72 forces immediate shutdown to prevent component destruction. This represents a more severe condition than Alarm 29 and typically appears when cooling has failed completely or the drive operates severely overloaded. By the time this fault occurs, component damage may have already begun. Check all cooling fans immediately—on larger frame sizes, multiple fans work together and loss of one reduces cooling capacity substantially. This fault appearing during normal load conditions suggests internal problems such as failing IGBTs that run hot even at moderate current levels. Drives showing Alarm 72 require thorough inspection before returning to service. Component-level diagnostics can identify damaged semiconductors before catastrophic failure occurs.
Alarm 9 — Inverter Overload
Electronic thermal overload protection calculates accumulated heat in the drive's power semiconductors based on output current over time. Alarm 9 trips when this thermal model predicts component temperatures approaching damage thresholds, even if heatsink temperature remains acceptable. Operating the drive continuously at or near maximum current rating without adequate cooling periods causes this fault. Undersized drives for the application, incorrect motor parameter settings that allow excessive current, or repeated rapid start-stop cycles all contribute. Review the drive's current history through the parameter menu—parameters 16-10 through 16-18 display current, voltage, and power measurements. Compare actual operating current against the drive's nameplate rating. If consistently running above 90% of rated current, consider upgrading to the next frame size. Proper motor parameter configuration, particularly the torque limit settings, prevents overload conditions.
Communication & Control Faults
Alarm 34 — Fieldbus Communication Fault
Alarm 34 appears when the drive loses communication with the industrial network controller, affecting systems using PROFIBUS, PROFINET, EtherNet/IP, Modbus, or other communication protocols. Modern facilities rely heavily on networked drive control, making this fault particularly disruptive. When communication drops, the drive's response depends on parameter 8-04 (fieldbus timeout action)—options include coasting to stop, tripping with alarm, continuing at preset speed, or stopping according to the selected ramp. Begin troubleshooting at the physical layer: verify cable connections at both the drive and network switch or controller, check that terminating resistors are properly installed on bus topologies, and confirm cable specifications meet the protocol's requirements. Network configuration errors such as duplicate node addresses, incorrect baud rates, or wrong protocol selection in parameter 8-07 prevent communication establishment. Use Danfoss's MCT 10 software to monitor network status and diagnostic counters. Intermittent Alarm 34 often indicates cable problems or electrical noise coupling into network cabling.
Alarm 17 — Control Word Timeout
When operating via fieldbus control, the drive expects regular control word updates from the master controller. Alarm 17 trips if these updates stop arriving within the timeout period configured in parameter 8-04. This safety feature prevents runaway conditions if the PLC or HMI crashes while the drive is running. Controller CPU faults, network switch failures, or software crashes in the supervisory system all cause control word timeout. The fault may also appear during PLC programming or firmware updates when the controller stops scanning. Many integrators configure this timeout between 1-5 seconds. Verify the controller's communication task is running and scan time is adequate. If timeout faults occur regularly during normal operation, increase the timeout value in parameter 8-04 or investigate controller performance issues.
Hardware & Internal Faults
Alarm 38 — Internal Fault
Alarm 38 is Danfoss's catch-all designation for internal hardware or software faults that don't fit other specific categories. This cryptic alarm often indicates control board failures, memory errors, or firmware corruption. The specific failure may be logged in extended alarm parameters—check parameter 15-32 for additional diagnostic information. Power cycling the drive sometimes clears transient software errors, but persistent Alarm 38 after multiple power cycles indicates genuine hardware failure. Common causes include failed gate driver circuits, control board component failures, or corrupted parameter memory. Lightning strikes or power surges damage control electronics while leaving the power section intact. These internal faults require diagnostic equipment and component-level repair capabilities beyond typical maintenance department resources. Flexa Systems' technicians use specialized test equipment to isolate internal failures to specific control board sections, replace damaged components, and verify proper operation before returning drives to service with our 2-year warranty.
Alarm 39 — Heatsink Sensor Fault
The heatsink temperature sensor, typically a thermistor mounted within the power section, provides critical feedback for thermal protection. Alarm 39 indicates this sensor has failed, is disconnected, or is reading values outside possible physical ranges. Without accurate temperature data, the drive cannot protect itself from overheating, making this a safety-critical fault. Sensor failures occur from vibration breaking solder joints, thermal cycling causing wire fatigue, or the thermistor itself degrading. This fault requires drive disassembly to access the heatsink and power section, test sensor continuity and resistance values, and replace the sensor if defective. The replacement sensor must match the original specifications—using incorrect thermistors gives false readings that either cause nuisance faults or fail to protect against actual overheating.
Alarm 45 — Earth Fault 2
Unlike Alarm 14 which uses voltage-based earth fault detection, Alarm 45 indicates ground fault detection via current transformer (CT) sensing on drives equipped with advanced ground fault monitoring. This system measures current flow on all three output phases plus the ground connection—any imbalance indicates leakage current. The CT-based detection is more sensitive and can identify developing insulation problems before they become severe. Troubleshooting follows similar procedures to Alarm 14: isolate the motor and cables to determine if the fault lies in the drive or the connected equipment. High-frequency switching from the drive's PWM output can induce common-mode currents that appear as ground faults, particularly with long motor cables. Installing output filters or using shielded cable with proper grounding techniques often resolves these issues.
When to Repair vs Replace Your Danfoss VLT Drive
The decision between repairing and replacing a faulted Danfoss VLT drive depends on several factors: drive age, parts availability, repair costs versus replacement costs, and downtime tolerance. Current-generation FC302 drives remain fully supported with excellent parts availability, making repair the obvious economic choice. Older FC300 series drives, while no longer in production, are still excellent candidates for repair—these proven workhorses often have decades of service life remaining after component-level restoration. Even discontinued FC202 and FC102 series drives can often be economically repaired when core components remain intact.
Professional component-level repair typically costs $400-$1100 depending on frame size and failure mode, representing 25-40% of new drive replacement cost. Factor in programming time to configure a replacement drive, potential mechanical modifications if exact replacements aren't available, and production downtime during procurement and installation. Repair turnaround of 5-10 business days often proves faster than ordering, receiving, and installing new equipment. The environmental advantage of repair shouldn't be overlooked—keeping drives out of landfills and avoiding the manufacturing impact of new units aligns with corporate sustainability goals.
Replacement makes sense when drives have suffered catastrophic damage affecting multiple subsystems, when facility upgrades require different drive features or sizes, or when the application has changed significantly since original installation. However, don't assume that older drives must be replaced—proper component-level repair restores drives to original specifications with reliability matching or exceeding new units. The key is working with repair facilities that maintain deep component inventory, have manufacturer-level training, and back their work with comprehensive warranties.
